Pin Voltage Test

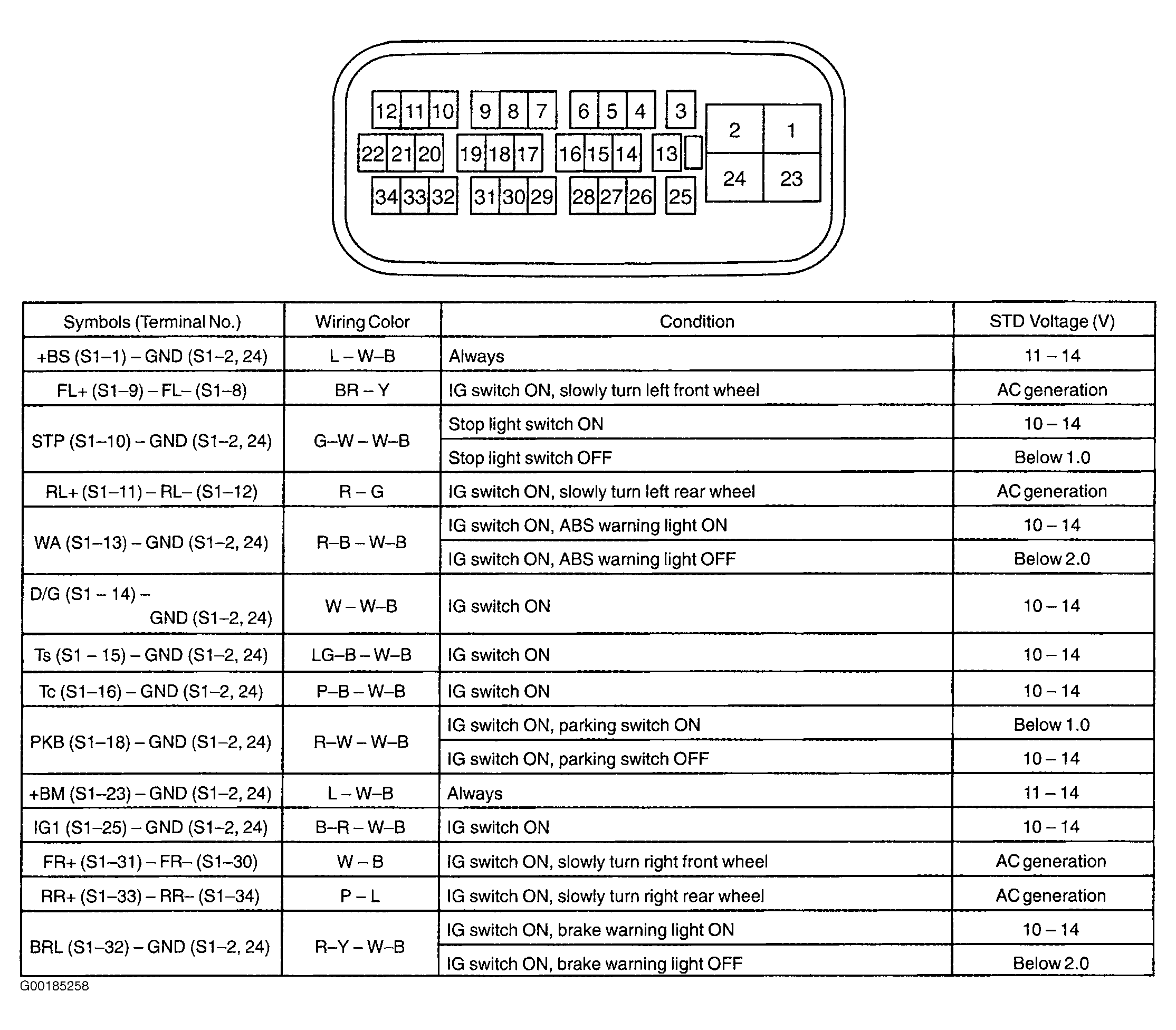

Fig 1: ABS ECU Pin Voltage Chart

G00185258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
