Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

This DTC indicates the internal abnormalities of the ECM.

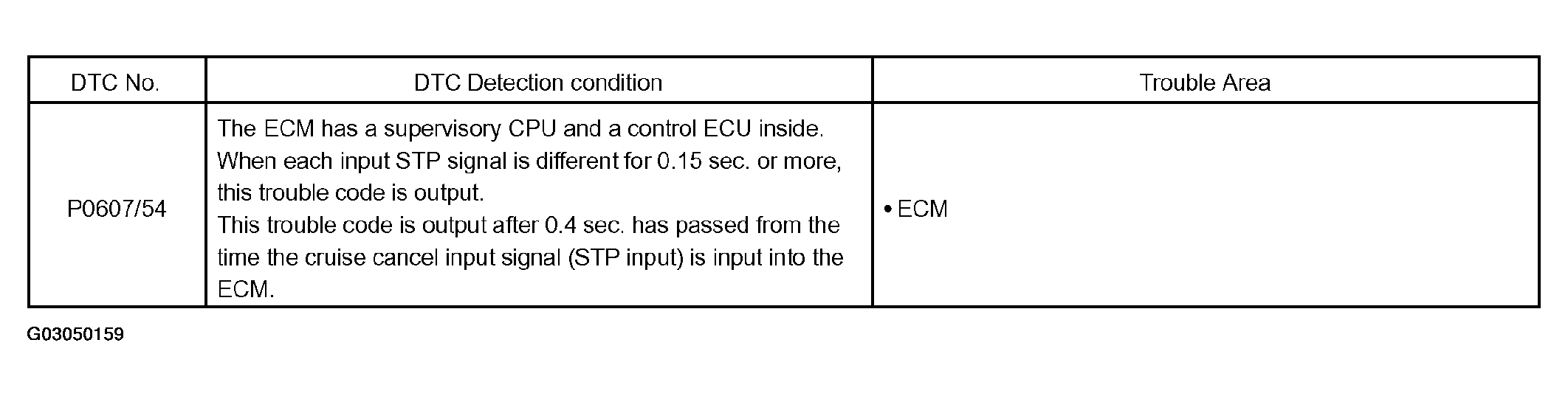

Fig 1: DTC Condition Detecting Table
G03050159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When a trouble code is detected, fail safe must be kept on until the ignition switch is turned off.
