Radiator Fan: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator fan(s) into mounts and attaching clips on the radiator.

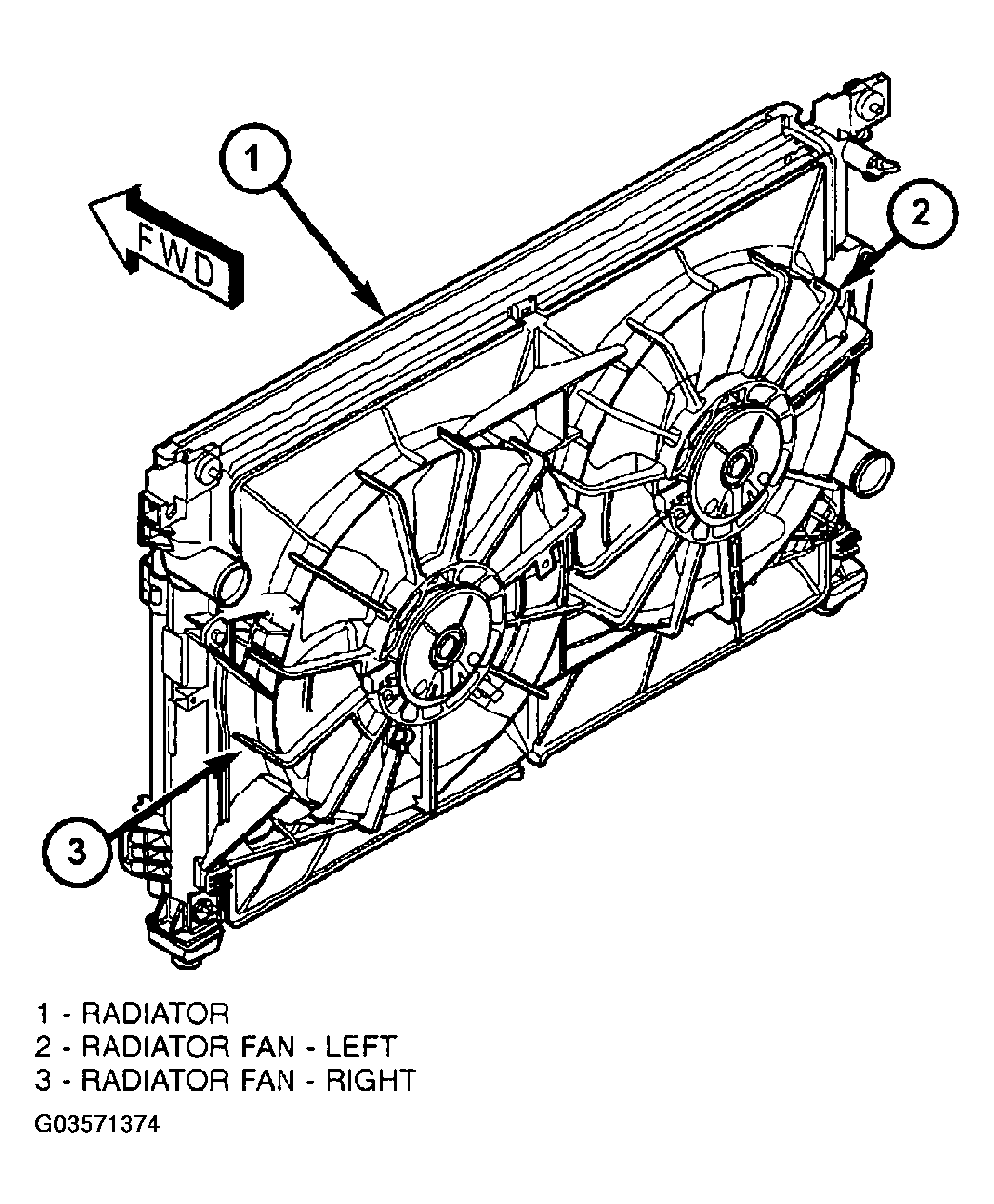

  2. Install radiator fan(s) attaching screws (Figure ). Tighten to 5 N.m (45 in. lbs.).
  3. Connect the radiator fan(s) electrical connectors.
  4. Install the front fascia (Refer to FRONT FASCIA ).
  5. Install the upper radiator mounts to the cross-member bolts, if removed. Tighten to 8 N.m (70 in. lbs.).
