Rear Wheel Alignment: Inspection

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE (SEE WHEEL & TIRE SYSTEM )
MEASURE VEHICLE HEIGHT (SEE FRONT WHEEL ALIGNMENT )
NOTE: Before inspecting wheel alignment, adjust the vehicle height to the specified value.
INSPECT TOE-IN

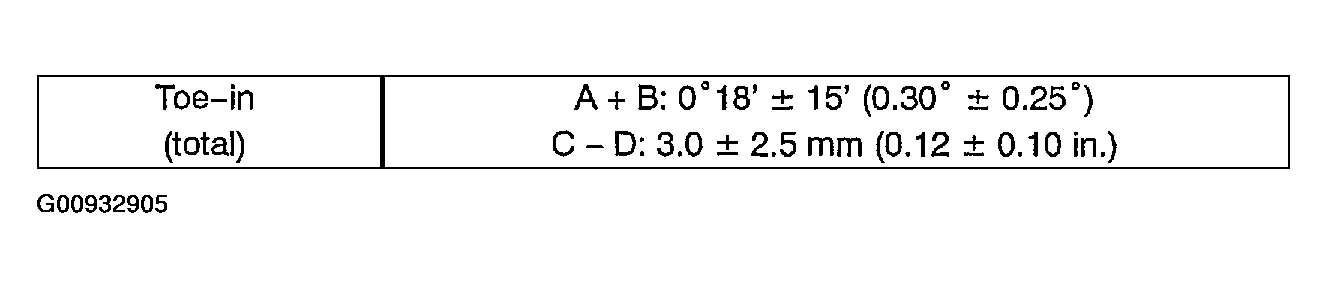

Fig 1: Toe In Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- Measure "C - D" only when "A + B" cannot be measured.
- If toe-in is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.

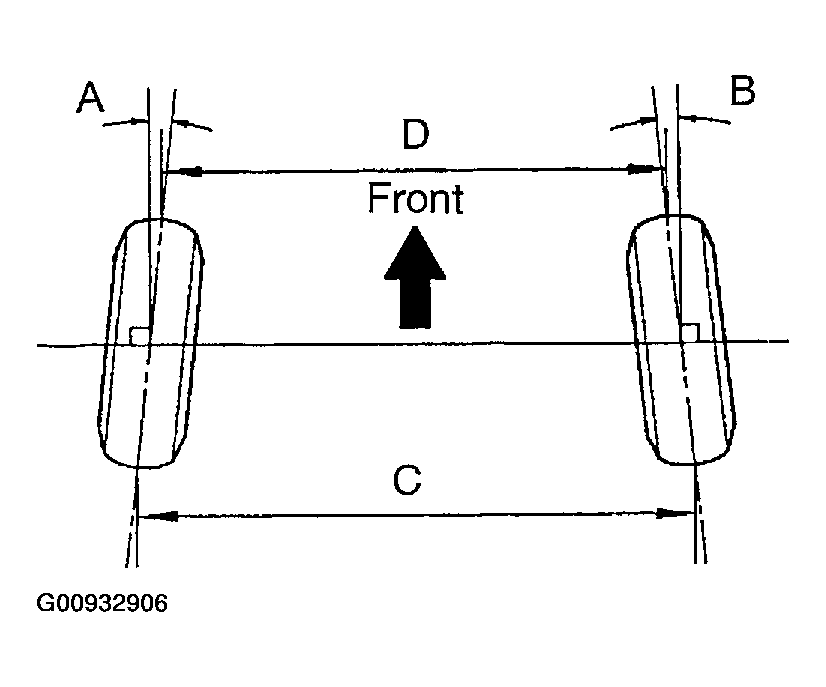

Fig 2: Identifying Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMBER
1. Install the camber-caster-kingpin gauge or set the vehicle on the wheel alignment tester.
2. Inspect the camber.

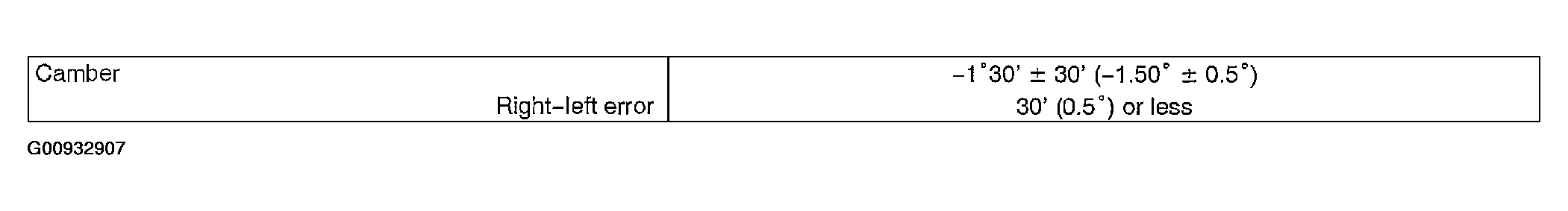

  Fig 3: Camber Specification
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:

Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
