Multi-Display Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS
Installation is in the reverse order of removal.

REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3 (SEE INSTRUMENT PANEL SUB-ASSY )
REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 4 (SEE INSTRUMENT PANEL SUB-ASSY )
REMOVE MULTI-DISPLAY ASSY
1. Remove the 2 bolts.
2. Disconnect the connector and remove the multi-display assy.

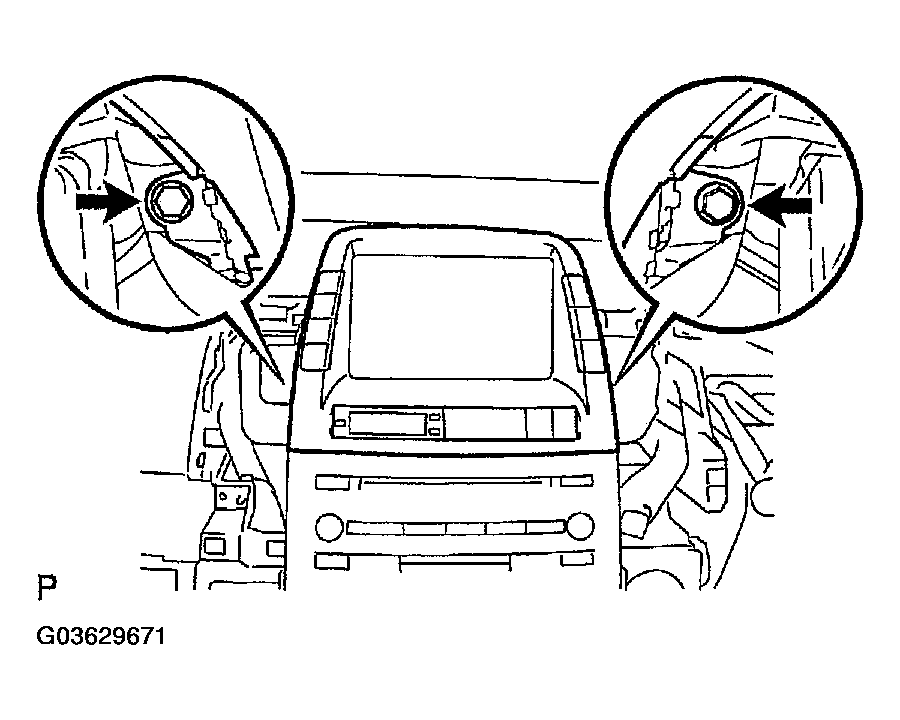

Fig 1: Removing Multi-Display Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
