WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

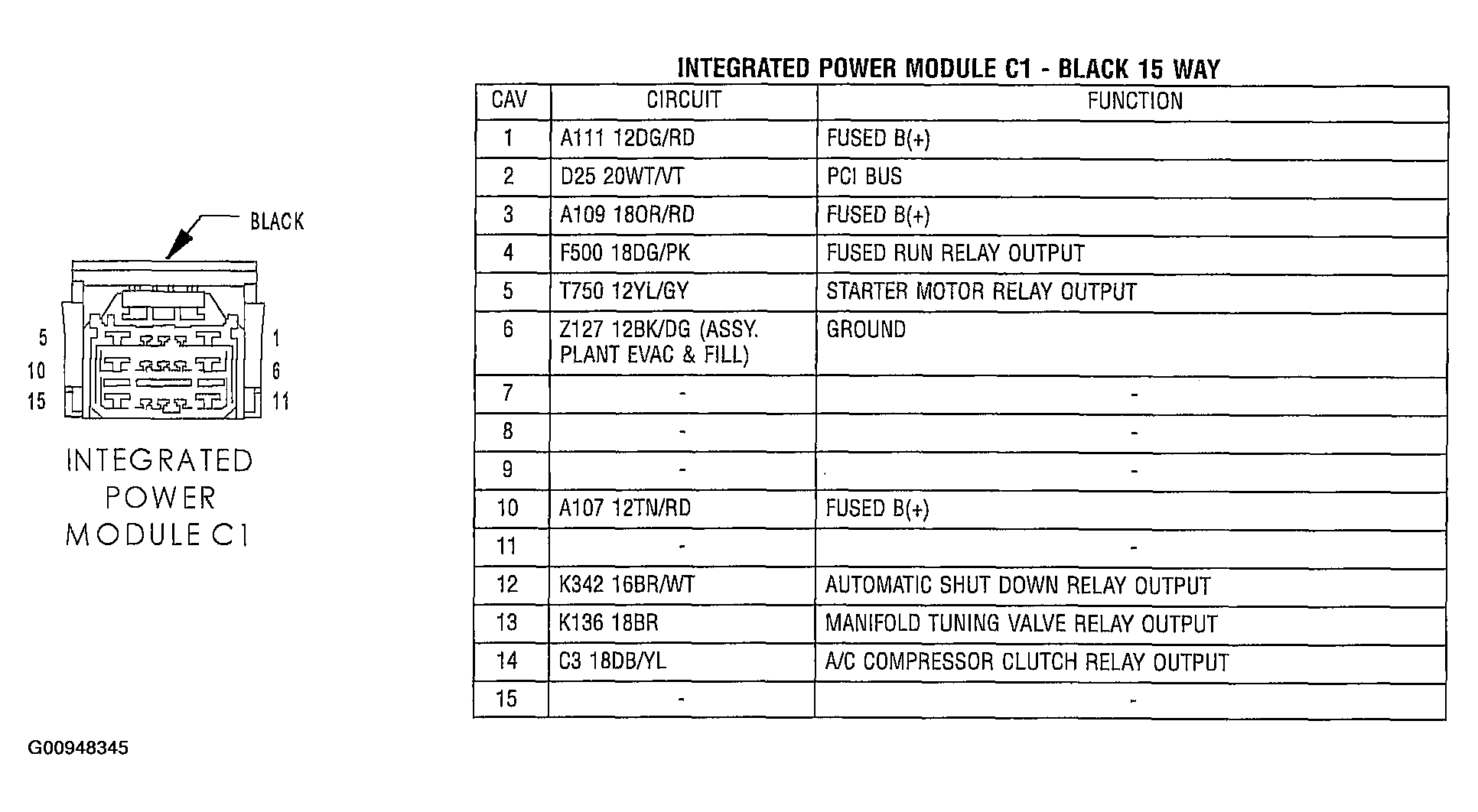

Fig 1: Identifying Integrated Power Module C1 - Black 15 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

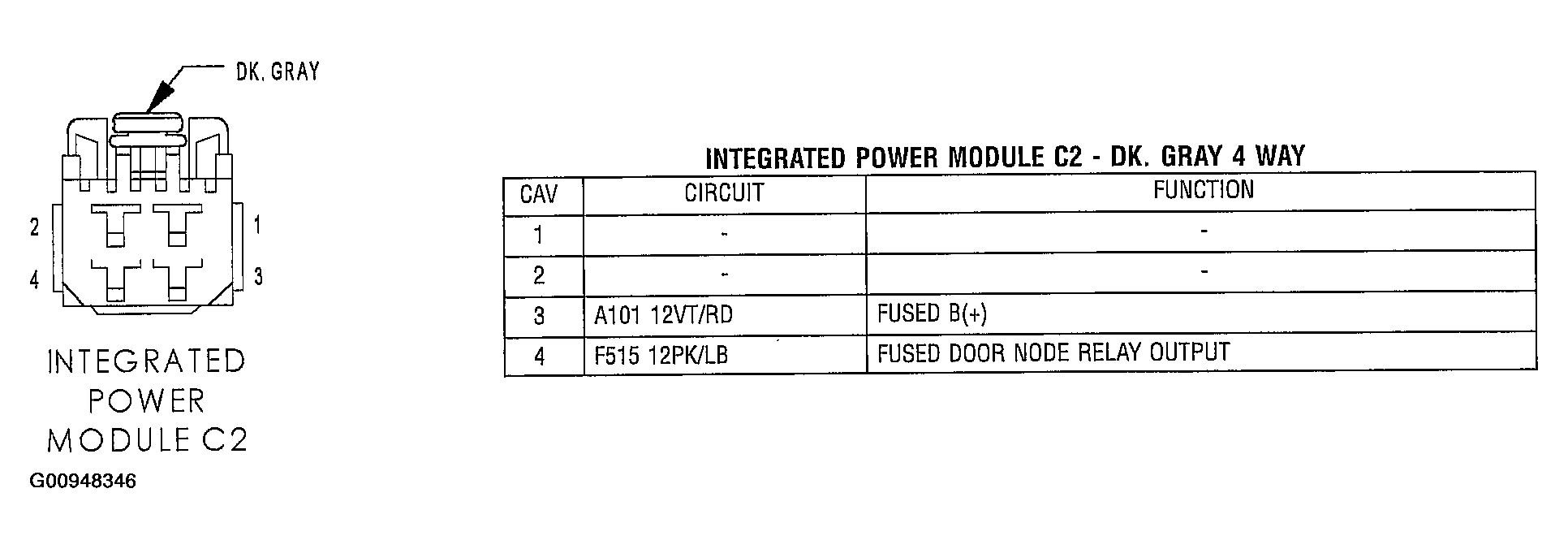

Fig 2: Identifying Integrated Power Module C2 - DK. Gray 4 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

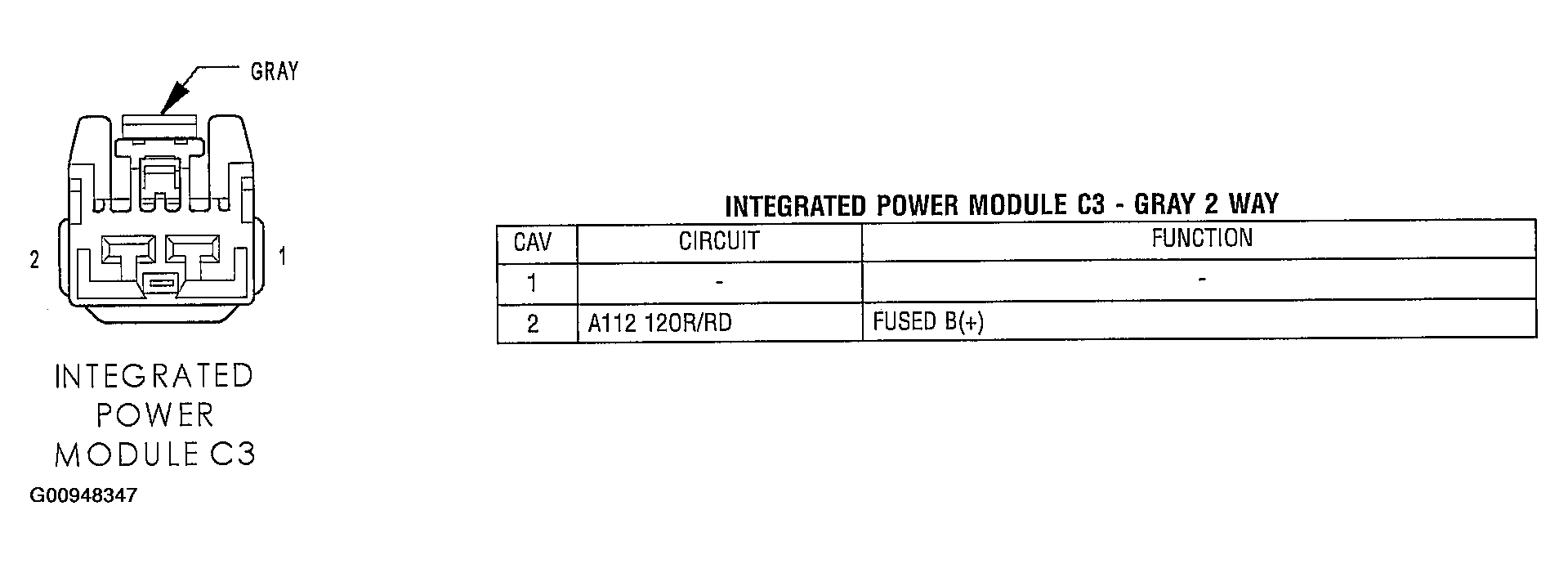

Fig 3: Identifying Integrated Power Module C3 - Gray 2 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

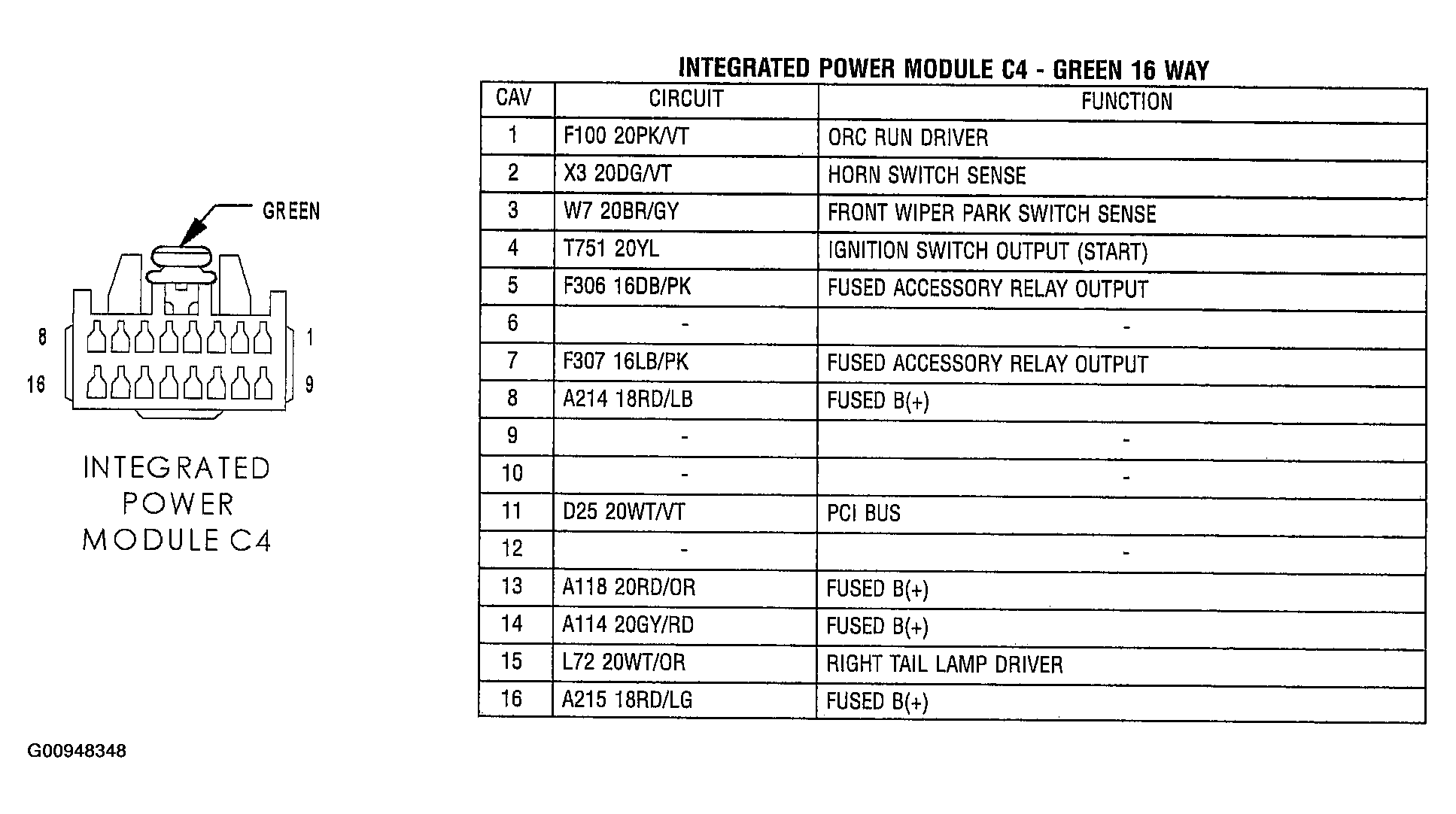

Fig 4: Identifying Integrated Power Module C4 - Green 16 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

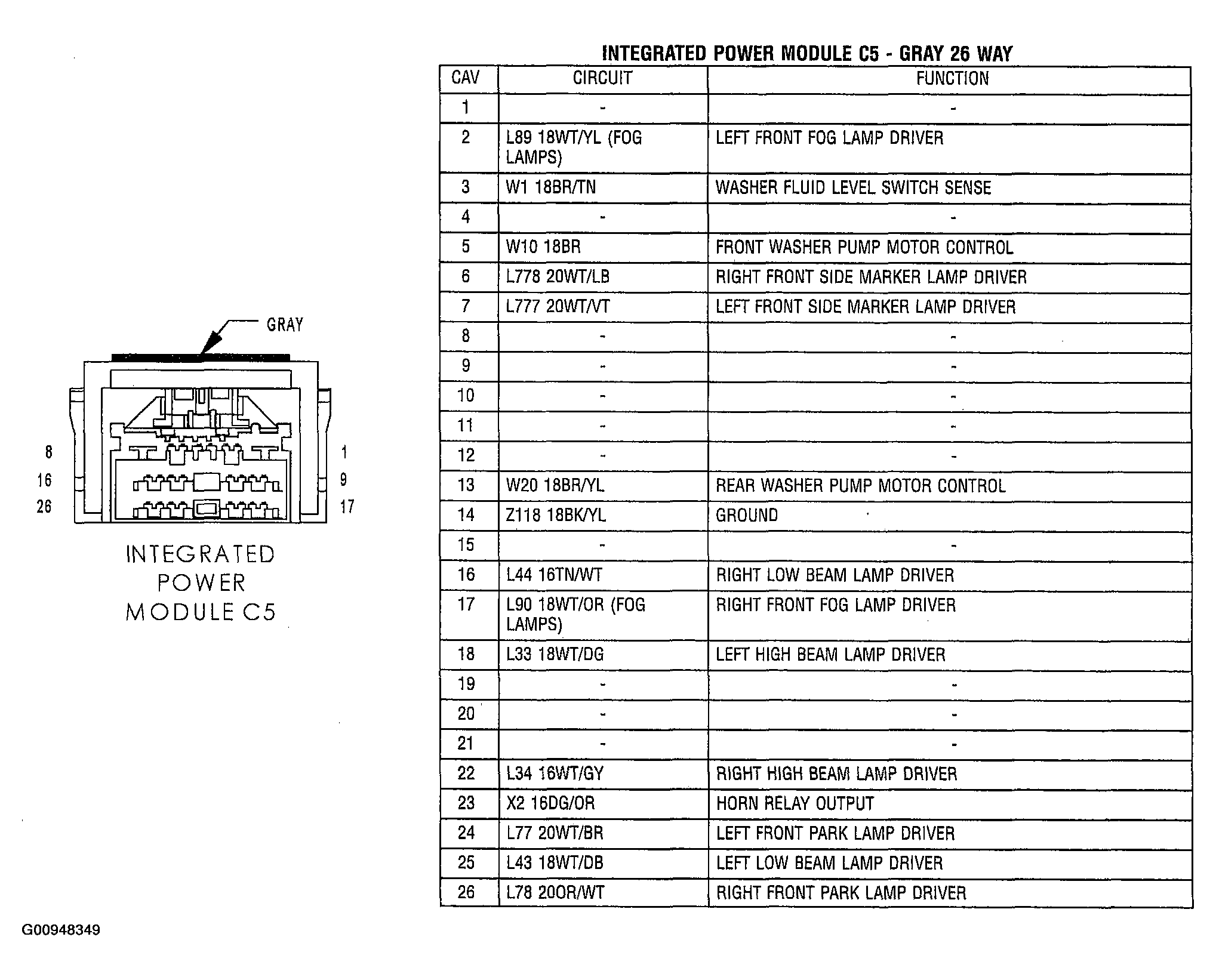

Fig 5: Identifying Integrated Power Module C5 - Gray 26 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

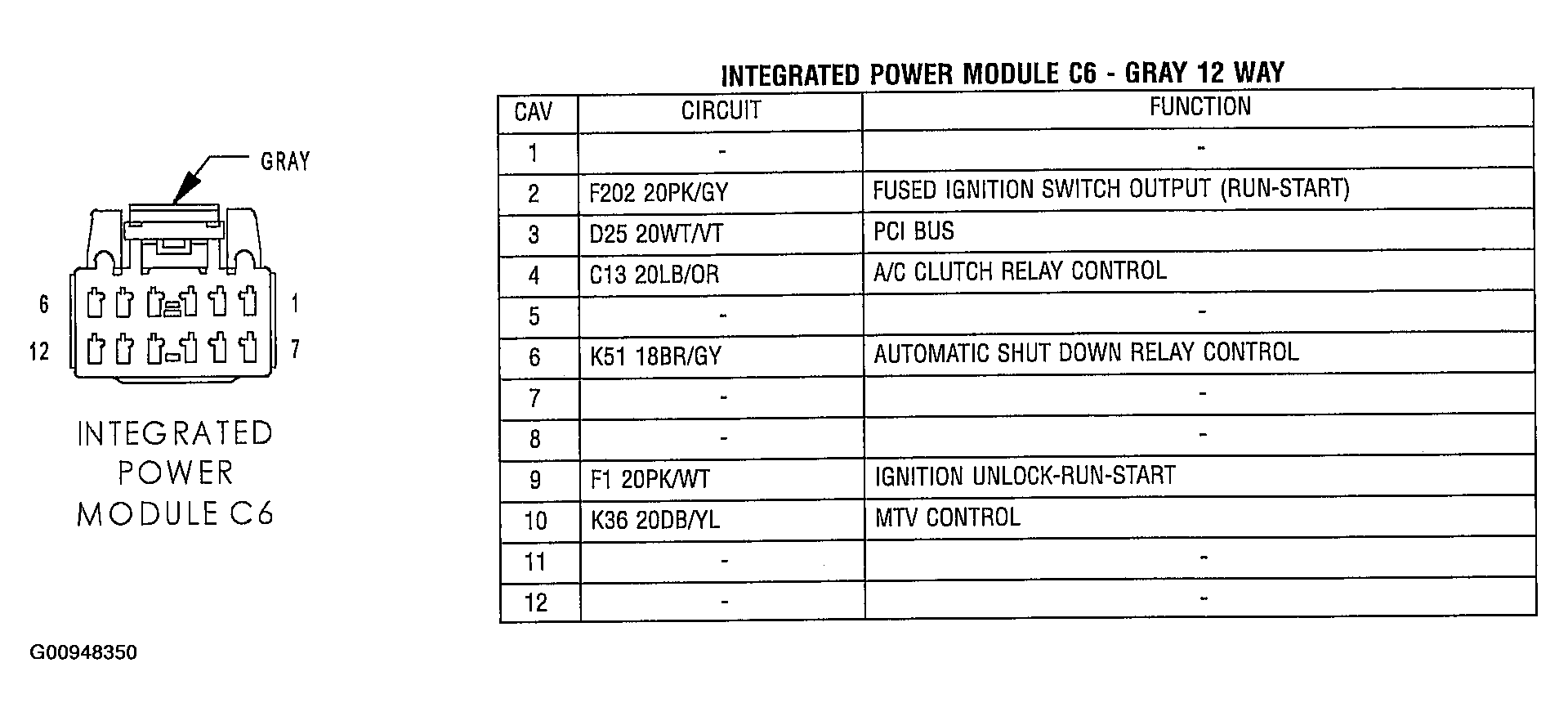

Fig 6: Identifying Integrated Power Module C6 - Gray 12 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

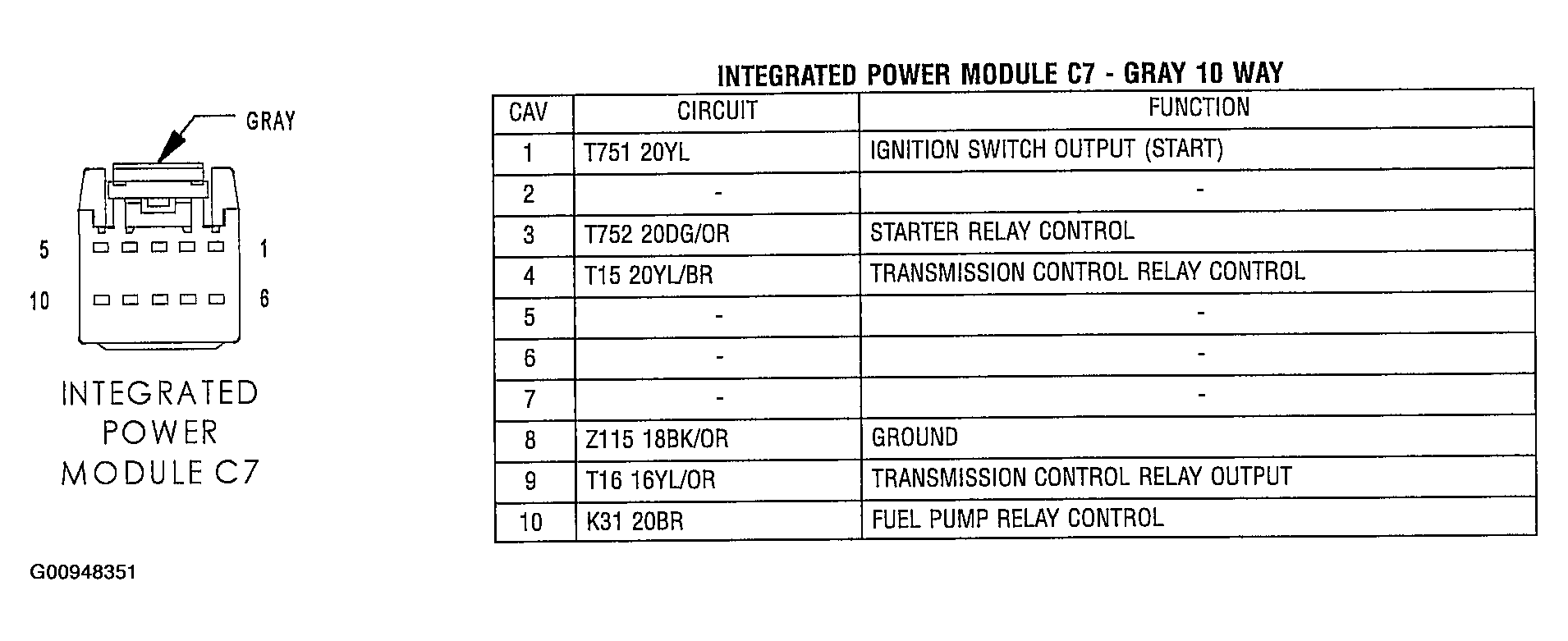

Fig 7: Identifying Integrated Power Module C7 - Gray 10 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

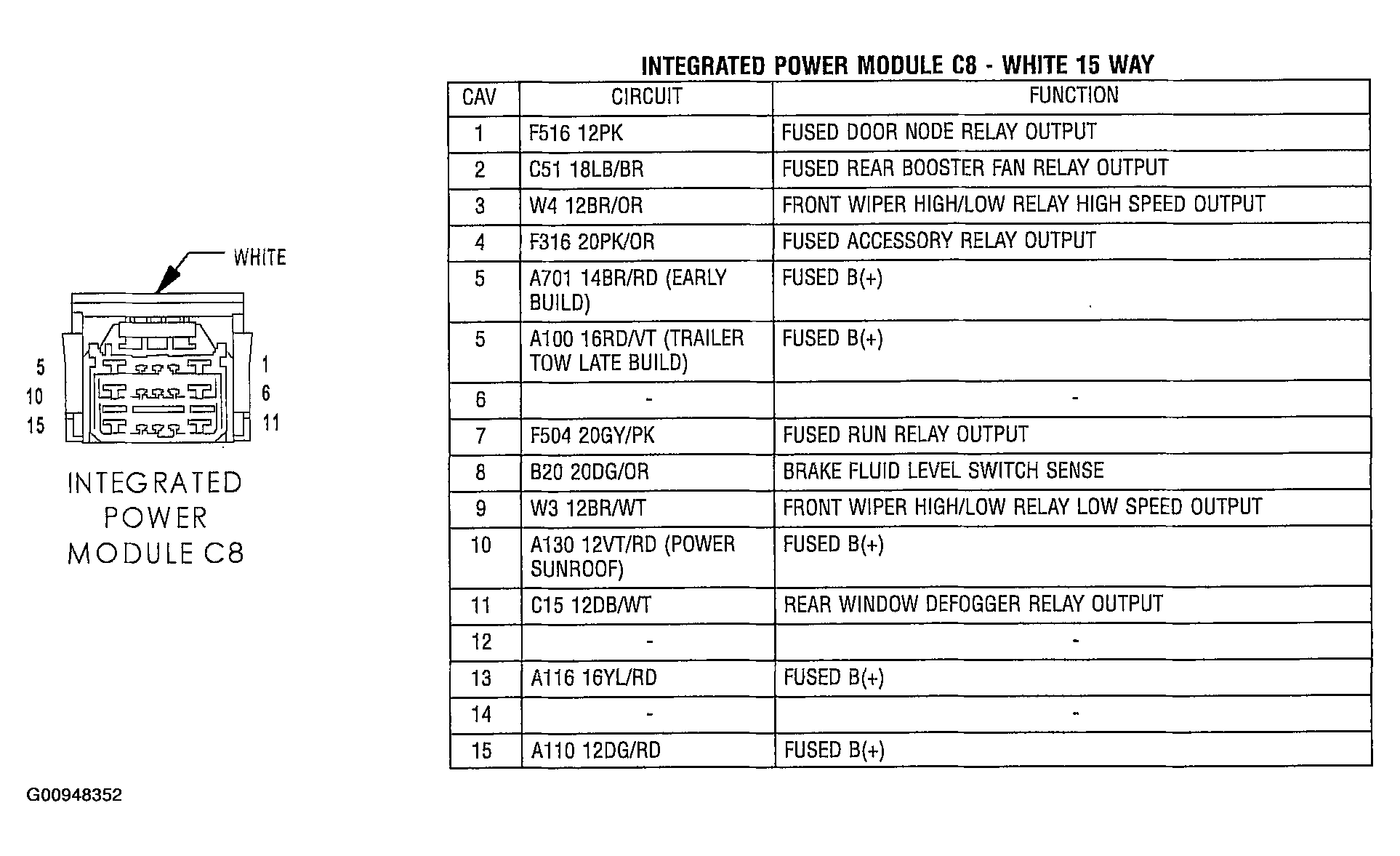

Fig 8: Identifying Integrated Power Module C8 - White 15 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

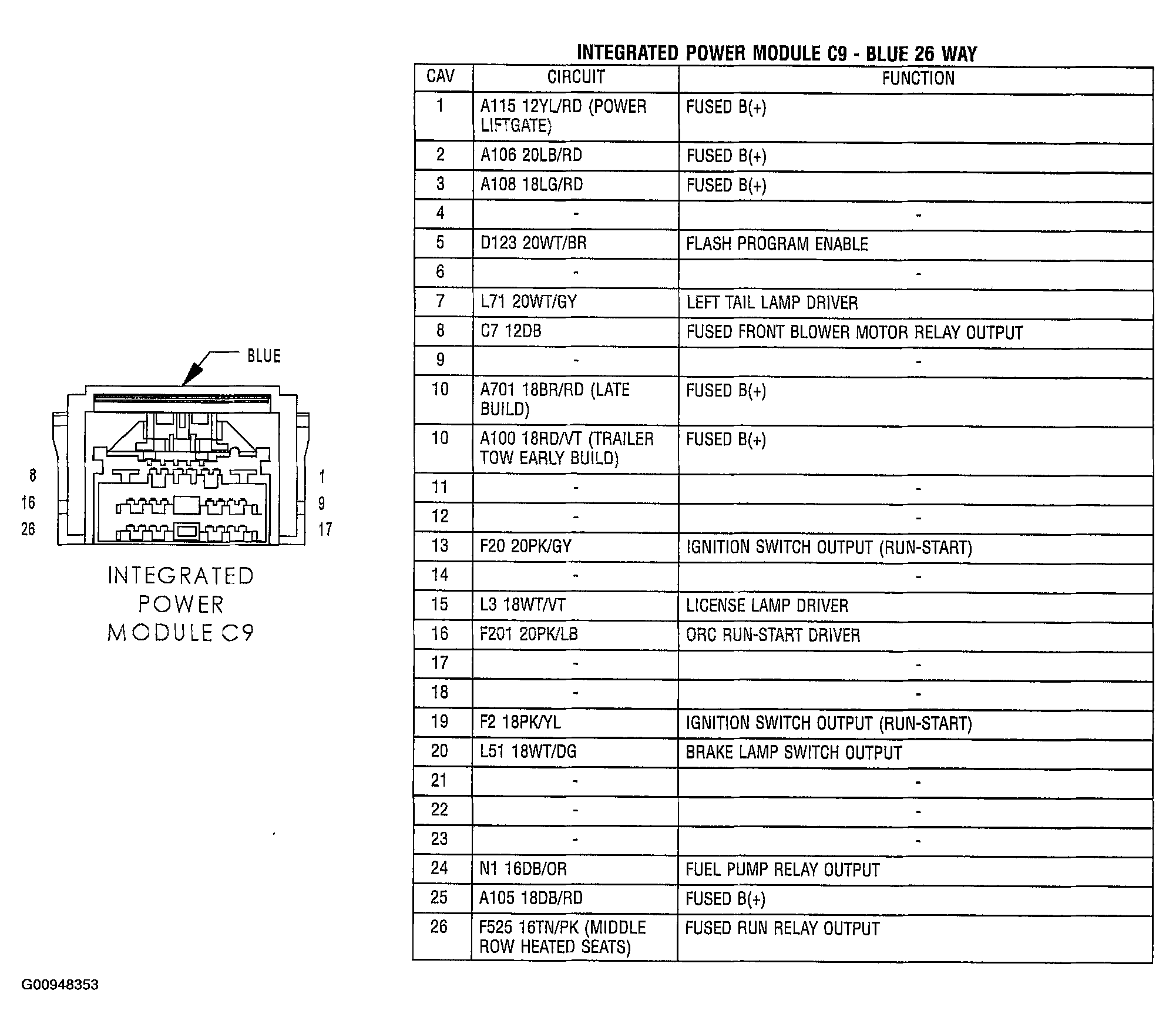

Fig 9: Identifying Integrated Power Module C9 - Blue 26 Way Connector
