Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

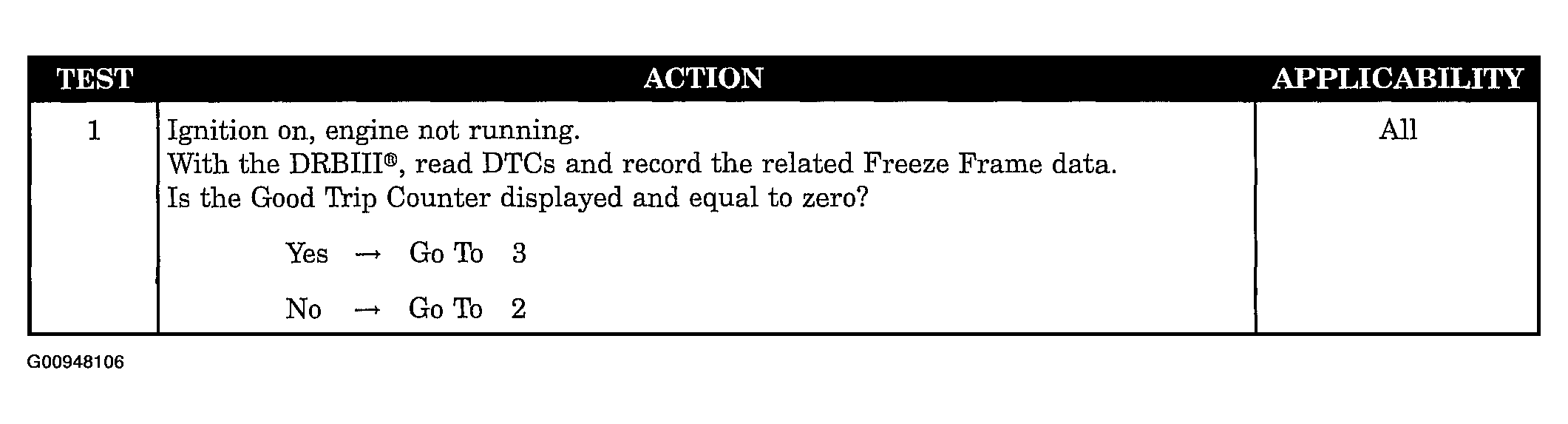

Fig 1: Diagnostic Chart - Sensor Heater Circuit Low (1 Of 2)
G00948106Courtesy of DAIMLERCHRYSLER CORP.

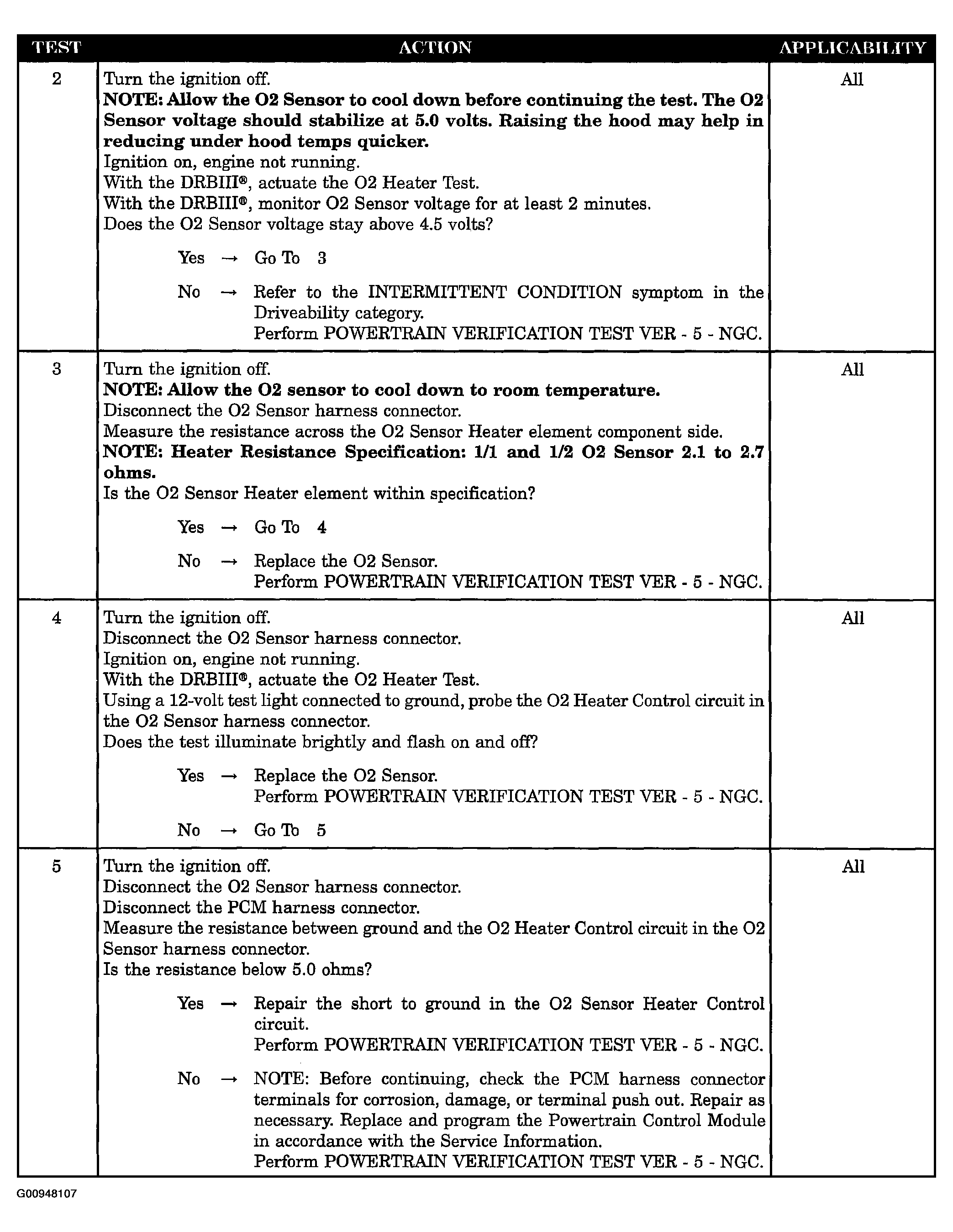

Fig 2: Diagnostic Chart - Sensor Heater Circuit Low (2 Of 2)
G00948107Courtesy of DAIMLERCHRYSLER CORP.
