Overhaul - U150E: Identification: Transaxle

Transaxle serial number is used for correct identification of component parts and assemblies. Serial number is located at top left corner of transaxle housing. See Fig 1.

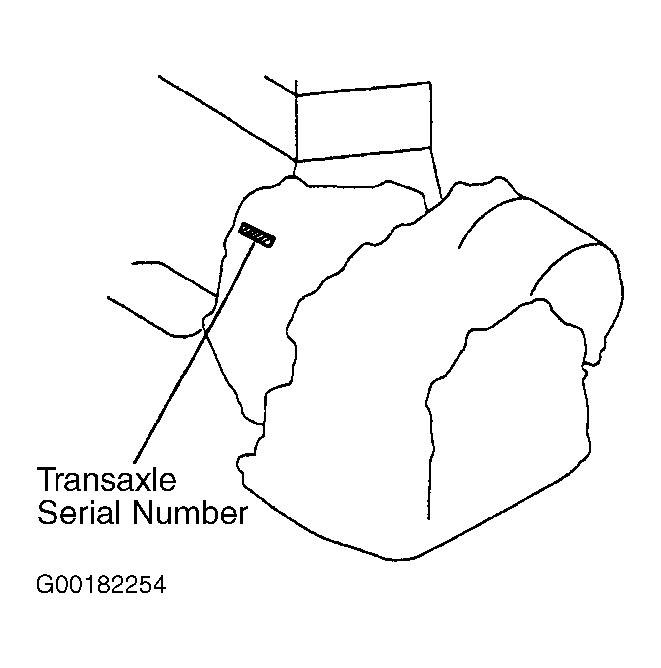

Fig 1: Locating Transaxle Serial Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
