Section 333 (Audio System): Troubleshooting

WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. USA and CANADA Models: DIAGNOSIS FUNCTION
    1. Diagnosis start-up For shifting diagnosis mode, turn ignition switch ON and push the "DISC" switch 3 times while pressing "ch1" and "ch6" switches.

      HINT:

      To exist from the diagnosis mode, push the "DISC" switch for 1.7 sec. or turn ignition switch to OFF.

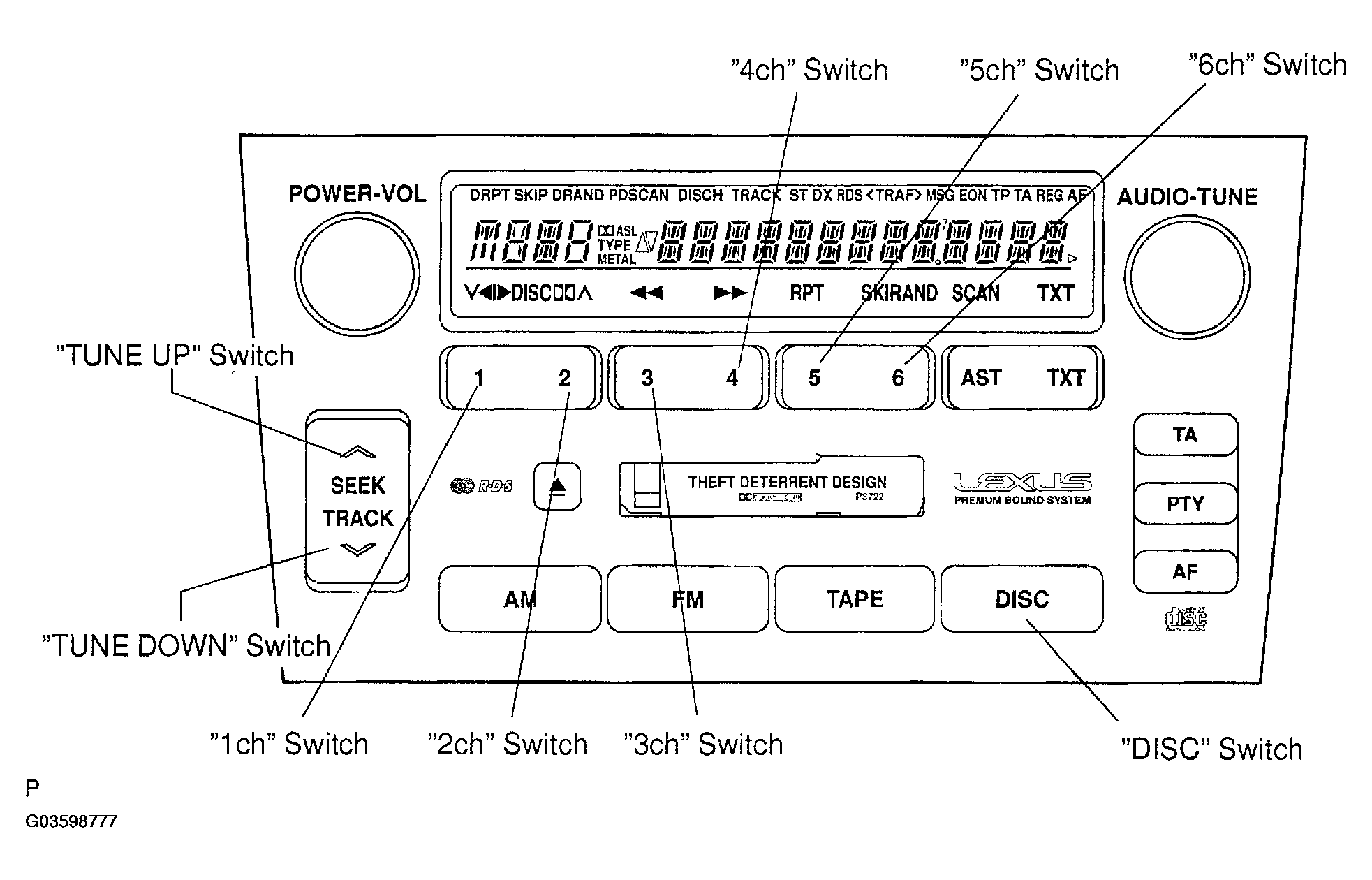

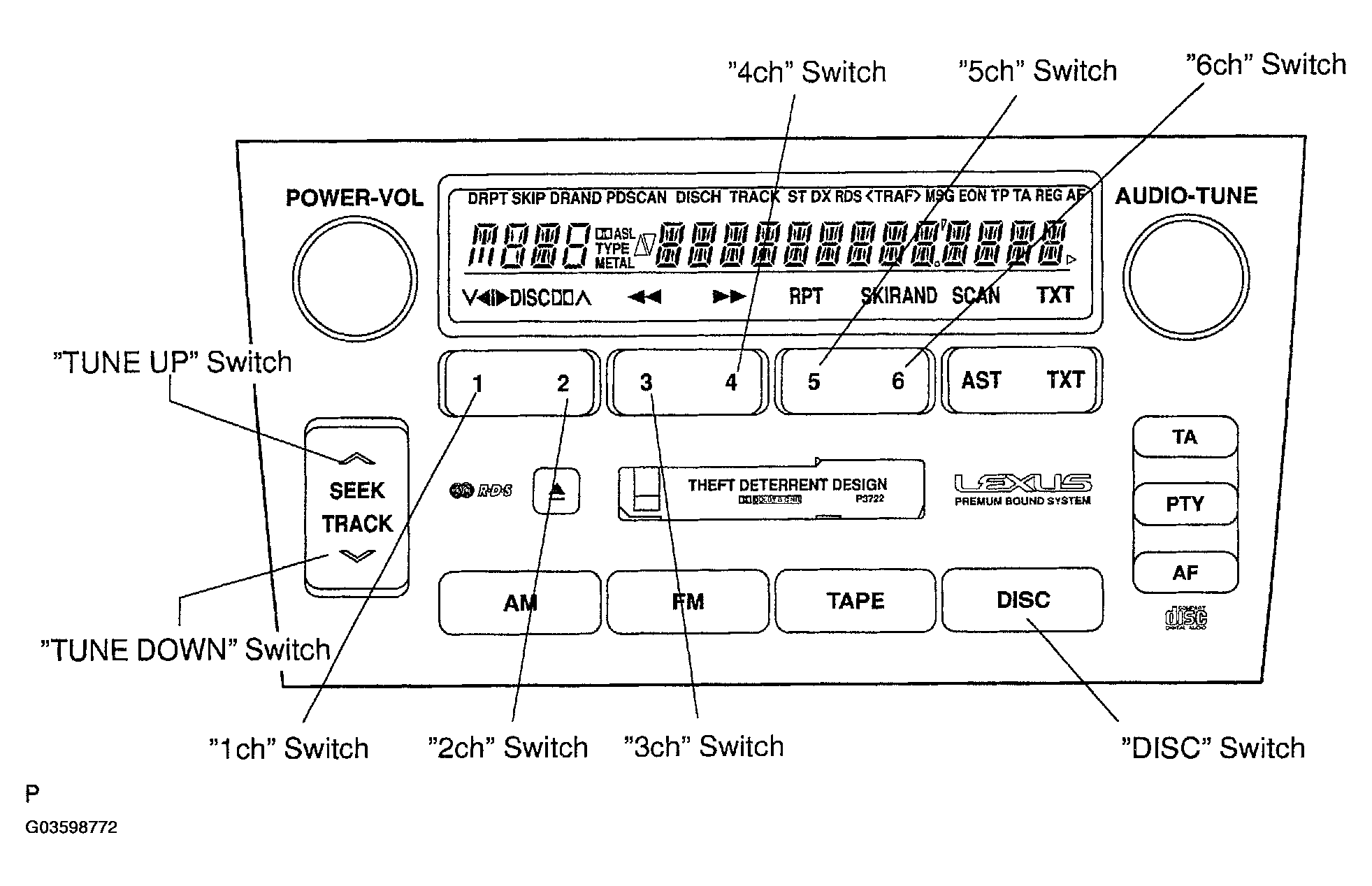

      Fig 1: Identifying Audio System Switches (USA And Canada Models)
      G03598772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Service check mode
      1. After the diagnosis start-up, the system enters service check mode.
      2. Error codes over tuner and connected equipment are displayed on the screen of tuner. Results for each check are displayed as follows:
        • good:

          No DTC is detected for both "System Check Confirmation" and "Diagnosis Memory Response".

        • nCon:

          The Component does not respond to the "Diagnosis On Instruction" command.

          Applicable to only the system where connected components are limited to be used.

        • ECHn: Application of new version has been confirmed by the "Diagnosis On Check", and there is one or more DTC which indicates "Replacement" in the "System Check Result Response" or "Diagnosis Memory Response".
        • CHEC:

          Application of new version has been confirmed by the "Diagnosis On Check", and there is no DTC which indicates "Replacement" in the "System Check Result Response" or "Diagnosis Memory Response", but one or more DTC which indicated "Check" is identified.

        • Old:

          Application of old version is confirmed by the "Diagnosis On Check", and DTC is identified in the "System Check Result Response" or "Diagnosis Memory Response".

        • nrES:

          No response is identified to the "System Check Start Instruction" and "Request for System Check Result" commands.

      HINT:

      • Check the present and past condition of components by performing the System Check and collecting stored DTC memories.
      • Check results shall be displayed as one of six following indications: "good", "ECHn", "CHEC", "nCon", "Old" or "nrES".
    3. Display Screen for Service Check.

      Example:

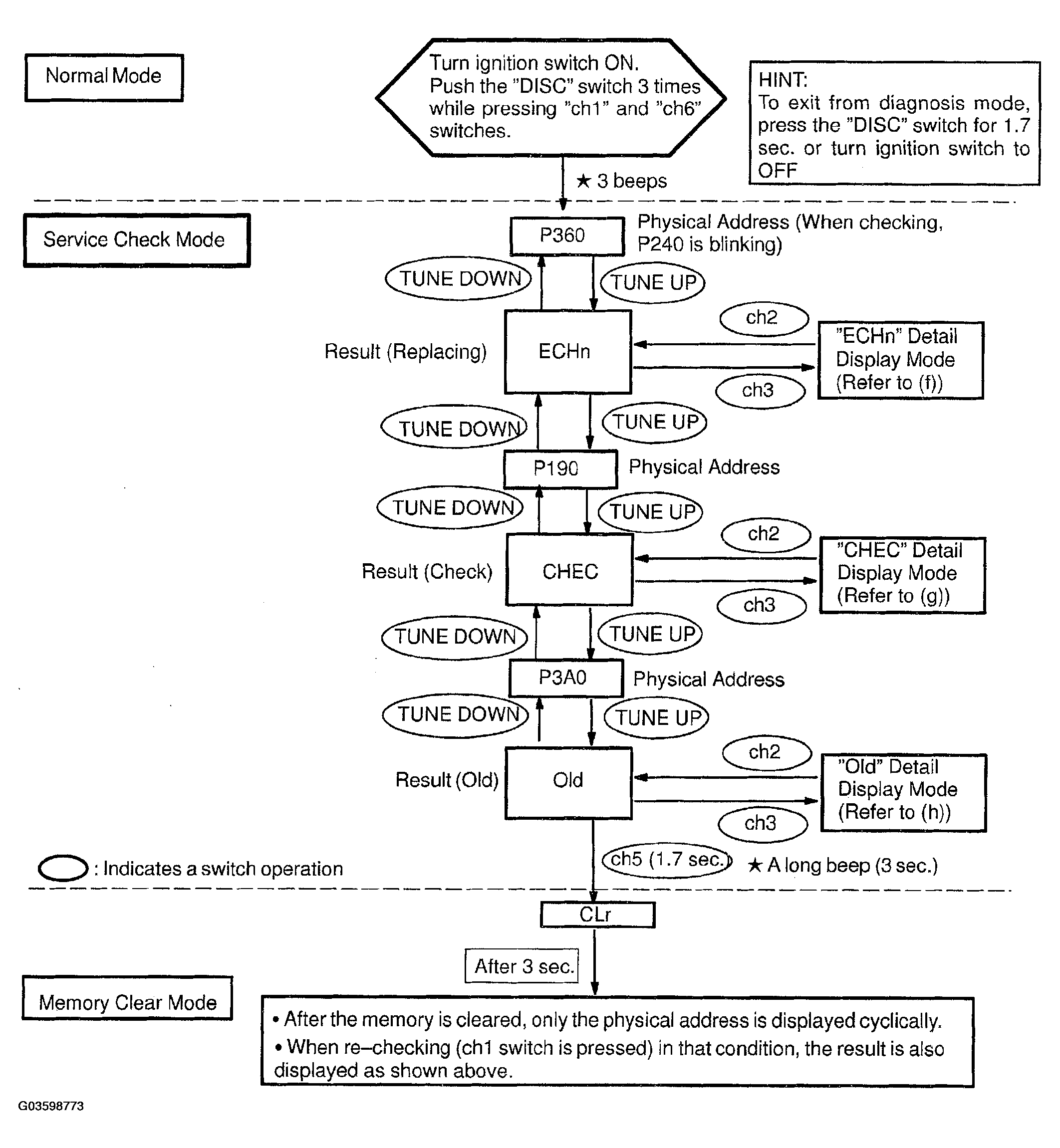

      Connection parts (physical address): Radio receiver (P190), CD Auto Changer (P360), MD changer (P3A0)

      Fig 2: Identifying Connection Parts (Physical Address) - Radio Receiver (P190), CD Auto Changer (P360), MD Changer (P3A0)
      G03598773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. "ECHn" Detail Display Mode Screen

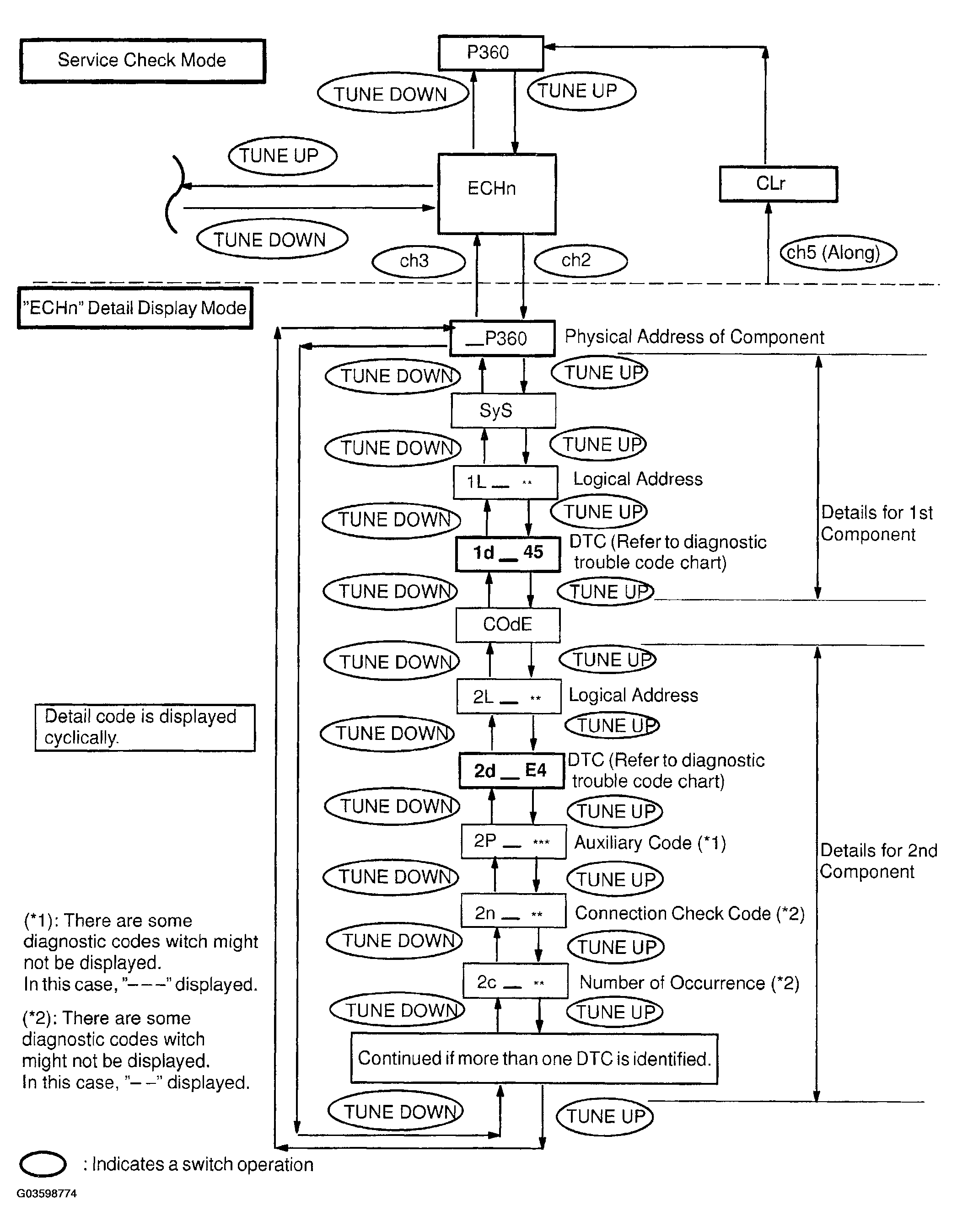

      Fig 3: "ECHn" Detail Display Mode Screen
      G03598774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. "CHEC" Detail Display Mode Screen
      Fig 4: "CHEC" Detail Display Mode Screen
      G03598775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

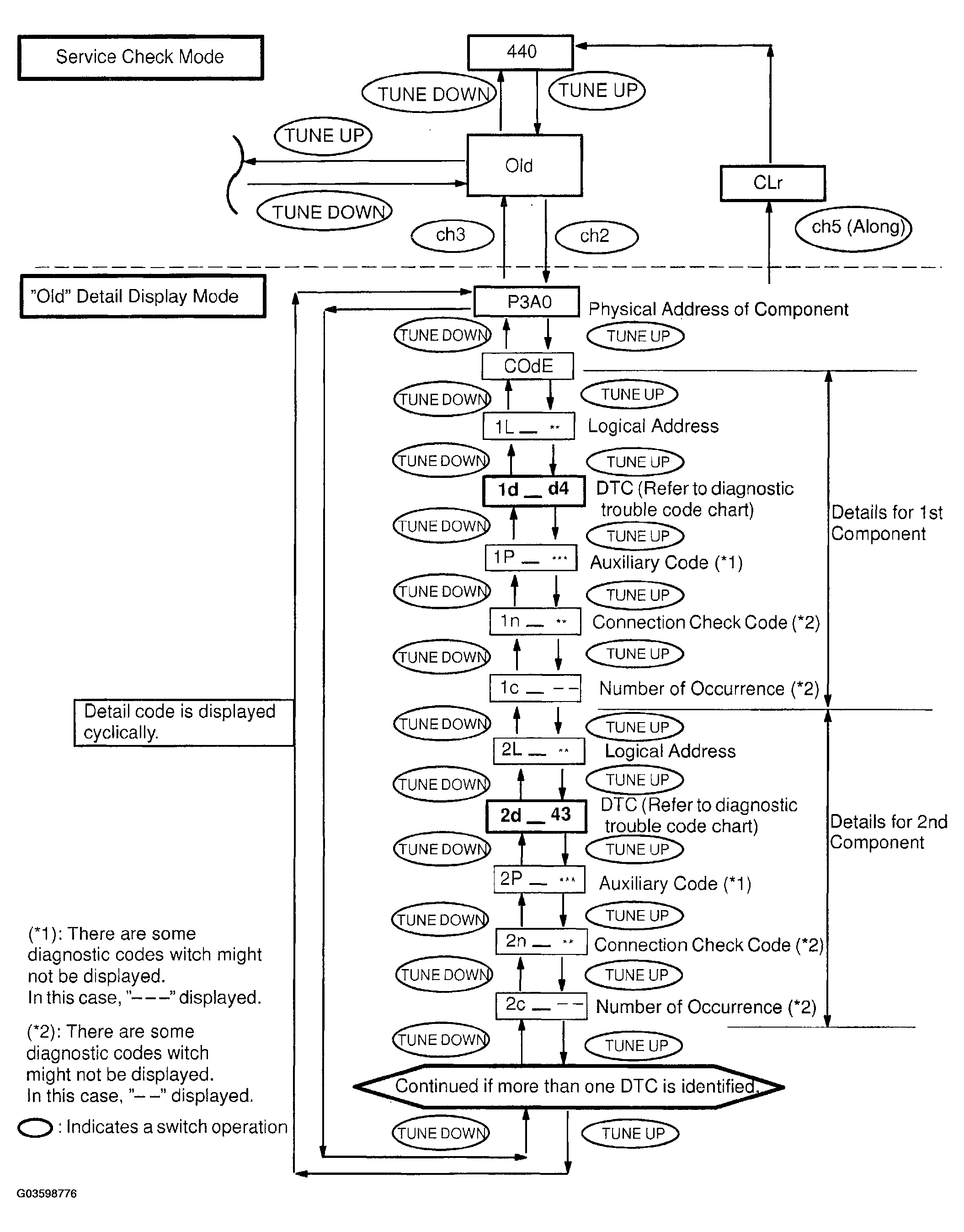

    6. "Old" Detail Display Mode Screen
      Fig 5: "Old" Detail Display Mode Screen
      G03598776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. TAIWAN Models: DIAGNOSIS FUNCTION

    Error codes over tuner and connected equipment are displayed on the screen of tuner.

    1. Diagnosis start-up

      For shifting to diagnosis mode, push "DISC" switch 3 times with pressing "1" and "6" of PRESET switch at the same time while the audio power is OFF and ACC is ON.

      To exit from diagnosis mode, press "DISC" switch for 2 seconds or turn the ignition key OFF. (When "1-190" is displayed, the mode is transferred to LAN check mode.)

    2. LAN check

      When starting up the diagnosis mode, the mode turns to LAN check mode, the screen displays the code numbers (physical address) of tuner and connected equipment. Smaller codes are displayed in order, displayed code numbers are switched by operating TUNE "UP" or "DOWN" switch. In LAN check mode, by pressing "5" of PRESET switch for more than 2 secs., diagnosis memory of each equipment can be deleted, when deletion is completed, the mode returns to LAN check mode.

      Fig 6: Identifying Audio System Switches (Taiwan Model)
      G03598777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Code No. (physical address) List

      CODE NO. (PHYSICAL ADDRESS) LIST

      Code No. (physical address) Equipment name
      190 Radio receiver assembly (Audio head unit)
      240 CD changer (in Luggage room)
      360 CD changer (in center console and glove compartment box)
      440 Stereo component amplifier
    3. System check
      • When pressing "1" of PRESET switch in LAN check mode, the mode turns to the system check mode, the system performs self diagnosis of connected equipment and displays the results. ("SYS" (showing the system is under detection) is displayed.)
      • Perform the operation shown in the following illustration, then read the result of the inspection.

      HINT:

      • It sometimes takes approx. 40 secs, till the system inspection is completed.
      • The chart in Fig 7 is an example of when diagnosis code "21" appears on the physical address (190) equipment. (ROM error occurs on the radio receiver.)
      • The smaller code numbers (physical address) are displayed in order (code No., diagnosis code, support code of diagnosis code (object equipment)).
      • When no error is detected in the system, "00" is displayed.
      • When an error code is detected, up to 6 codes per one system are displayed. Pressing TUNE "UP" or "DOWN" switches the display.
      • In the system check mode, when pressing "6" of PRESET switch the mode returns to LAN check mode.

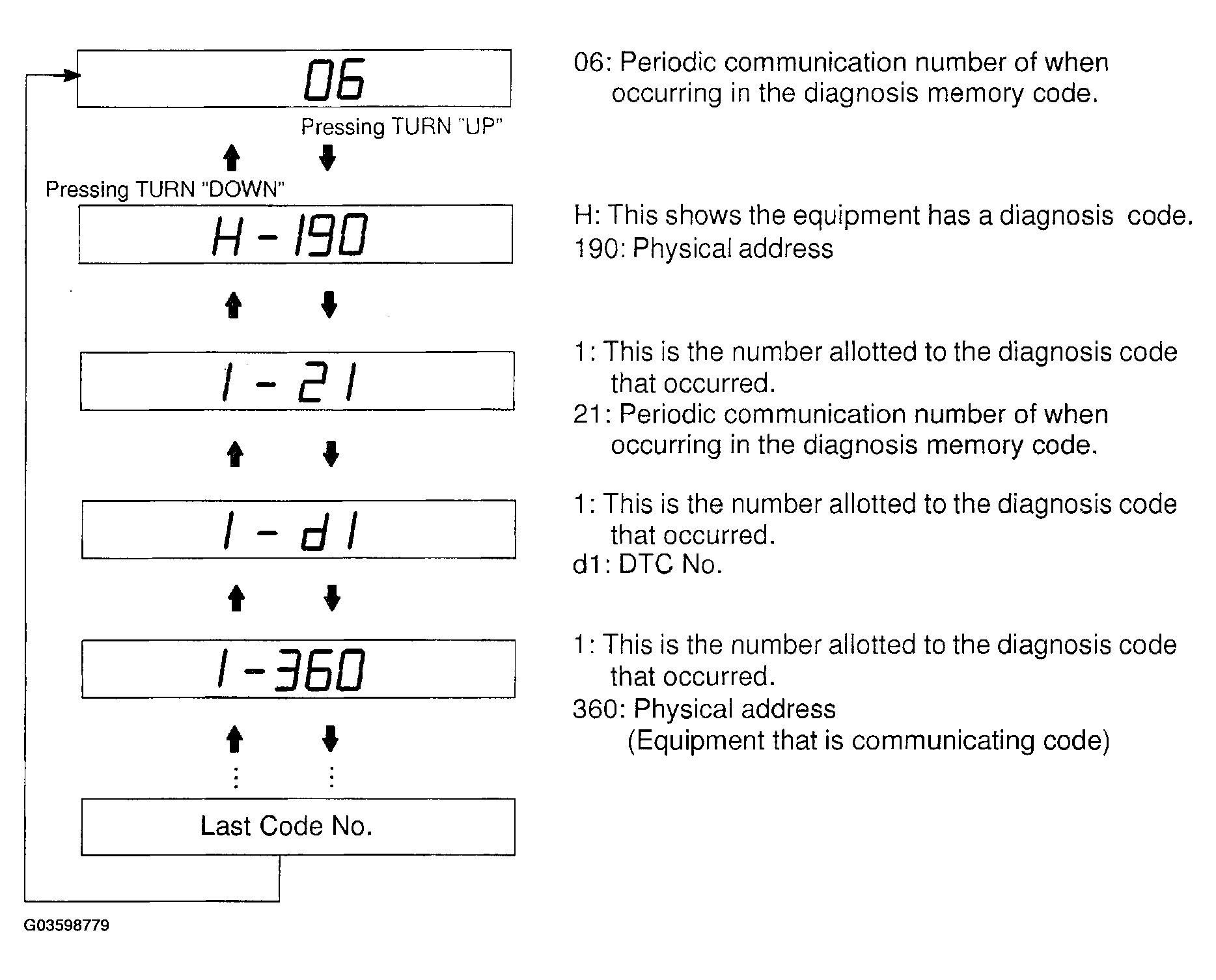

      Fig 7: Example Of Diagnosis Code On Physical Address Equipment
      G03598778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Diagnosis memory
      1. In LAN check mode, when pressing "2" of PRESET switch the mode turns to the diagnosis memory mode. ("CODE" is displayed.)

        The results of self diagnosis performed over tuner and connected equipment are memorized and displayed.

      2. Perform the operation shown in Fig 8 , then read the result of the inspection.

      HINT:

      • The smaller code numbers (physical address) are displayed in order (code No., periodic communication number when error occurs, diagnosis code, and support code of diagnosis code (object equipment)).
      • When no error is detected in the system, "00" is displayed. When an error code is detected, up to 6 codes per one system are displayed. Pressing TUNE "UP" or "DOWN" switches the display. Each diagnosis code is same as code in the system check mode.
      • When pressing "6" of PRESET switch, the mode returns to LAN check mode.

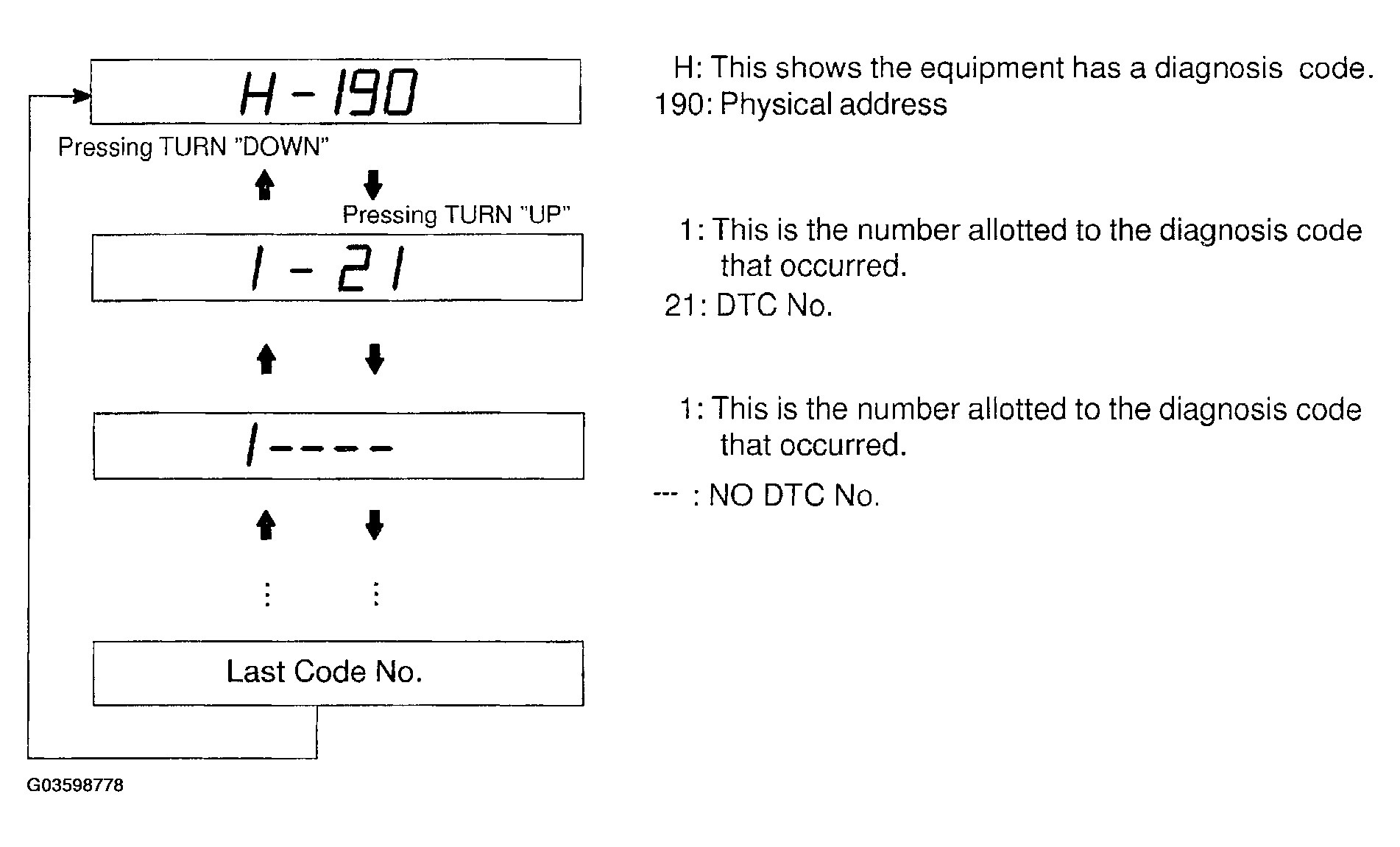

      • The following Fig 8 is an example of when diagnosis code "D1" appears on the code (190) and (240 or 360) equipment. (Communication error occurs between the radio receiver and CD changer.)
      Fig 8: Example Of Diagnosis Code Appearing On Equipment
      G03598779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Diagnosis memory clear
      1. After error is fixed, start up the diagnosis mode.
      2. Continue pressing preset switch "5" for 2 secs. (CLr is displayed.)
      3. Press the preset switch "2" and transfer to the diagnosis memory mode and check that the normal code (00) is output.
  3. USA and CANADA Models: DIAGNOSTIC TROUBLE CODE CHART
    TERMS MEANING

    Terms Meaning
    Physical address Three-digit code (shown in hexadecimal) which is given to each component comprising the AVC-LAN. Corresponding to the function, individual symbols are specified.
    Logical address Two-digit code (shown in hexadecimal) which is given to each function comprising the inner system of the AVC-LAN.
    1. Physical address 190: Radio receiver assembly
      1. Logical address: 01 (Communication control)
        DIAGNOSTIC TROUBLE CODE (USA AND CANADA MODELS) (LOGICAL ADDRESS: 01 COMMUNICATION CONTROL)

        DTC Diagnosis item Diagnosis content Countermeasure and inspected parts
        D6 (1) Absence of Master Component in which this code is recorded has been disconnected from system with ignition in ACC or ON. Or, when this code was recorded, radio receiver assembly was disconnected.
        • Check harness for power supply system of radio receiver assembly.
        • Check harness for communication system of radio receiver assembly.
        D8 (2) No Response to Connection Check Component shown by auxiliary code is or had been disconnected from system after engine is start. D9
        • Check harness for power supply system of component shown by auxiliary code.
        • Check harness for communication system of component shown by auxiliary code.
        D9 (1) Last Mode Error Component operated (sounds and/or images were provided) before engine stop is or has been disconnected with ignition switch in ACC or ON.
        • Check harness for power supply system of component shown by auxiliary code.
        • Check harness for communication system of component shown by auxiliary code.
        DA No Response to ON/OFF Instruction No response is identified when changing mode (audio and visual mode change). Detected when sound and picture does not change by button operation.
        • Check harness for power supply system of component shown by auxiliary code.
        • Check harness for communication system of component shown by auxiliary code.
        • If error occurs again, replace component shown by auxiliary code.
        DB (1) Mode Status Error Dual alarm is detected.
        • Check harness for power supply of component shown by auxiliary code.
        • Check harness for communication system of component shown by auxiliary code.
        DC (3) Transmission Error Transmission to component shown by auxiliary code has been failed. (Detecting this DTC does not necessarily mean actual failure.)
        • If same auxiliary code is recorded in order component, check harness for power supply and communication system of all components shown by code.
        DD (4) Master Reset (Momentary Interruption) After engine is started, radio receiver assembly was disconnected from system.
        • Check harness for power supply system of radio receiver assembly.
        • Check harness for communication system of radio receiver assembly.
        • If this error occurs frequently, replace radio receiver assembly assembly.
        DE (4) Slave Reset (Momentary Interruption) After engine is started, slave component was disconnected from system.
        • Check harness for power supply of component shown by auxiliary code.
        • Check harness for communication system of component shown by auxiliary code.
        DF (5) Master Error Due to defective condition of component with a display, master function is switched to audio equipment. Error occurs in communication between sub-master (audio) and master component.
        • Check harness for power supply of radio receiver assembly.
        • Check harness for communication system of radio receiver assembly.
        • Check harness for communication system between radio receiver assembly and sub-master component.
        E0 (1) Registration Completion Instruction Error "Registration Completion Instruction" command from master cannot be received. Since this DTC is provided for engineering purpose, it may be detected when no actual failure exists.
        E1 (1) Audio processor ON error While source equipment is operating, AMP output is stopped.
        • Check harness for power supply of radio receiver assembly.
        • Check harness for communication system of radio receiver assembly.
        E2 ON/OFF Instruction Parameter Error Error occurs in ON/OFF controlling command from radio receiver assembly. Replace radio receiver assembly.
        E3 (1) Registration Request Transmission Registration Request command is output from slave component. Receiving Connection Check Instruction, Registration Request command is output from sub-master component. Since this DTC is provided for engineering purpose, it may be detected when no actual failure exists.
        E4 (1) Multiple Frame Abort Multiple frame transmission is aborted. Since this DTC is provided for engineering purpose, it may be detected when no actual failure exists.
        (1) Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.

        (2) It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.

        (3) It may be stored when the engine key is turned 1 min. again after engine start.

        (4) It may be stored when the engine key is turned again after engine start.

        (5) When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
      2. Logical address: 61 (Cassette switch)
      LOGICAL ADDRESS: 61 (CASSETTE SWITCH) DIAGNOSIS TROUBLE CODE

      DTC Diagnosis item Diagnosis content Countermeasure and inspected parts
      40 Mechanical of Media Error Malfunction due to mechanical failure is identified. Or cassette tape is cut or entangled.
      • Inspect cassette tape.
      • Replace radio receiver assembly.
    2. Physical address: 440 Stereo component amplifier

      Logical address: 01 (Communication control)

      PHYSICAL ADDRESS: 440 STEREO COMPONENT AMPLIFIER DIAGNOSIS TROUBLE CODE

      DTC Diagnosis item Diagnosis content Countermeasure and inspected parts
      D6 (1) Absence of Master Component in which this code is recorded has been disconnected from system with ignition in ACC or ON. Or, when this code was recorded; radio receiver assembly was disconnected.
      • Check harness for power supply of radio receiver assembly.
      • Check harness for communication system of radio receiver assembly.
      • Check harness for power supply of Stereo component amplifier.
      • Check harness for communication system of Stereo component amplifier.
      D7 (2) Communication Check Error Component in which this code is recorded has been disconnected from system after engine start. Or, when this code was recorded, multi-display assembly was disconnected.
      • Check harness for power supply system of multi-display.
      • Check harness for communication system of multi-display.
      • Check harness for power supply system of stereo component amplifier.
      • Check harness for communication system of stereo component amplifier.
      DC (3) Transmission Error Transmission to component shown by auxiliary code has been failed. (Detecting this DTC does not necessarily mean actual failure.) If same auxiliary code is recorded in order component, check harness for power supply and communication system of all components shown by code.
      DD (4) Master Reset (Momentary Interruption) After engine is started, Stereo component amplifier was disconnected from system.
      • Check harness for power supply system of radio receiver assembly.
      • Check harness for communication system of radio receiver assembly.
      • If this error occurs frequently, replace radio receiver assembly assembly.
      DF *5 Master Error Due to defective condition of component with a display, master function is switched to audio equipment. Error occurs in communication between sub-master (audio) and master component.
      • Check harness for power supply of radio receiver assembly.
      • Check harness for communication system of radio receiver assembly.
      • Check harness for communication system between Stereo component amplifier and sub-master component.
      E0 (1) Registration Completion Instruction Error "Registration Completion Instruction" command from master cannot be received. Since this DTC is provided for engineering purpose, it may be detected when no actual failure exists.
      E1 (1) Audio processor ON error While source equipment is operating, AMP output is stopped.
      • Check harness for power supply of radio receiver assembly.
      • Check harness for communication system of Stereo component amplifier.
      E2 ON/OFF Instruction Parameter Error Error occurs in ON/OFF controlling command from Stereo component amplifier. Replace Stereo component amplifier.
      E3 (1) Registration Request Transmission Registration Request command is output from slave component. Receiving Connection Check Instruction, Registration Request command is output from sub-master component. Since this DTC is provided for engineering purpose, it may be detected when no actual failure exists.
      (1) Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.

      (2) It may be stored when the engine key is turned 1 min. again after engine start.

      (3) It may be stored when the engine key is turned again after engine start.

      (4) When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
    3. Physical address: 360 CD Auto Changer
      1. Logical address: 01 (Communication control)
        LOGICAL ADDRESS: 01 (COMMUNICATION CONTROL) DIAGNOSIS TROUBLE CODE

        DTC Diagnosis item Diagnosis content Countermeasure and inspected parts
        D1 Transmission Error Transmission to component shown by auxiliary code has been failed. (This code does not necessarily mean actual failure.) If same auxiliary code is recorded in other component(s), check harness for power supply and communication system of components shown sub code.
        D4 (4) Connection check Error Component in which this code is recorded is or was disconnected from system after engine start. Or, when recording this code, radio receiver assembly assembly was disconnected.
        • Check harness for power supply of radio receiver assembly.
        • Check harness for communication system of radio receiver assembly.
        • Check harness for power supply of DVD auto changer.
        • Check harness for communication system of DVD auto changer.
        (1) Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.

        (2) It may be stored when the engine key is turned 1 min. again after engine start.

        (3) It may be stored when the engine key is turned again after engine start.

        (4) When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
      2. Logical address: 63 (CD Auto Changer)
      LOGICAL ADDRESS: 63 (CD AUTO CHANGER) DIAGNOSIS TROUBLE CODE

      DTC Diagnosis item Diagnosis content Countermeasure and inspected parts
      60 CD Error Error is detected in CD auto changer. Replace CD auto changer
      61 EJECT Error Magazine cannot be ejected. Replace CD auto changer
      62 No Disc Readout Disc cannot be read. Inspect CD
      63 CD Auto Changer Temp. Too High Readout cannot be done because temperature around player's pick-up (reading part) is too high. With IG switch OFF, leave vehicle in cool shaded place for a while and re-check. After deleting the DTC memory, if same code detected, replace CD auto changer.
      64 CD Changer Excess Current Excess current is applied CD auto changer. Replace CD auto changer
    4. Physical address: 1C6 Gateway ECU

      Logical address: 01 (Communication control)

      LOGICAL ADDRESS: 01 (COMMUNICATION CONTROL) DIAGNOSIS TROUBLE CODE

      DTC Diagnosis item Diagnosis content Countermeasure and inspected parts
      D4 (1) Regular Communication Error Component in which this code is recorded has been disconnected after engine start. Or, when this code was recorded, radio receiver assembly was disconnected.
      • Check harness for power supply system of radio receiver assembly assembly.
      • Check harness for communication system of radio receiver assembly assembly.
      • Check harness for power supply system of gateway ECU.
      • Check harness for communication system of gateway ECU.
      (1) When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
  4. TAIWAN Models: DIAGNOSIS CODE LIST
    • If there is "0" in the column of system check, an error can be detected when the mode is switched to the system check mode.
    • If there is "0" in the column of diagnosis mode, each unit is monitoring whether or not it has failure. In case of detecting failure, it memorizes DTC.
    DIAGNOSIS CODE LIST TAIWAN MODELS

    Parts Name DTC Diagnosis item Diagnosis content Countermeasure and inspected parts System Check Diagnosis memory
    Head Unit (190) 50 Cassette error There is an error in cassette deck. Radio receiver check. X O
    D1 Transmitter error Communication with the equipment that is communicating has failed successively. Wire harness and connecter check. O O
    D2 Periodic communication no response Error in periodic communication.
    • Wire harness and connector
    		 X O
    FF Diagnosis no response Result of diagnosis is not issued from start to finish Radio receiver check. O X
    CD (240360) 60 CD error Error codes other than 61-69 are detected. CD changer check. X O
    61 EJECT error CD is not ejected. CD changer check Magazine check. X O
    62 DISC inside out/flaw CD is inserted inside out or it has a flaw. CD check. X O
    63 Pickup temperature detection High temperature of CD changer is detected. CD changer check. X O
    64 Excessive current detection Excessive current to CD changer is detected. X O
    67 Tray insertion/discharging error An error occurs in insertion and discharging operation of CD changer tray. CD changer check. Magazine check. X O
    68 Elevator error An error occurs in elevator of CD changer elevator. CD changer check. X O
    D1 Transmitter error Communication with the equipment that is communicating has failed success ivelv. O O
    D4 Periodic communication error Connection confirmation has not come from the equipment that is communicating
    • Radio receiver check.
    • Wire harness check.
    		 O
    AMP (440) D1 Transmitter error Communication with the equipment that is communicating has failed successively. Stereo component amplifier check. O O
    D4 Periodic communication error Connection confirmation has not come from the equipment that is communicatincr
    • Radio receiver check.
    • Wire harness check.
    		 X O
  5. PROBLEM SYMPTOMS TABLE
    NOTE: When replacing the internal mechanism (computer part) of the audio system, be careful that no part of your body or clothing comes in contact with the terminals of the leads from the IC, etc. of replacement part (spare part).

    HINT: This inspection procedure is a simple troubleshooting which should be carried out on the vehicle during system operation and was prepared on the assumption of system component troubles (except for the wires and connectors, etc.).

    Always inspect the trouble taking the following items into consideration.

    • Open or short circuit of the wire harness
    • Connector or terminal connection fault
    PROBLEM SYMPTOMS

      Problem No.
    Radio Radio not operating when power switch turned to "ON". 1
      Display indicates when power switch turned to "ON", but no sound (including 'niose') is produced. 2
      Noise present, but AM - FM not operating. 3
      Any Speaker does not work. 4
      Any AM or FM does not work. 5
      Few preset turning bands. 5
      Reception poor. 6
      Sound quality poor. 7
      Preset memory Disappears. 8
    Tape Player Cassette tape cannot be inserted. 9
      Cassette tape inserted, but no power. 10
      Power coming in, but tape player not operating. 11
      Any speaker does not work. 12
      Sound quality poor. 13
      Tape jammed, malfunction with tape speed or auto- reverse. 14
      Cassette tape will not eject. 15
    CD Player CD cannot be inserted. 16
      CD inserted, but no power. 17
      Power come in, but CD player not operating. 18
      Sound jumps. 19
      Sound quality poor (Volume faint). 20
      Any speaker does not work 21
      CD will not be ejected. 22
    Stereo Component Amplifier No power coming in. 23
      Power coming in, but Stereo component amplifier not operating. 24
      Any speaker does not work. 25
    Noise Noise occurs 26
      Noise produced by vibration or shock while driving. 27
      Noise produced when engine starts. 28

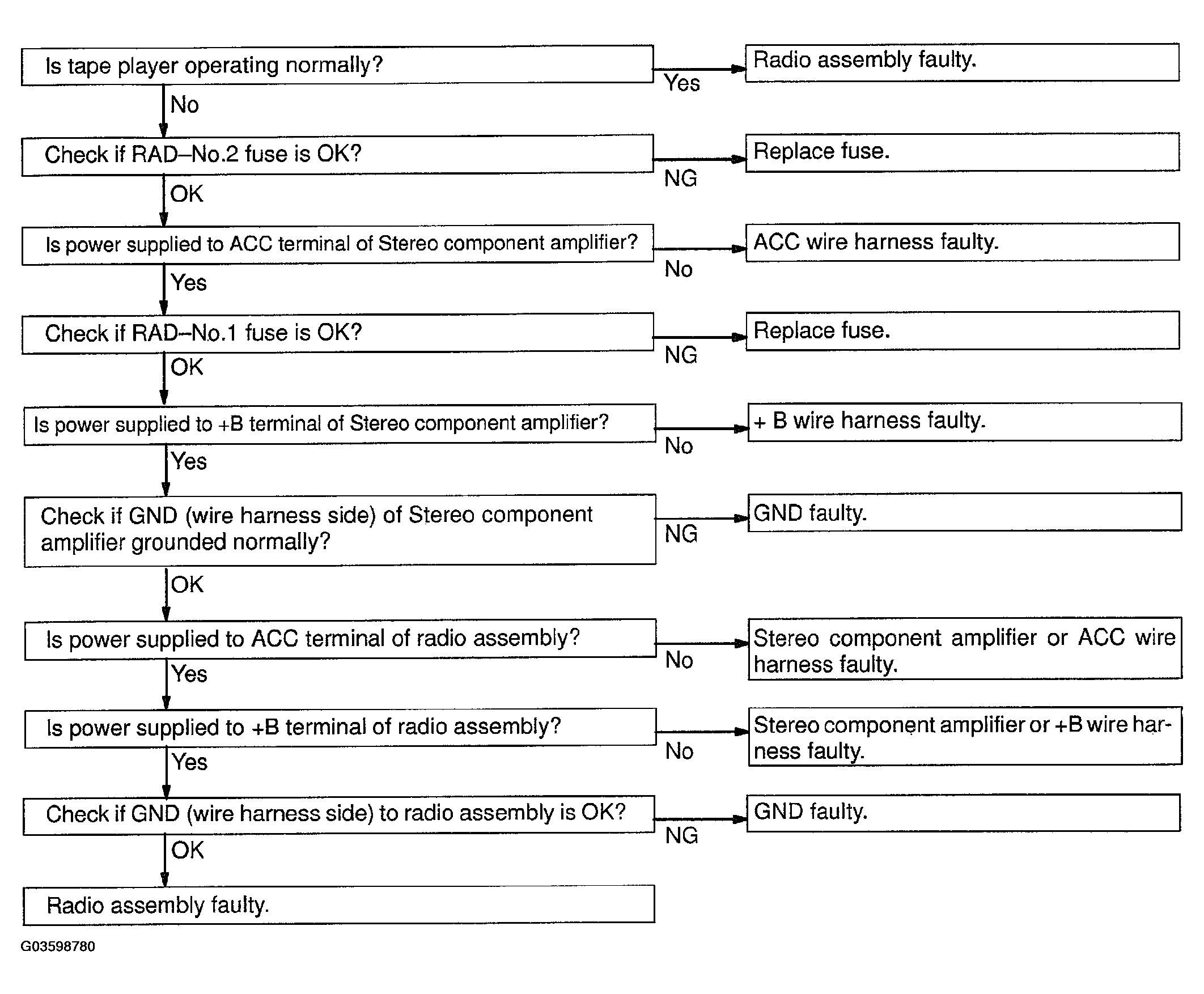

    1. RADIO NOT OPERATING WHEN POWER SWITCH TURNED TO "ON"
      Fig 9: Problem Symptom Chart - Radio Not Operating When Power Switch Turned To "ON"
      G03598780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Radio DISPLAY INDICATES WHEN POWER SWITCH TURNED TO "ON", BUT NO SOUND (INCLUDING "NOISE") IS PRODUCED

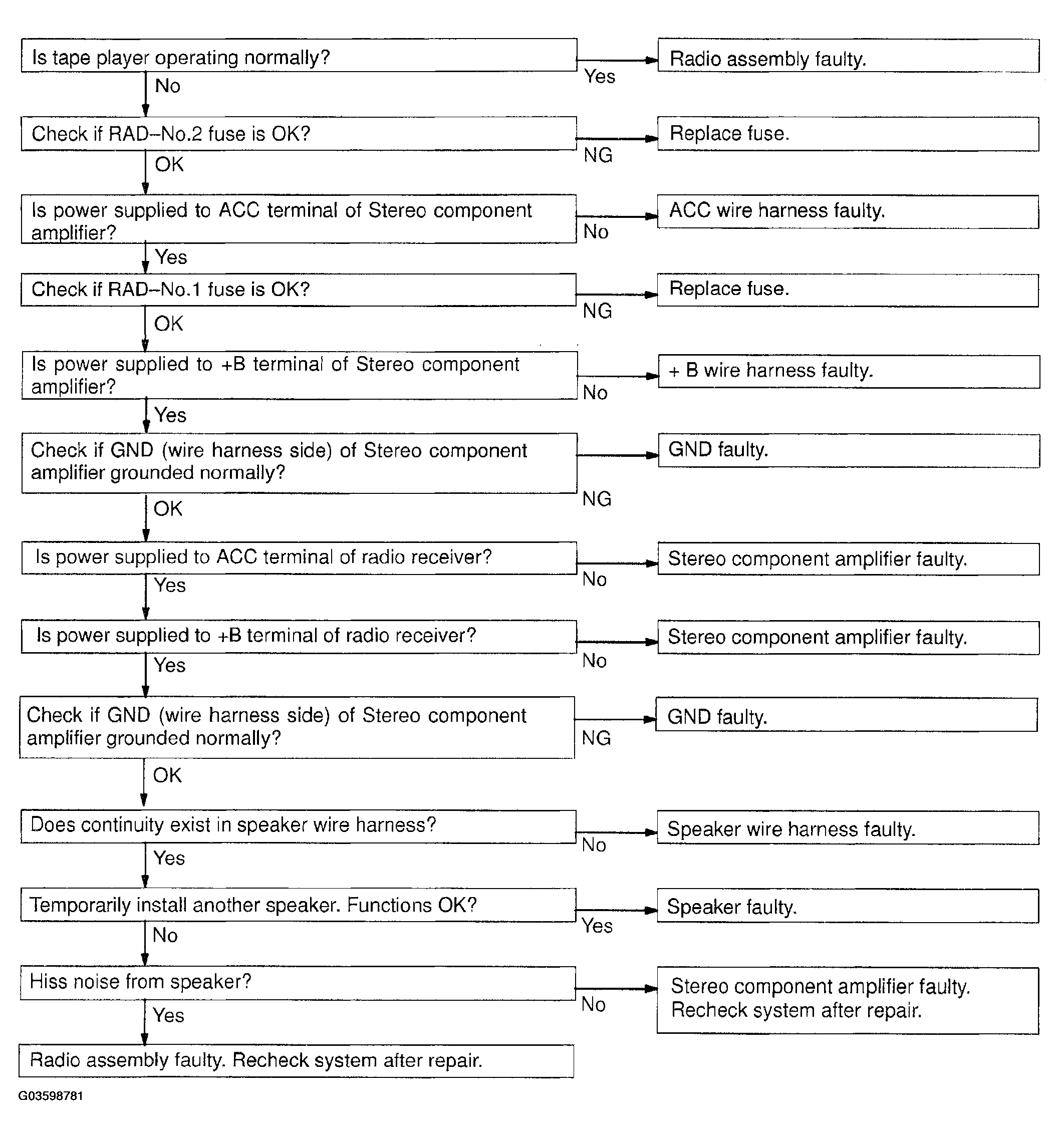

      Fig 10: Problem Symptom Chart - Display Indicates When Power Switch Turned To "On", But No Sound (Including "Noise") Is Produced
      G03598781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Radio NOISE PRESENT, BUT AM-FM NOT OPERATING

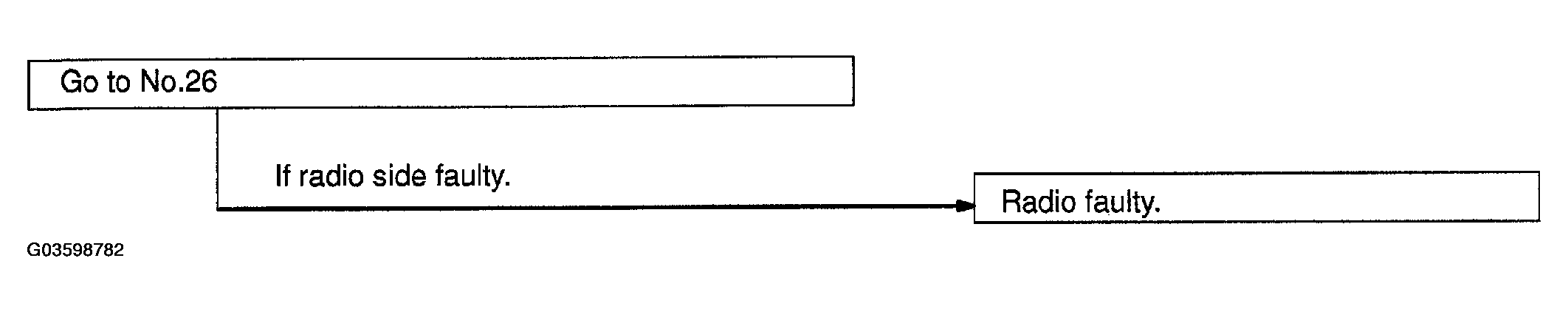

      Fig 11: Problem Symptom Chart - Radio Noise Present, But AM-FM Not Operating
      G03598782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

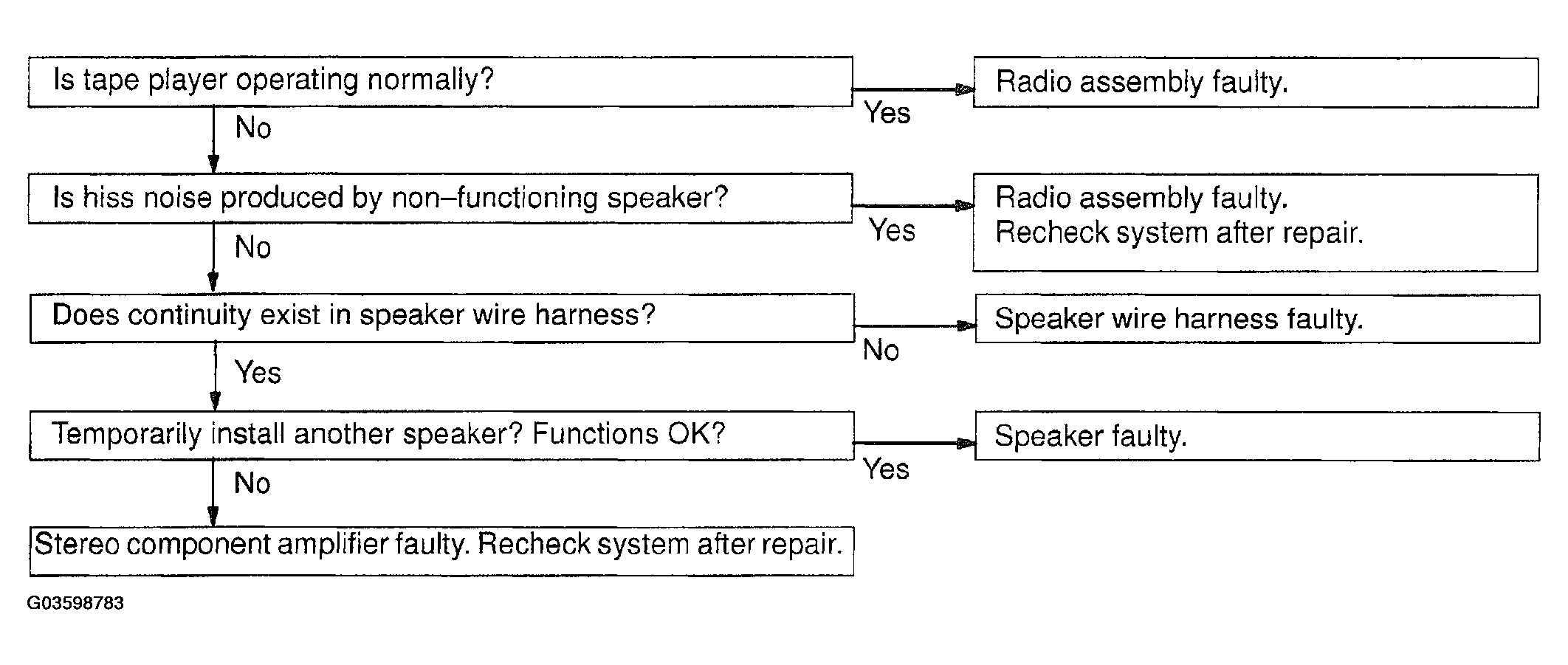

    4. Radio ANY SPEAKER DOSE NOT WORK
      Fig 12: Problem Symptom Chart - Radio Any Speaker Dose Not Work
      G03598783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

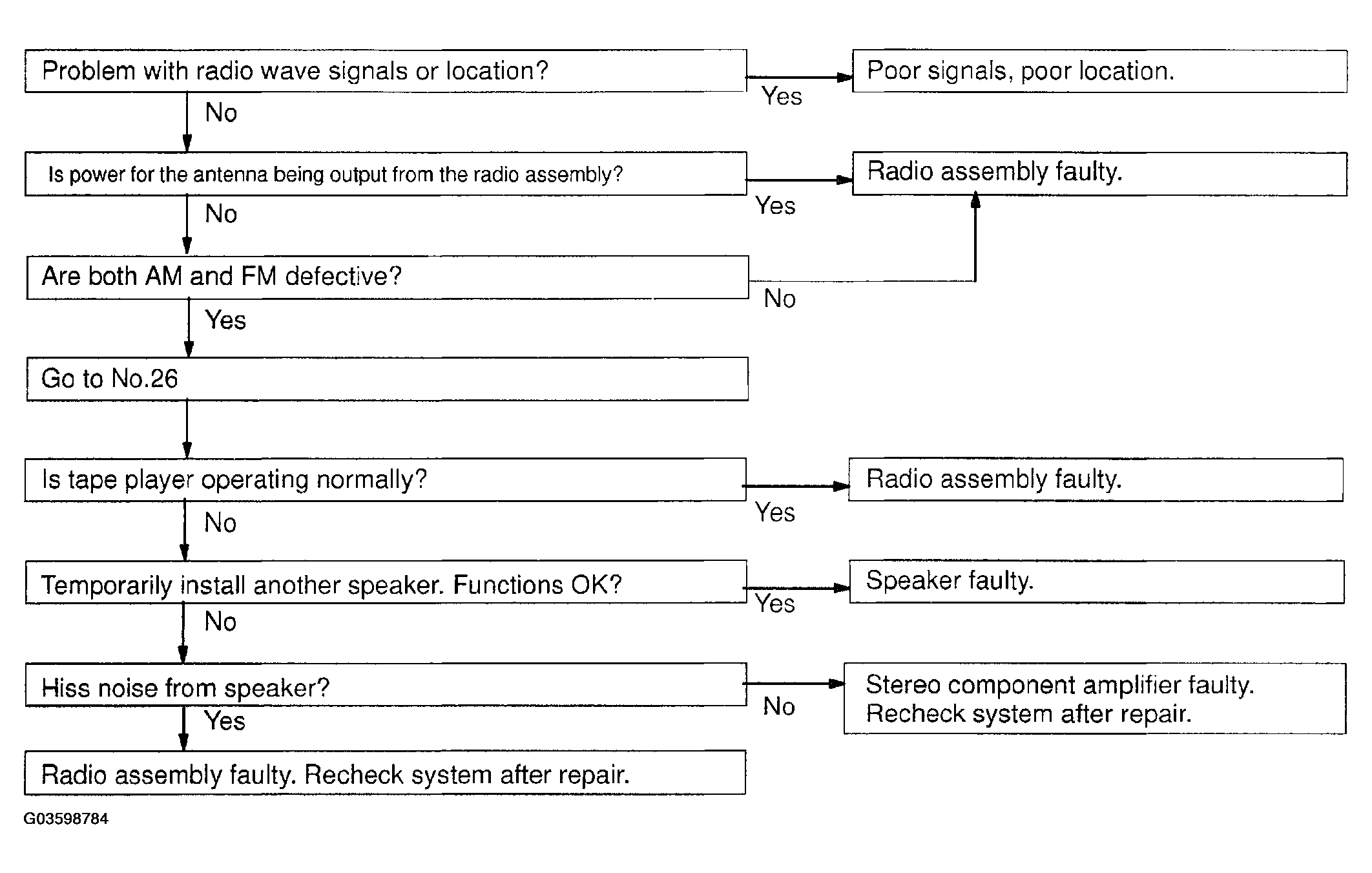

    5. Radio ANY AM OR FM DOES NOR WORK FEW PRESET TUNING BANDS
      Fig 13: Problem Symptom Chart - Radio Any AM Or FM Does Nor Work Few Preset Tuning Bands
      G03598784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

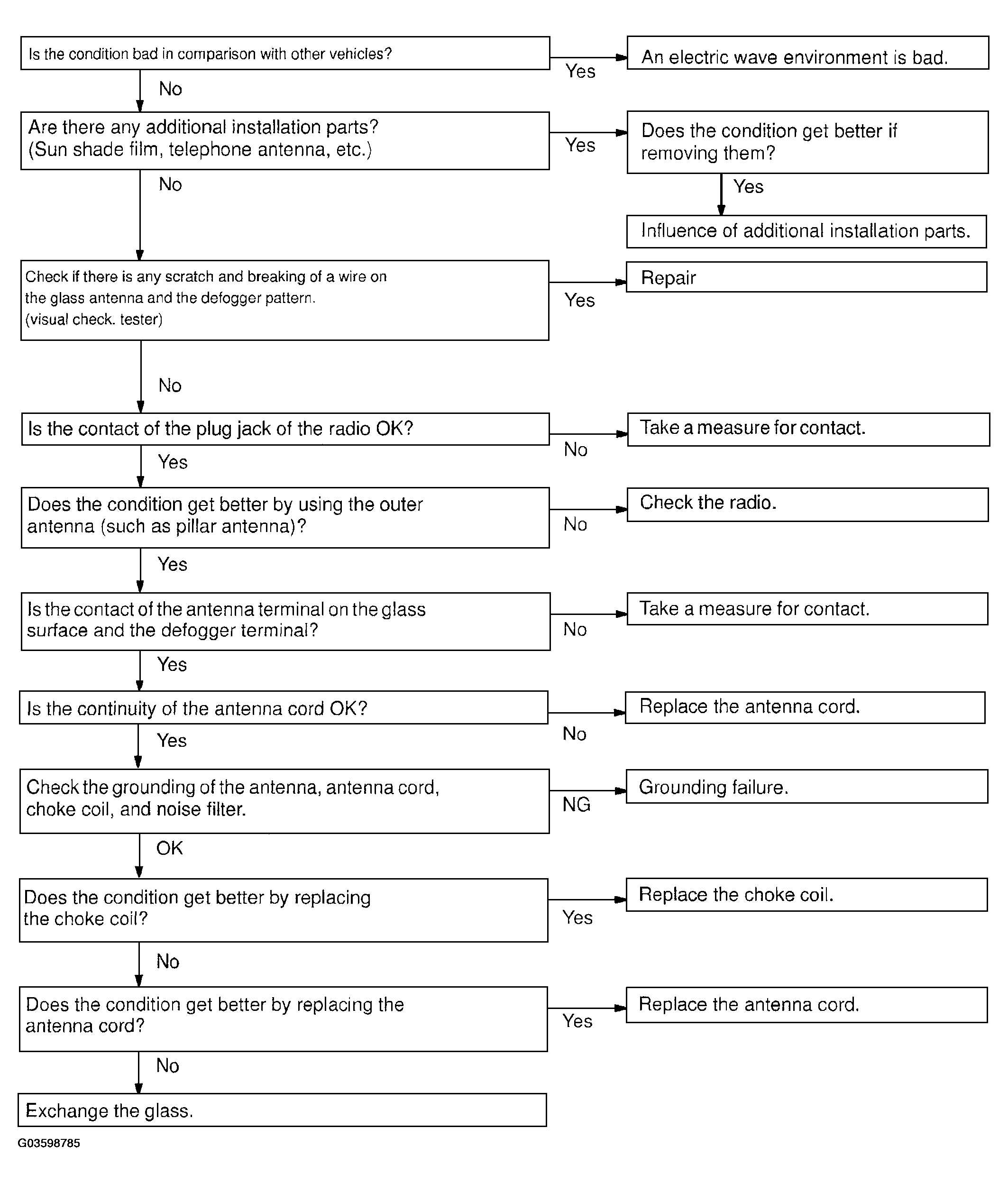

    6. Radio POOR RECEPTION
      Fig 14: Problem Symptom Chart - Radio Poor Reception
      G03598785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

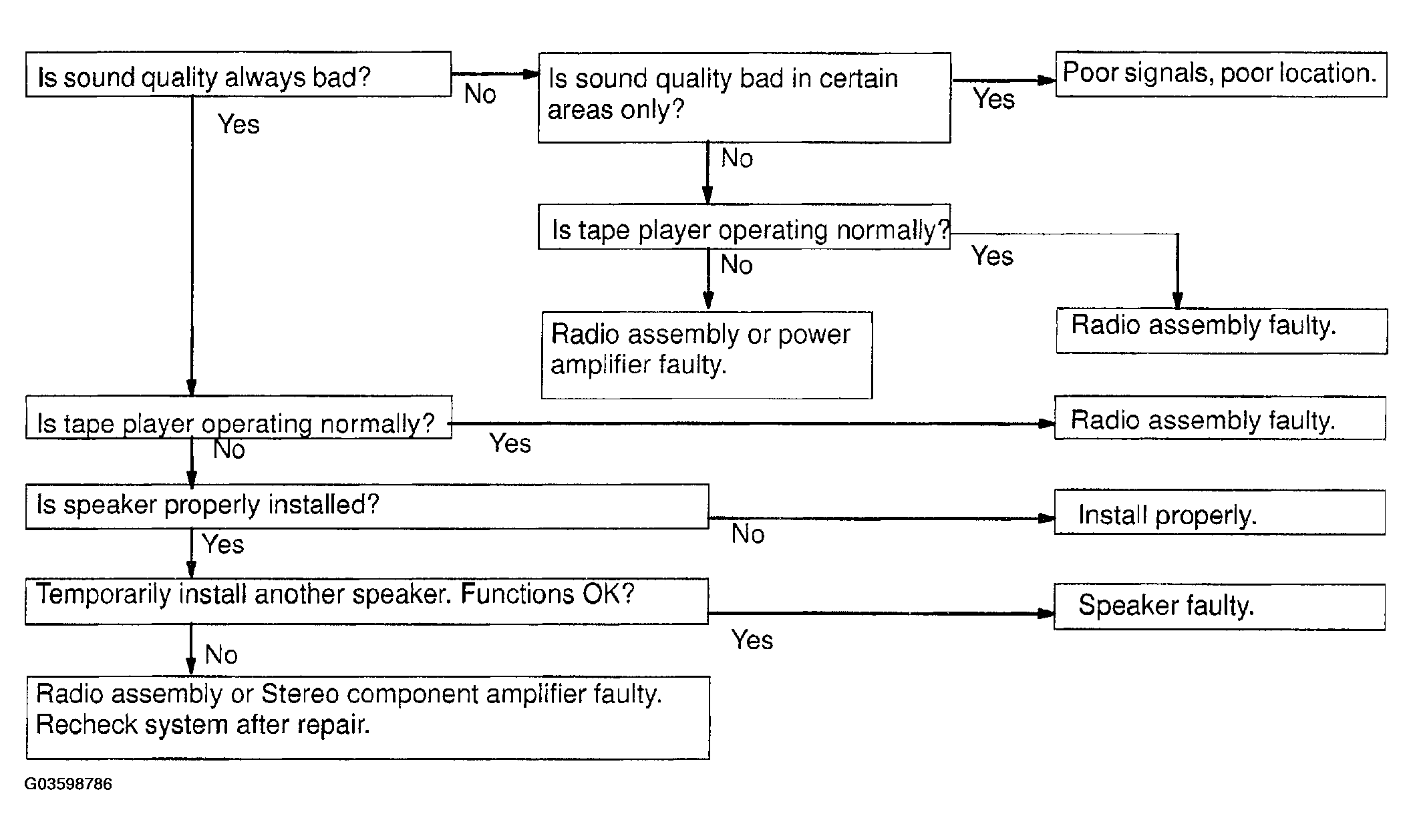

    7. Radio SOUND QUALITY POOR
      Fig 15: Problem Symptom Chart - Radio Sound Quality Poor
      G03598786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

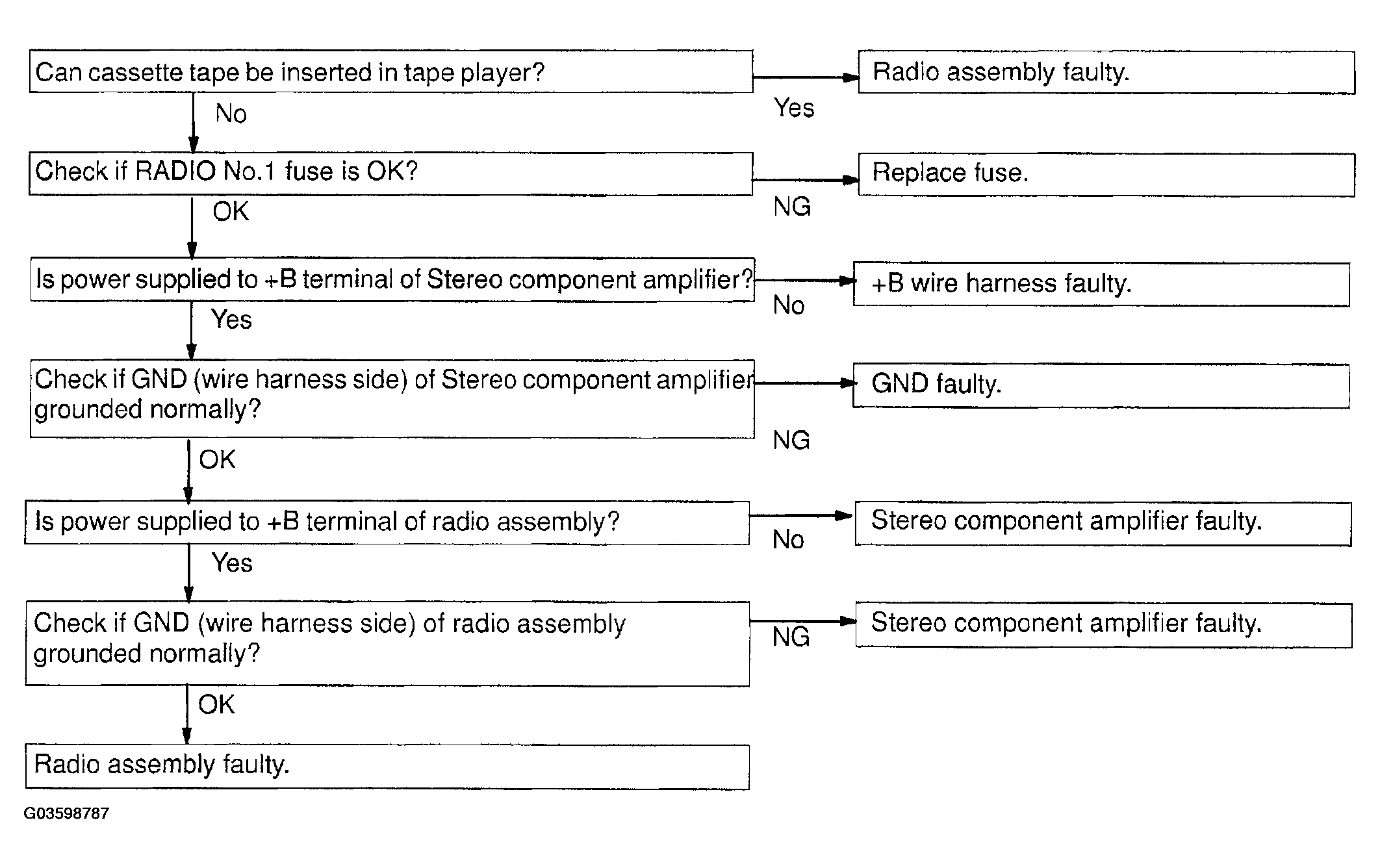

    8. Radio PRESET MEMORY DISAPPEARS
      Fig 16: Problem Symptom Chart - Radio Preset Memory Disappears
      G03598787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Tape Player CASSETTE TAPE CANNOT BE INSERTED
      Fig 17: Problem Symptom Chart - Tape Player Cassette Tape Cannot Be Inserted
      G03598788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

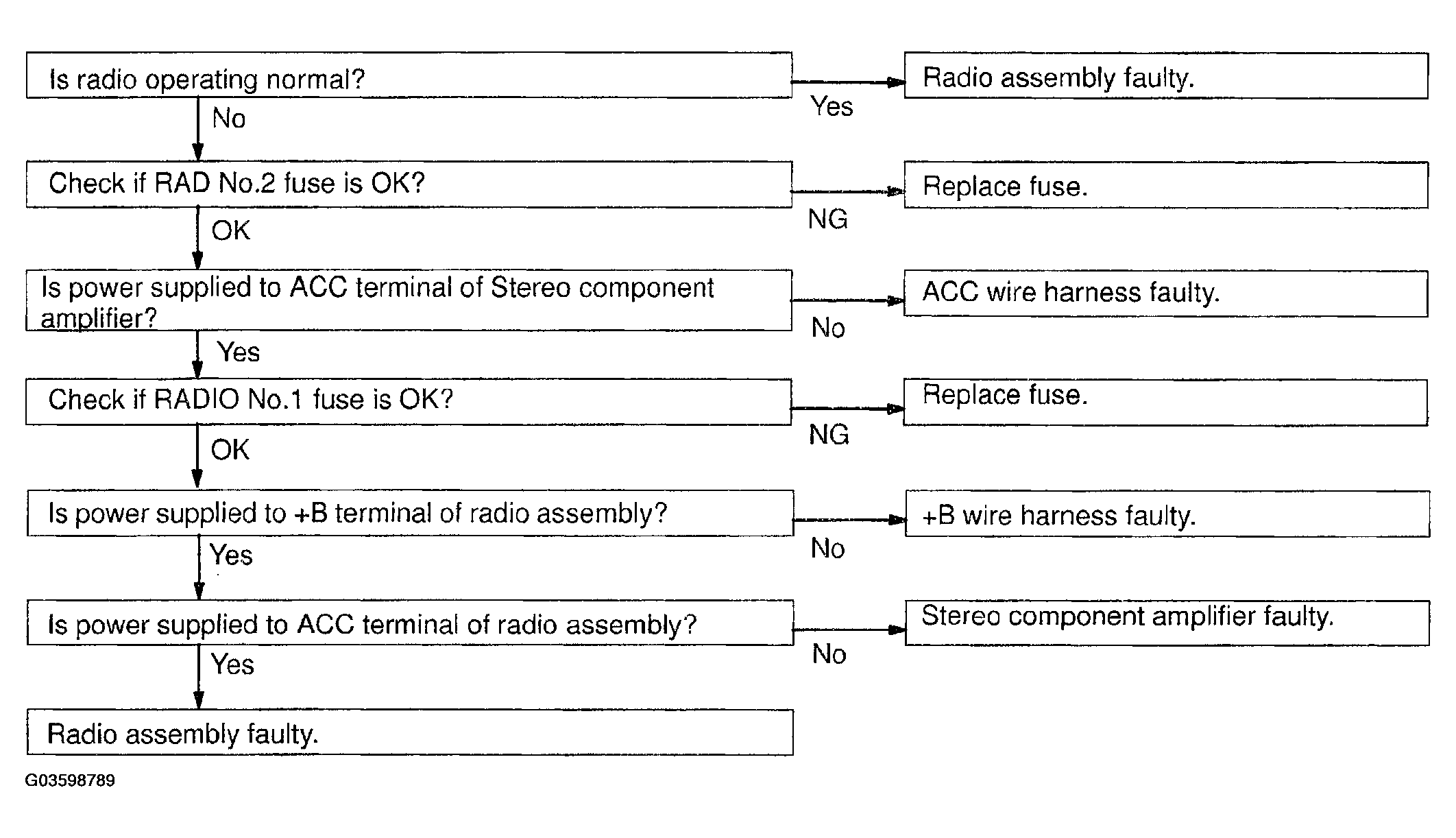

    10. Tape Player CASSETTE TAPE INSERTED, BUT NO POWER

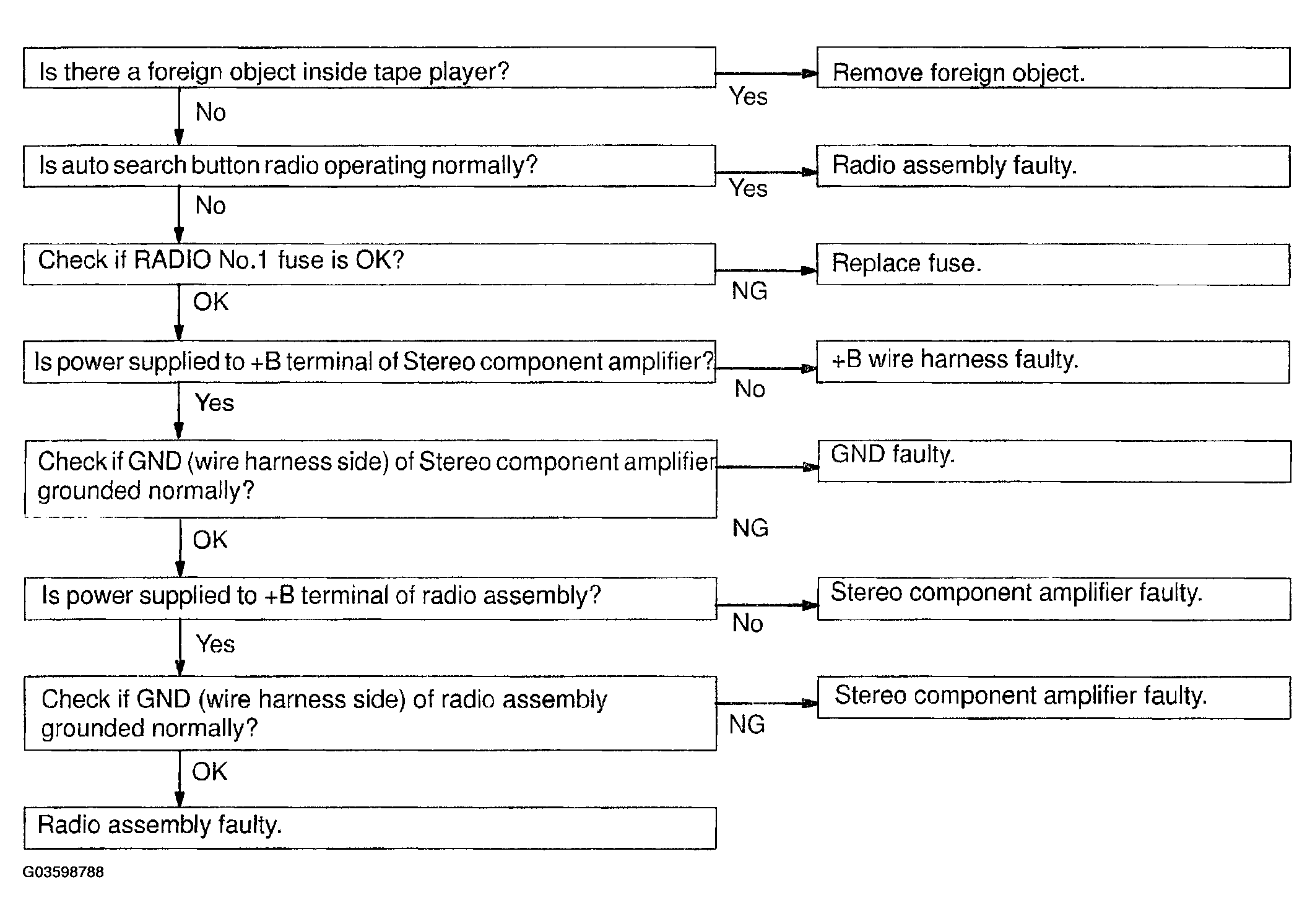

      Fig 18: Problem Symptom Chart - Tape Player Cassette Tape Inserted, But No Power
      G03598789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

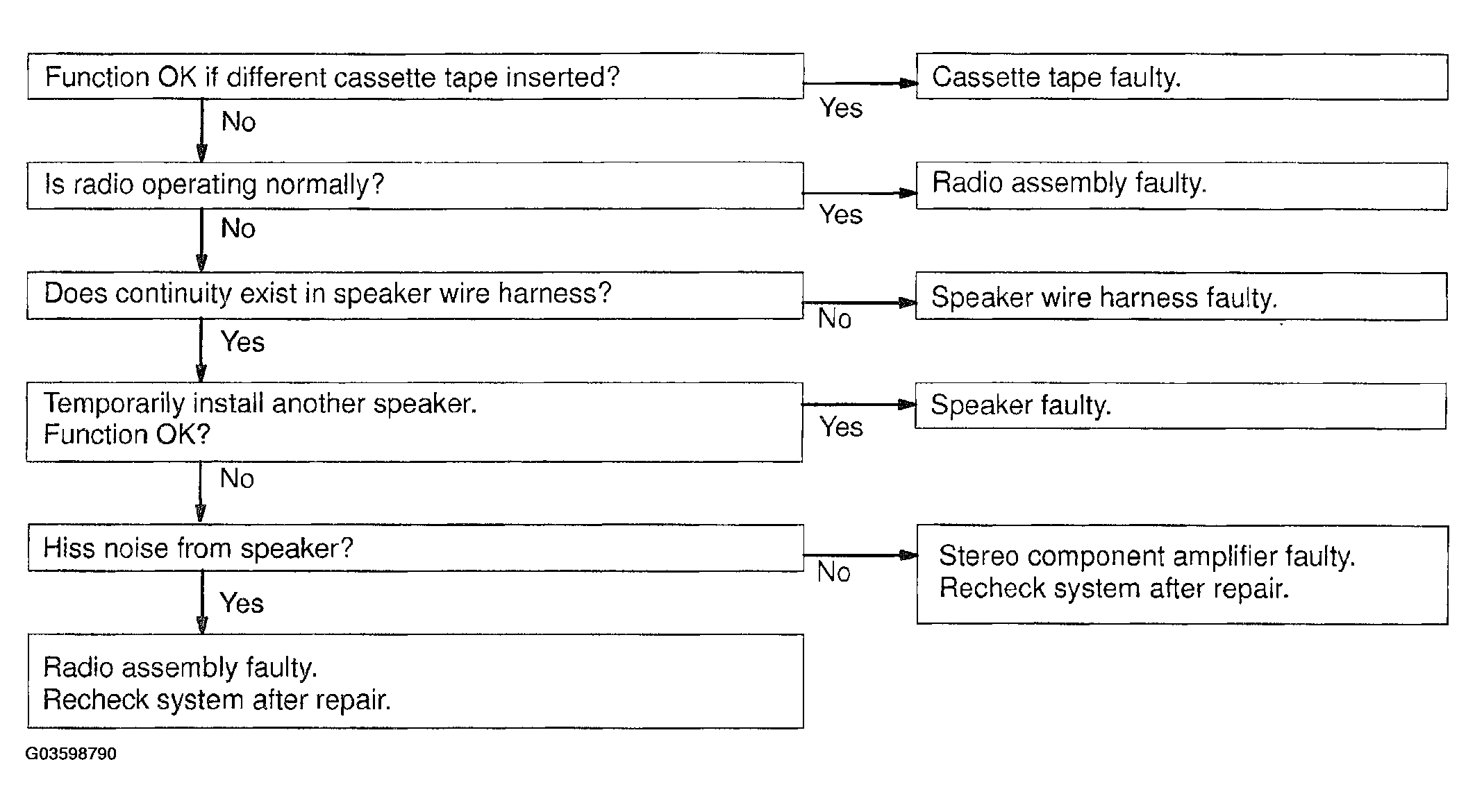

    11. Tape Player POWER COMING IN, BUT TAPE PLAYER NOT OPERATING
      Fig 19: Problem Symptom Chart - Tape Player Power Coming In, But Tape Player Not Operating
      G03598790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

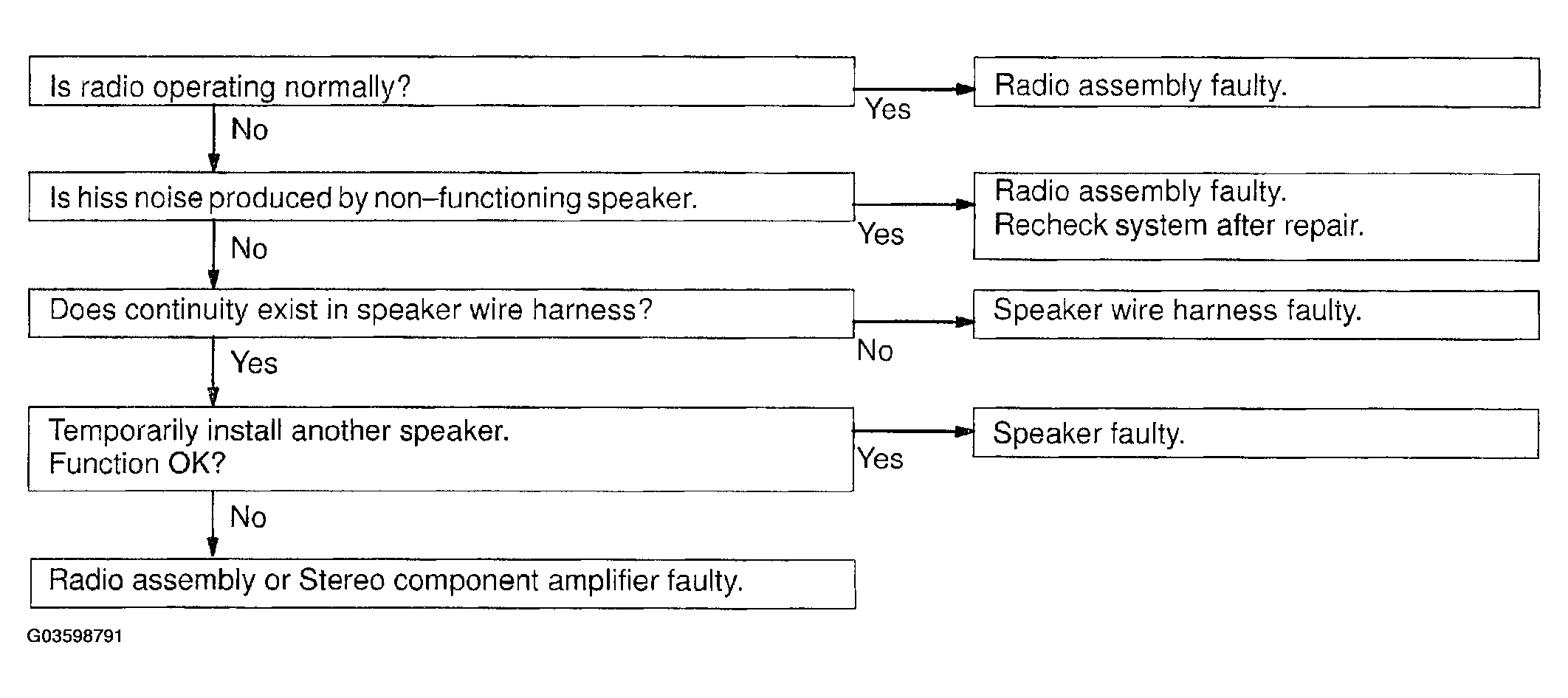

    12. Tape Player ANY SPEAKER DOES NOT WORK
      Fig 20: Problem Symptom Chart - Tape Player Any Speaker Does Not Work
      G03598791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Tape Player SOUND QUALITY POOR (VOLUME FAINT)

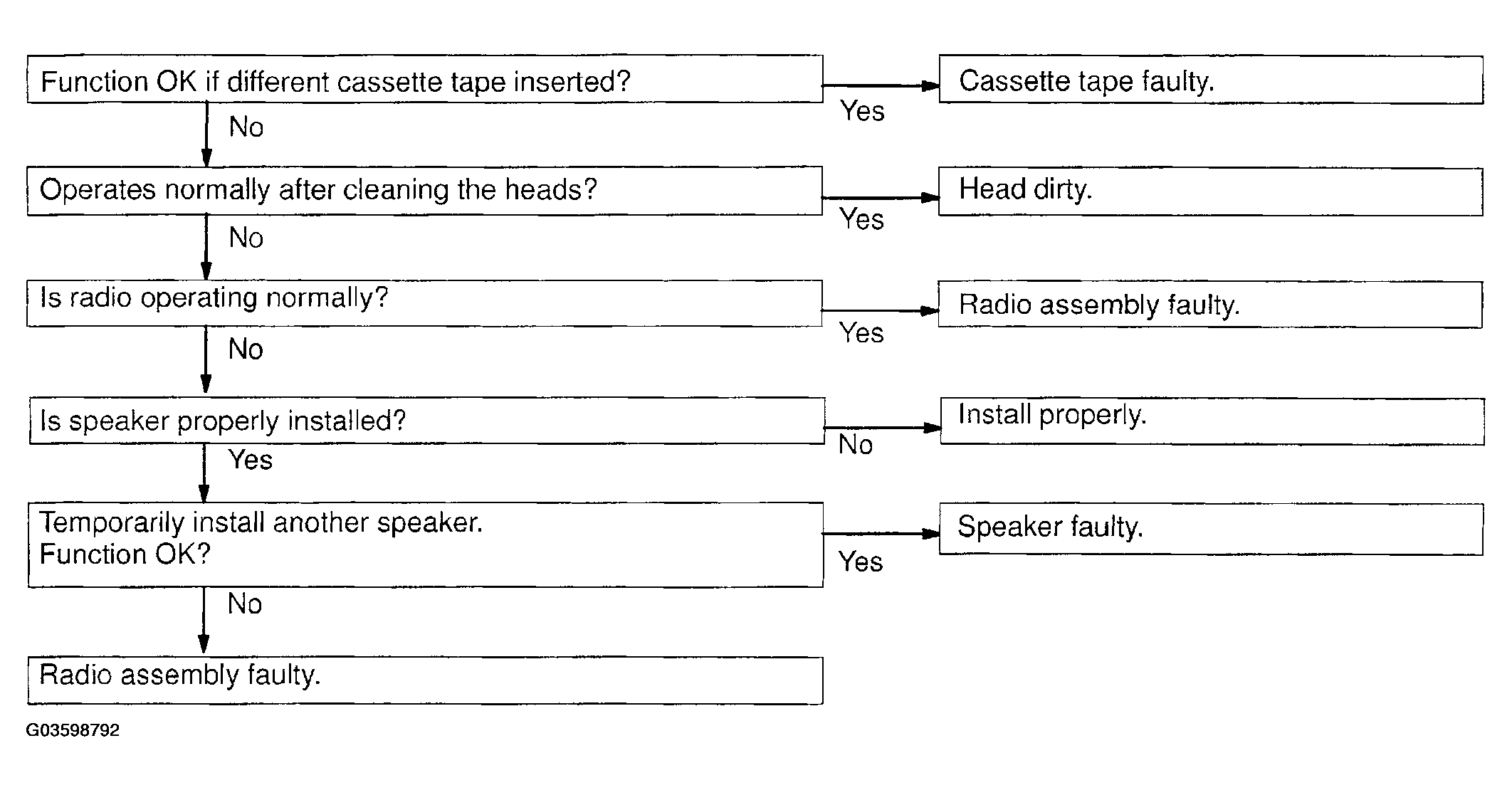

      Fig 21: Problem Symptom Chart - Tape Player Sound Quality Poor (Volume Faint)
      G03598792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

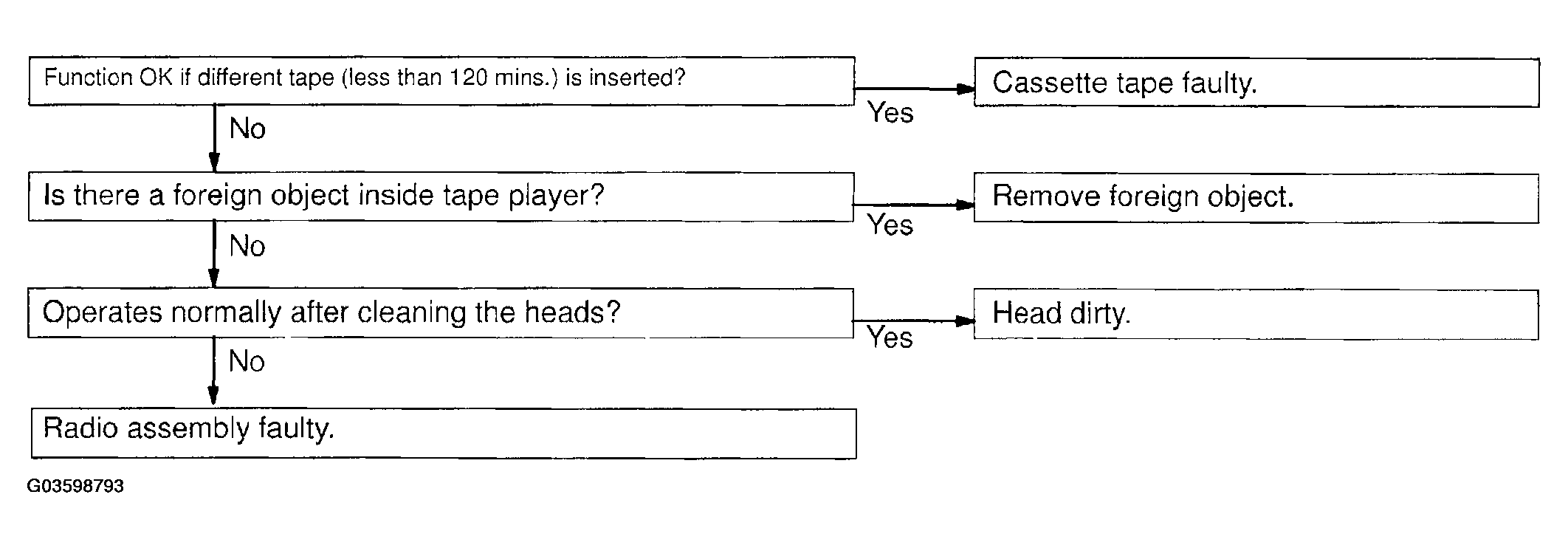

    14. Tape Player TAPE JAMMED MALFUNCTION WITH TAPE SPEED OR AUTO-REVERSE
      Fig 22: Problem Symptom Chart - Tape Player Tape Jammed Malfunction With Tape Speed Or Auto-Reverse
      G03598793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    15. Tape Player CASSETTE TAPE WILL NOT BE EJECTED

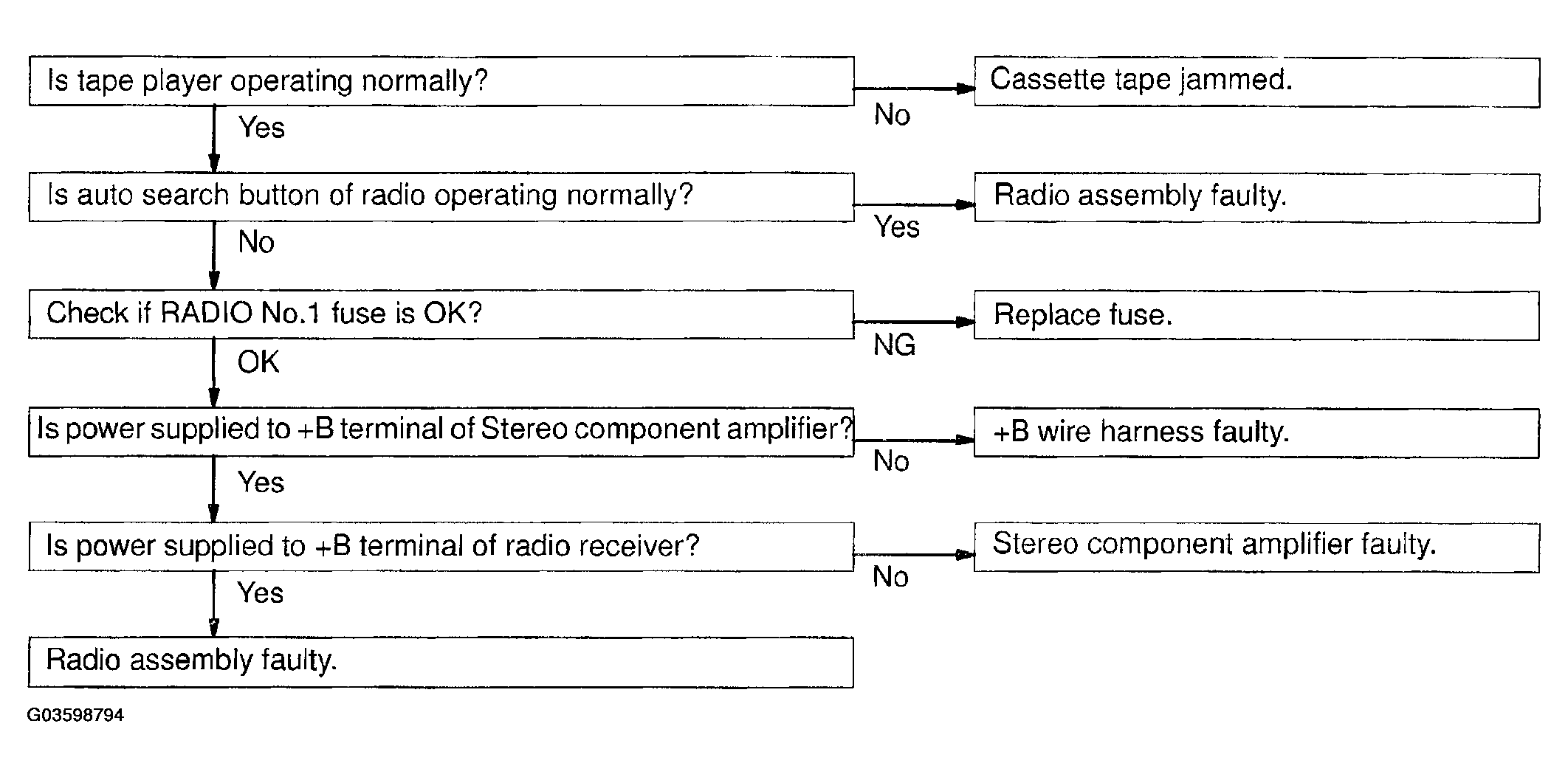

      Fig 23: Problem Symptom Chart - Tape Player Cassette Tape Will Not Be Ejected
      G03598794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

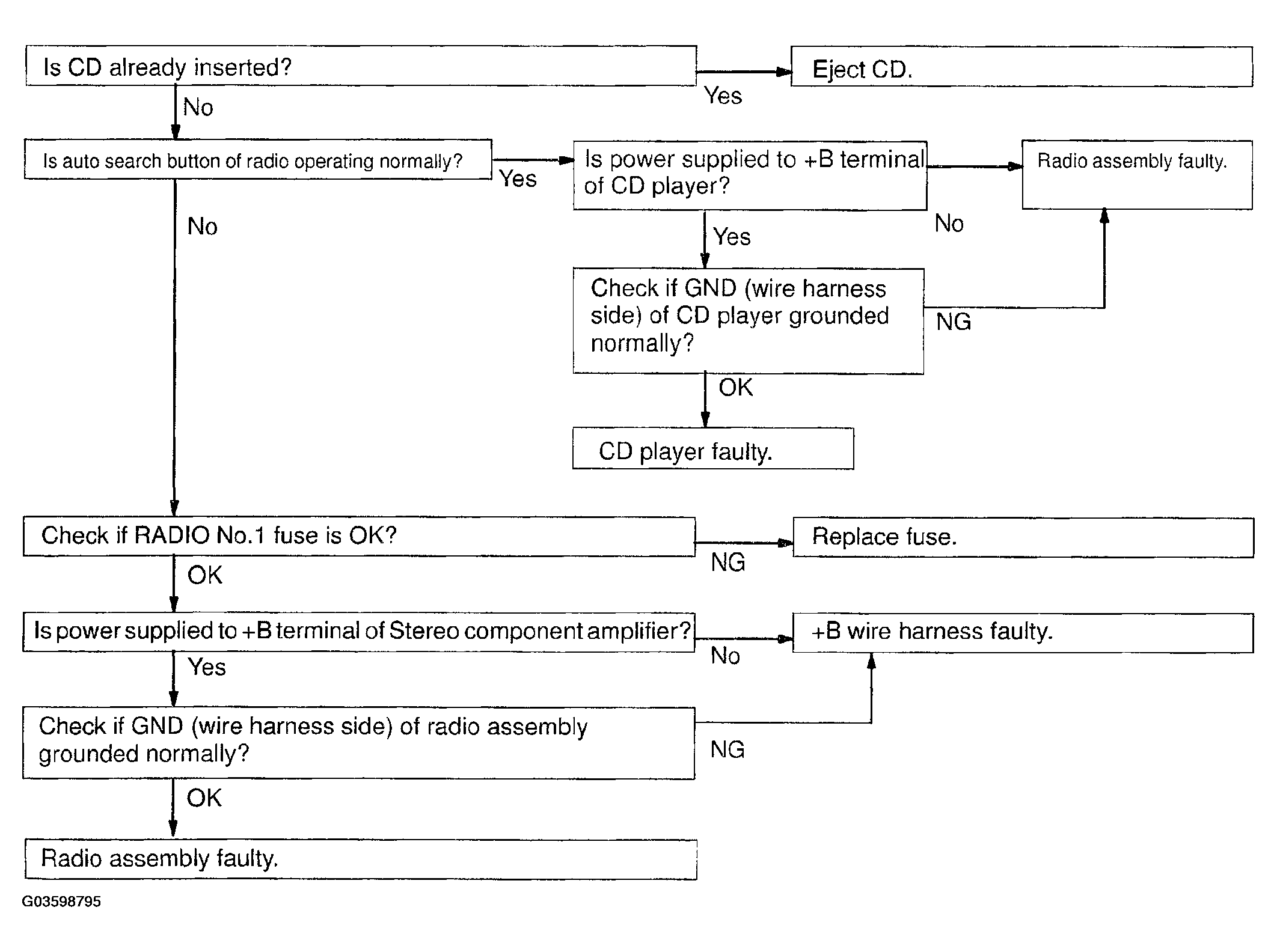

    16. CD Player CD CANNOT BE INSERTED
      Fig 24: Problem Symptom Chart - CD Player CD Cannot Be Inserted
      G03598795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    17. CD Player CD INSERTED, BUT NO POWER

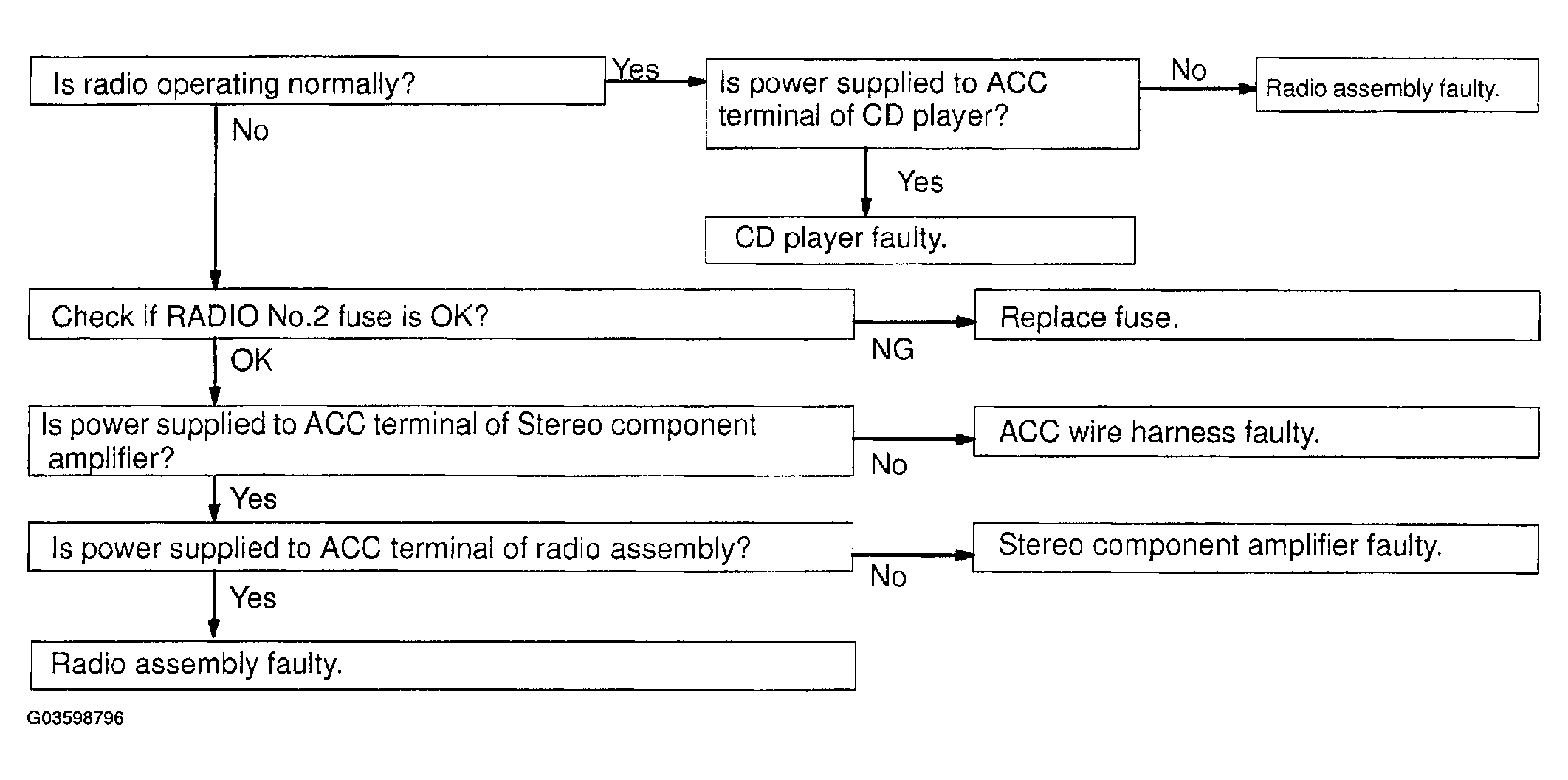

      Fig 25: Problem Symptom Chart - CD Player CD Inserted, But No Power
      G03598796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

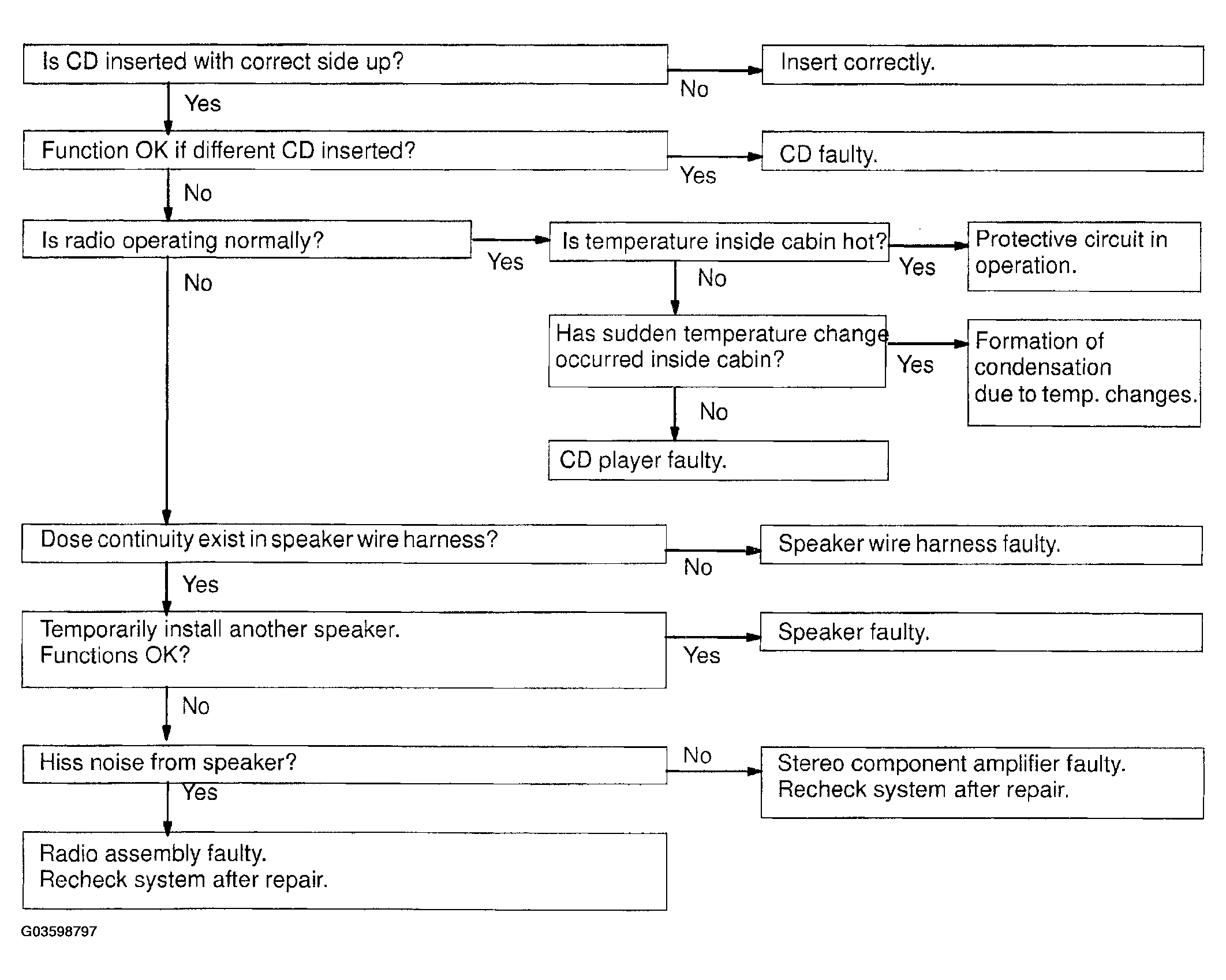

    18. CD Player POWER COMING IN, BUT CD PLAYER NOT OPERATING
      Fig 26: Problem Symptom Chart - CD Player Power Coming In, But CD Player Not Operating
      G03598797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

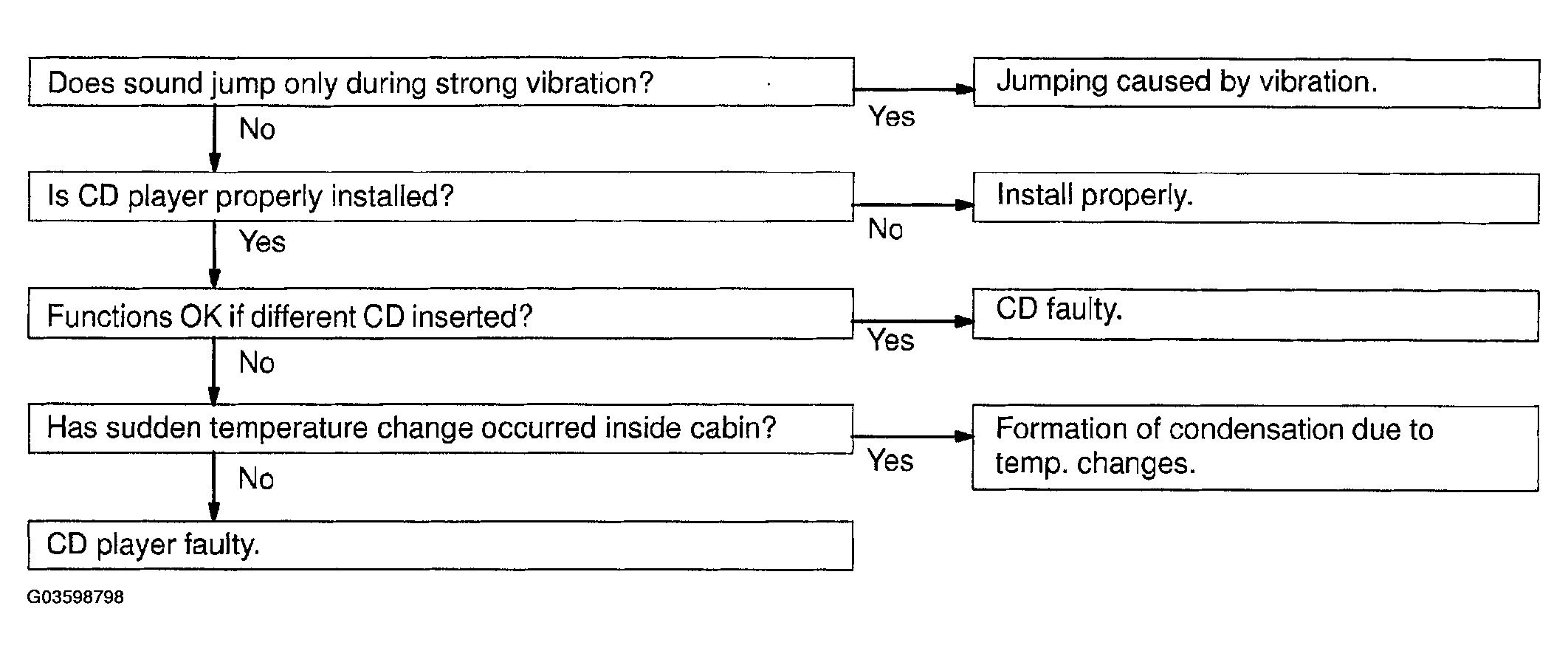

    19. CD Player SOUND JUMPS
      Fig 27: Problem Symptom Chart - CD Player Sound Jumps
      G03598798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    20. CD Player SOUND QUALITY POOR (VOLUME FAINT)

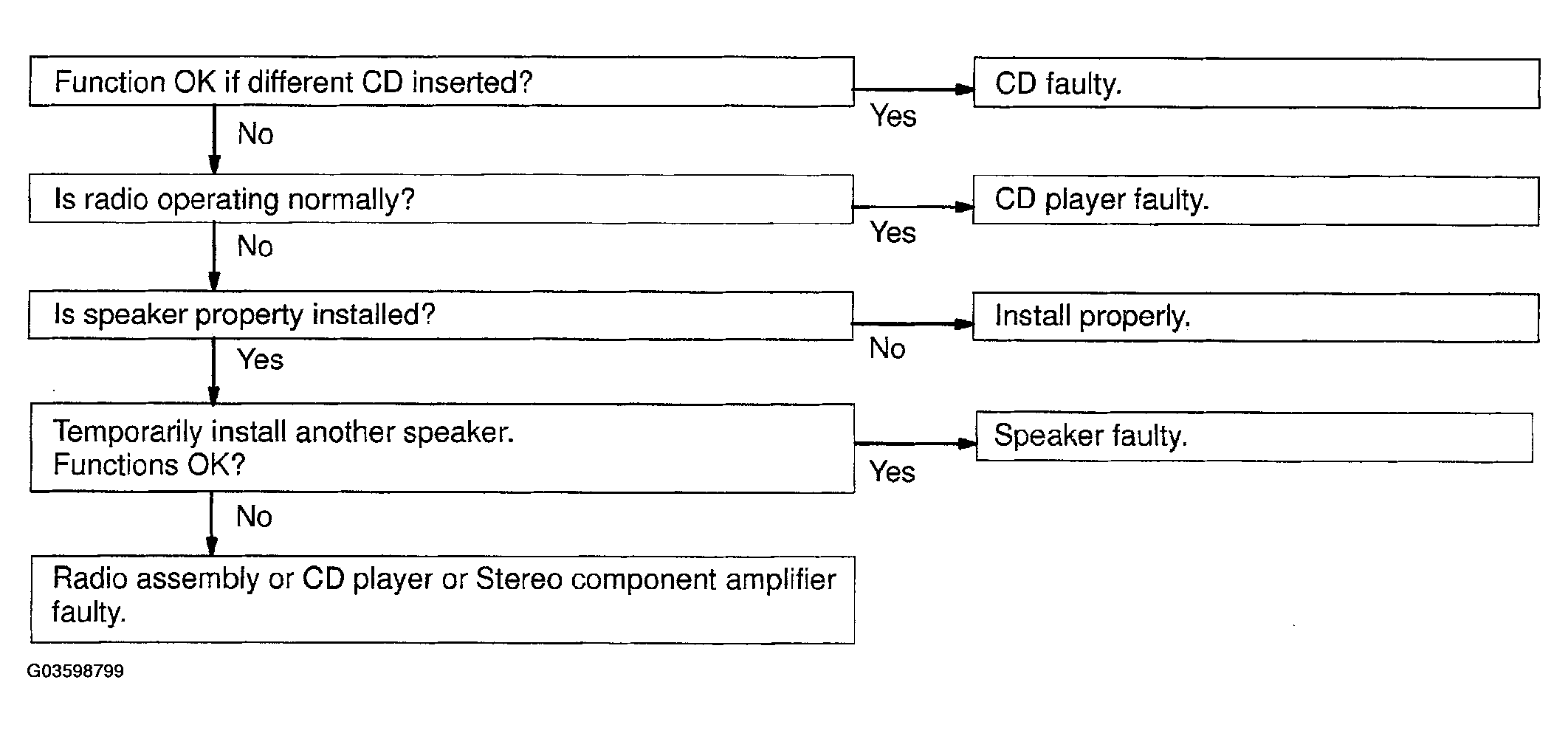

      Fig 28: Problem Symptom Chart - CD Player Sound Quality Poor (Volume Faint)
      G03598799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    21. CD Player ANY SPEAKER DOES NOT WORK

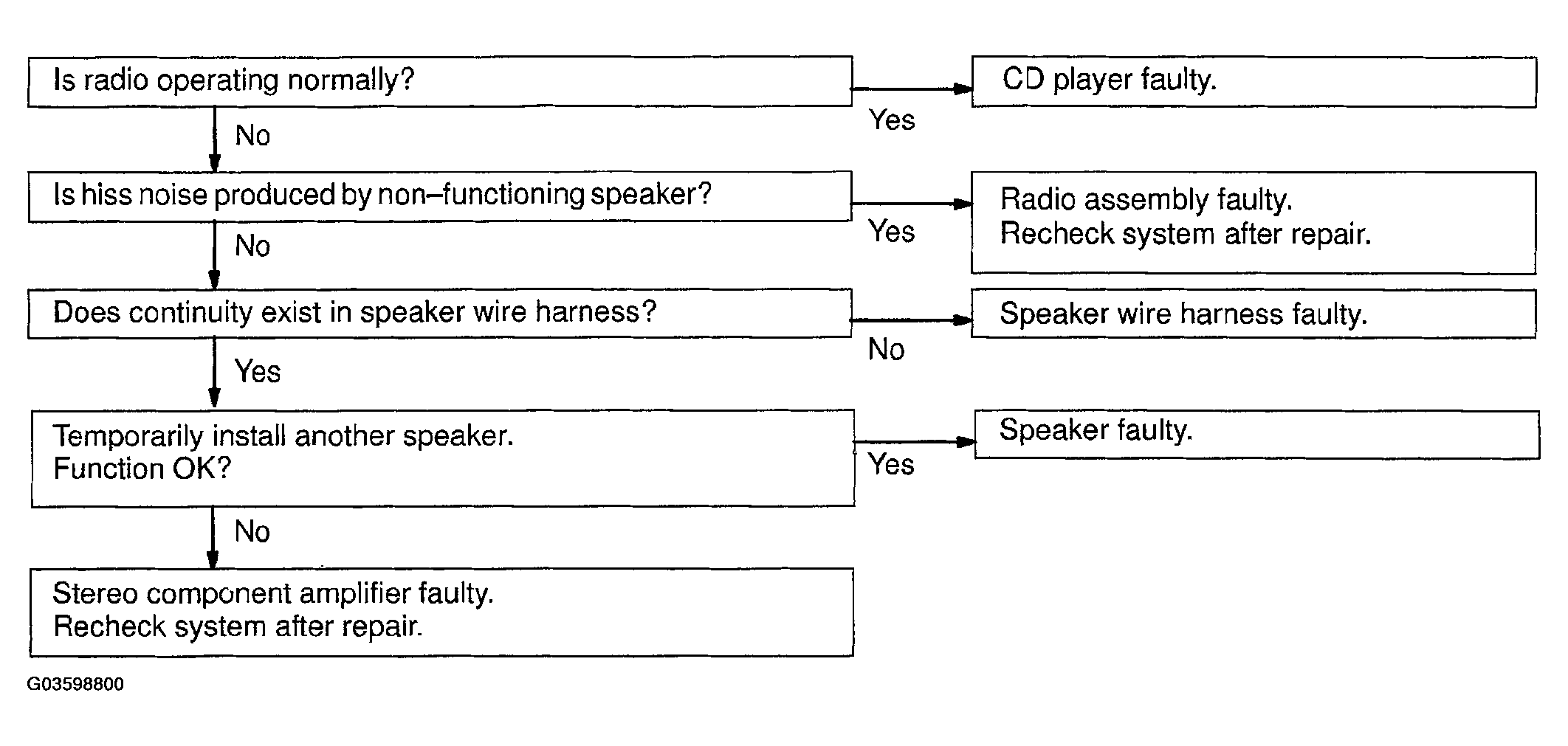

      Fig 29: Problem Symptom Chart - CD Player Any Speaker Does Not Work
      G03598800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    22. CD Player CD WILL NOT BE EJECTED

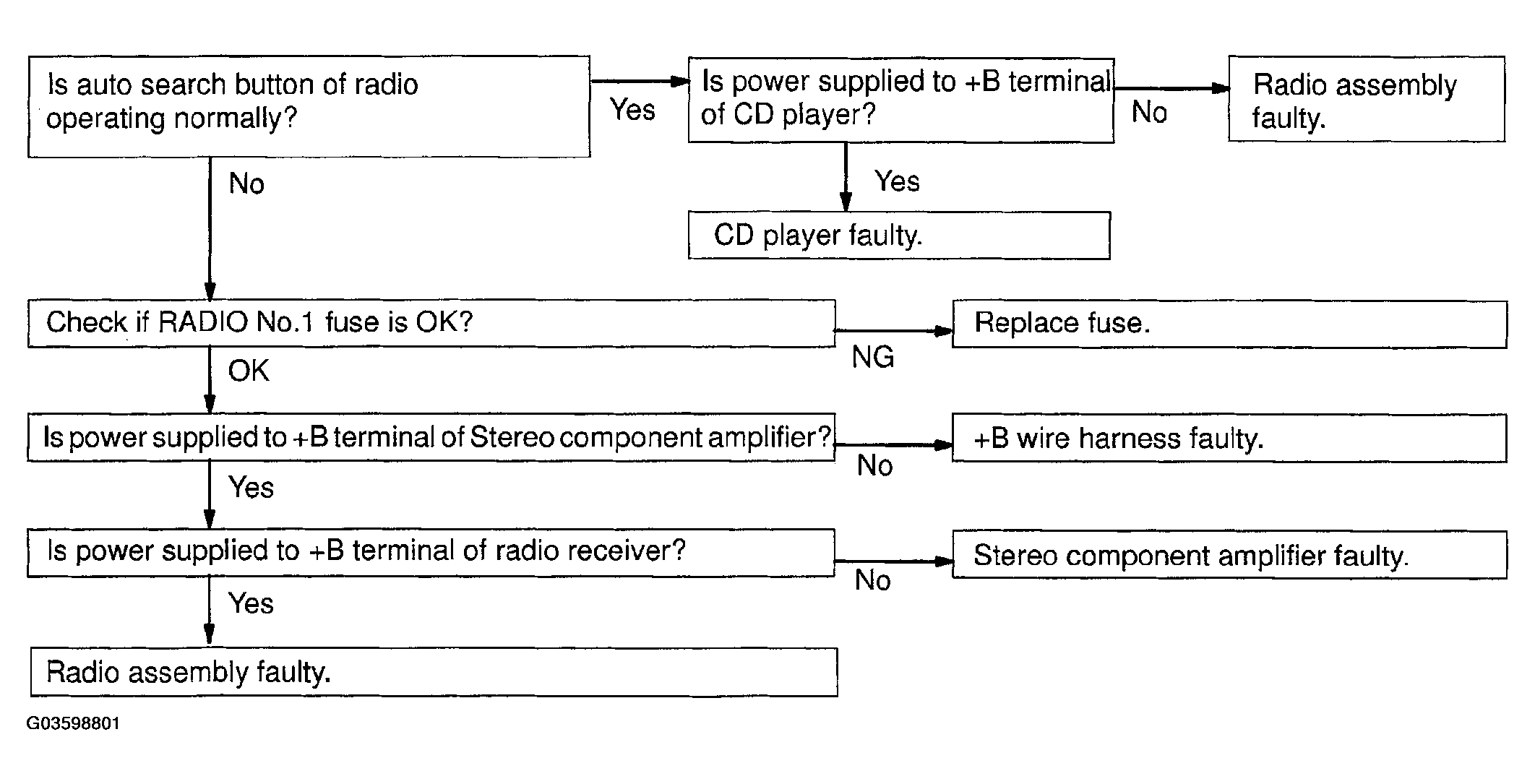

      Fig 30: Problem Symptom Chart - CD Player CD Will Not Be Ejected
      G03598801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    23. Stereo component amplifier NO POWER COMING IN

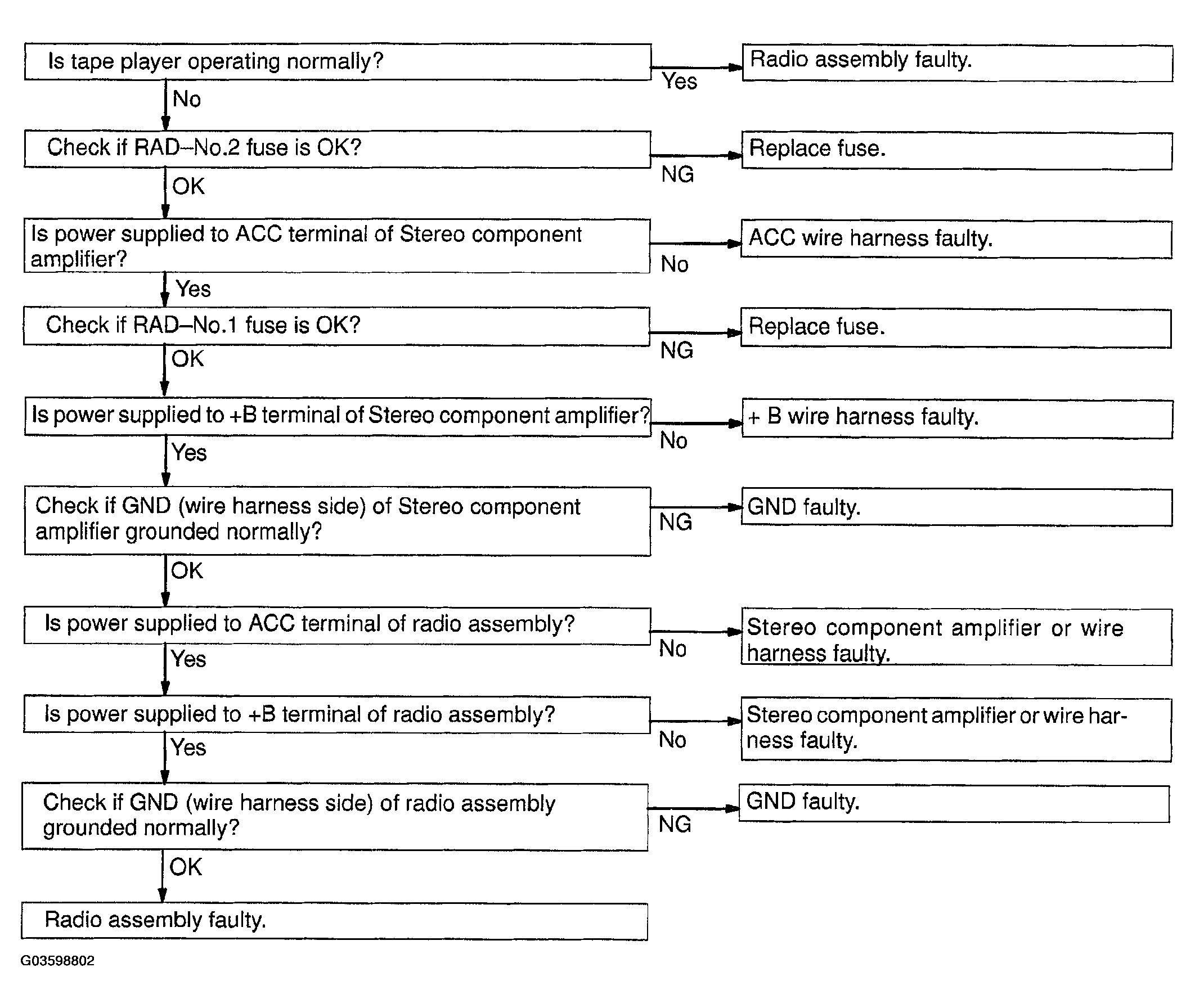

      Fig 31: Problem Symptom Chart - Stereo Component Amplifier No Power Coming In
      G03598802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    24. Stereo component amplifier POWER COMING IN, BUT WOOFER (POWER) AMPLIFIER NOT OPERATING

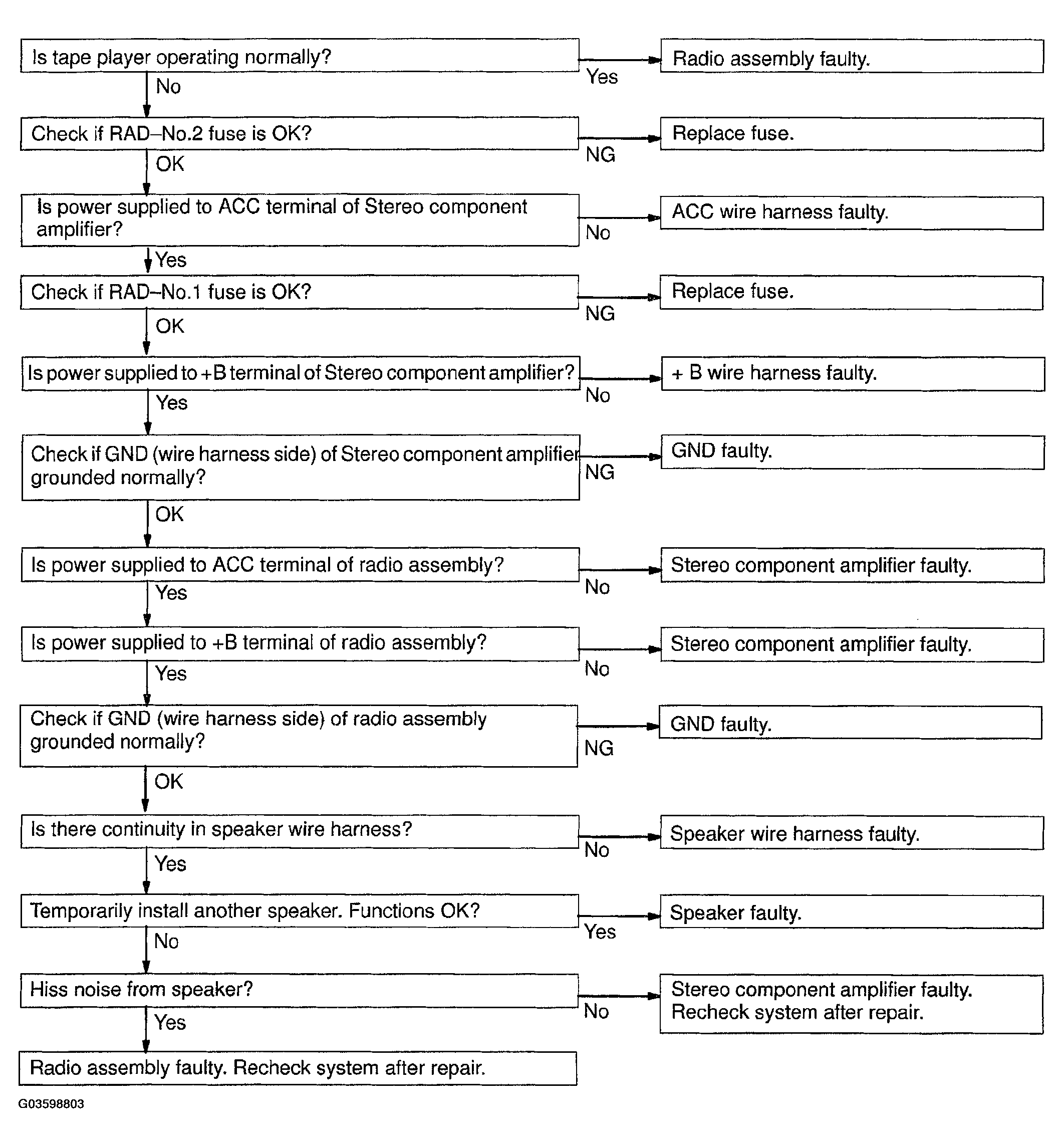

      Fig 32: Problem Symptom Chart - Stereo Component Amplifier Power Coming In, But Woofer (Power) Amplifier Not Operating
      G03598803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    25. Stereo component amplifier ANY SPEAKER DOES NOT WORK

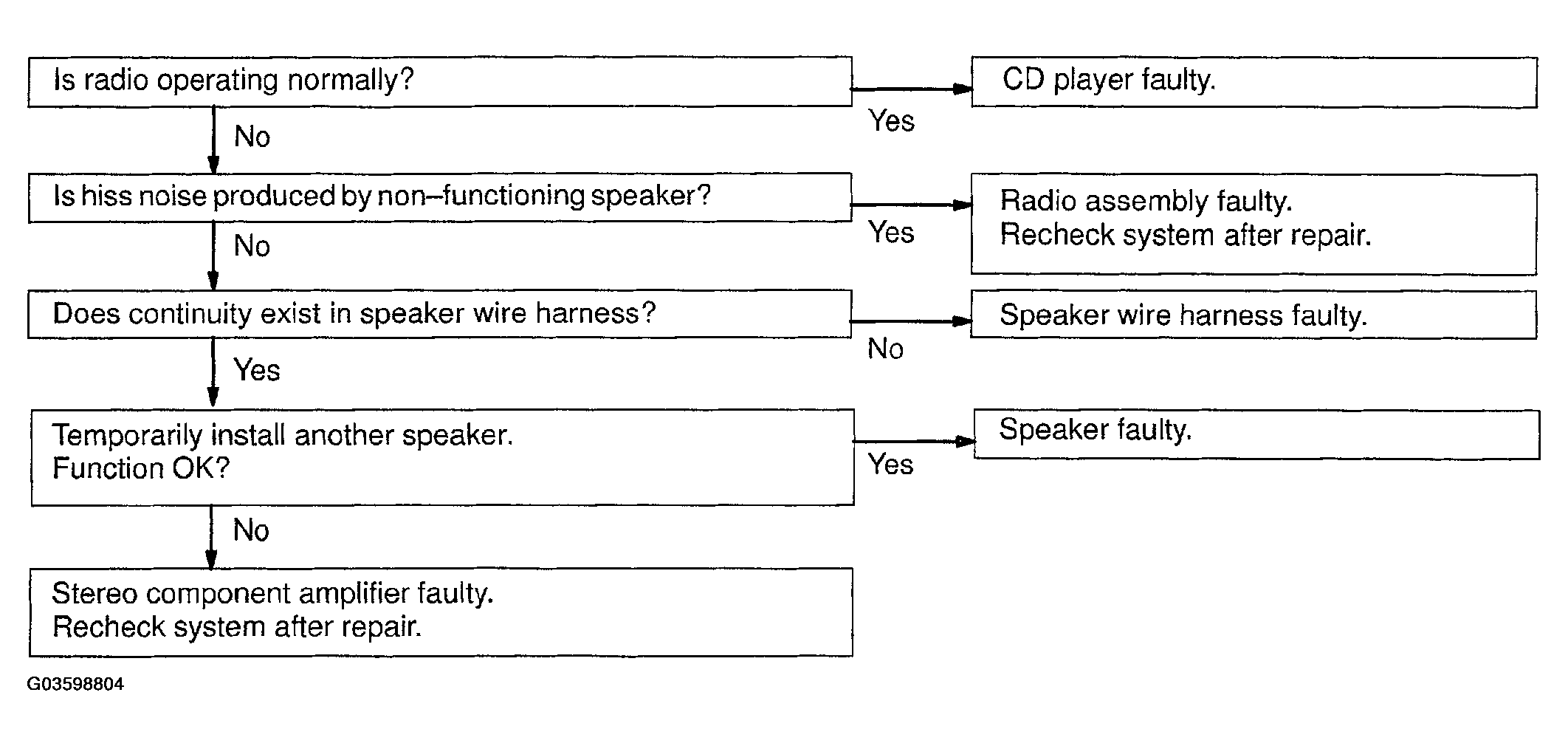

      Fig 33: Problem Symptom Chart - Stereo Component Amplifier Any Speaker Does Not Work
      G03598804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

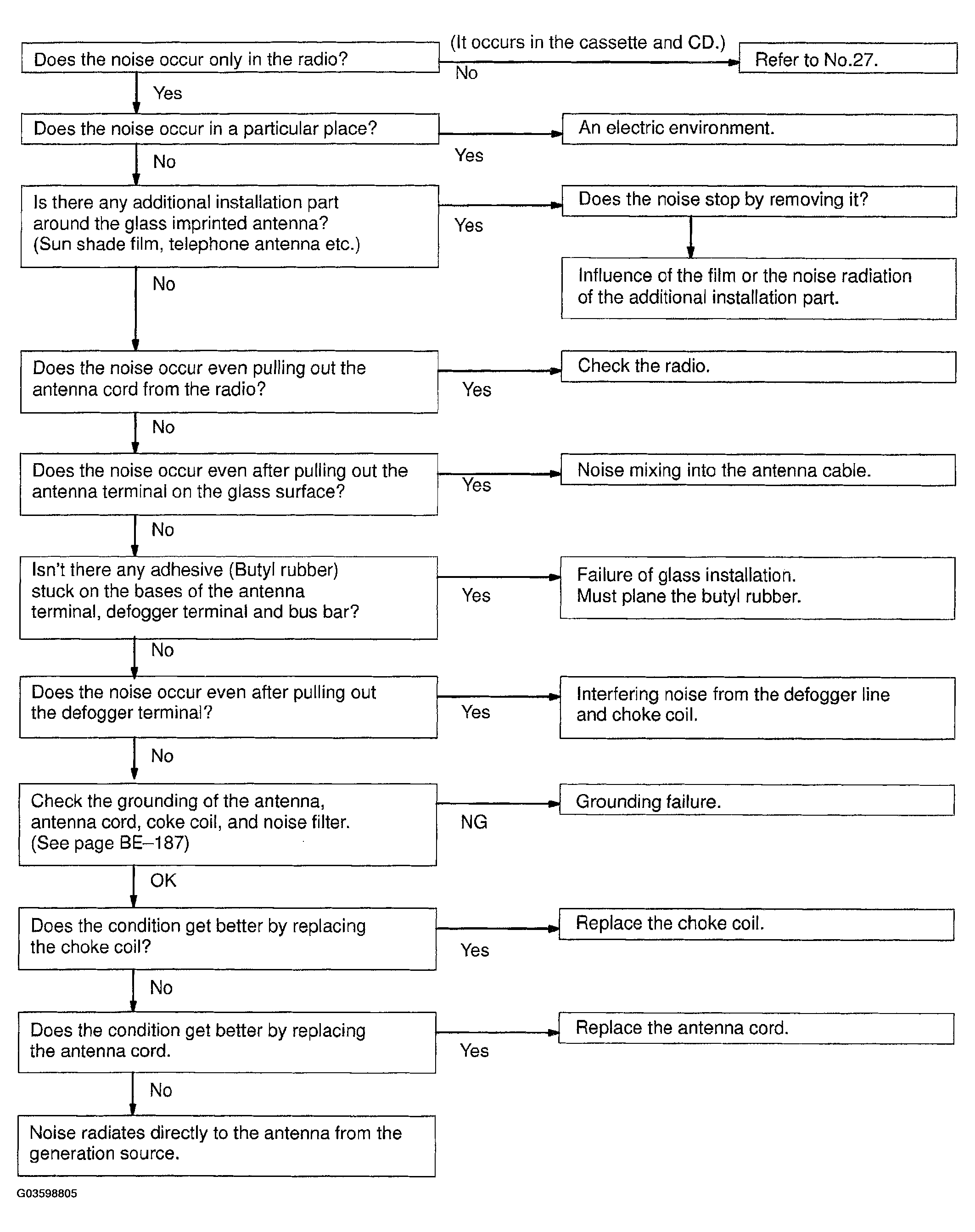

    26. NOISE OCCURS
      Fig 34: Problem Symptom Chart - Noise Occurs
      G03598805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

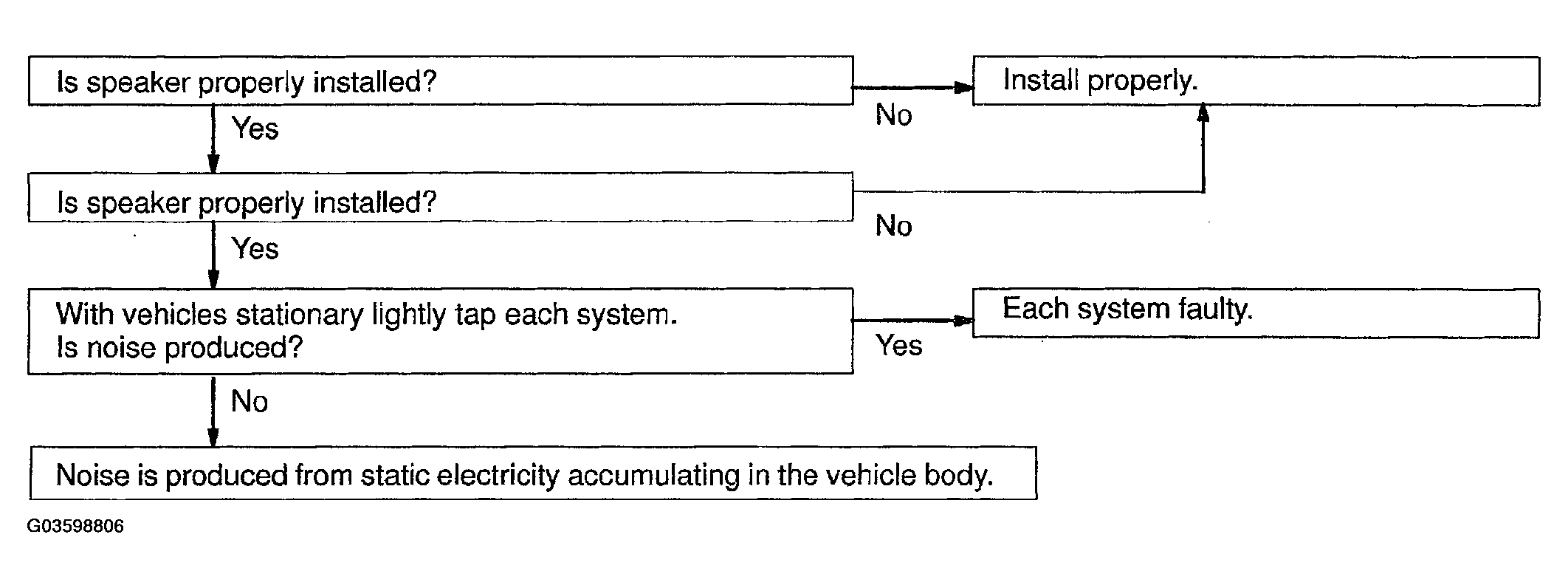

    27. NOISE PRODUCED BY VIBRATION OR SHOCK WHILE DRIVING
      Fig 35: Problem Symptom Chart - Noise Produced By Vibration Or Shock While Driving
      G03598806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

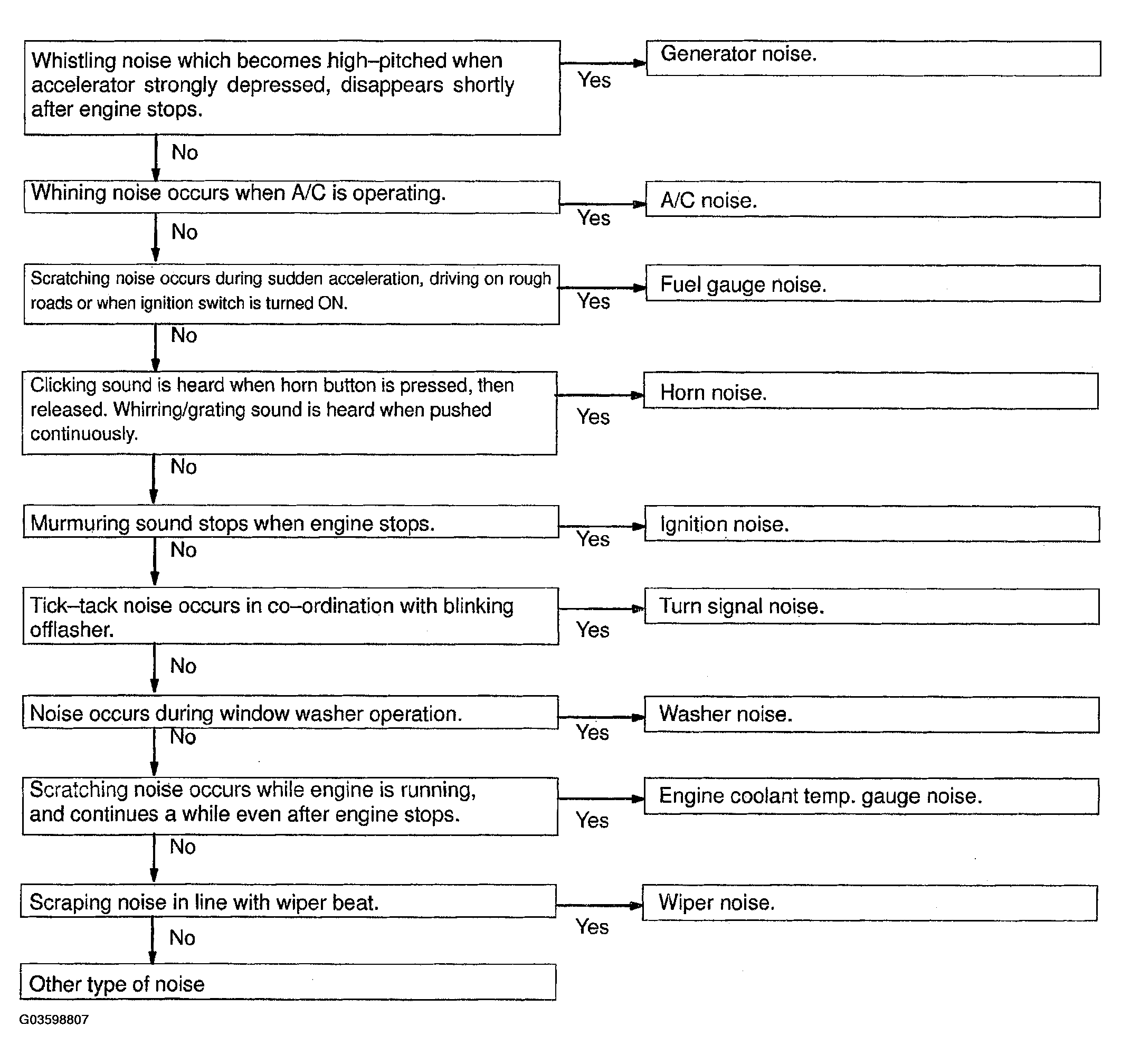

    28. NOISE PRODUCED WHEN ENGINE STARTS
      Fig 36: Problem Symptom Chart - Noise Produced When Engine Starts
      G03598807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
