| A/C Compressor-To-Cylinder Block Fastener (No. 1 Drive Belt Idler Pulley) |
36 (49) |
| A/C Compressor-To-Oil Filter Bracket Fastener |
21 (28) |
| Accelerator Cable Bracket-To-Lower Intake Manifold Fastener (Upper Intake Manifold) |
13 (18) |
| Camshaft Bearing Cap-To-Cylinder Head Fastener |
| Bolt C |
|
| Others |
12 (16) |
| Camshaft Timing Tube-To-Intake Manifold Fastener |
58 (79) |
| Center Exhaust Pipe-To-Tailpipe Fastener |
32 (43) |
| Connecting Rod Cap-To-Connecting Rod Fastener |
| First Tightening Pass |
18 (24) |
| Final Tightening Pass |
|
| Crankshaft Pulley-To-Crankshaft Fastener |
181 (245) |
| Cylinder Head-To-Cylinder Block Fastener |
| First Tightening Pass |
44 (59) |
| Final Tightening Pass |
|
| Drive Belt Tensioner-To-Cylinder Block Fastener |
11 (15) |
| Drive Plate-To-Crankshaft Fastener |
| First Tightening Pass |
36 (49) |
| Final Tightening Pass |
|
| Drive Plate-To-Torque Converter Fastener |
30 (41) |
| Engine Coolant Drain Union-To-Cylinder Block Fastener |
36 (49) |
| Engine Hanger-To-Cylinder Head Fastener |
27 (37) |
| Engine Mounting Bracket-To-Cylinder Block Fastener |
27 (37) |
| Exhaust Manifold-To-Cylinder Head Fastener |
32 (43) |
| Flywheel Housing Under Cover-To-Transmission Fastener |
13 (18) |
| Front Exhaust Pipe Support Bracket-To-Transmission Fastener |
32 (43) |
| Front Exhaust Pipe-To-TWC Fastener |
32 (43) |
| Front Suspension Crossmember-To-Engine Mounting Insulator Fastener |
50 (68) |
| Front Suspension Member Brace Fastener (Front Suspension Crossmember, Strut Bar Bracket Plate) |
43 (58) |
| Front Water Bypass Joint & Rear Water Bypass Joint-To-Cylinder Head Fastener |
13 (18) |
| Heated Oxygen Sensor-To-Front Exhaust Pipe Fastener |
32 (43) |
| Lower Intake Manifold-To-Cylinder Head Fastener |
13 (18) |

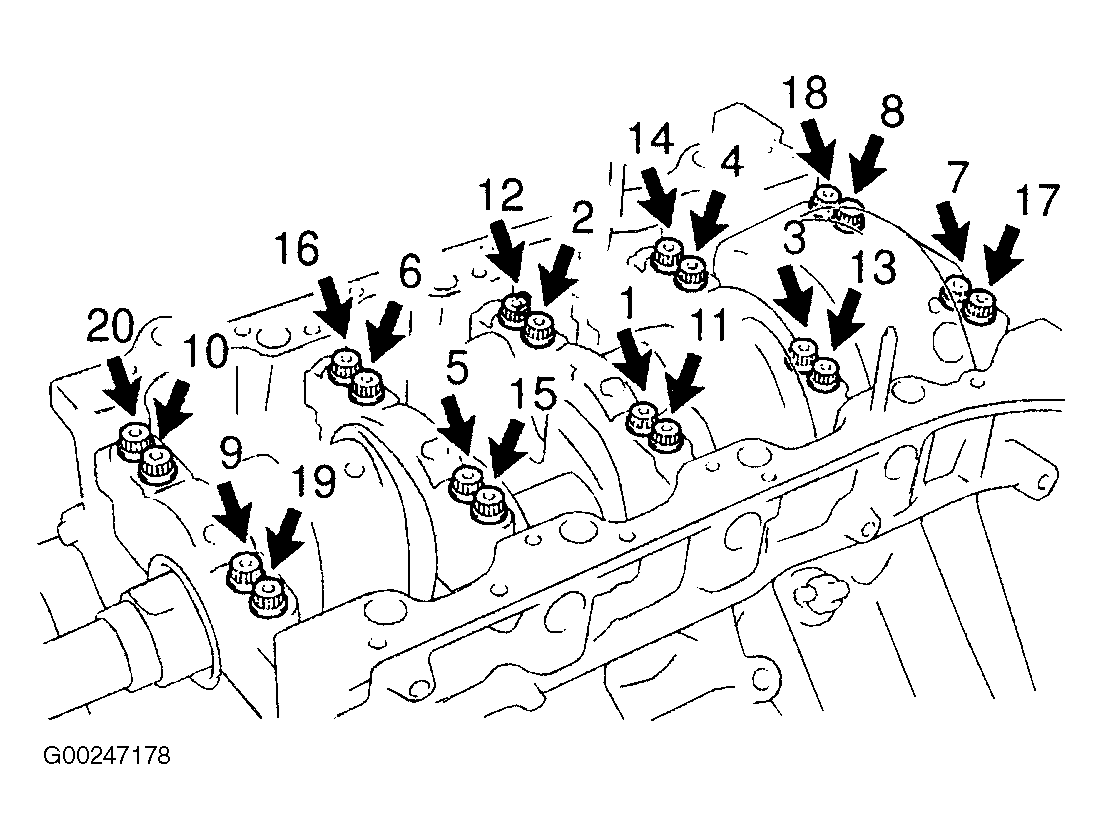

| Main Bearing Cap-To-Cylinder Block Fastener |
| First Tightening Pass (2 Progressive Type) |
20 (27) |
| Final Tightening Pass (2 Progressive Type) |
|
| Others |
36 (49) |
| No. 1 Drive Belt Idler Pulley-To-Cylinder Block Fastener |
| 12 mm Head |
12 (16) |
| 14 mm Head |
24 (33) |
| No. 1 & 2 Timing Belt Idler Pulley-To-Oil Pump Fastener |
25 (34) |
| No. 2 Drive Belt Idler Pulley-To-Fan bracket Fastener |
29 (39) |
| No. 2 Timing Belt Cover-To-Cylinder Block Fastener |
12 (16) |
| Power Steering Gear Housing-To-Front Suspension Crossmember Fastener |
48 (65) |
| Power Steering Pump-To-Cylinder Head Fastener |
| Bolt |
29 (39) |
| Nut |
32 (43) |
| Rear Engine Mounting Member-to-Body Fastener |
19 (26) |
| Screw Plug-To-Camshaft Timing Tube Fastener |
11 (15) |
| Sliding Yoke-To-Steering Intermediate Shaft Fastener |
26 (35) |
| Timing Belt Tensioner-To-Oil Pump Fastener |
19 (26) |
| Transmission-To-Cylinder Block Fastener |
53 (72) |
| Transmission-To-No. 1 Oil Pan Fastener |
27 (37) |
| TWC-To-Exhaust Manifold Fastener |
46 (62) |
| Vacuum Tank For ACIS-To-Lower Intake Manifold Fastener |
13 (18) |
| Water By-Pass Pipe-To-Cylinder Block Fastener |
13 (18) |
| Water Seal Plate-To-Cylinder Block Fastener |
10 (14) |
| INCH Lbs. (N.m) |
| Camshaft Drive Gear-To-Camshaft Timing Tube Fastener |
66 (7.5) |
| Camshaft Timing Pulley-To-Camshaft Timing Tube Fastener |
66 (7.5) |
| Center Front Floor Brace-To-Body Fastener |
115 (13) |
| Cylinder Head Cover-To-Cylinder Head Fastener |
53 (6) |
| Intake Air Control Valve-To-Upper Intake Manifold Fastener |
75 (8.5) |
| Rear Engine Mounting Member-to-Rear Engine Mounting Insulator Fastener |
124 (14) |
| Rear Oil Seal Retainer-To-Cylinder Block Fastener |
71 (8) |
| Timing Belt Rear Plate-To-Cylinder Head Fastener |
66 (7.5) |
