Display Check Mode

HINT:

Display Check Mode is operated as follows.

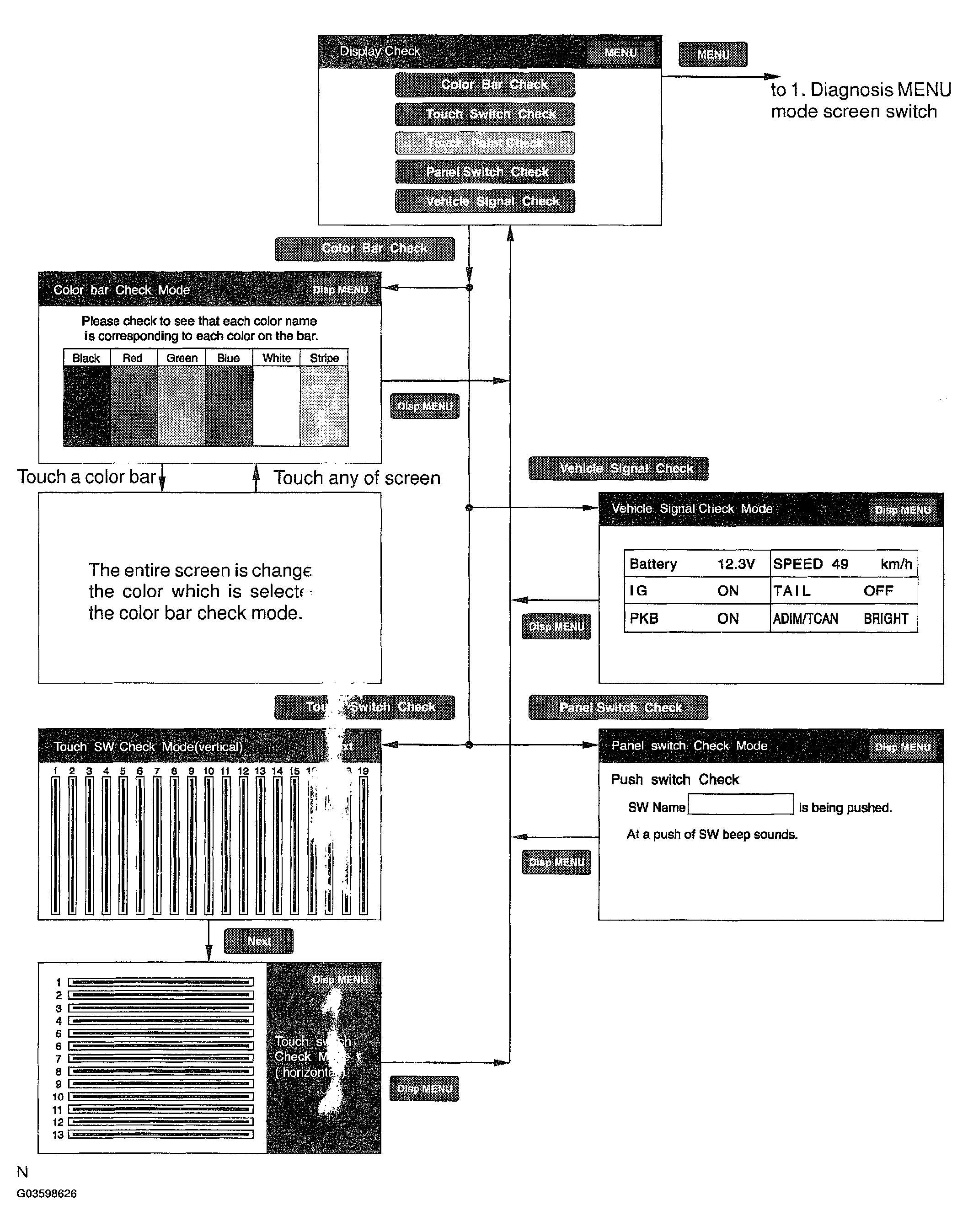

Fig 1: Identifying Display Check Mode Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Display Check Mode
   CHECK MODE CONTENTS



   Display	Contents
   Color Bar Check/*1	Color display is checked.
   Touch Switch Check/*2	Operating condition of touch switch display is checked.
   Panel Switch Check/*3	Operating condition of switches on both sides of the display is checked.
   Vehicle Signal Check/*4	Status of the vehicle signal which has been loaded into the display is checked.
   MENU/*5	Pressing this switch activates the Diagnosis Menu screen.

   HINT:

   In Display Check Mode, above checks can be performed.

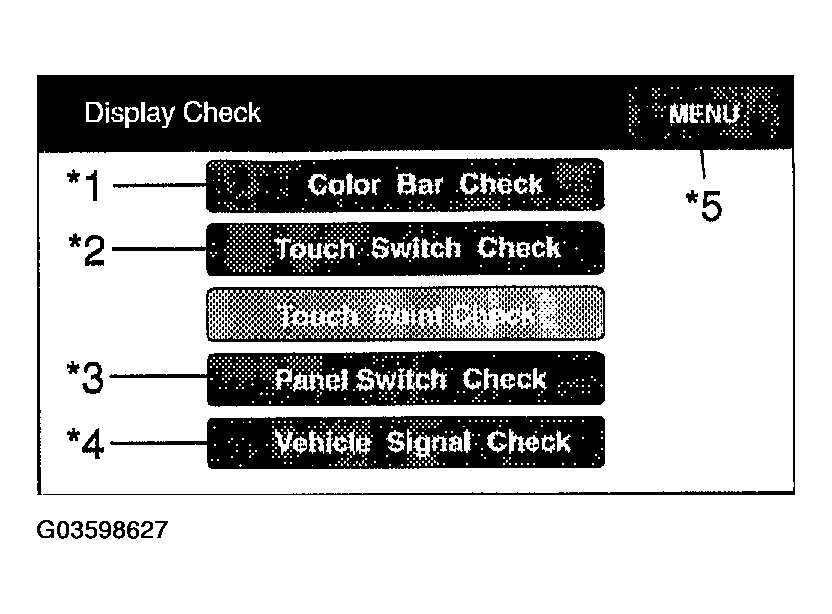

   Fig 2: Identifying Display Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Display Color Bar Check
   1. Start the Diagnosis System.
   2. Select "MENU".
   3. Select "Display Check".
   4. Select "Color Bar Check".
   5. Make sure that each color name is corresponding to each color on the bar.

      HINT:

      Select Black, Red, Green, Blue, White and Stripe to display selected colors and stripe on the entire screen.

   6. Compare with the Color Bar Check in the Navigation Check and make sure that no difference is found.

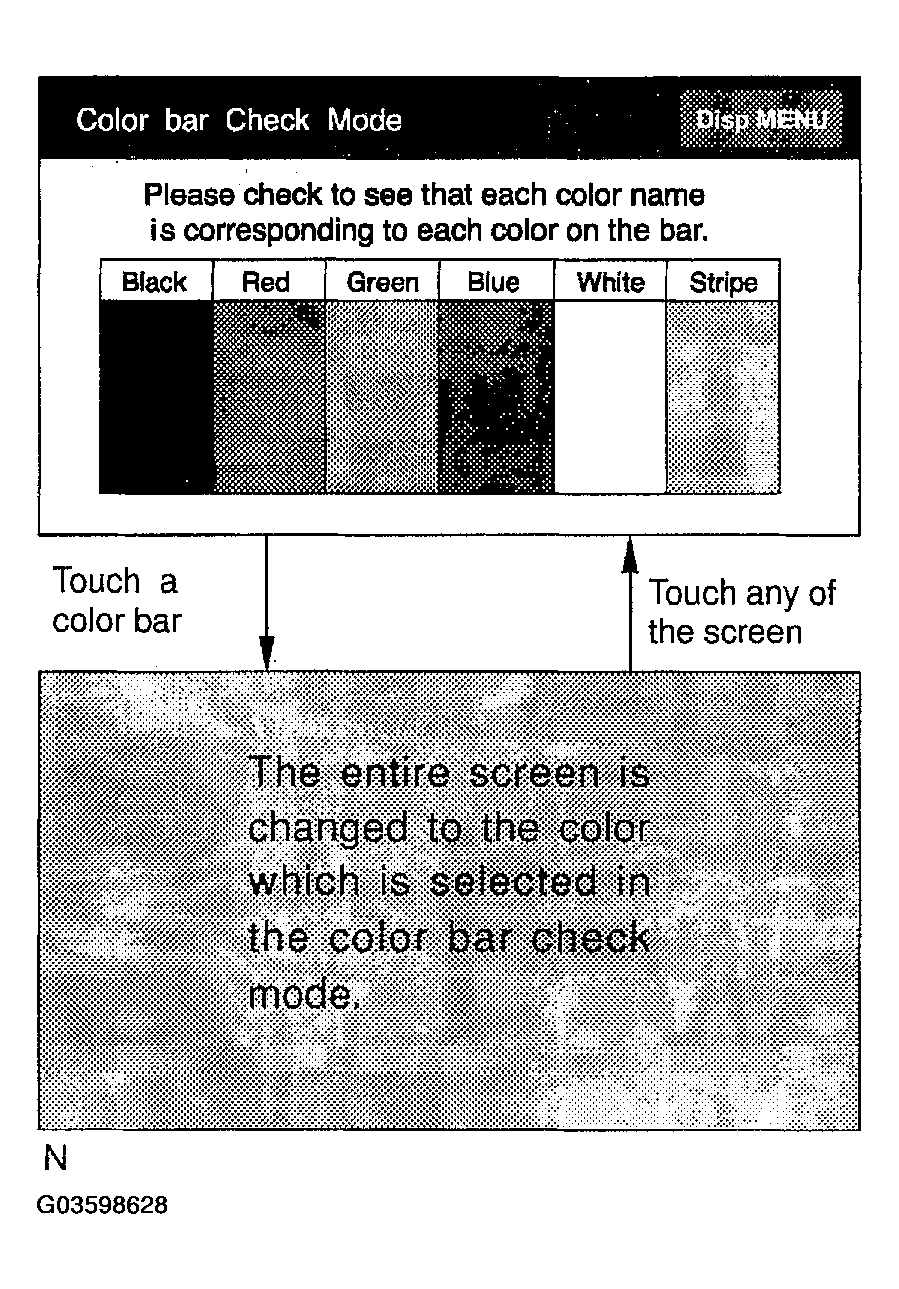

   Fig 3: Identifying Color Bar Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Display Touch Switch Check
   1. Start the Diagnosis system.
   2. Select "MENU".
   3. Select "Display Check".
   4. Select "Touch Switch Check".
   5. Touch the screen and make sure that every line reacts to the touch.

   HINT:

   After the Touch Switch Check for vertical lines, press "Next" to check horizontal lines.

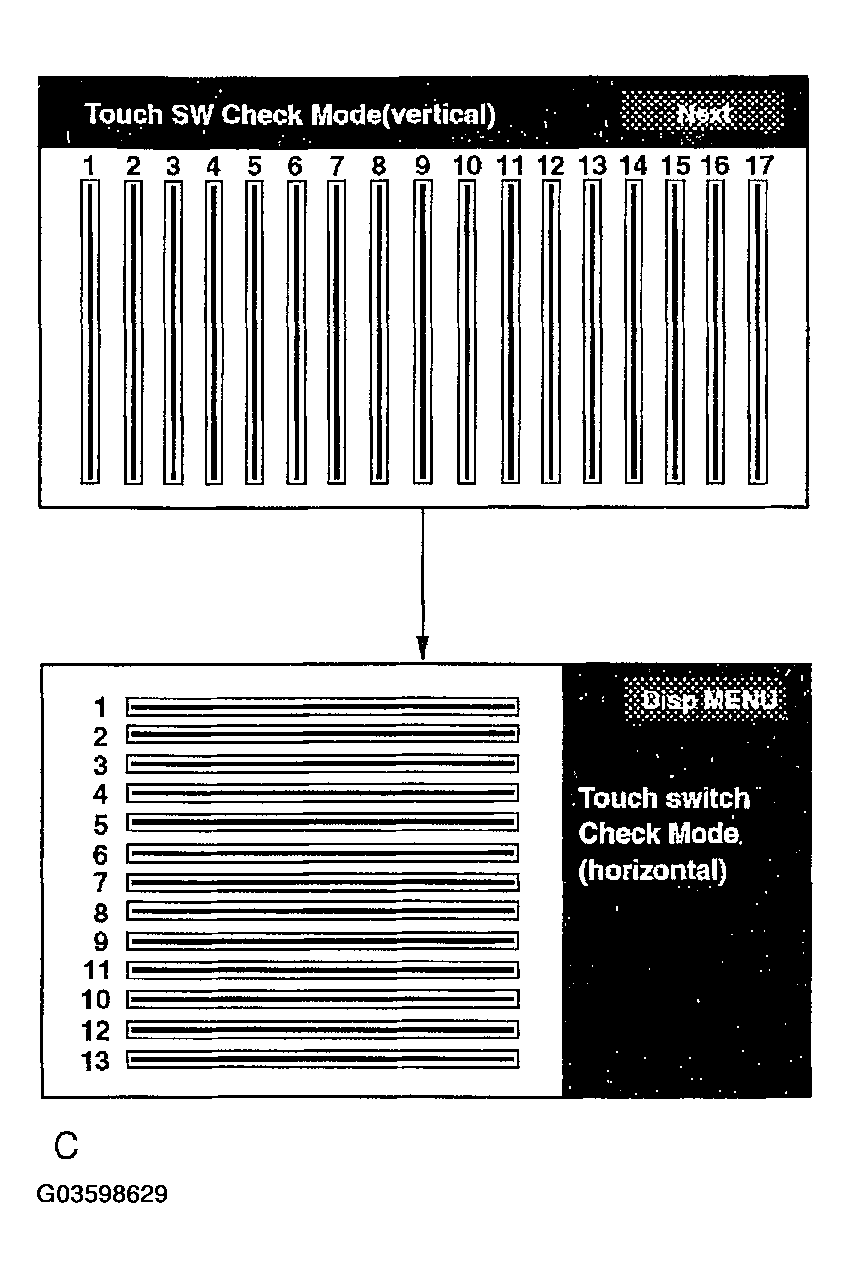

   Fig 4: Identifying Touch Switch Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Display Panel Switch Check
   1. Start the Diagnosis system.
   2. Select "MENU".
   3. Select "Display Check".
   4. Select "Panel Switch Check".
   5. Press each switch and make sure that it corresponds to the display on the screen.
   PANEL SWITCH CHECK DESCRIPTION



   Names of push-button switches/*1	Names of push-button switches pressed are displayed. Pressing 2 or more push-button switches is displayed as "MULTIPLE". After that if the number of push-button switches being pressed becomes 1,the name of the push-button switch being pressed is displayed.
   Disp MENU/*2	Pressing this switch activates Display Check Menu.

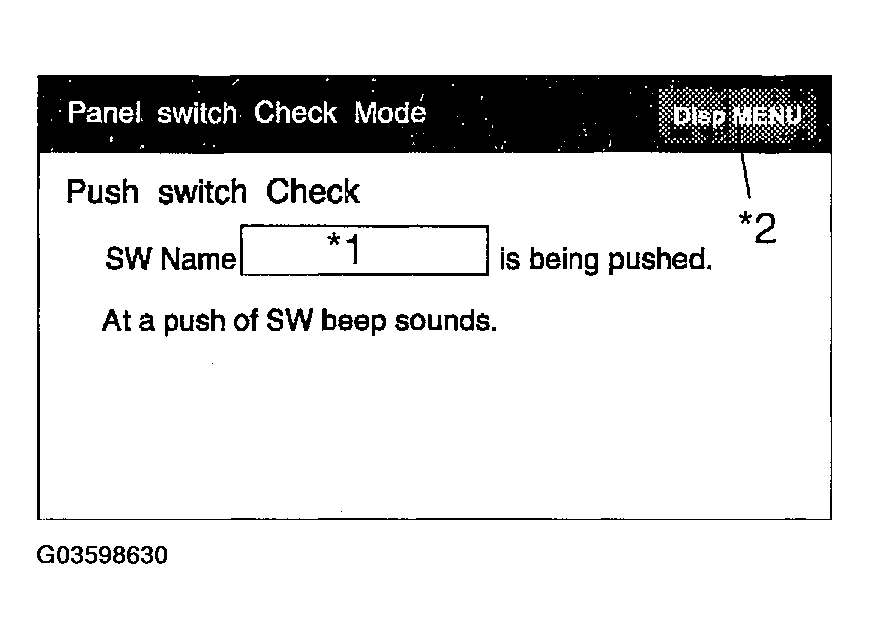

   Fig 5: Identifying Panel Switch Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Display Vehicle Signal Check
   1. Start the Diagnosis system.
   2. Select "MENU".
   3. Select "Display Check".
   4. Select "Vehicle Signal Check".
   5. Check the status of the vehicle signal (Battery, IG, PKB, SPEED, TAIL, ADIM/TCAN) loaded into the display.

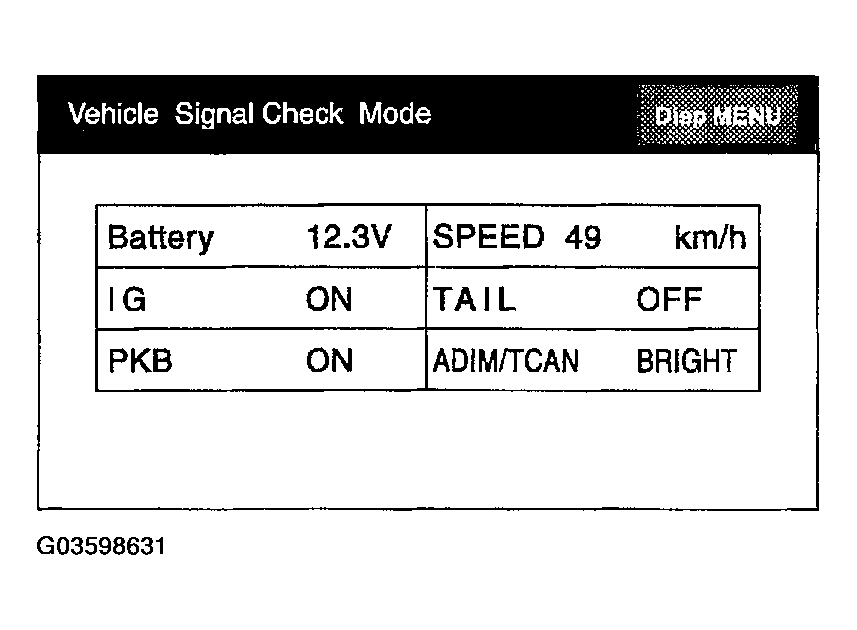

      Fig 6: Identifying Vehicle Signal Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Vehicle signal data is updated every 1 second.
