Section 140 (Radiator): Radiator: Disassembly

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PACKING
REMOVE RADIATOR CAP
REMOVE DRAIN PLUG
1. Remove the drain plug.
2. Remove the O-ring.
REMOVE ECT SWITCH
1. Remove the ECT switch.
2. Remove the O-ring.

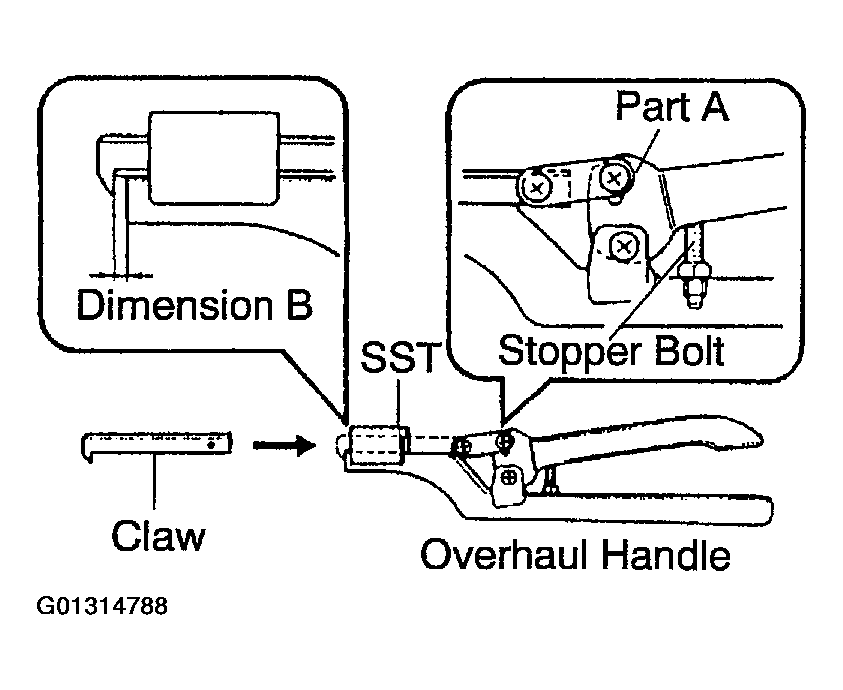

ASSEMBLE SST
SST 09230-01010
1. Install the claw to the overhaul handle, inserting it in the hole in part A as shown in the diagram.
2. While gripping the handle, adjust the stopper bolt so that dimension B is as shown in the illustration.
  Dimension B: 0.2 - 0.3 mm (0.008 - 0.012 in.)
Fig 1: Removing ECT Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: If this adjustment is not done the claw may be damaged.

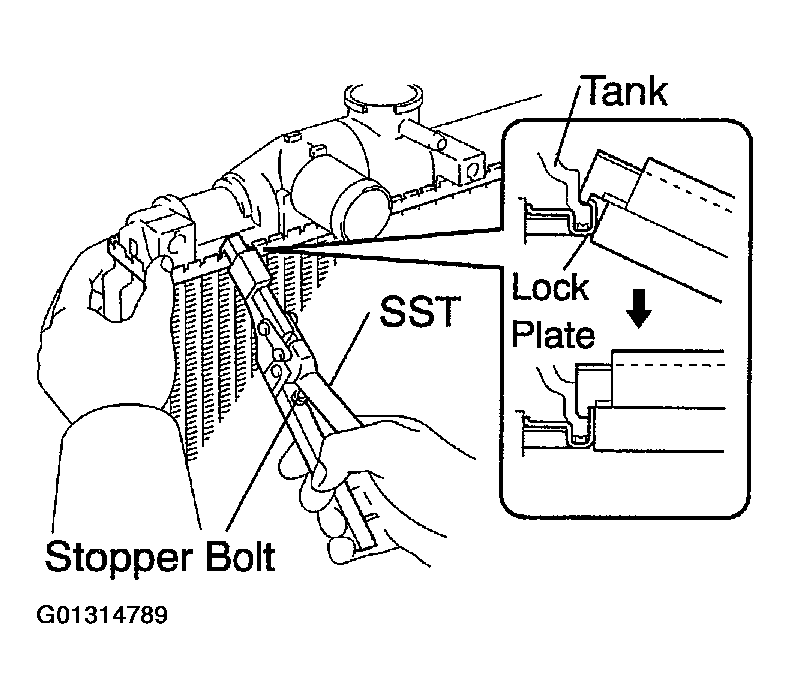

UNCAULK LOCK PLATES
Using SST to release the caulking, squeeze the handle until stopped by the stopper bolt.

SST 09230-01010

Fig 2: Using SST To Release Caulking
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

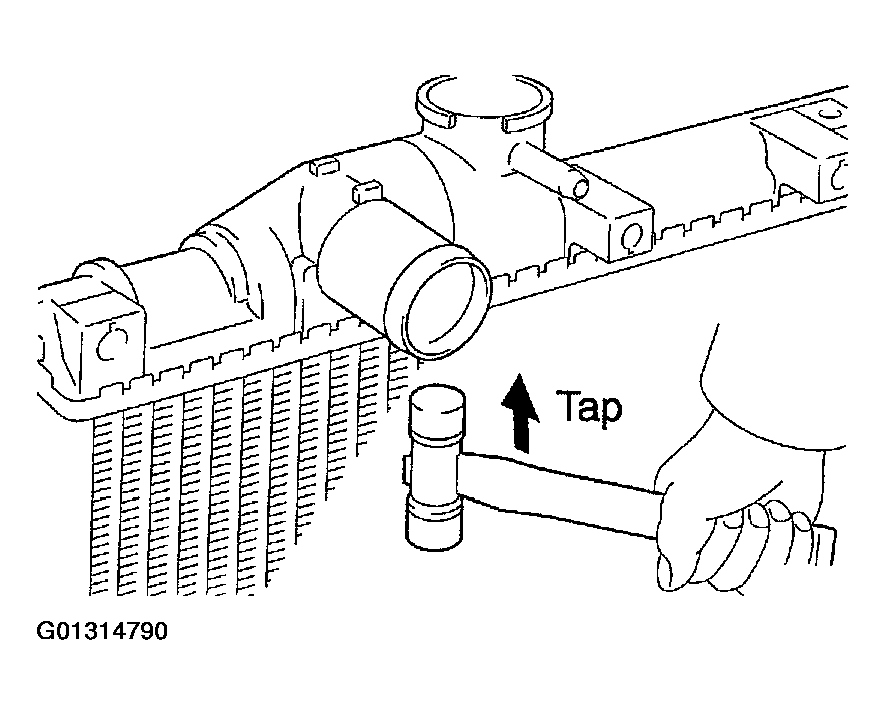

REMOVE TANKS AND O-RINGS
Lightly tap the bracket of the radiator (or radiator inlet or outlet) with a soft-faced hammer, and remove the tank and the O-ring.

Fig 3: Removing Tank And O-Ring Using Soft Face Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
A/T:

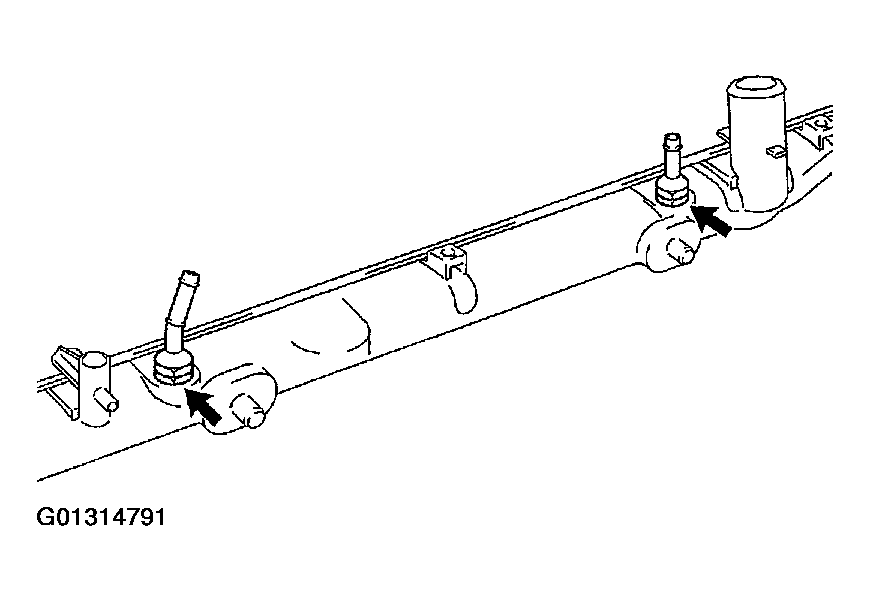

REMOVE OIL COOLER FROM LOWER TANK
1. Loosen the nut, and remove the cooler pipe. Remove the 2 cooler pipes.
2. Remove the 2 nuts and 2 plate washers.
3. Remove the oil cooler and 2 O-rings.
Fig 4: Removing Oil Cooler From Lower Tank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
