Rear Wheel Alignment: Inspection

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT )
INSTALL CAMBER-CASTER-KINGPIN GAUGE OR POSITION VEHICLE ON WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.
INSPECT CAMBER
Camber (SEDAN):

(Canada):

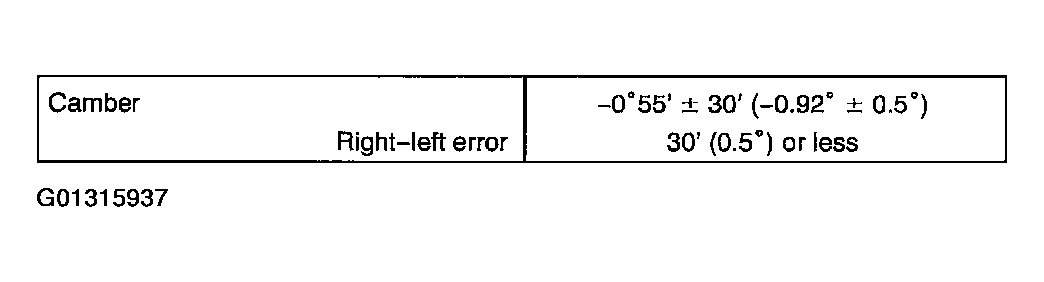

Fig 1: Camber (Sedan) Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(Except Canada):

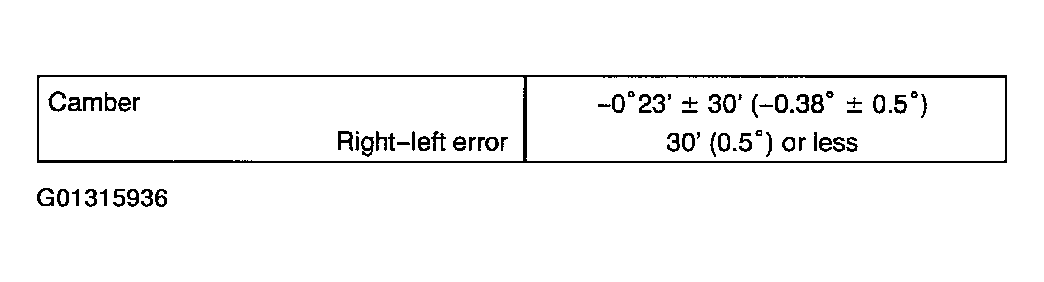

Fig 2: Camber (Sedan) Chart-Except Canada
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Camber (WAGON):

(Canada):

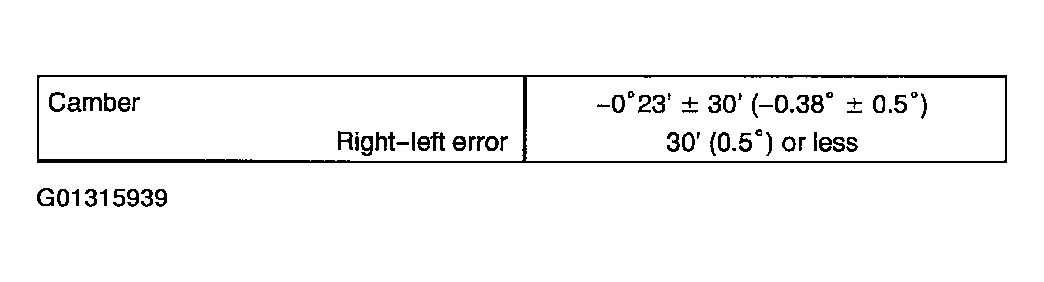

Fig 3: Camber (Wagon) Chart-Canada
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(Except Canada):

Fig 4: Camber (Wagon) Chart-Except Canada
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the camber is not within the specified valve, after the toe-in is inspected, see step 5 to adjust.
INSPECT TOE-IN
Toe-in:

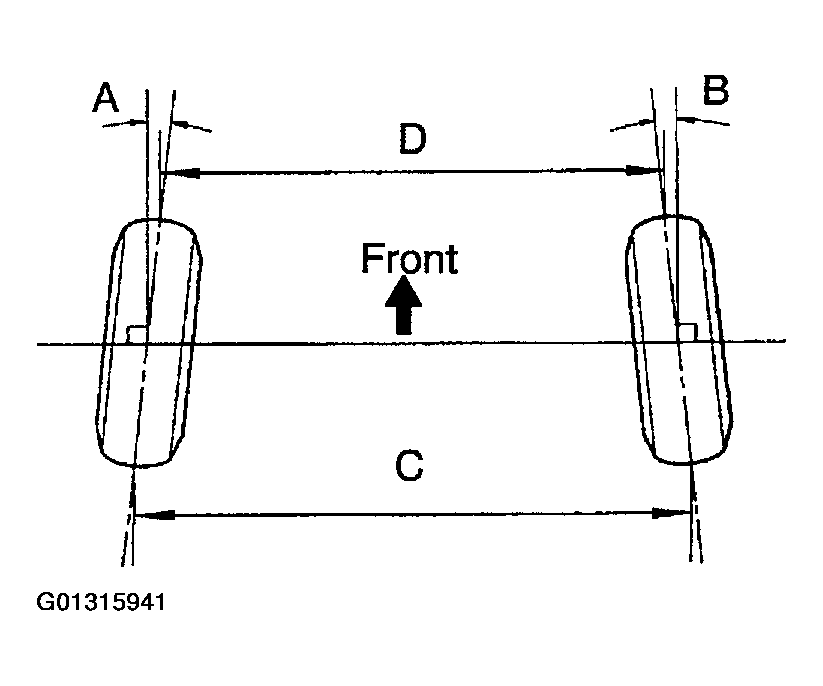

Fig 5: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified valve, after the camber is inspected, see step to adjust.

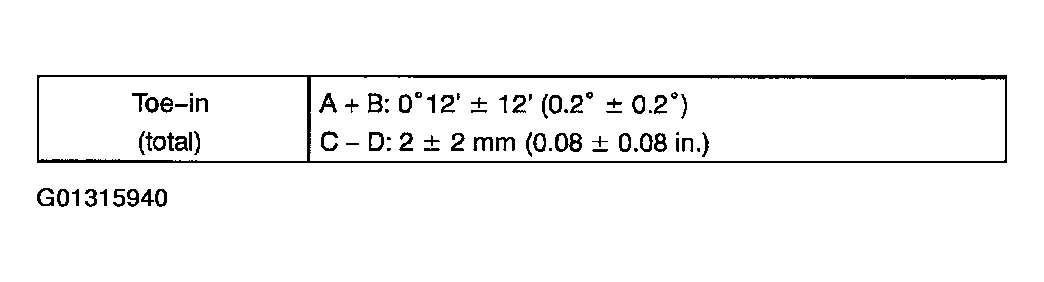

Fig 6: Toe-In Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST CAMBER AND TOE-IN

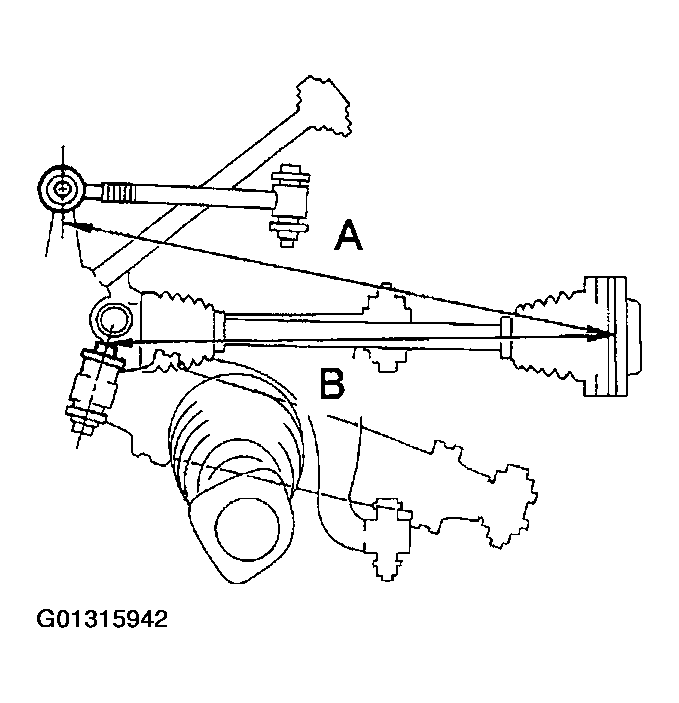

1. Measure the lengths of the toe control link "A" and No. 2 lower suspension arm "B", as shown in the illustration.
2. Obtain the difference between "A" and "B".
3. Employ the same manner described above to the other side.
4. Obtain the difference between right and left from the values obtained above.
  Right and left difference: 4.0 mm (0.157 in.) or less

  Fig 7: Adjusting Camber And Toe-In
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If they are not within the specified value, adjust lengths by turning the adjusting cam.
5. Inspect the camber and toe-in.
6. Adjust the camber.

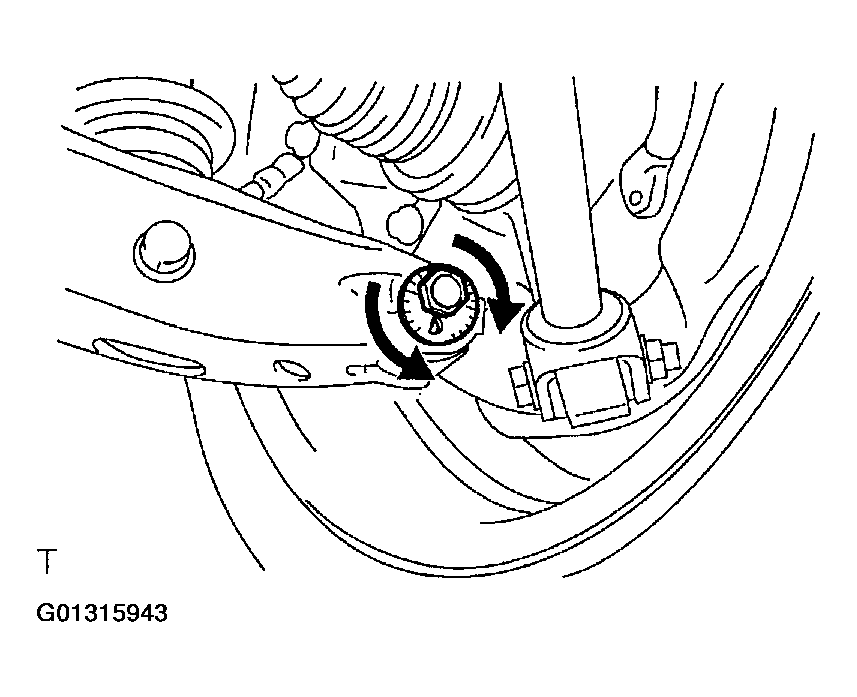

  1. Loosen the camber adjusting cam nut of the No. 2 lower suspension arm.
  2. Turn the camber adjusting cam of the No. 2 lower suspension arm and adjust the camber.
    HINT:

    Camber will change about 5.0' (0.08°) with each graduation of the adjusting cam.
  3. Torque the camber adjusting cam nut.
    Torque: 110 N.m (1,120 kgf.cm, 81 ft.lbf)
7. Adjust the toe-in.

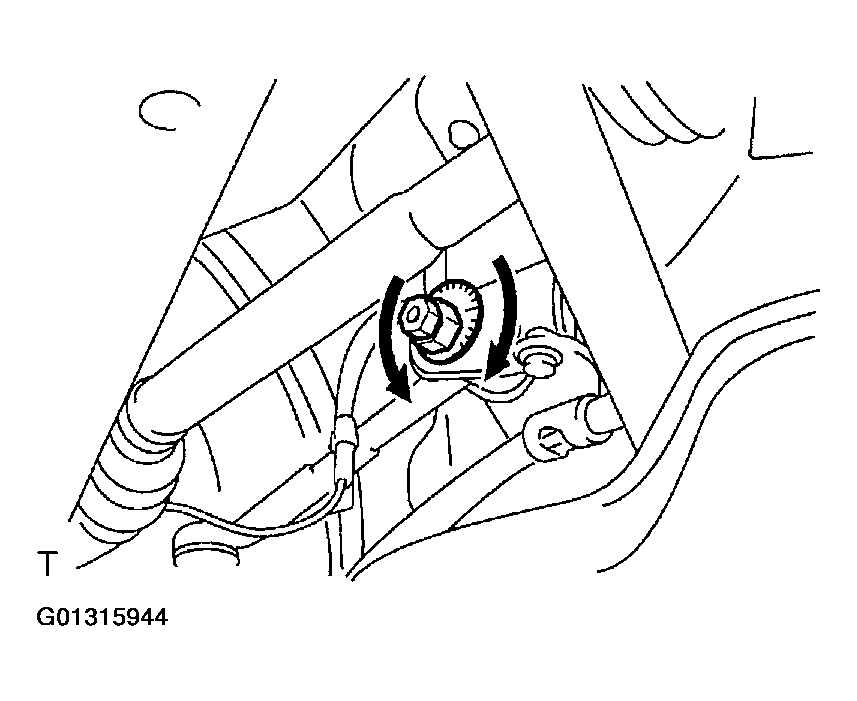

  1. Loosen the camber adjusting cam nut of the toe control link.
  2. Turn the camber adjusting cam of the toe control link and adjust the toe-in.
    HINT:

    Toe-in will change about 4.0 mm (0.157 in.) with each graduation of the adjusting cam.
  3. Torque the camber adjusting cam nut.
    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
