Headlight Beam Level Control System: Inspection: Notes

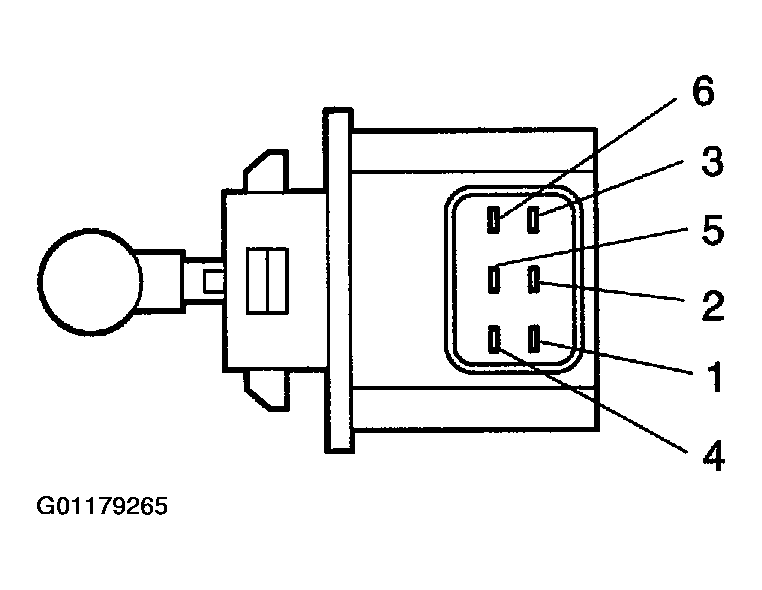

Inspect Headlight Beam Level Control Actuator Resistance
1. Check that continuity exists between terminal No. 2 and No. 5.

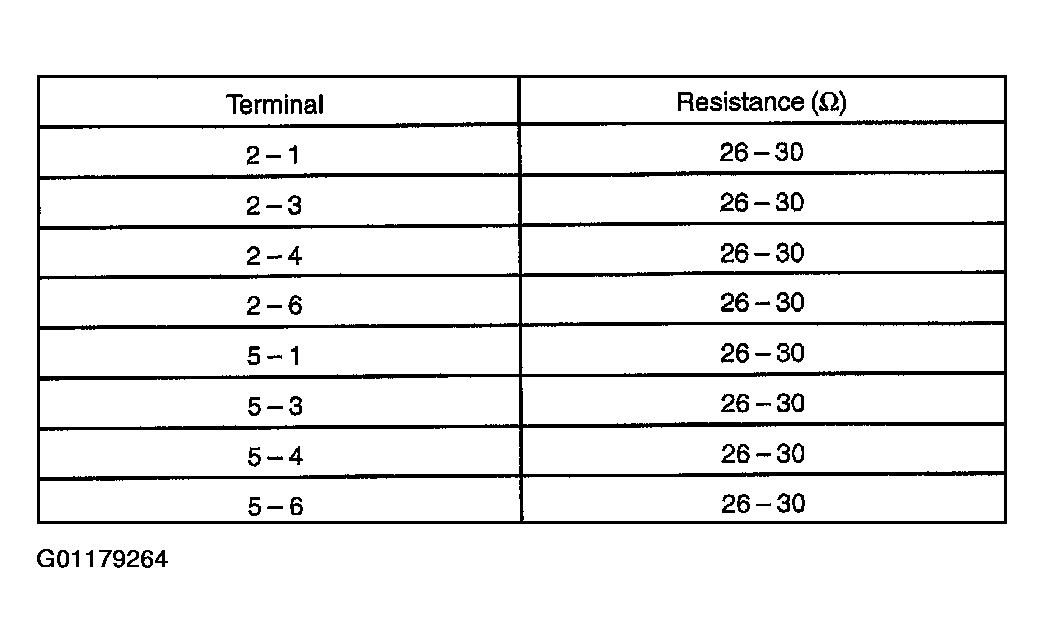

2. Check that resistance exists between terminal, as shown in the chart.
If resistance value is not as specified, replace the actuator.
Connector Disconnected: Inspect Headlight Beam Level Control ECU Circuit.
Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown. See Fig 3 and Fig 4.

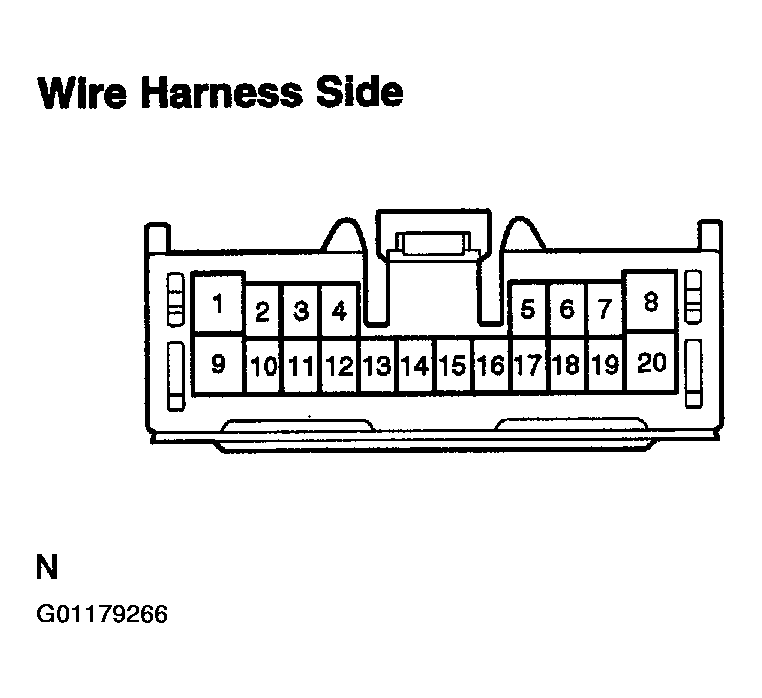

Fig 3: Identifying Headlight Beam Level Control ECU Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

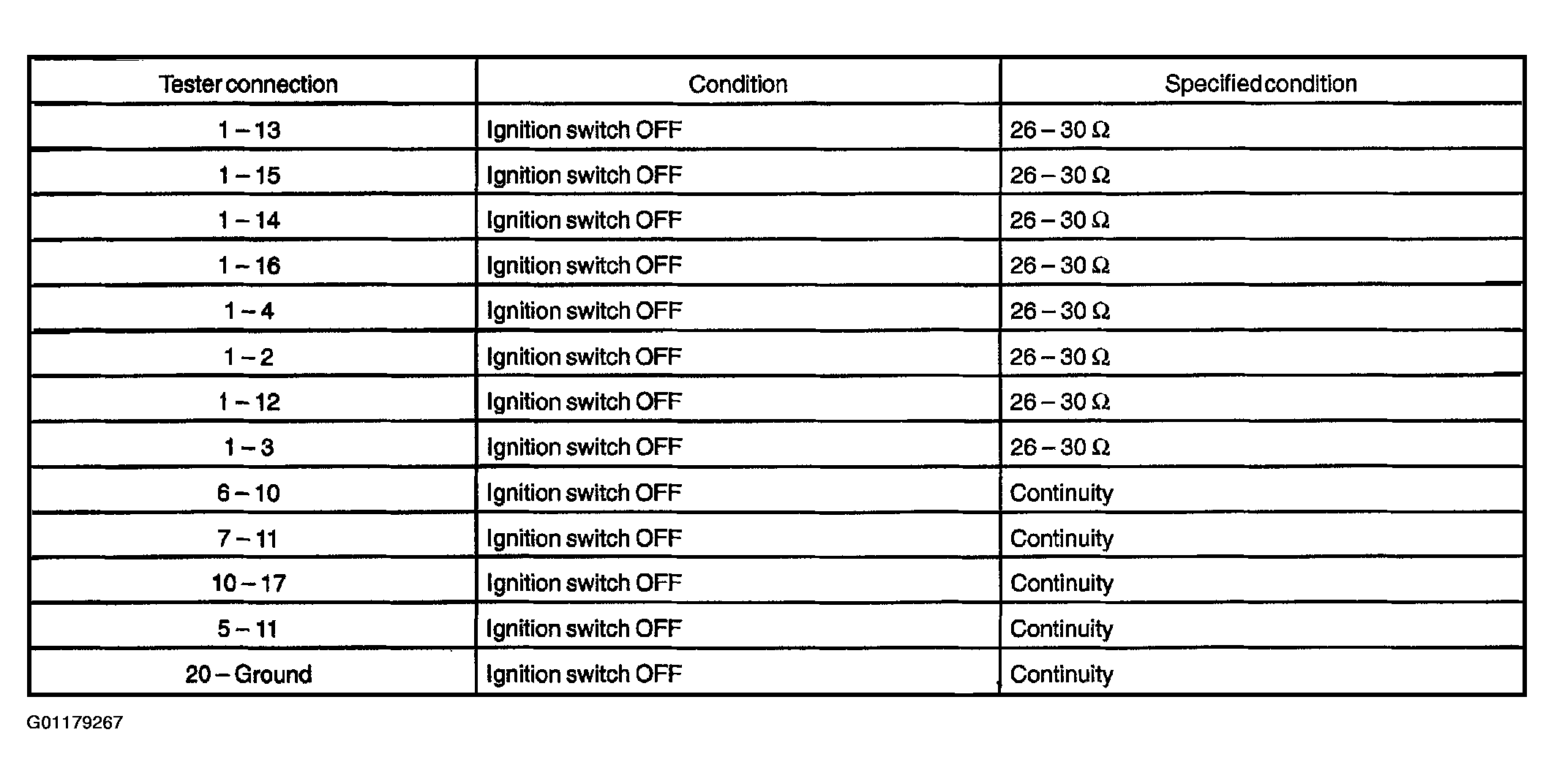

Fig 4: Reviewing Headlight Beam Level Control ECU Connector Information
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If circuit is not as specified, go to next step.
Connector Connected: Inspect Headlight Beam Level Control ECU Circuit
Connect the connector from the ECU and inspect the connector on the back side, as shown in the chart. See Fig 5 and Fig 6.

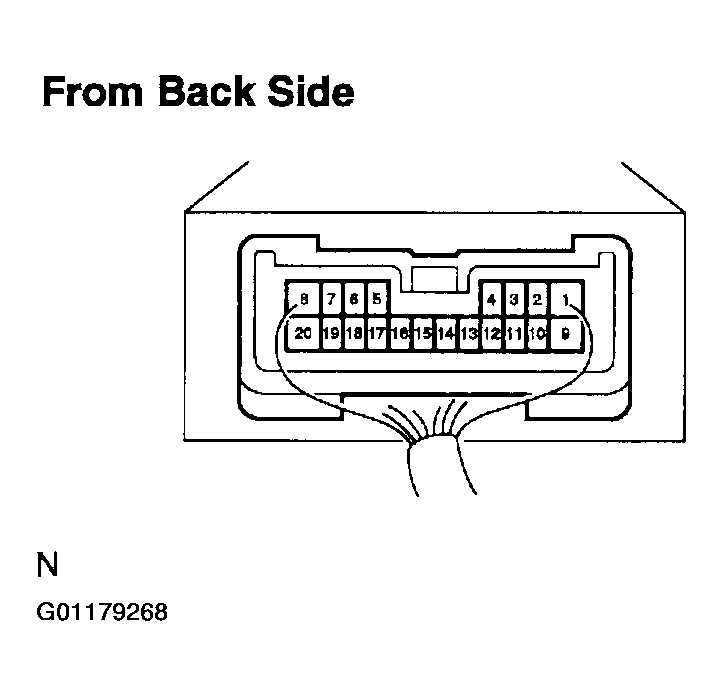

Fig 5: Identifying Headlight Beam Level Control ECU Connector Back Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

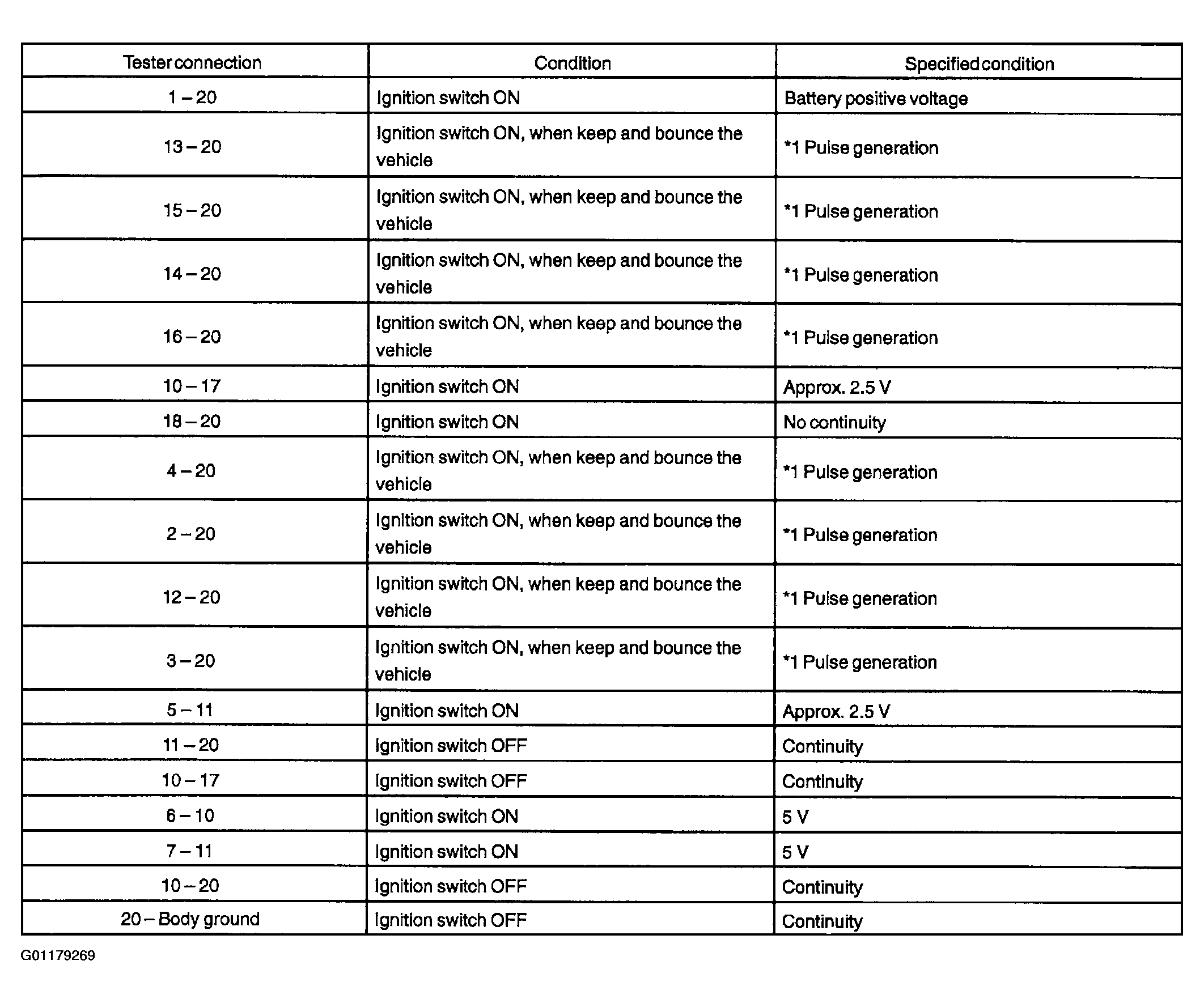

Fig 6: Reviewing Headlight Beam Level Control ECU Connector Information
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the circuit is not as specified, replace the ECU.
