Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

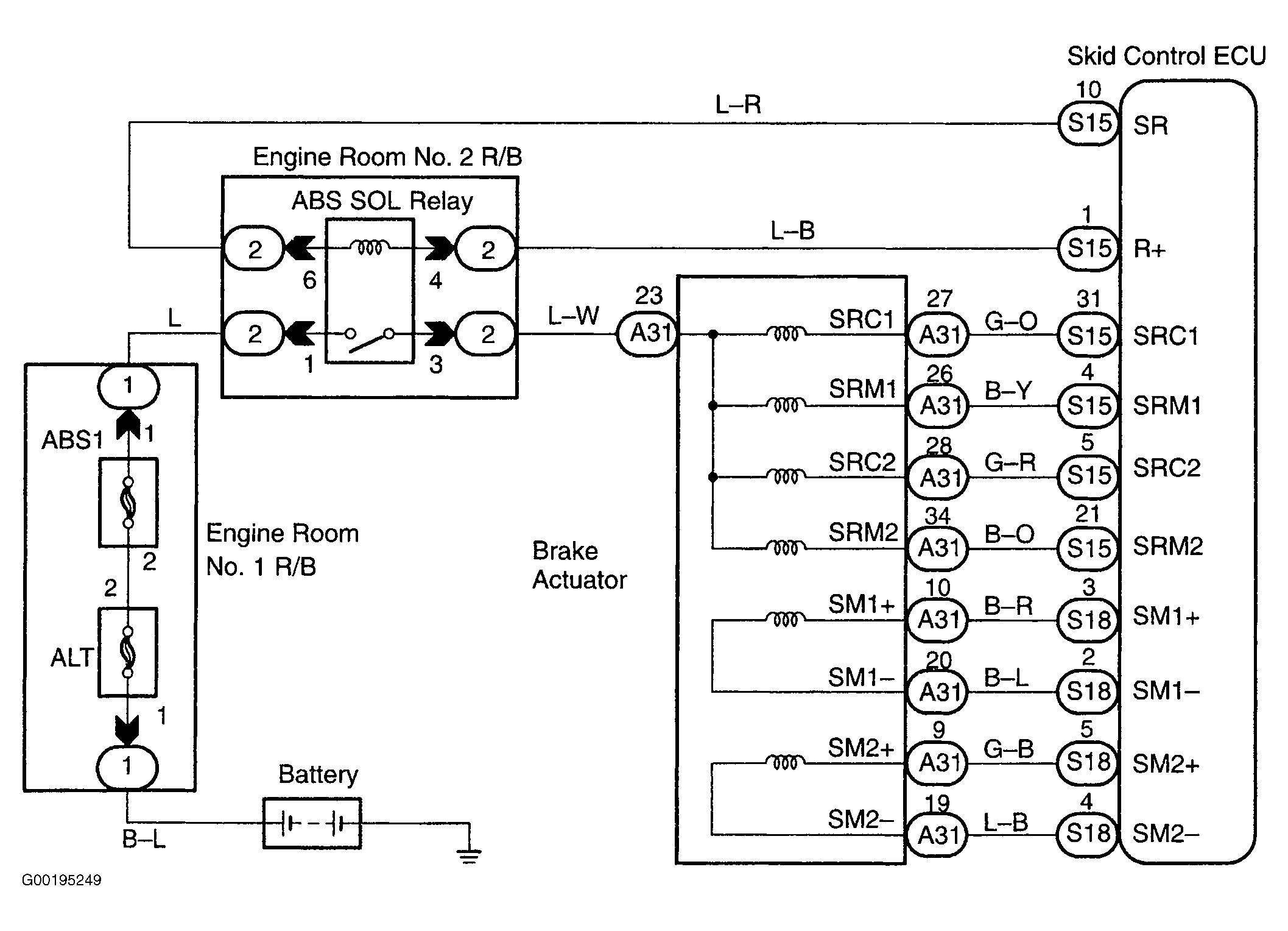

Fig 1: Wiring Diagram TRAC & VSC Related Solenoid Circuit
G00195249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

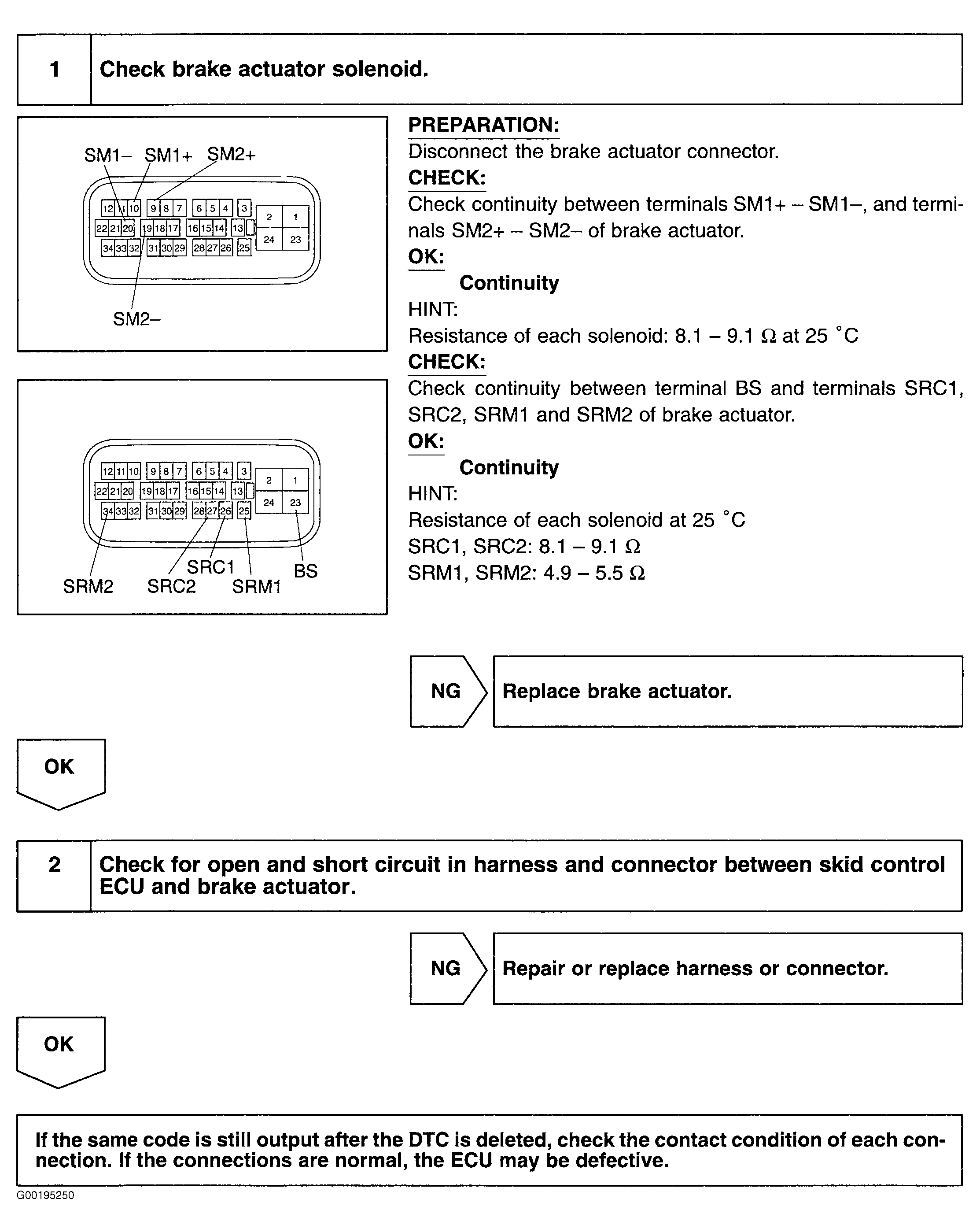

Fig 2: Testing Procedure TRAC & VSC Related Solenoid
G00195250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
