Section 230 (Fog Light System): Removal

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Sedan: REMOVE FRONT FOG LIGHT ASSEMBLY
HINT:
- Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
- Follow the same procedure for RH as for LH.
1. Remove the front portion of fender liner.
2. Disconnect the connected.
3. Remove the 2 bolts.

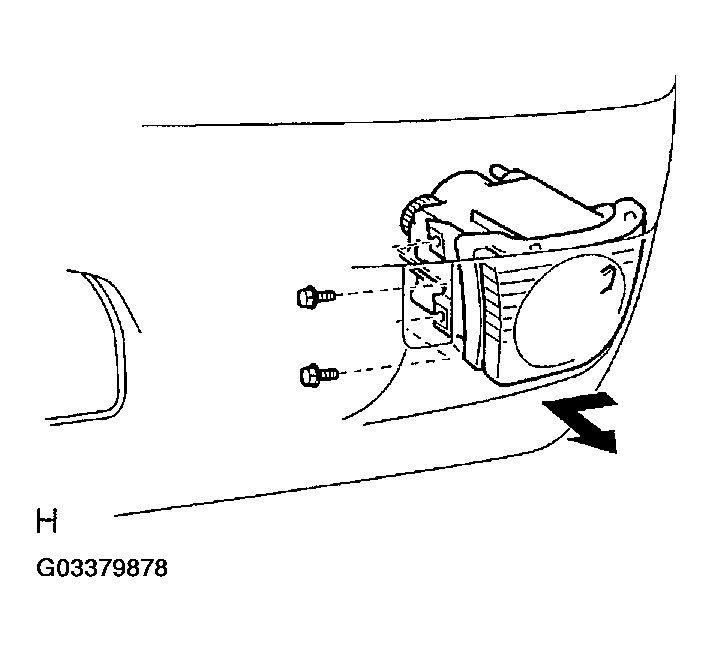

4. Remove the front fog light assembly, as shown in the illustration.
5. Install front fog light assembly.
6. Adjust optical axis of fog light (See page ADJUSTMENT ).
Wagon: REMOVE FRONT FOG LIGHT ASSEMBLY
HINT:
- Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.
- Follow the same procedure for RH as for LH.
1. Remove the front portion of fender liner.
2. Disconnect the connected.
3. Remove the 2 bolts.

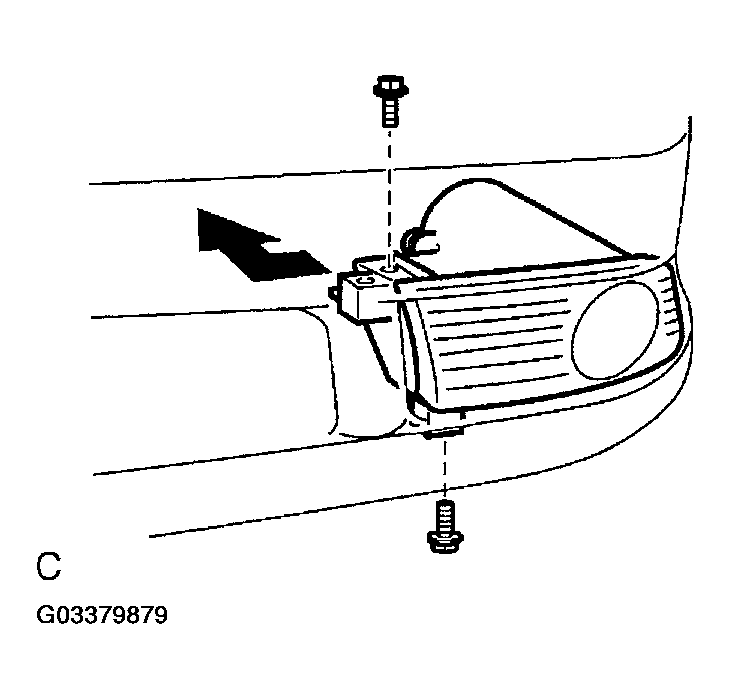

  Fig 2: Removing Front Fog Light Assembly (Wagon)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the front fog light assembly, as shown in the illustration.
5. Install front fog light assembly.
6. Adjust optical axis of fog light (See page ADJUSTMENT ).
REMOVE FRONT FOG LIGHT BULB
HINT:

Follow the same procedure for RH as for LH.
1. Remove a part of LH front fender liner.
2. Separate the connector and remove the bulb.

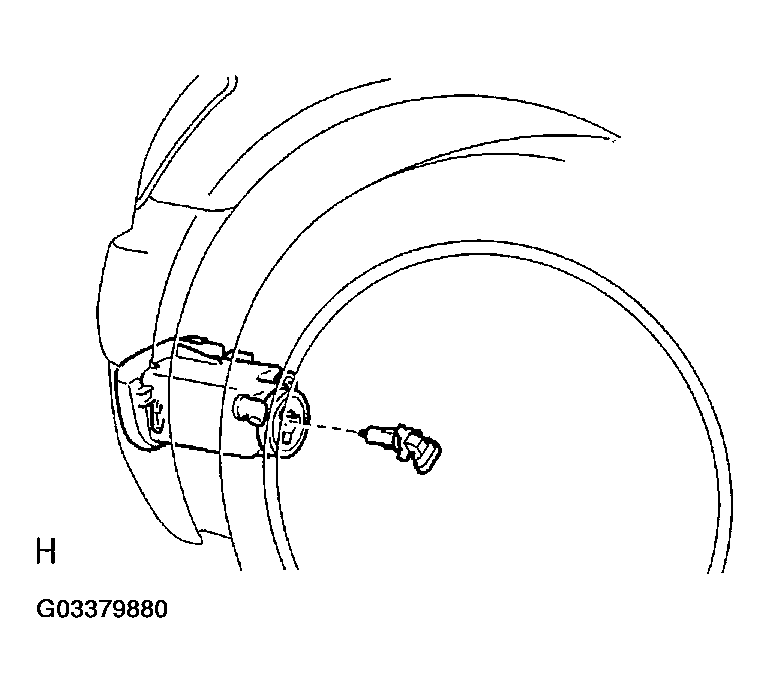

  Fig 3: Removing Front Fog Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
