Memory Positioning Switch: Testing and Inspection

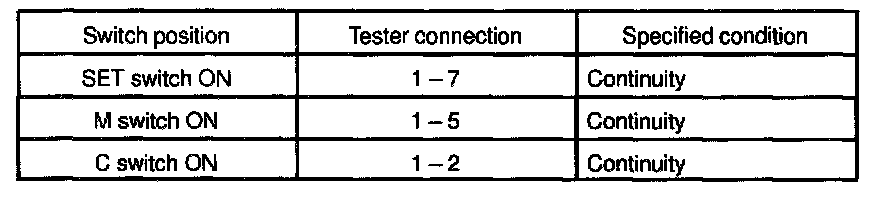

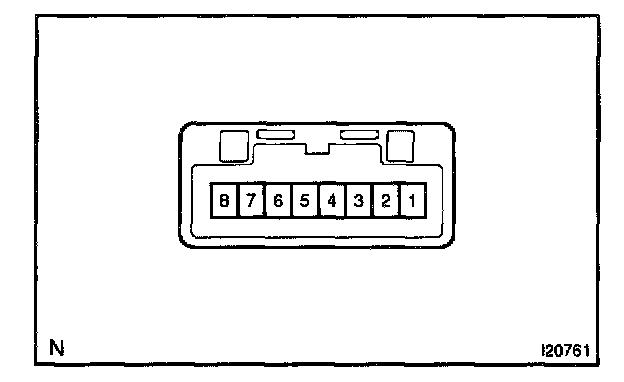

INSPECT REAR SEAT MEMORY SWITCH

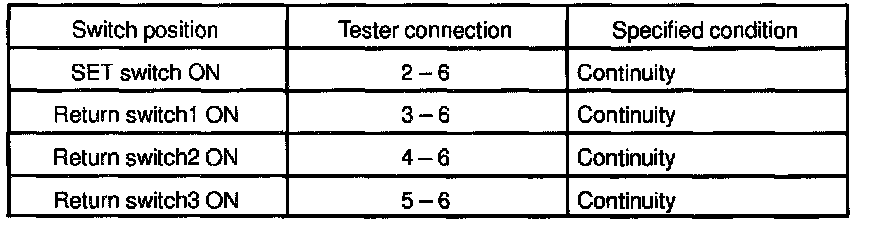

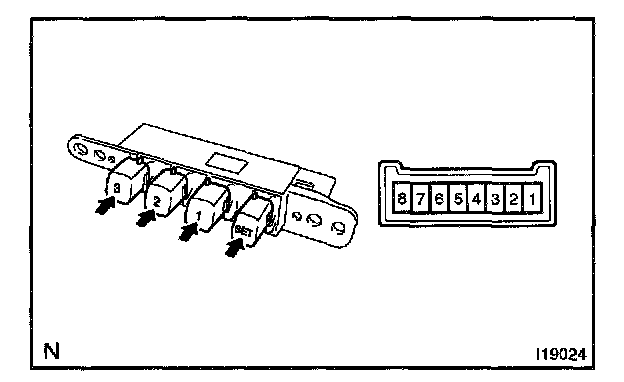

INSPECT DRIVING POSITION MEMORY AND RETURN SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
