Air Bag Control Module

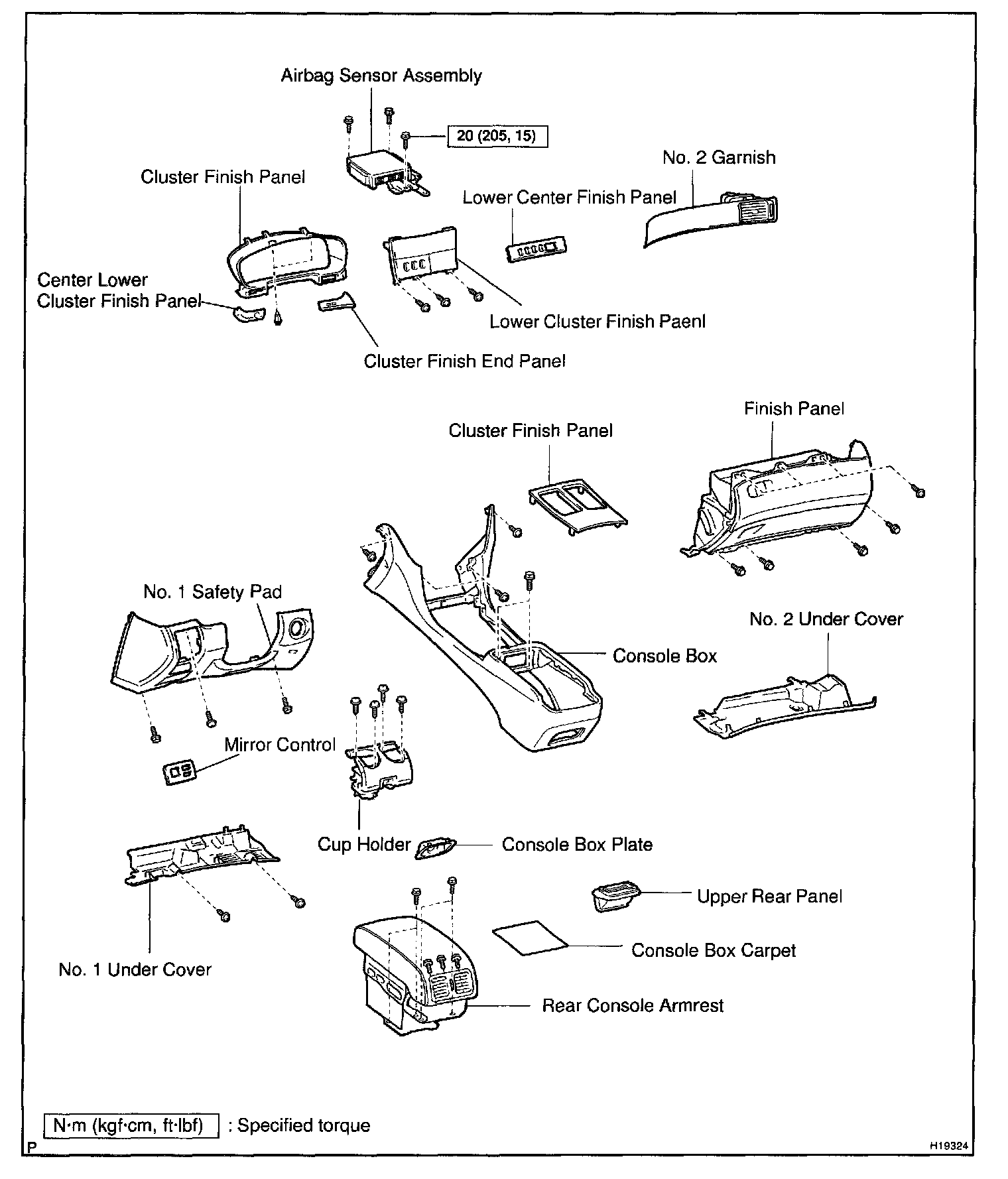

Airbag Sensor Assembly:

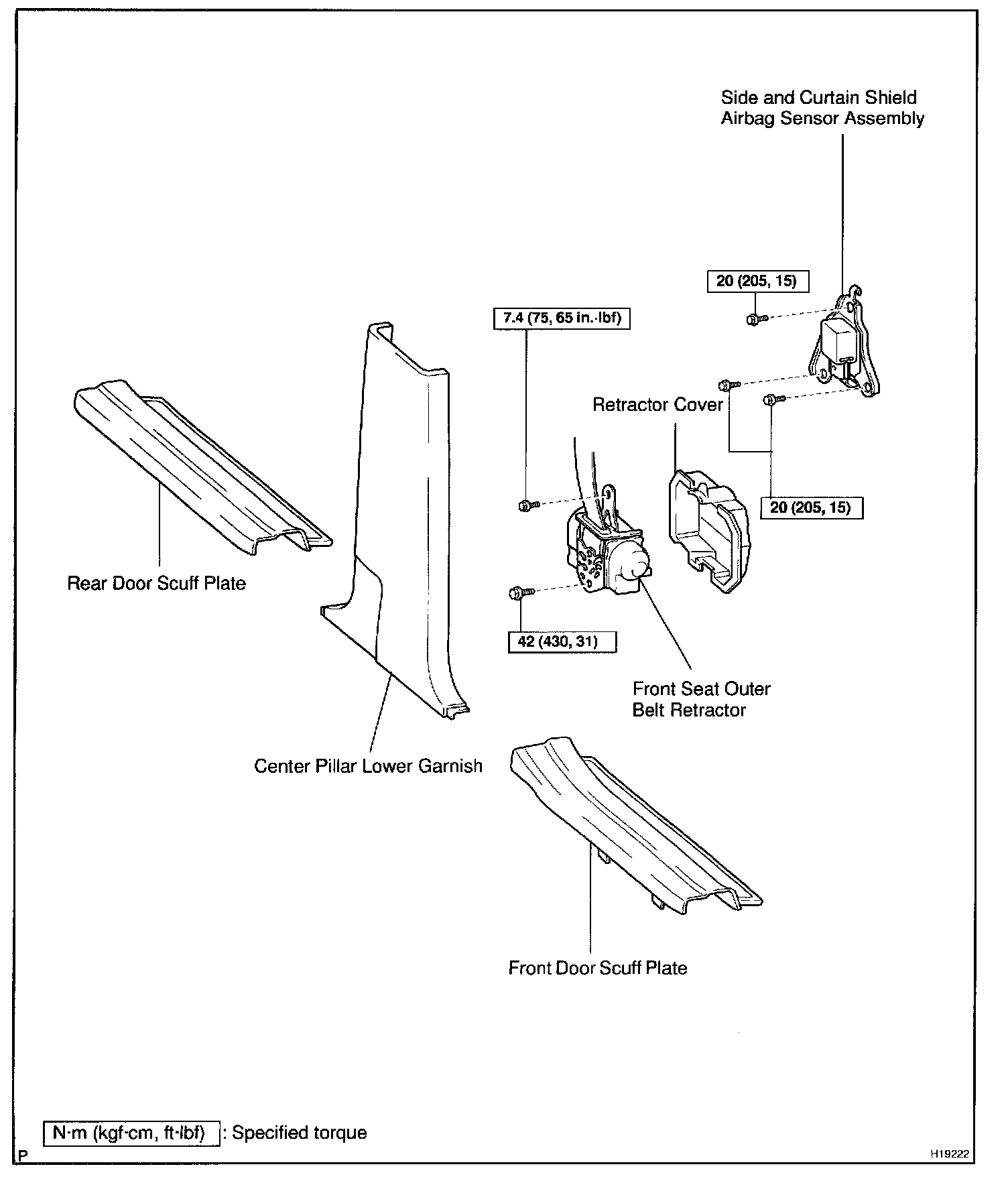

Side And Curtain Shield Airbag Sensor Assembly:

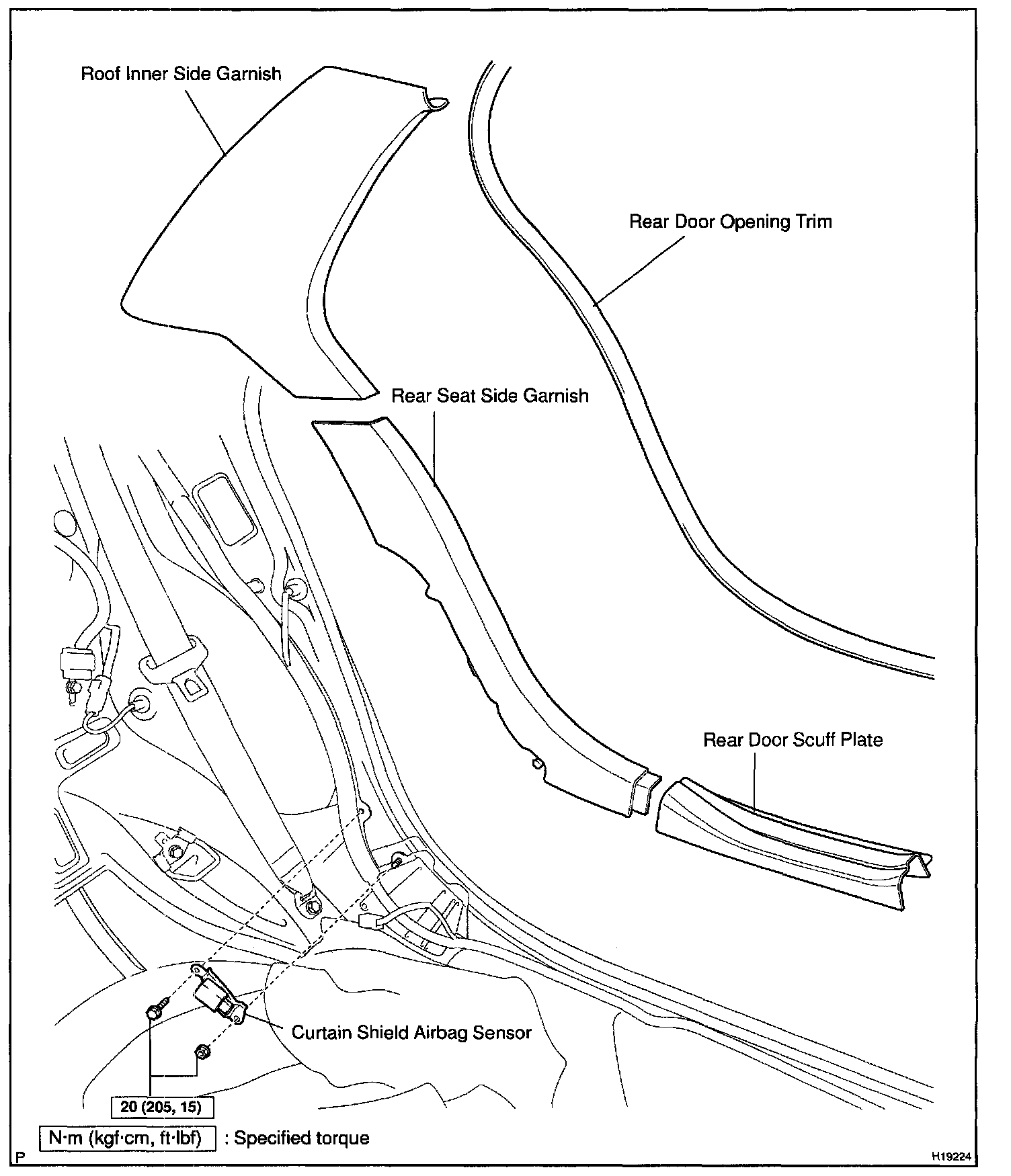

Curtain Shield Airbag Sensor Assembly:

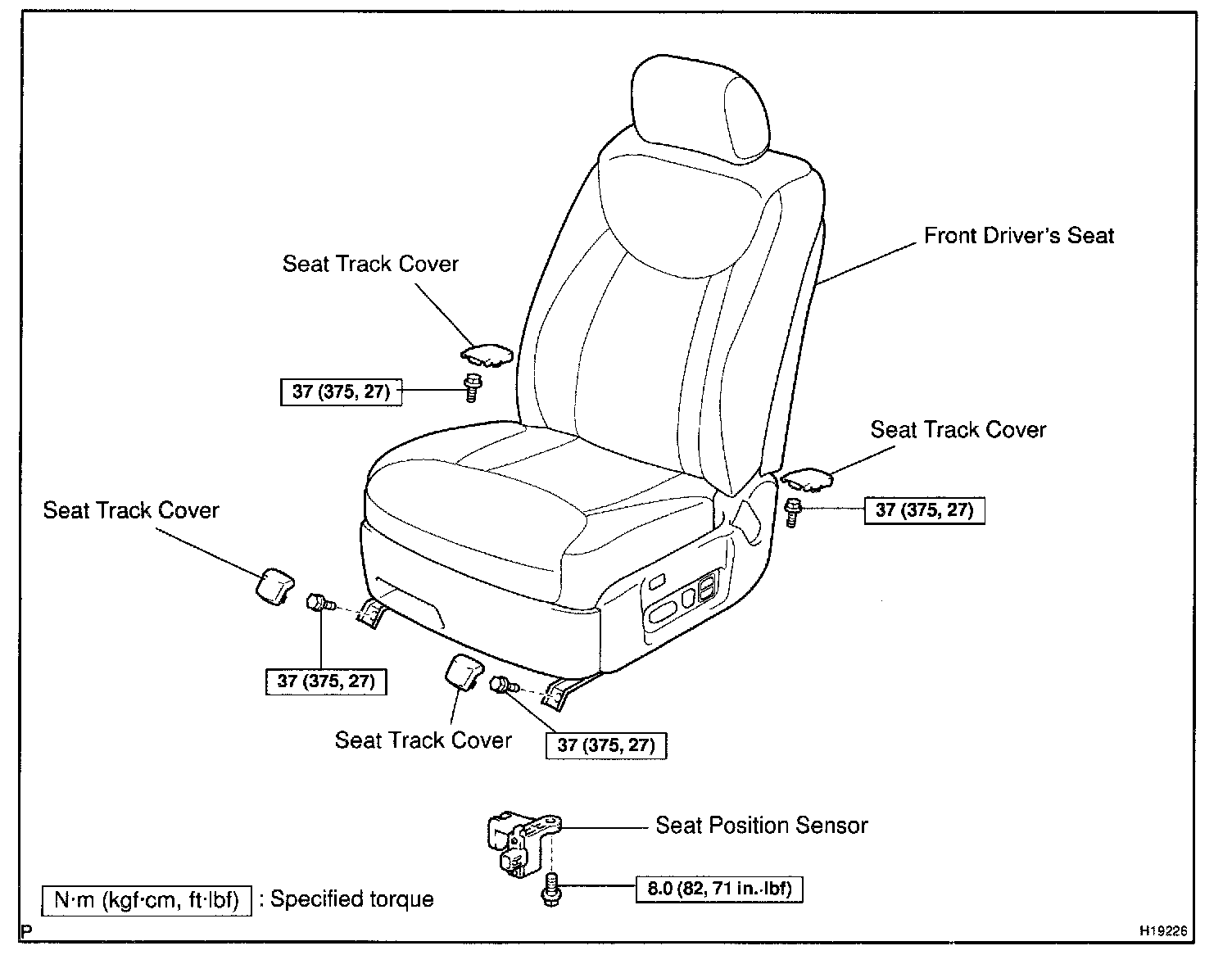

Seat Position Sensor Assembly:
