Section 446 (Front Door): Disassembly

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LOWER FRAME BRACKET GARNISH
Using a screwdriver, remove the lower frame bracket garnish.

HINT:

Tape up the screwdriver tip before use.

Fig 1: Removing Lower Frame Bracket Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

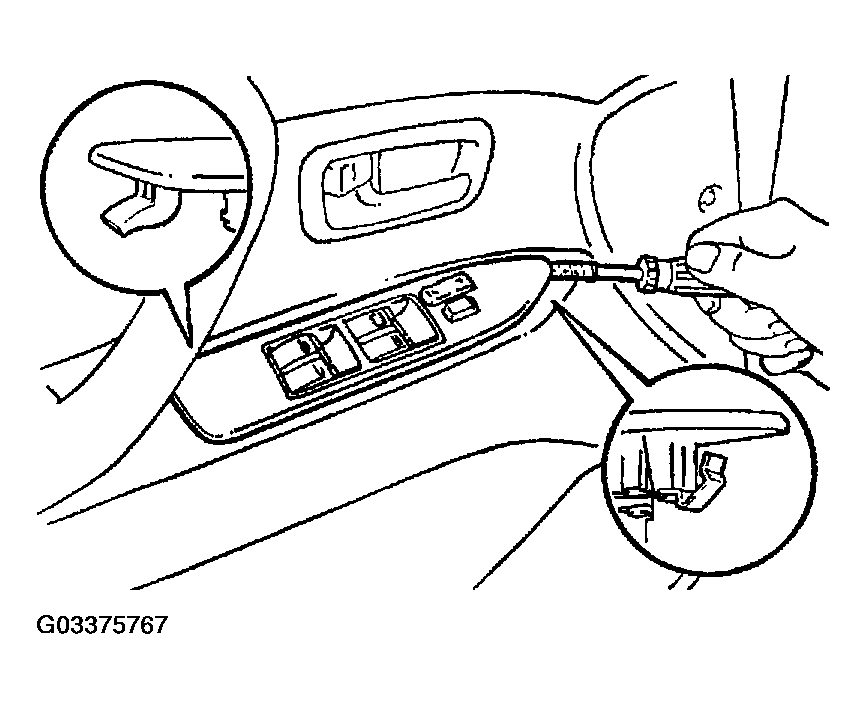

REMOVE POWER WINDOW SWITCH
1. Using a screwdriver, remove the power window switch as shown in the illustration.
  HINT:

  Tape up the screwdriver tip before use.
2. Disconnect the connector.
Fig 2: Removing Power Window Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Mark Levinson:
REMOVE CENTER SPEAKER
1. Disconnect the connector.
2. Using a screwdriver, remove the center speaker.
HINT:

Tape up the screwdriver tip before use.

Fig 3: Removing Center Speaker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

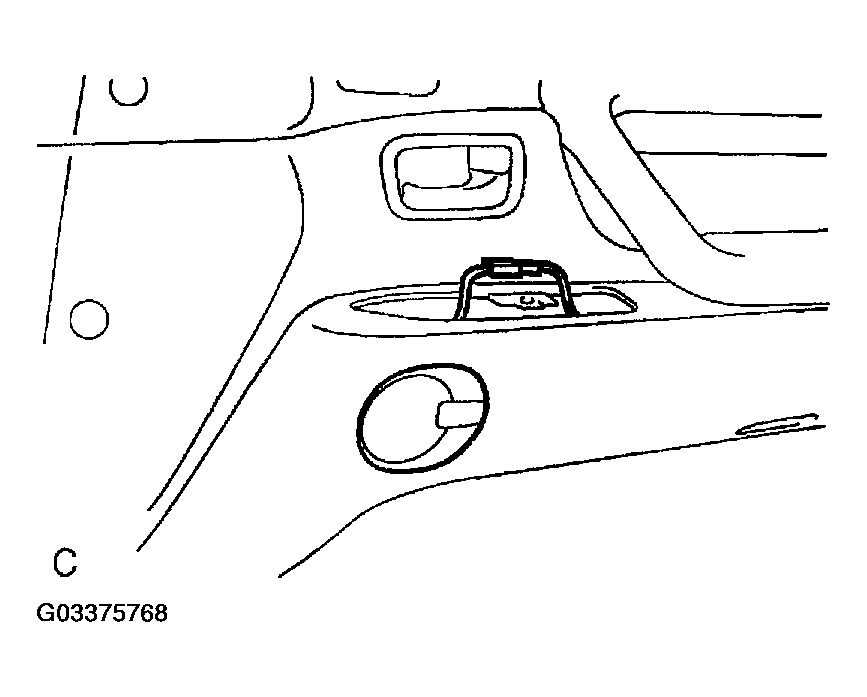

REMOVE DOOR INSIDE HANDLE BEZEL No. 2
Using a screwdriver, remove the door inside handle bezel No. 2 as shown in the illustration.

HINT:

Tape up the screwdriver tip before use.

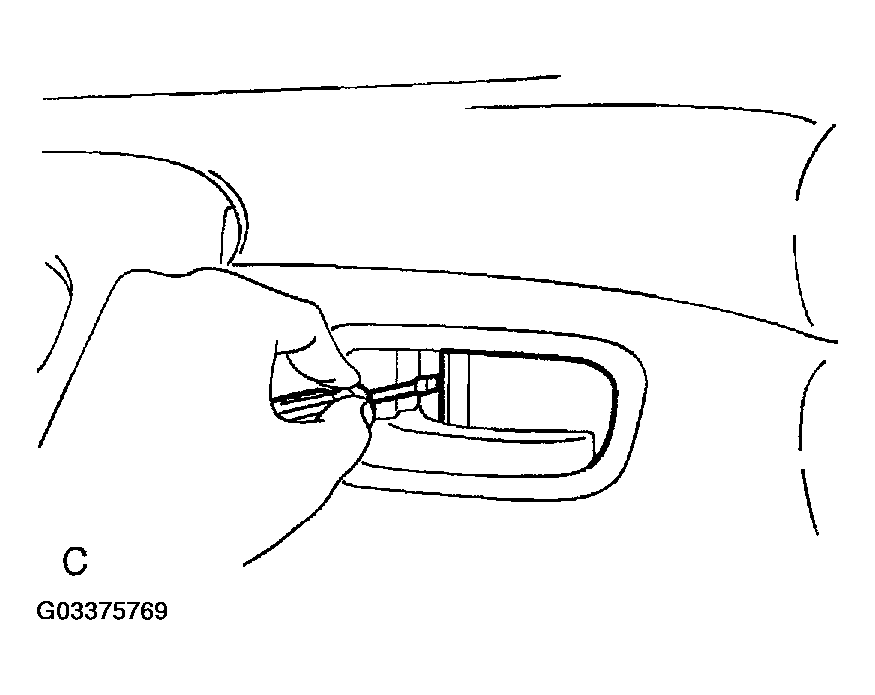

Fig 4: Removing Door Inside Handle Bezel No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

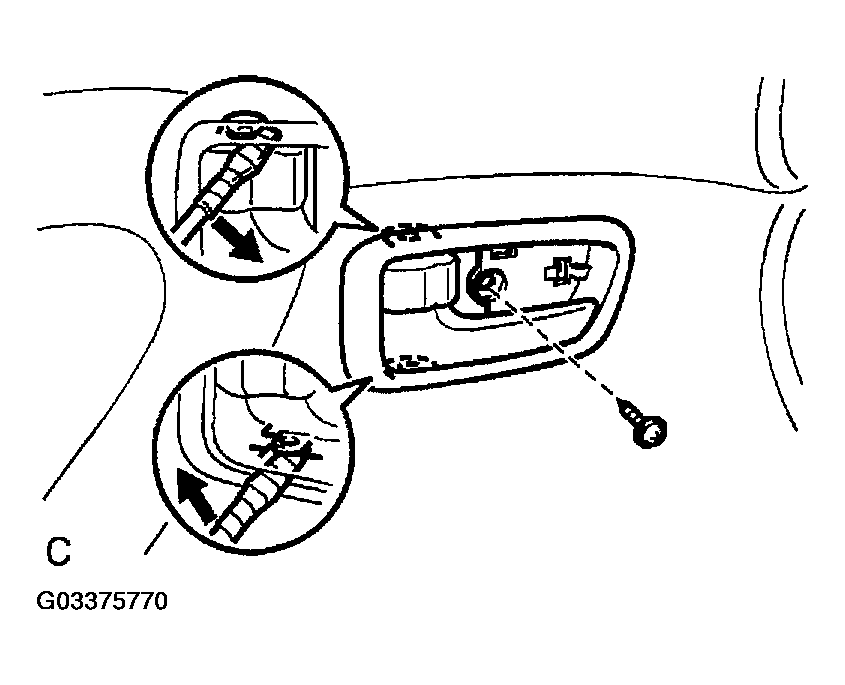

REMOVE DOOR INSIDE HANDLE BEZEL No. 1
1. Remove the screw.
2. Using a screwdriver, remove the door inside handle bezel No. 1 as shown in the illustration.
HINT:

Tape up the screwdriver tip before use.

Fig 5: Removing Door Inside Handle Bezel No. 1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

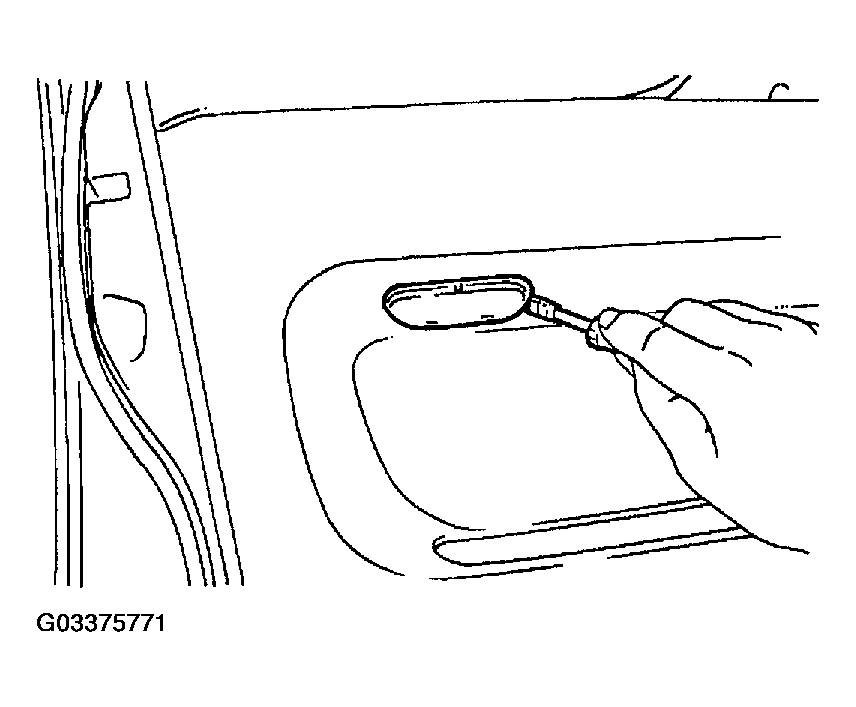

REMOVE DOOR COURTESY LIGHT
Using a screwdriver, remove the door courtesy light, then disconnect the connector.

HINT:

Tape up the screwdriver tip before use.
REMOVE SEAT MEMORY SWITCH
1. Using a screwdriver, remove the seat memory switch.
  HINT:

  Tape up the screwdriver tip before use.
2. Disconnect the connector.
Fig 6: Removing Door Courtesy Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR TRIM
1. Remove the 2 caps and the 7 screws.
2. Remove the 3 clips.
3. Insert a screwdriver between the door and the door trim to pry the trim.
  NOTE: Be careful not to damage the door and the door trim.

  HINT:

  Tape up the screwdriver tip before use.
4. Pull the trim upward to remove it.
5. Using a screwdriver, remove the speaker grille from the door trim.
HINT:

Tape up the screwdriver tip before use.

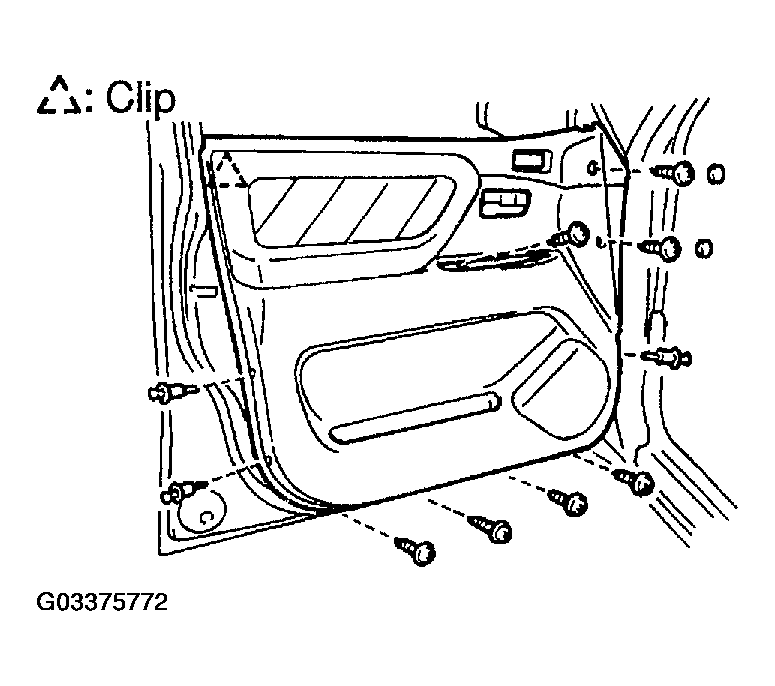

Fig 7: Removing Door Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSIDE HANDLE
1. Remove the screw and the inside handle.
2. Disconnect the 2 control cables from the inside handle as shown in the illustration.
REMOVE TWEETER SPEAKER
Disconnect the connector, then remove the bolt and the tweeter speaker.
REMOVE OUTSIDE REAR VIEW MIRROR
Disconnect the connector, then remove the 3 bolts and the outside rear view mirror.

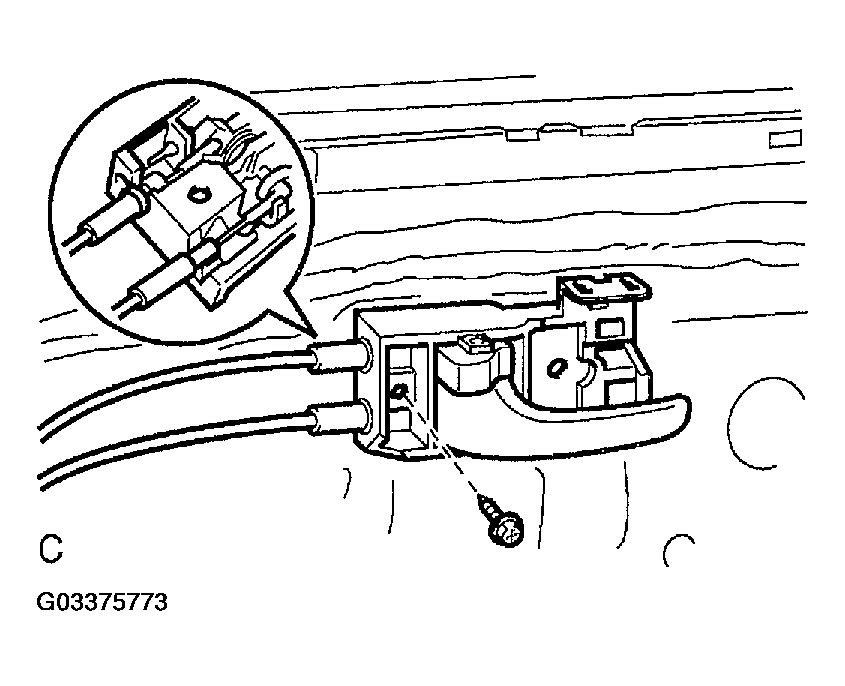

Fig 8: Disconnecting 2 Control Cables From Inside Handle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SERVICE HOLE COVER
1. Remove the clamps and the wire harness.
2. Remove the service hole cover.
NOTE: Do not tear the cover.

HINT:

At the time of reassembly, pull out the 2 control cables and the wire harness through the service hole cover.

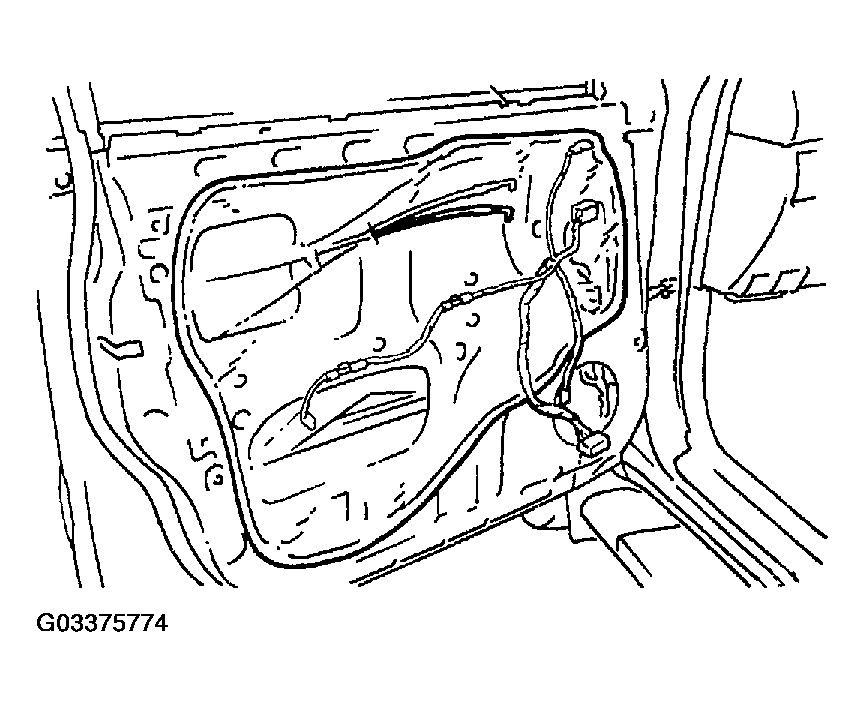

Fig 9: Removing Clamps & Wire Harness
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR BELT MOLDING
1. Remove the screw.
2. Using a scraper, remove the door belt molding.
HINT:

Tape up the scraper tip before use.
REMOVE DOOR GLASS
1. Open the door glass until the bolts appear in the service hole.
2. Remove the 2 bolts and the door glass.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

NOTE: Do not damage the door glass.

HINT:

Pull the glass upward to remove it.
REMOVE SPEAKER
1. Remove the 3 screws and the speaker, then disconnect the connector.
2. w/ Mark Levinson:
  Remove the 4 screws and the speaker, then disconnect the connector.
REMOVE DOOR GLASS RUN
REMOVE LOWER FRAME
Remove the bolt and the lower frame.

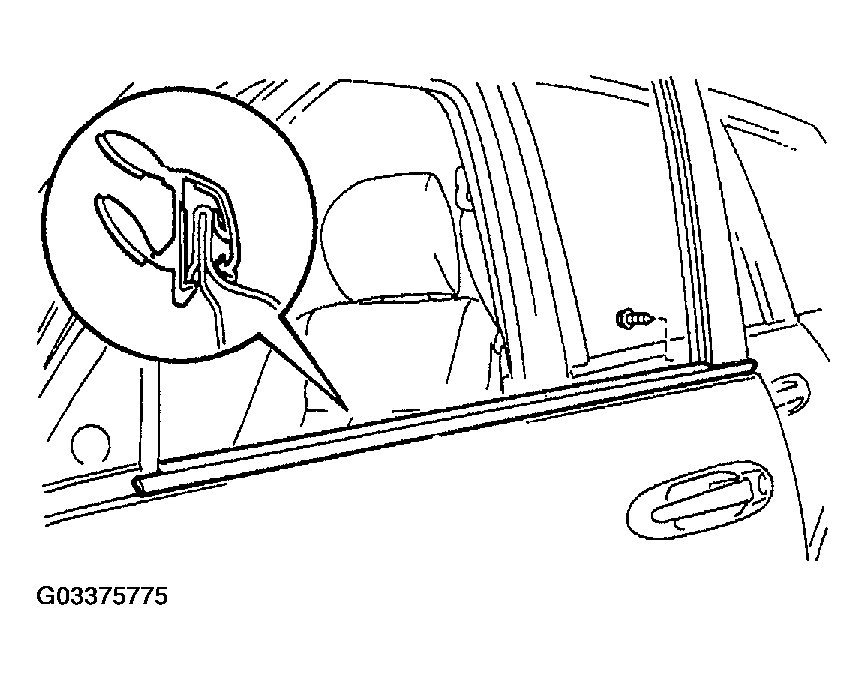

Fig 10: Removing Door Belt Molding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

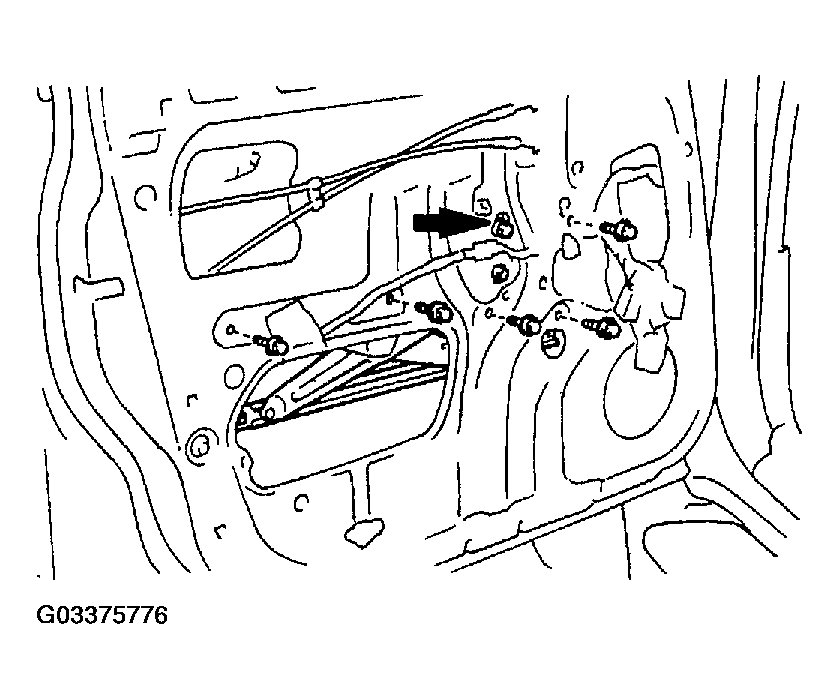

REMOVE WINDOW REGULATOR
1. Disconnect the connector, then remove the 5 bolts.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Loosen the bolt and the window regulator.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  HINT:

  Remove the regulator through the service hole.

  Fig 11: Removing Window Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

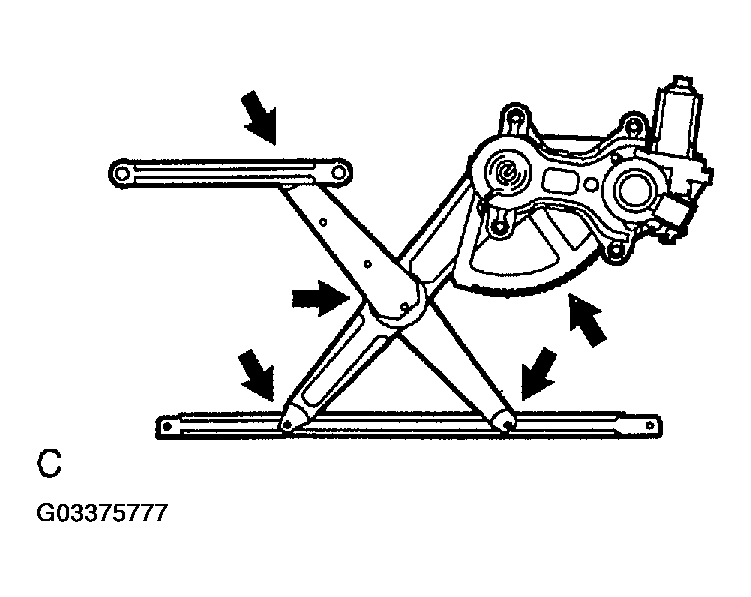

  HINT:

  At the time of reassembly, apply MP grease to the window regulator.

  NOTE: At the time of reassembly, do not apply grease to the sprang of the window regulator.

  Fig 12: Identifying Points Of Window Regulator For Applying MP Grease
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

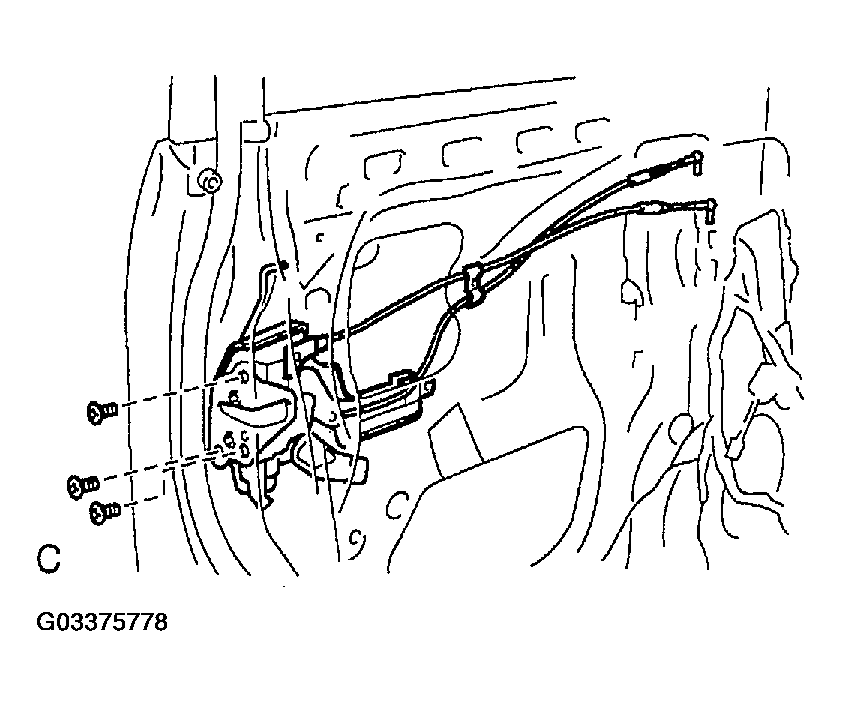

REMOVE DOOR LOCK
1. Remove the clip and the door lock link protector.
2. Disconnect the connector.
3. Disconnect the 2 links from the outside handle and the door lock cylinder.
4. Using a torx wrench, remove the 3 screws and the door lock.
Torx wrench: T30 (Part No. 09042-00010 or locally manufactured tool)

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

HINT:

Remove the door lock through the service hole.

HINT:

At the time of reassembly:
- Apply adhesive to the 3 screws.
  Part No. 08833-00070, THREE BOND 1324 or equivalent.

  Fig 13: Removing Door Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

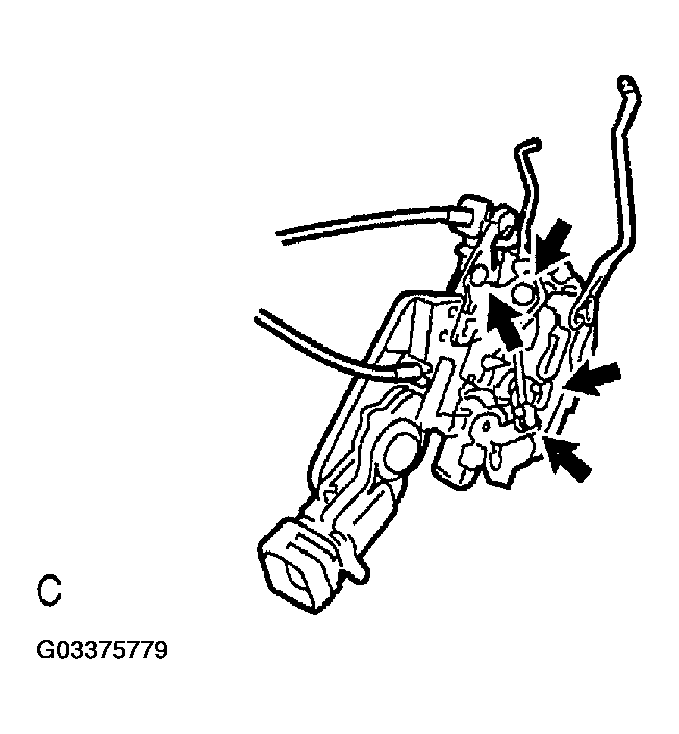

- Remove the protector, and apply MP grease to the sliding and rotating parts of the door lock.
REMOVE OUTSIDE HANDLE WITH DOOR LOCK CYLINDER
1. Remove the 2 bolts and the outside handle with the door lock cylinder.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
2. Remove the bolt and the door lock cylinder from the outside handle.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

Fig 14: Identifying Outside Handle With Door Lock Cylinder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
