Air Conditioning Control Assembly: Disassembly

  1. Remove A/C control panel assembly.
    1. Remove the 4 screws and 2 brackets.

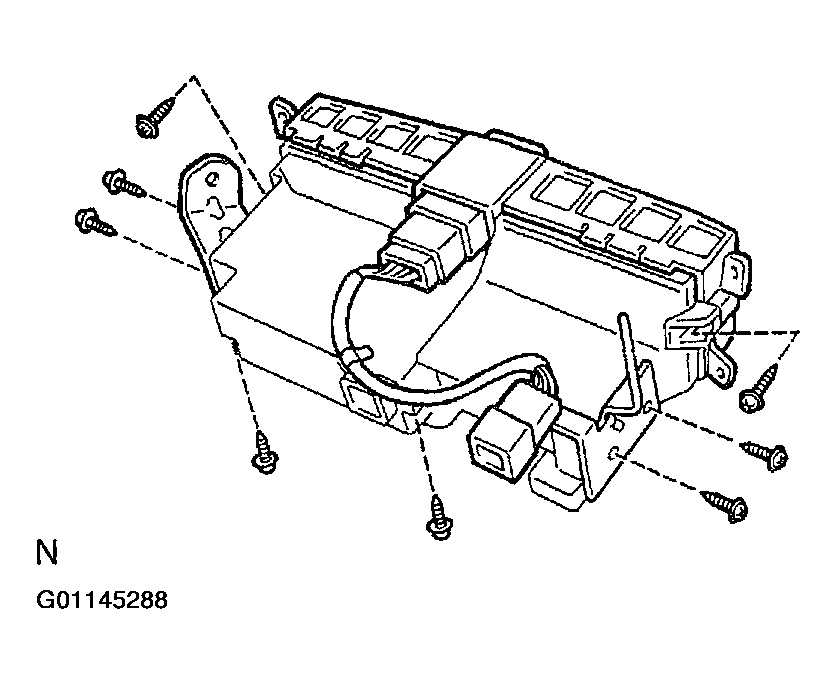

      Fig 1: Locating Screws & Brackets For Removal
      G01145288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the 4 screws.
    4. Using a screwdriver, release the 4 claws and remove the A/C control panel assembly.
      NOTE: Tape the screwdriver tip before use.
    5. Disconnect the connector from A/C panel.
  2. Remove lighting valve.
    1. Using a screwdriver, turn the bulbs to the left and pull out the bulbs.
      Fig 2: Locating Bulbs For Removal
      G01145289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
