Air Conditioning: Condenser: Components

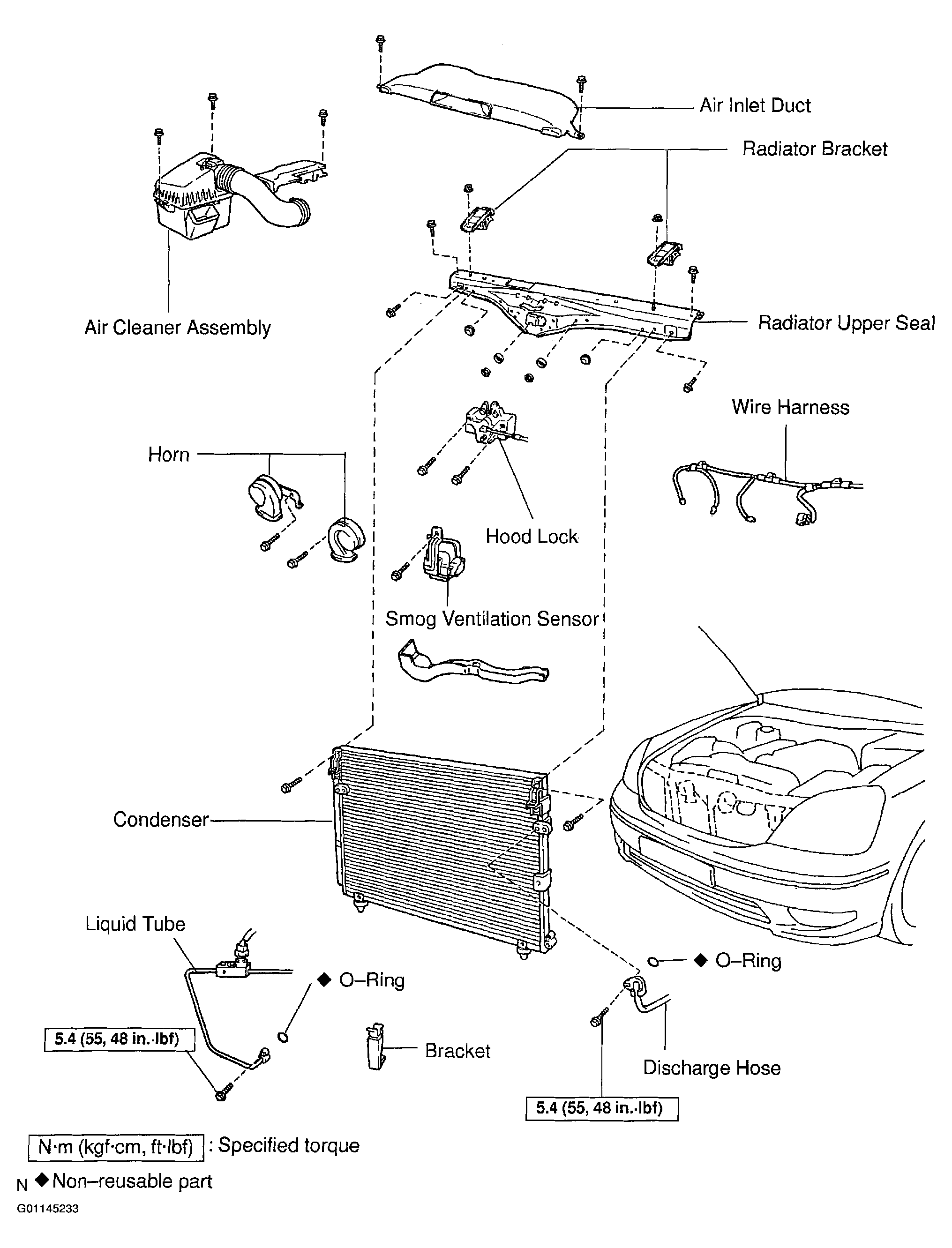

Fig 1: Identifying Condenser Components (1 Of 2)
G01145233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

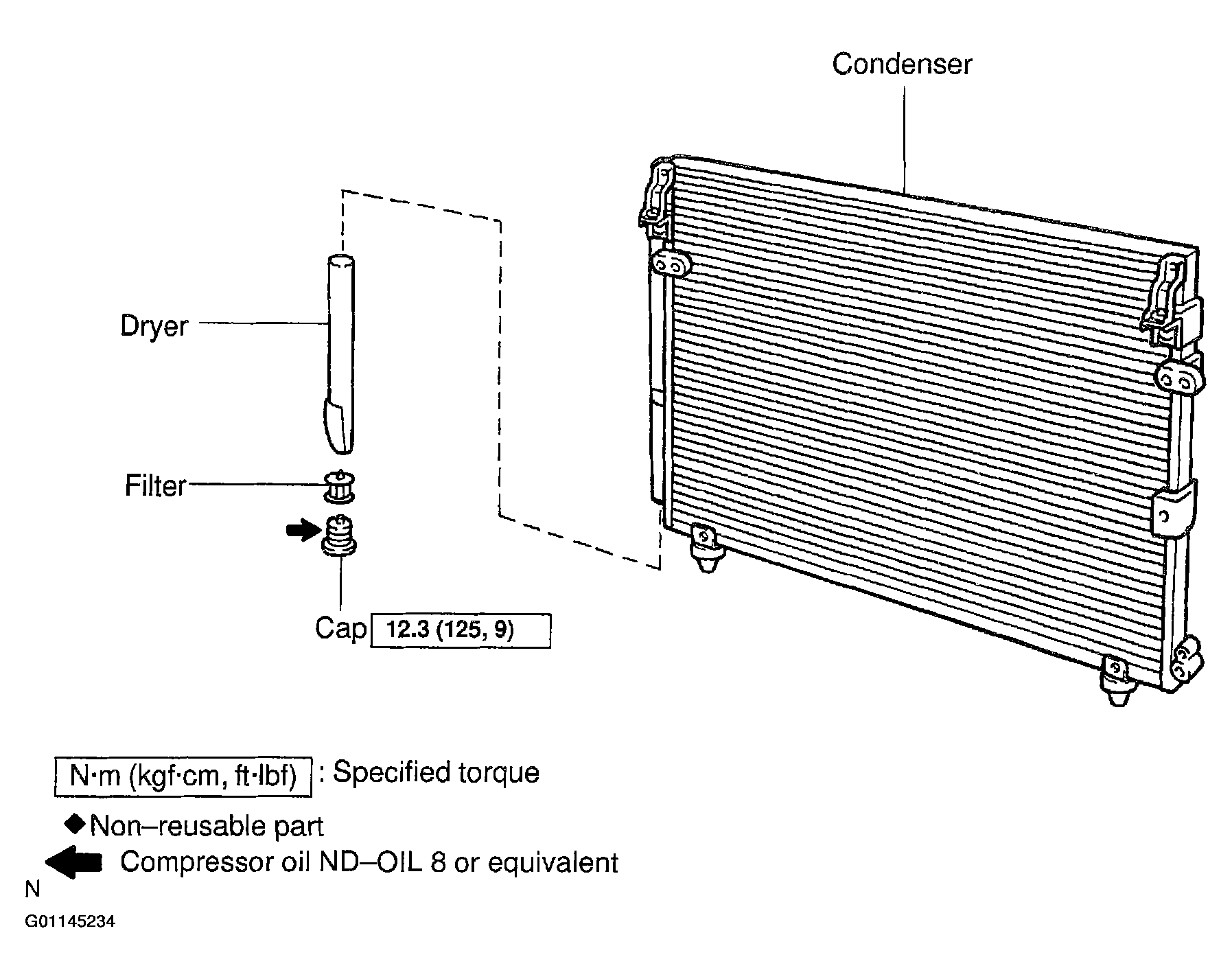

Fig 2: Identifying Condenser Components (2 Of 2)
G01145234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
