Component Locations

To locate components see Fig 1.

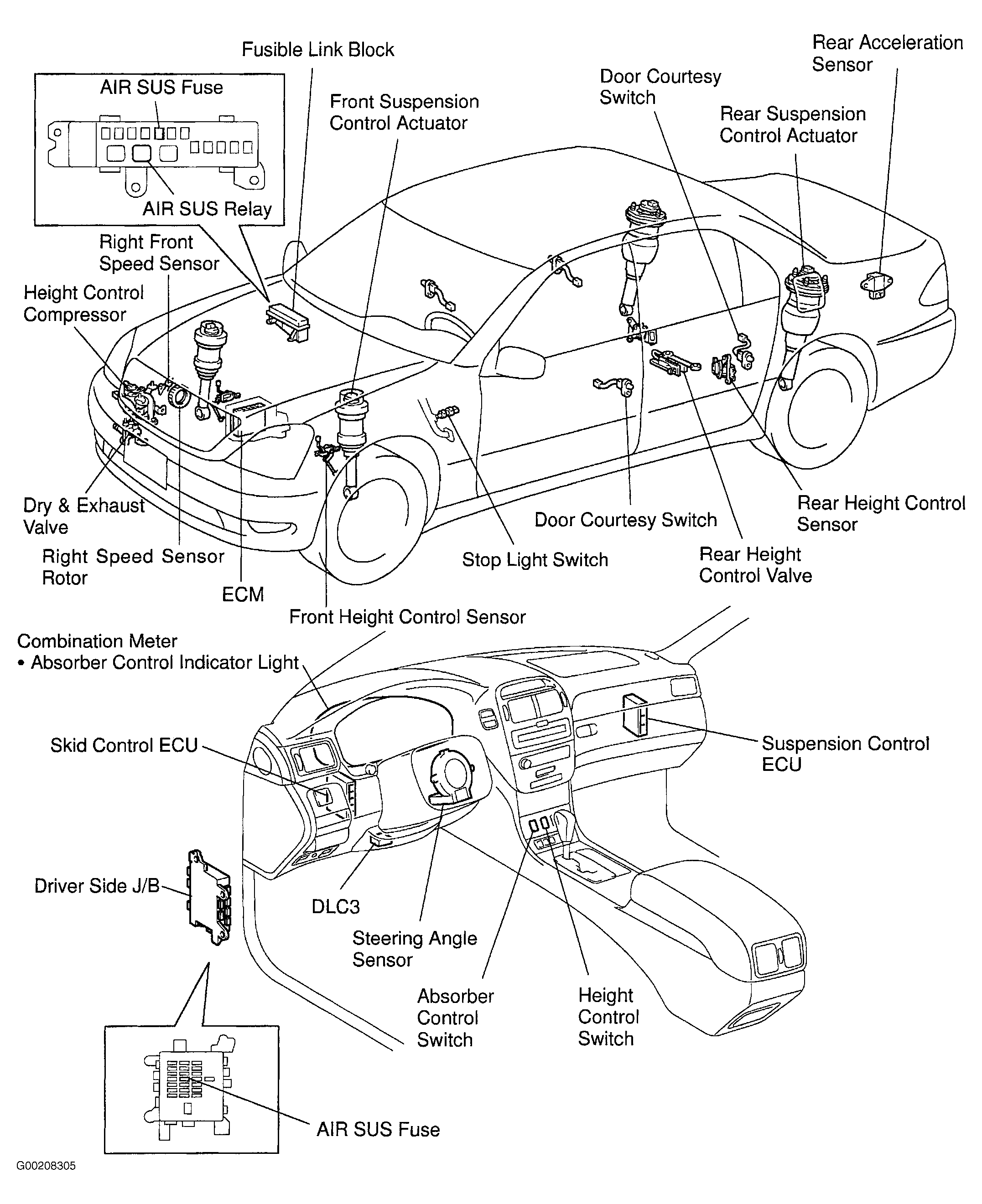

Fig 1: Locating Electronic Modulated Air Suspension Components
G00208305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
