Testing Procedure

For testing procedure, see Fig 1.

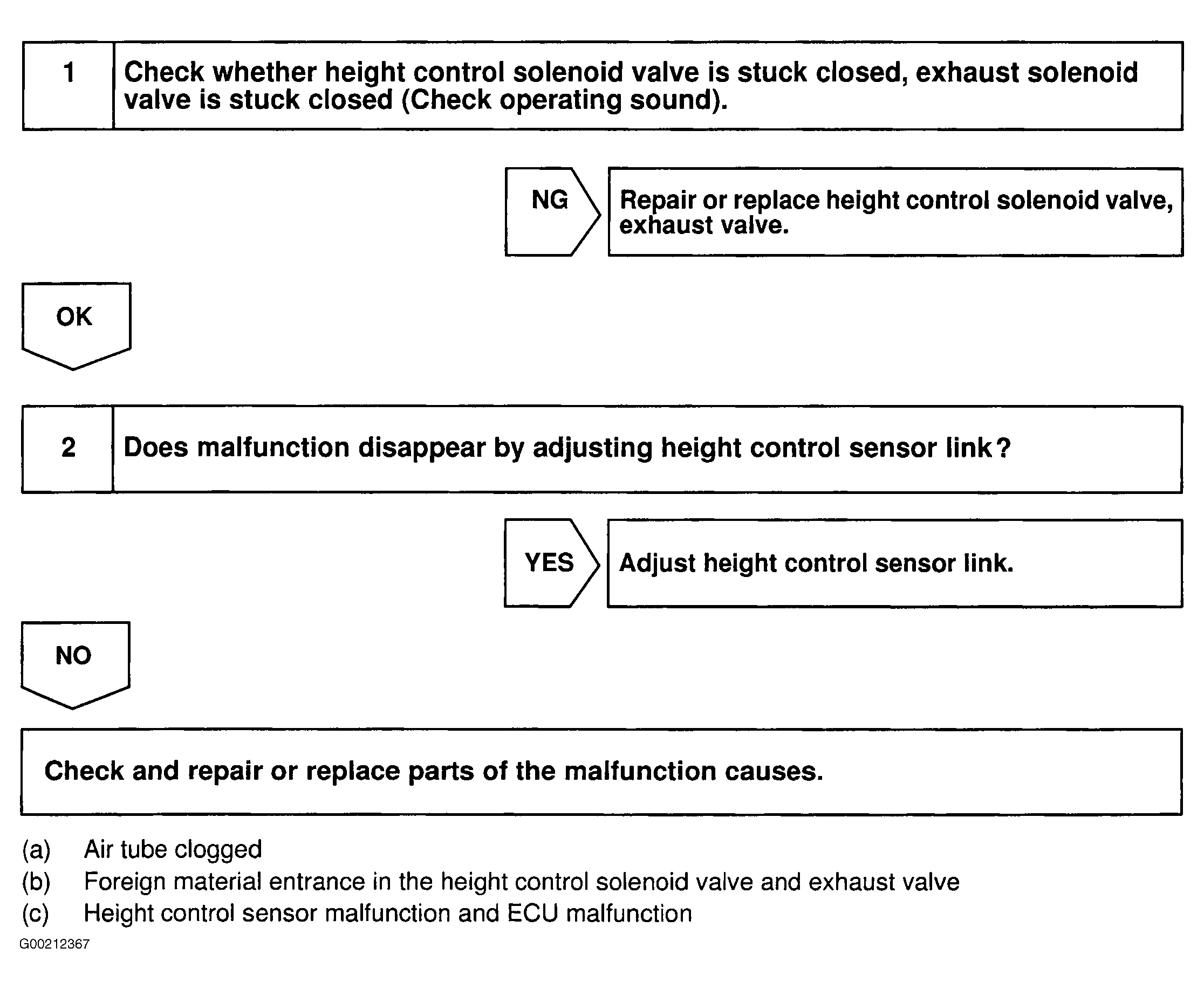

Fig 1: Testing Procedure Continuous Electric Current To Height Control Exhaust Valve
G00212367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
