Connector Code Lists

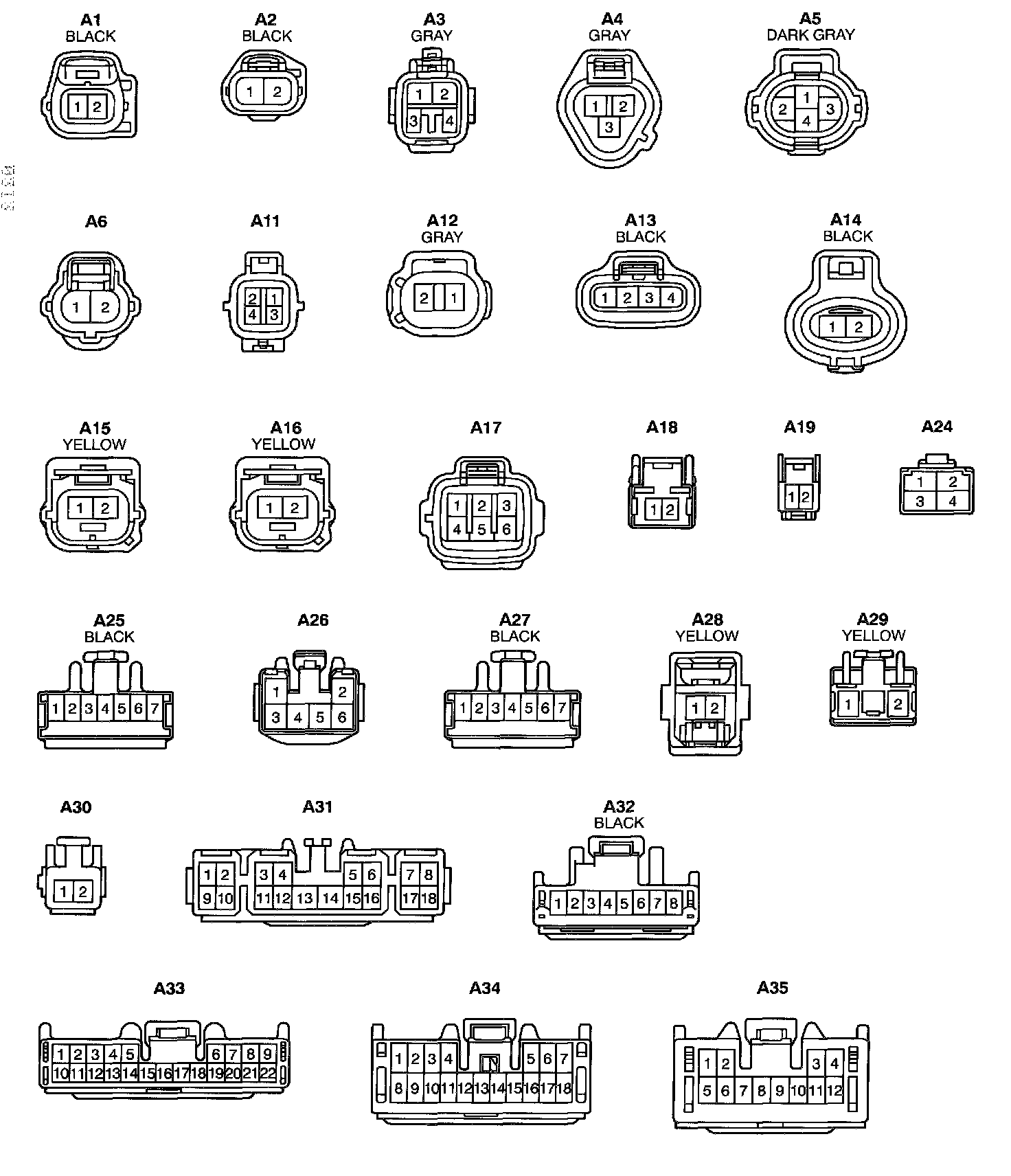

Connector View A1 - A35:

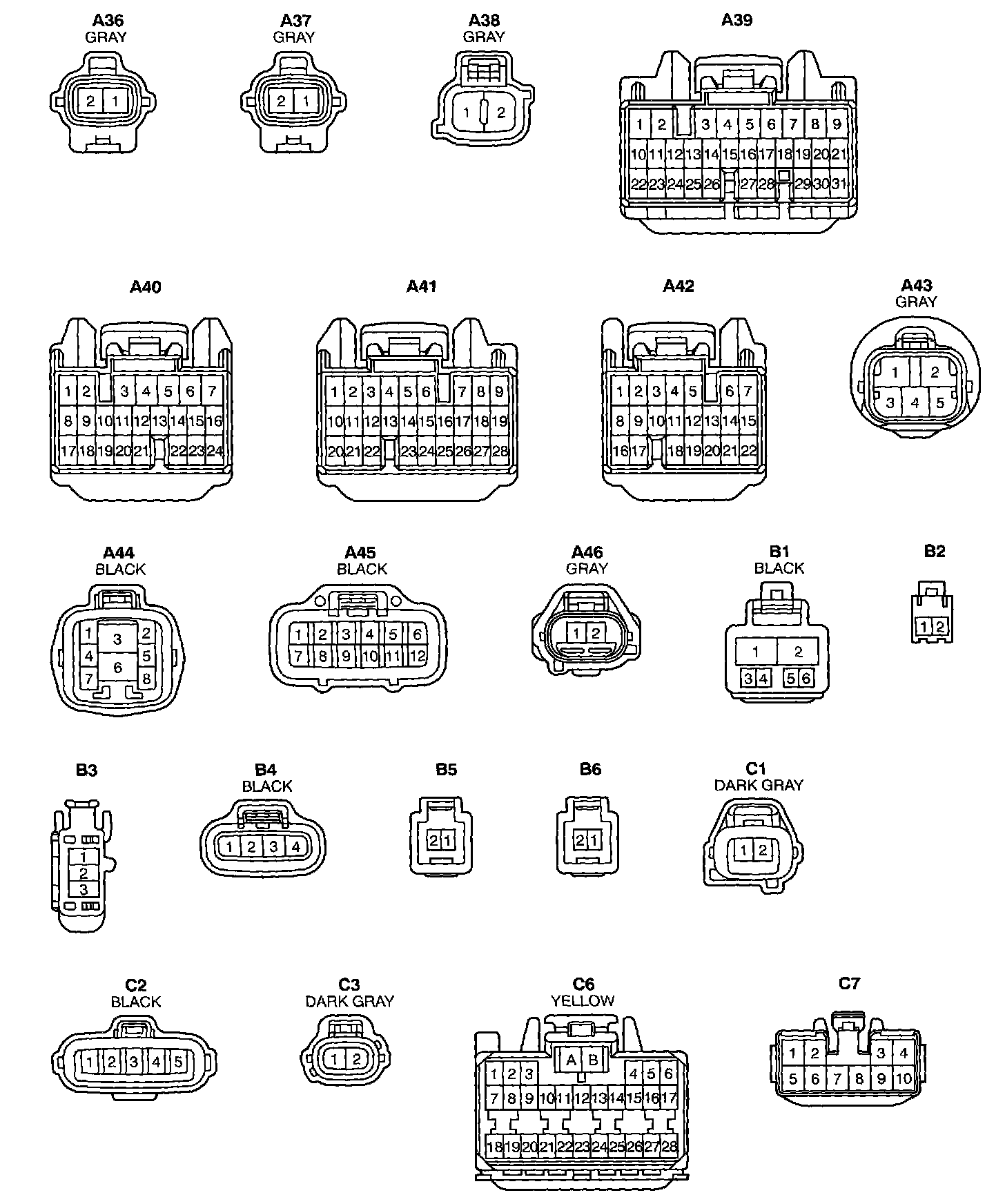

Connector View A36 - C7:

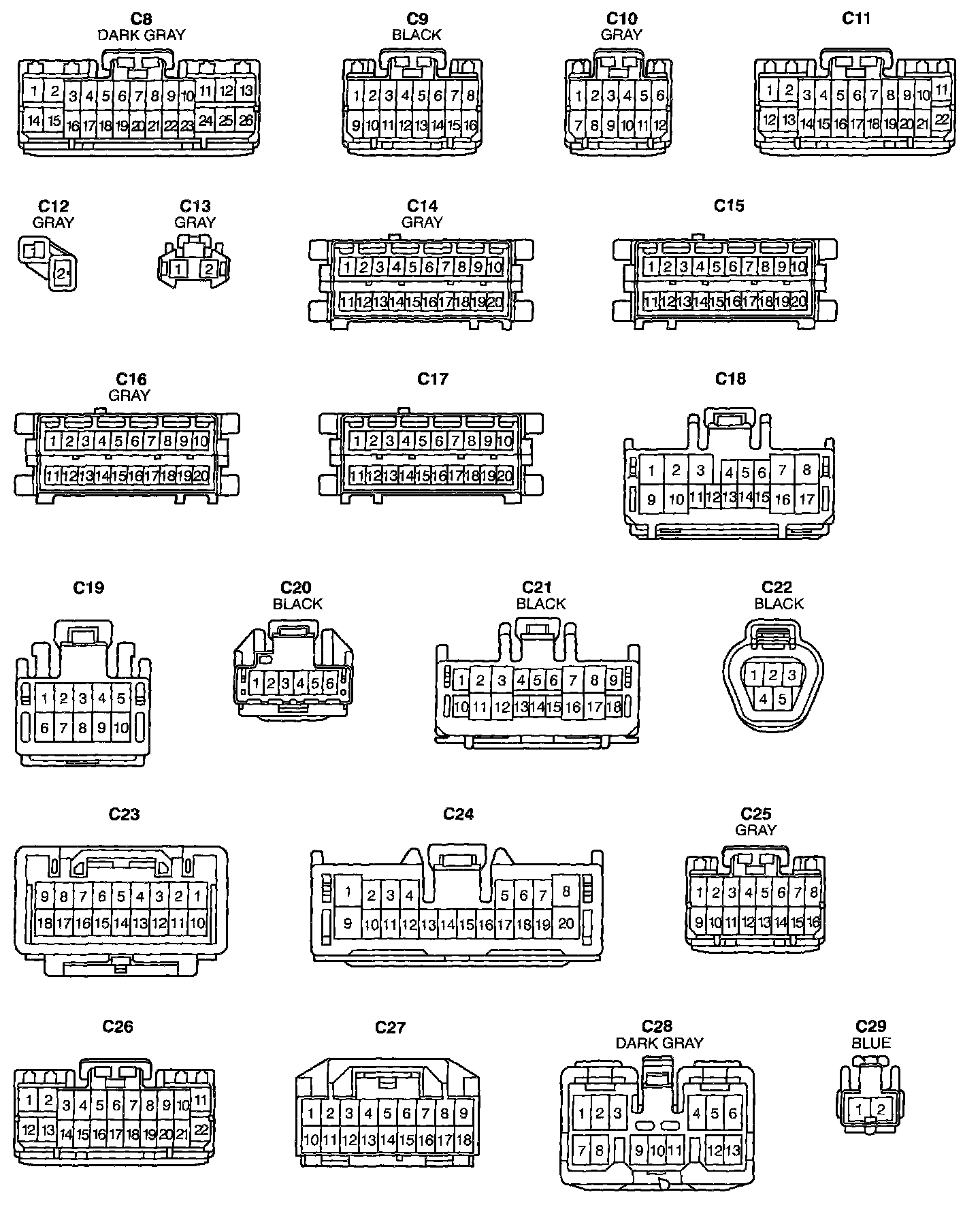

Connector View C8 - C29:

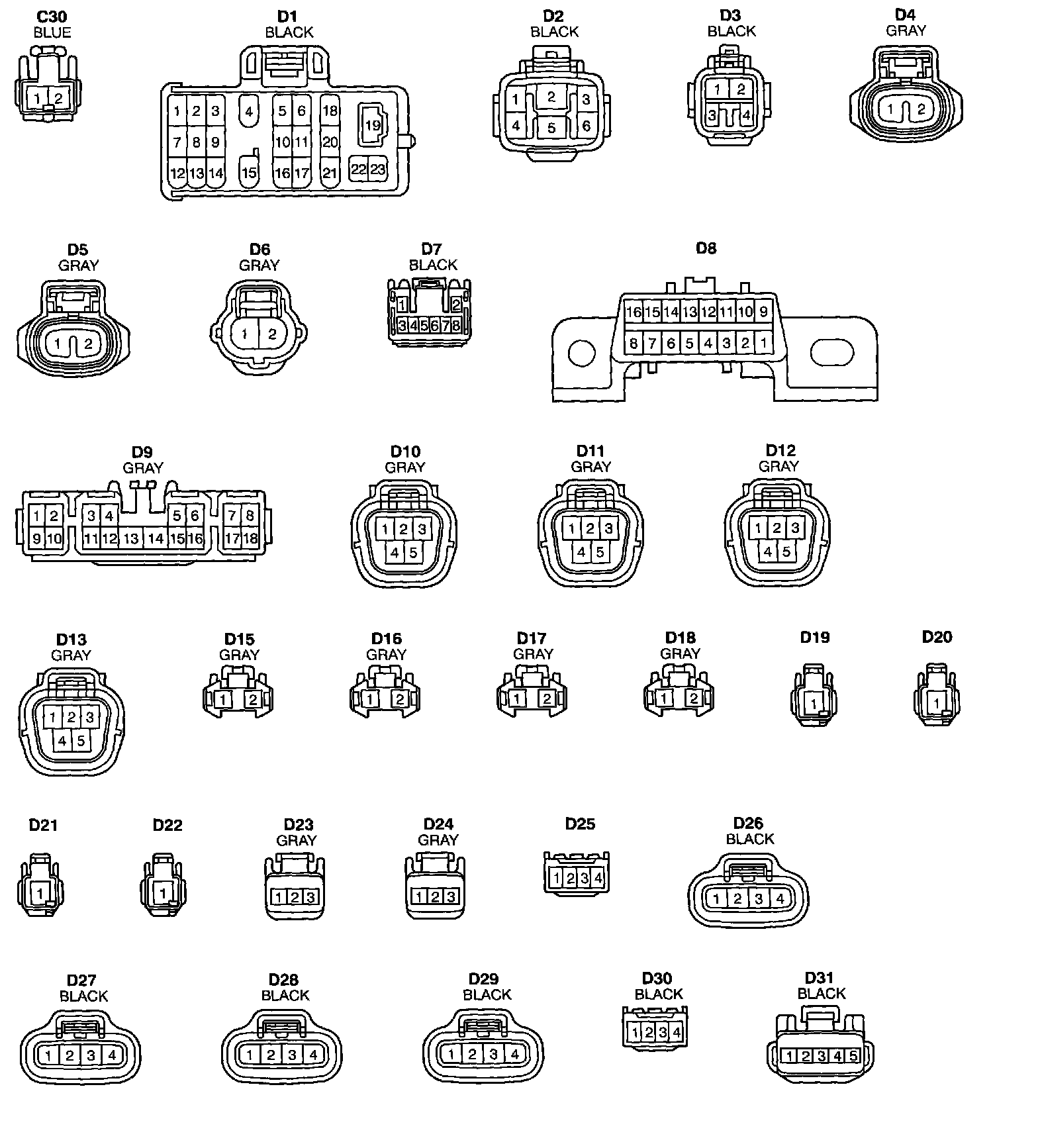

Connector View C30 - D31:

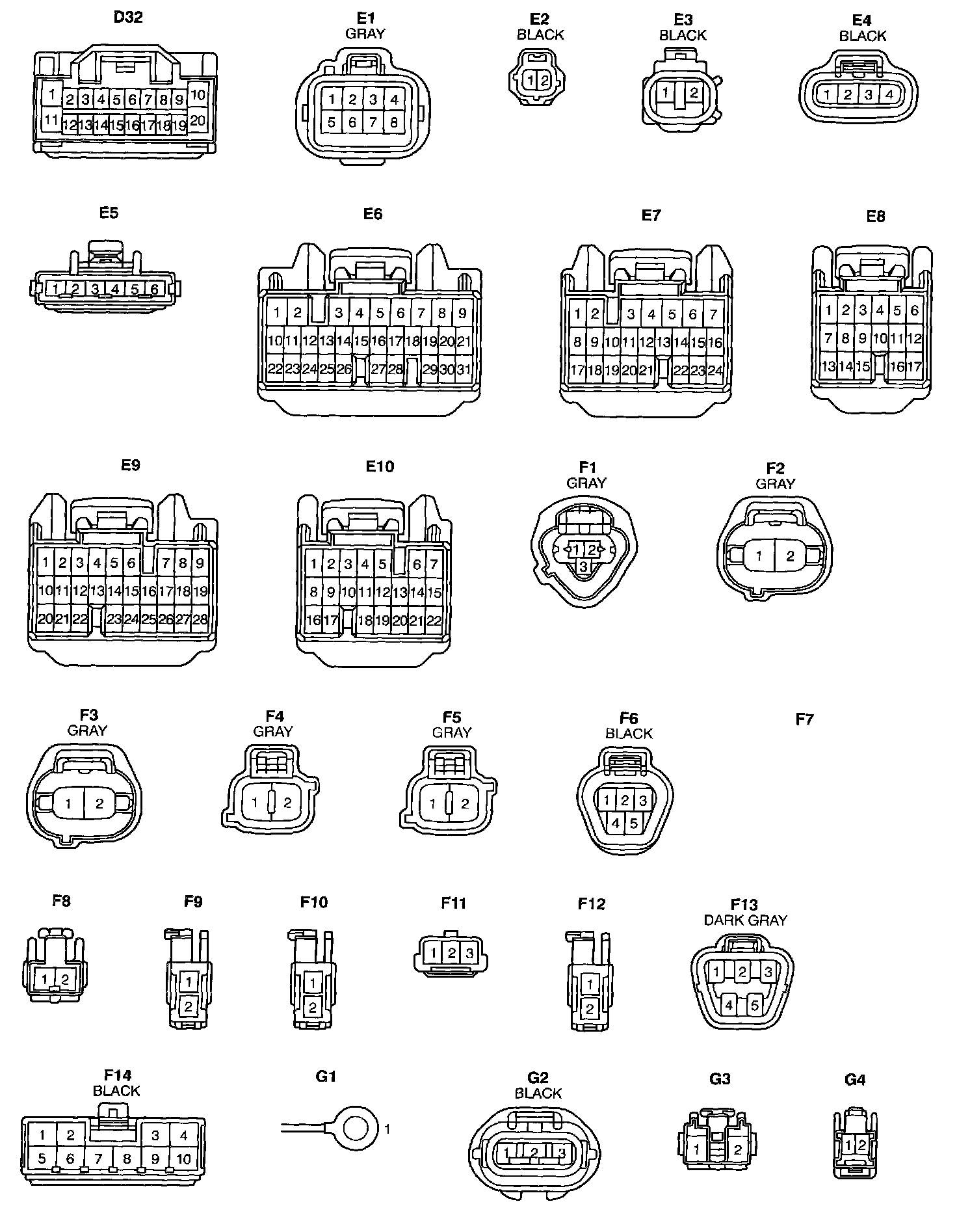

Connector View D32 - G4:

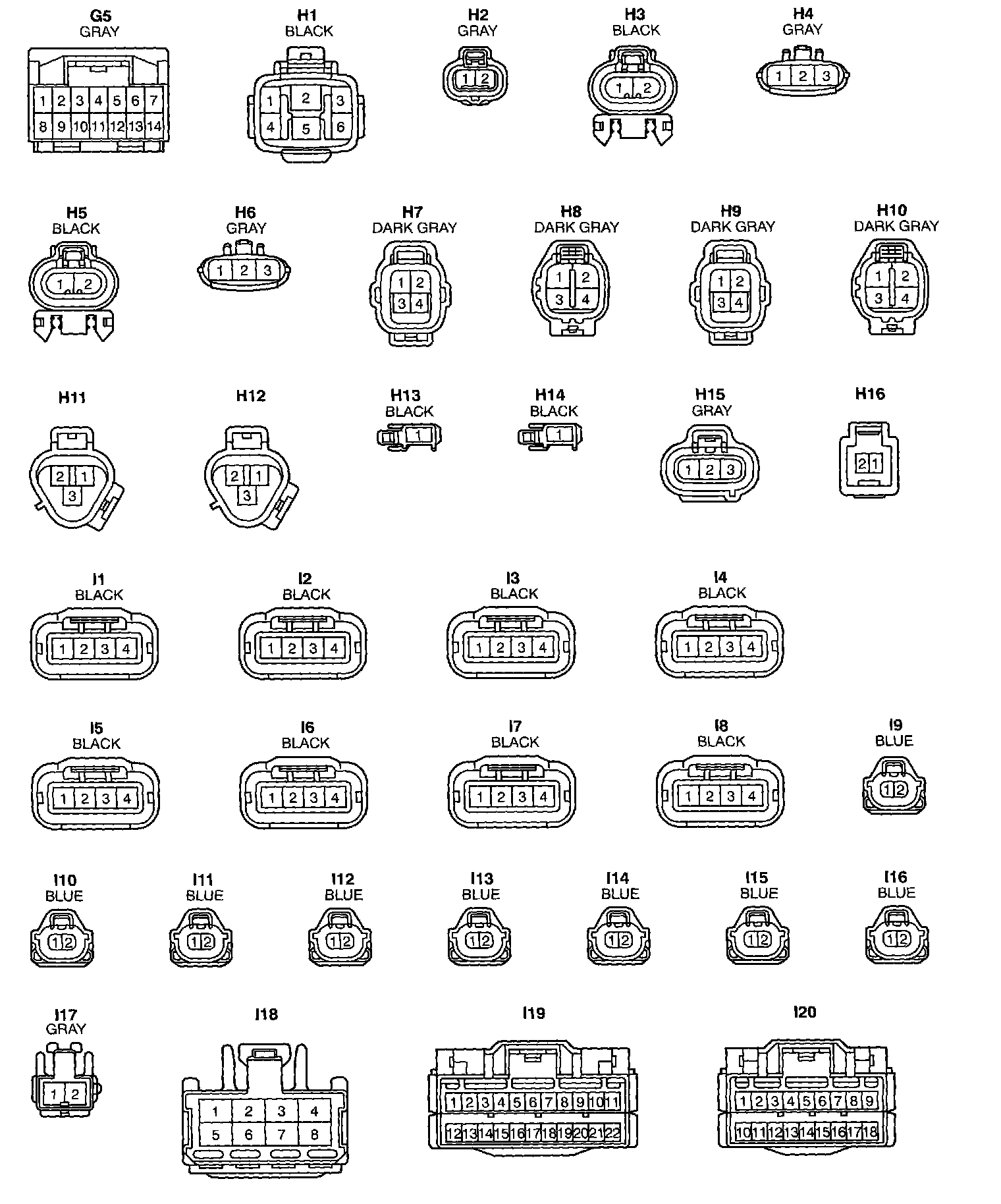

Connector View G5 - I20:

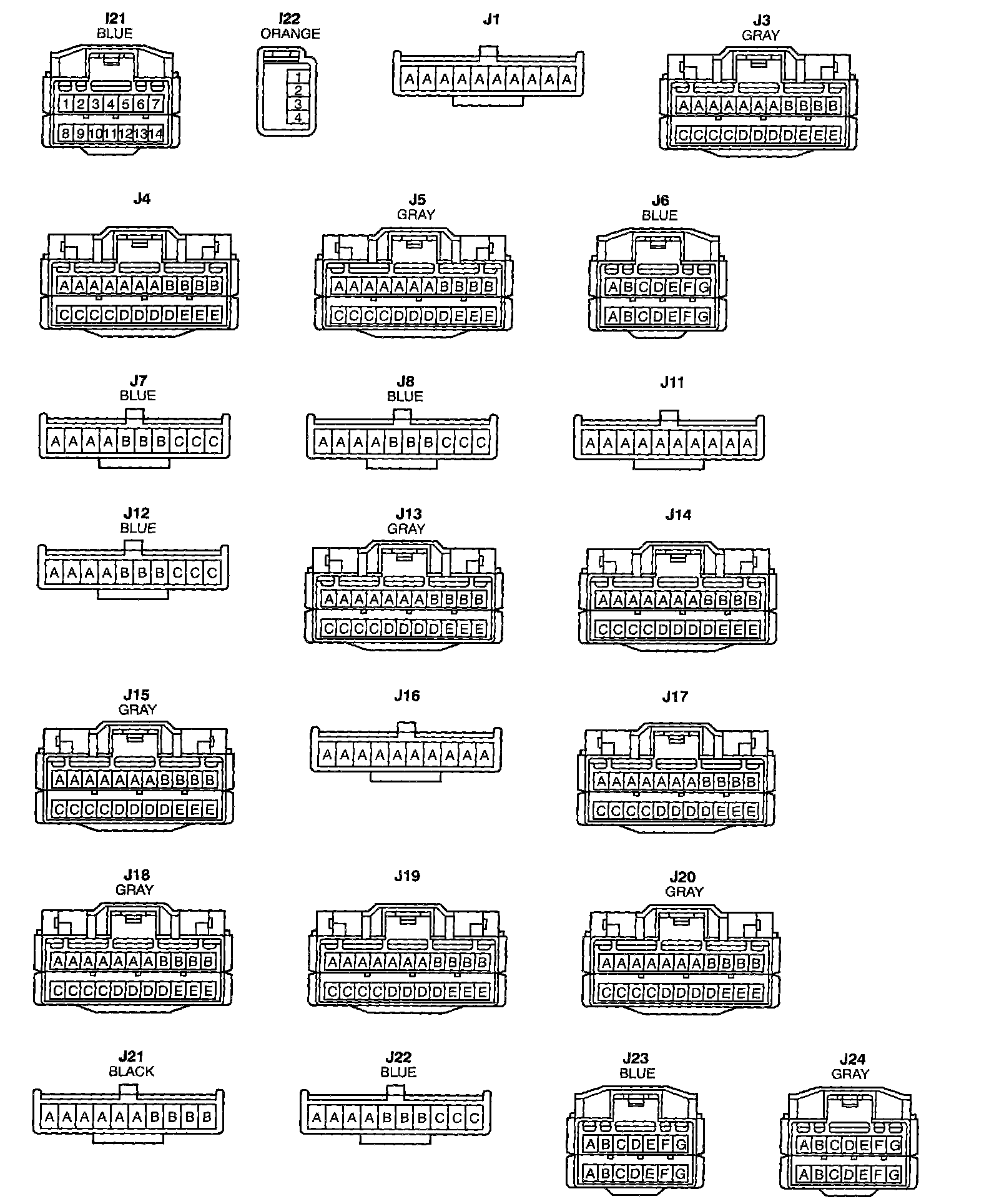

Connector View I21 - J24:

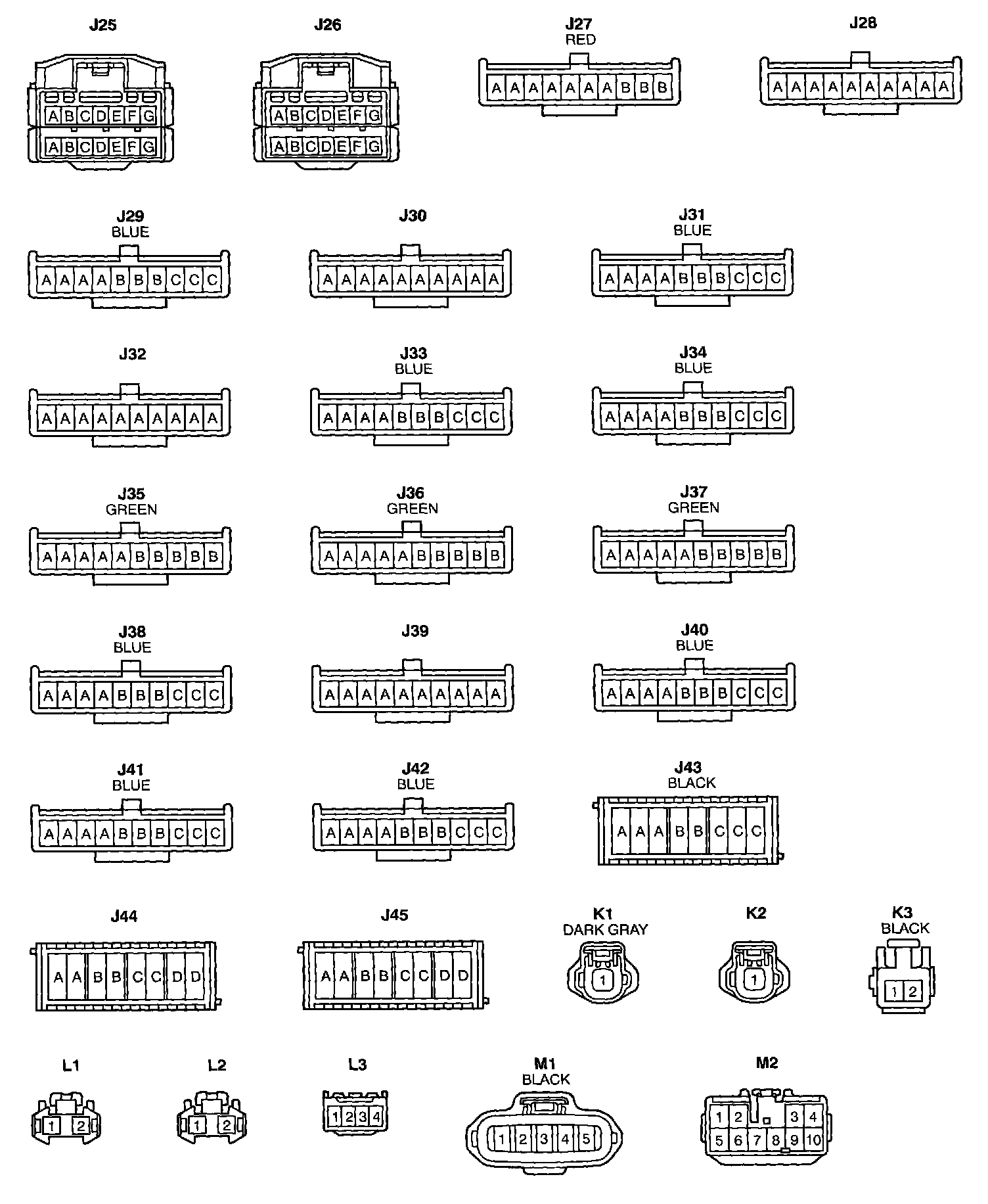

Connector View J25 - M2:

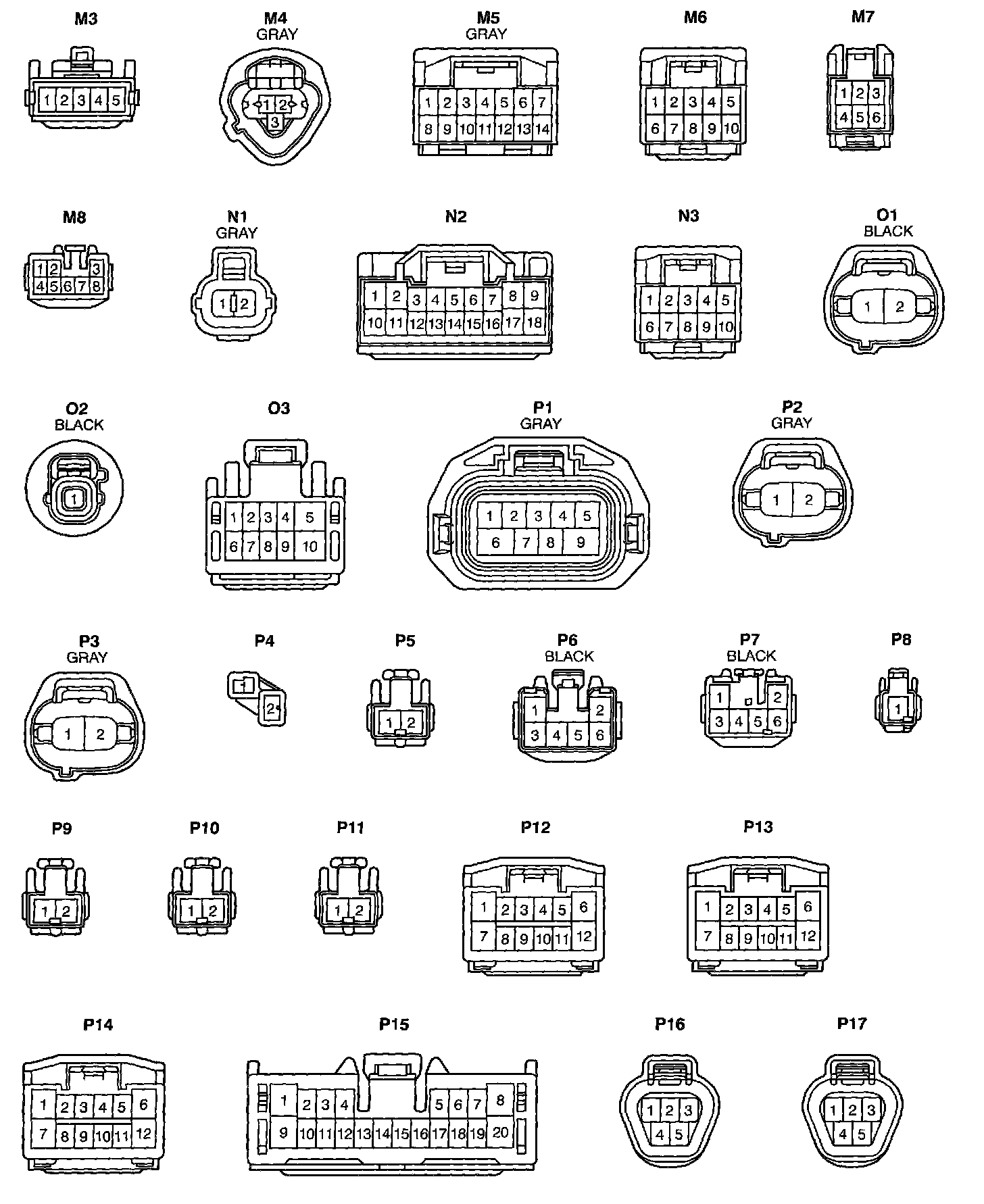

Connector View M3 - P17:

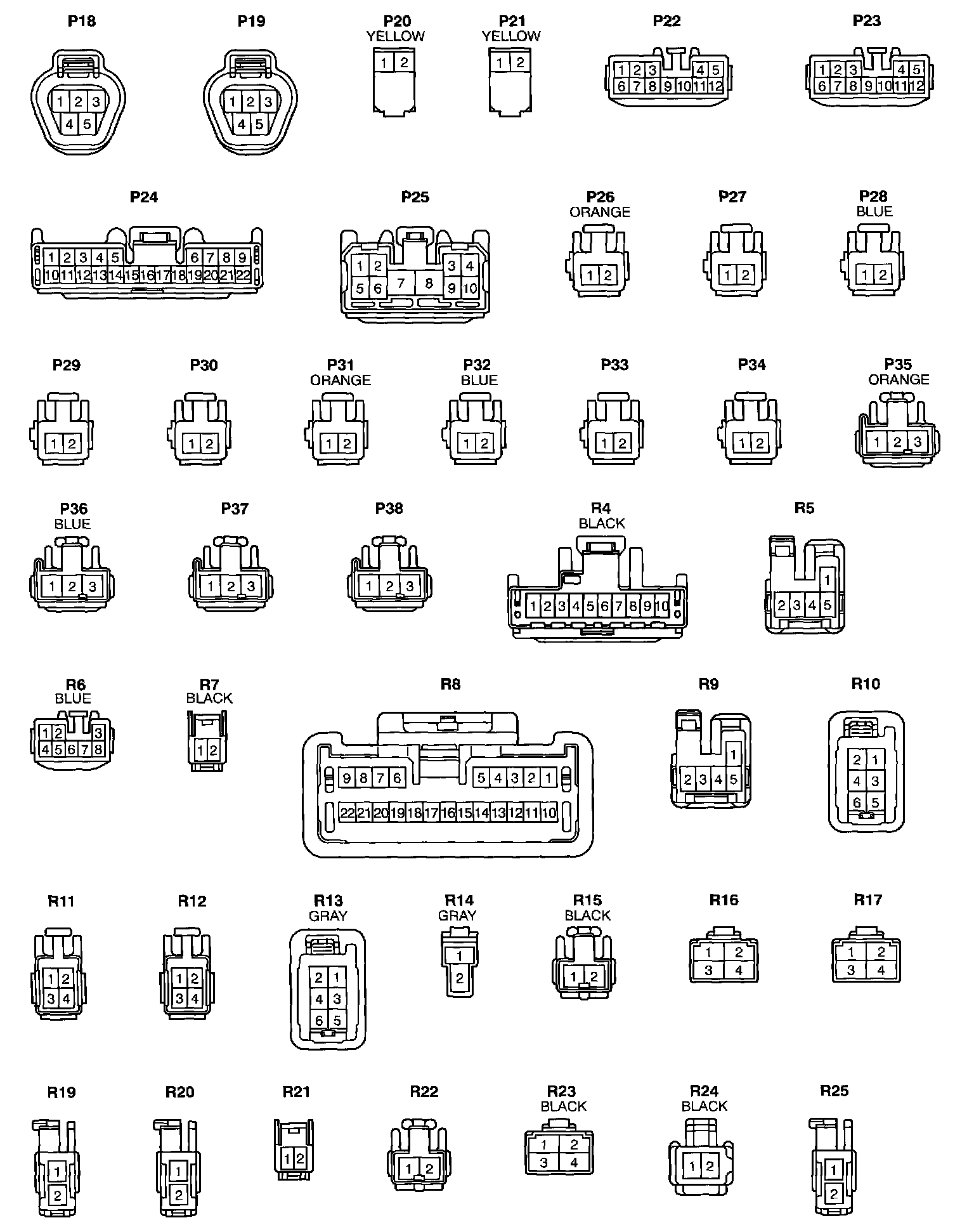

Connector View P18 - R25:

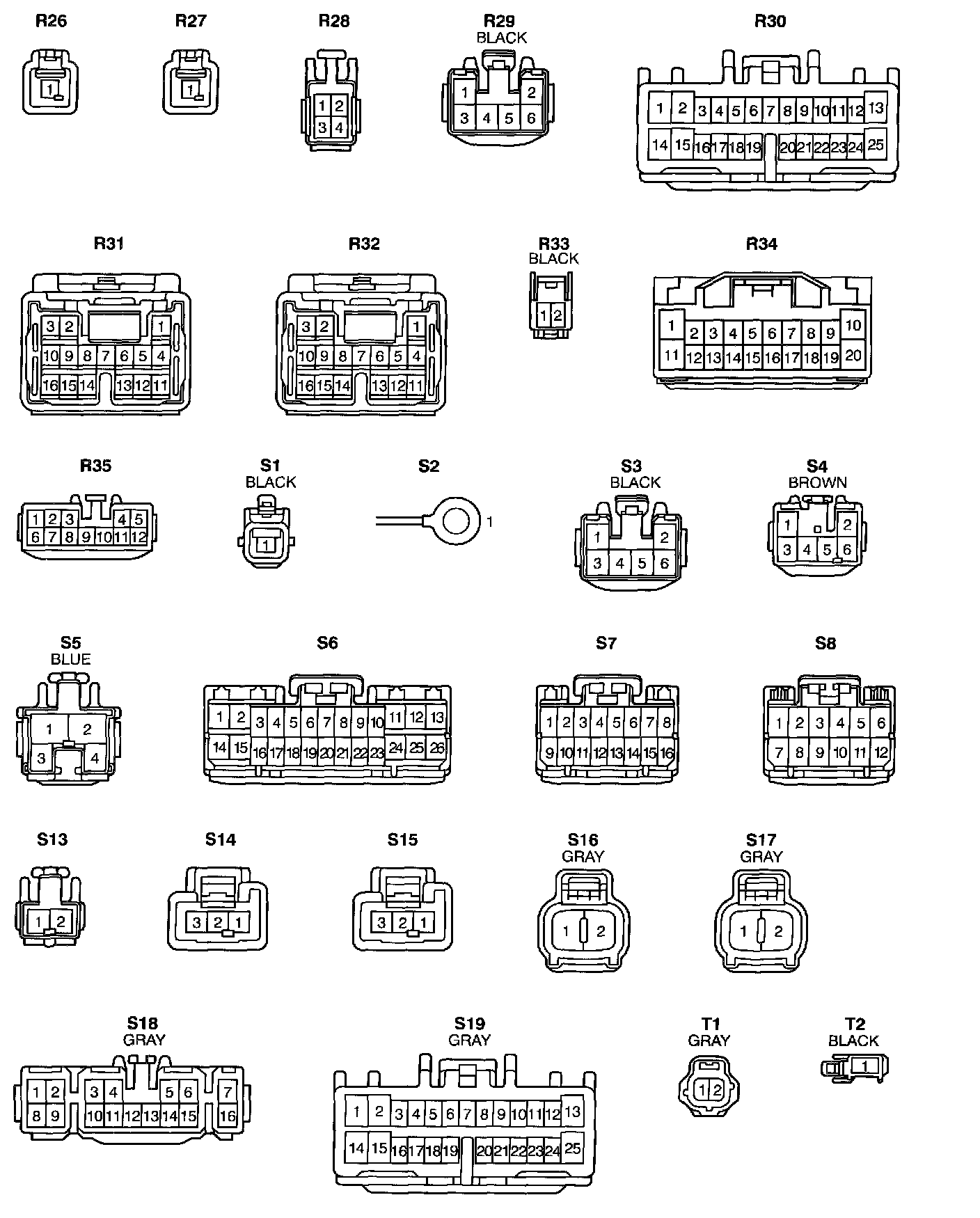

Connector View R26 - T2:

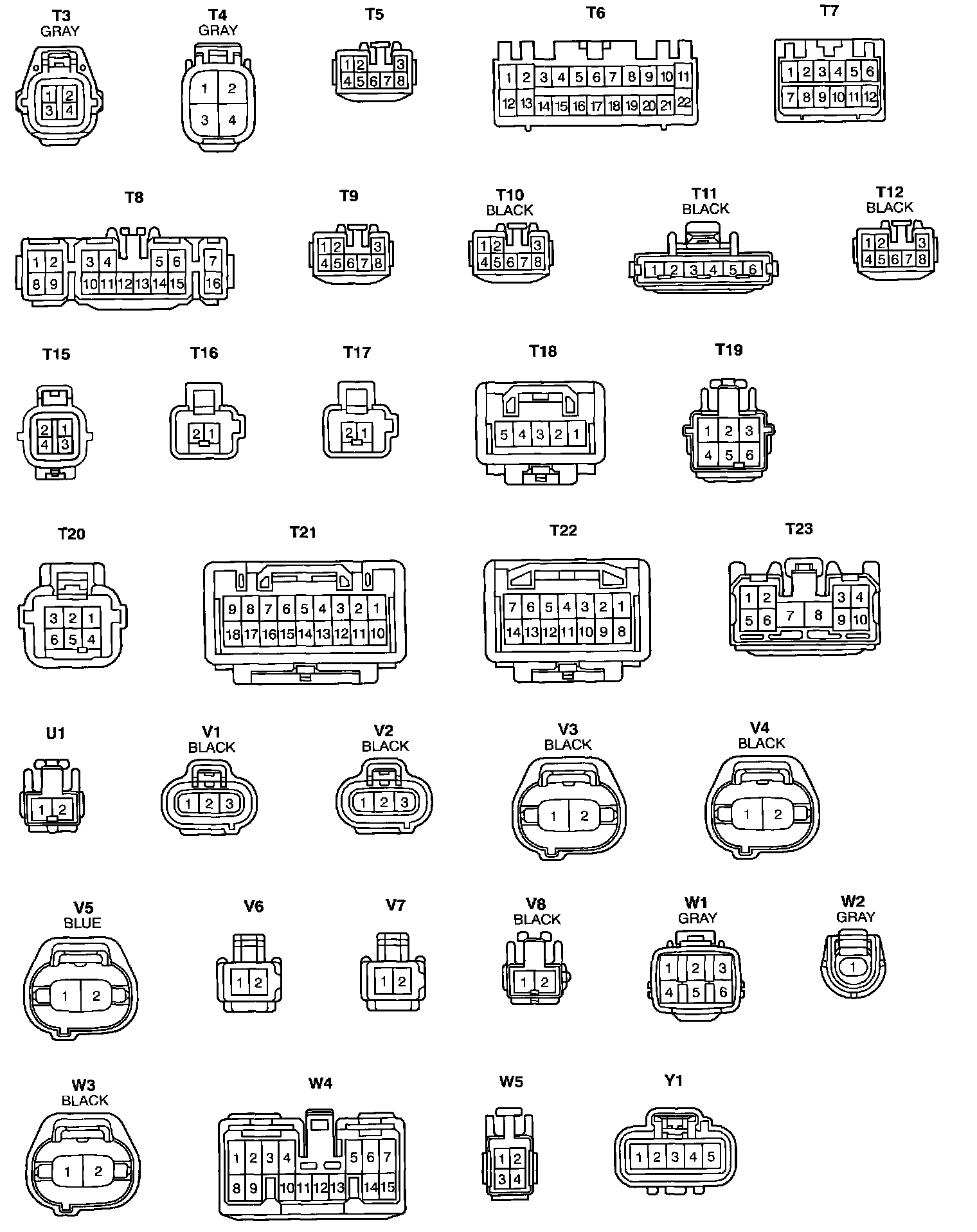

Connector View T3 - Y1:
