Trouble Shooting: Pre-Check

For pre-check, refer to the flowcharts. See Fig 1-Fig 5 .

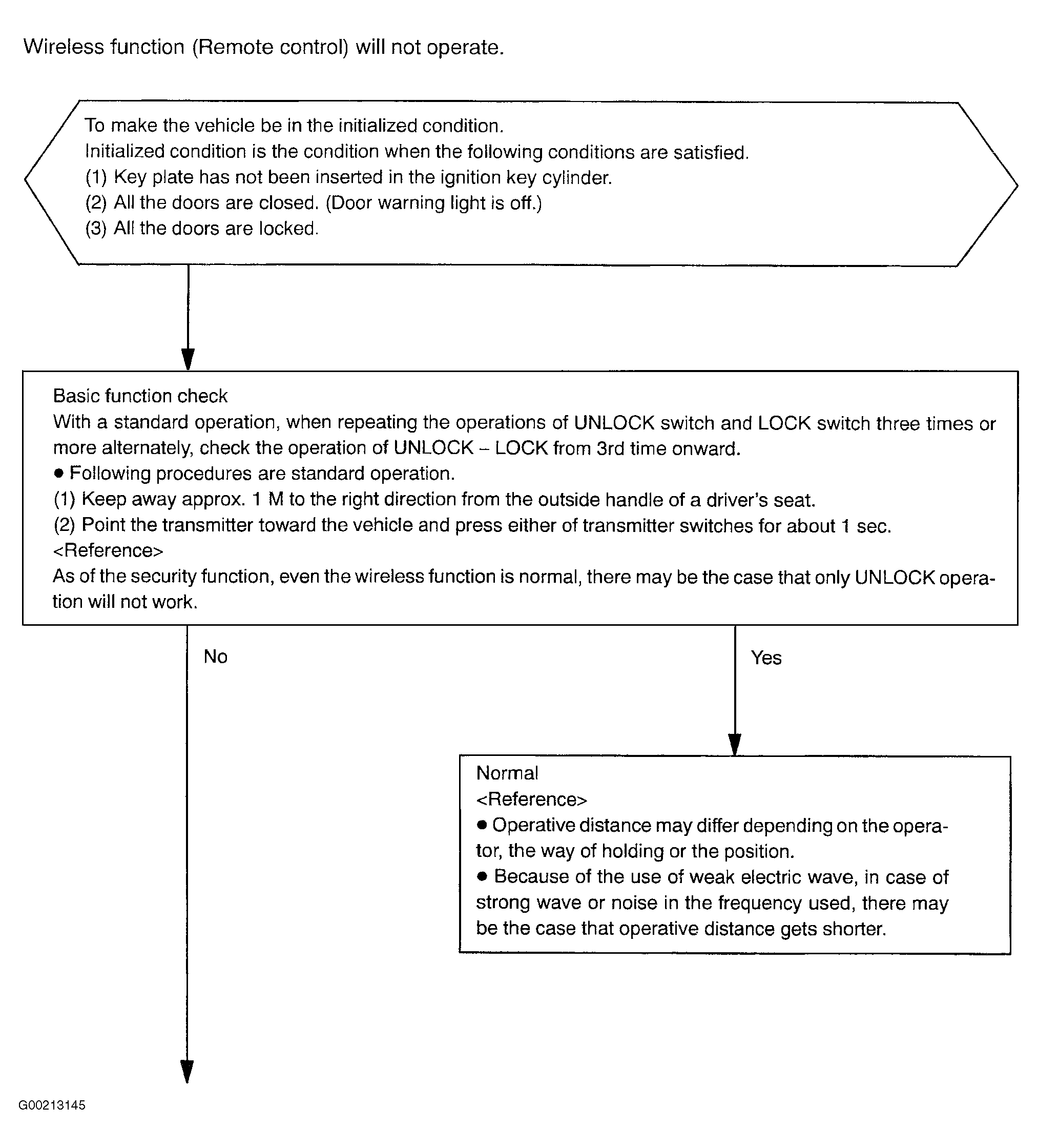

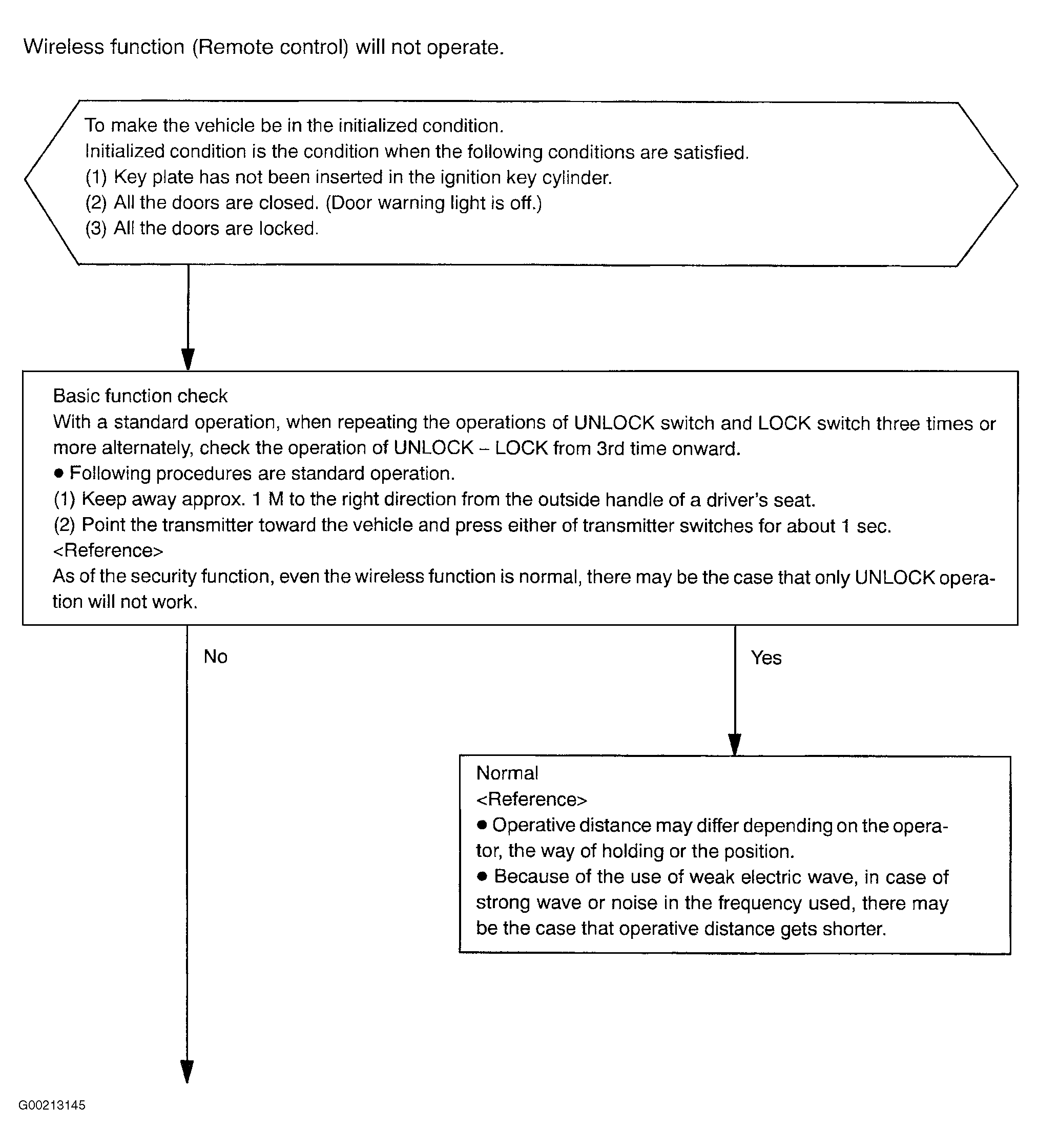

Fig 1: Identifying Wireless Function Pre-Check Flowchart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

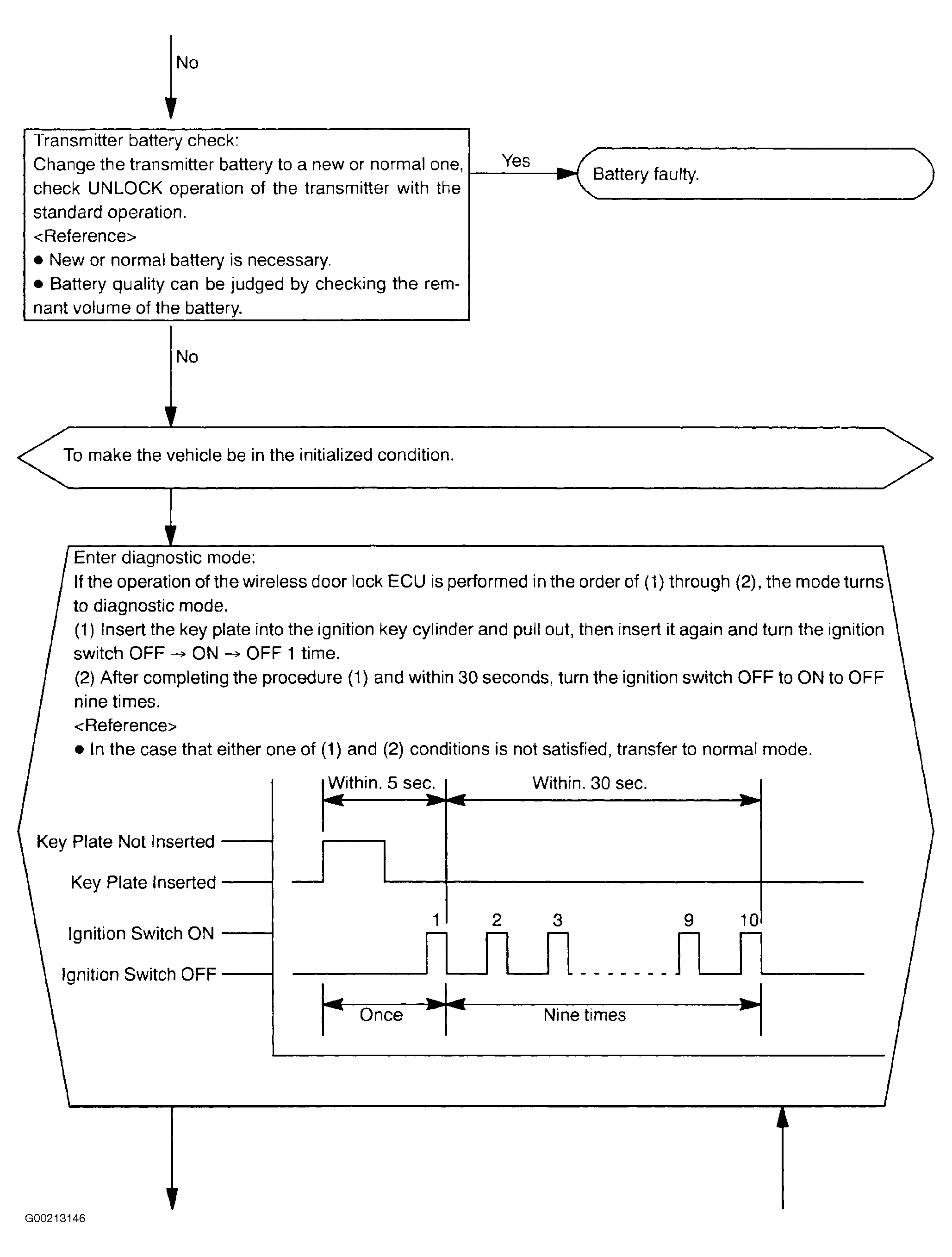

Fig 2: Identifying Wireless Function Pre-Check Flowchart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

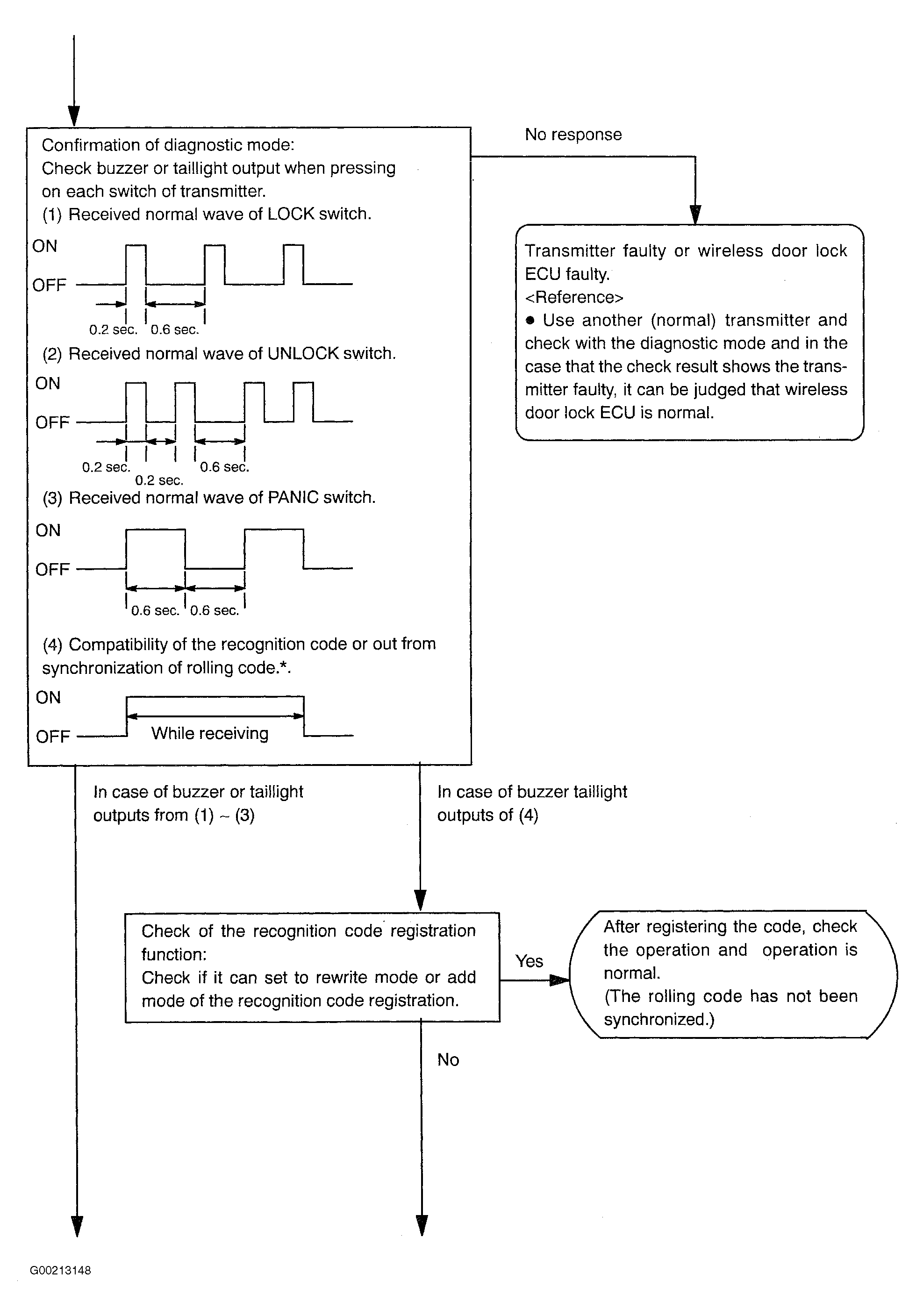

Fig 3: Identifying Wireless Function Pre-Check Flowchart (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

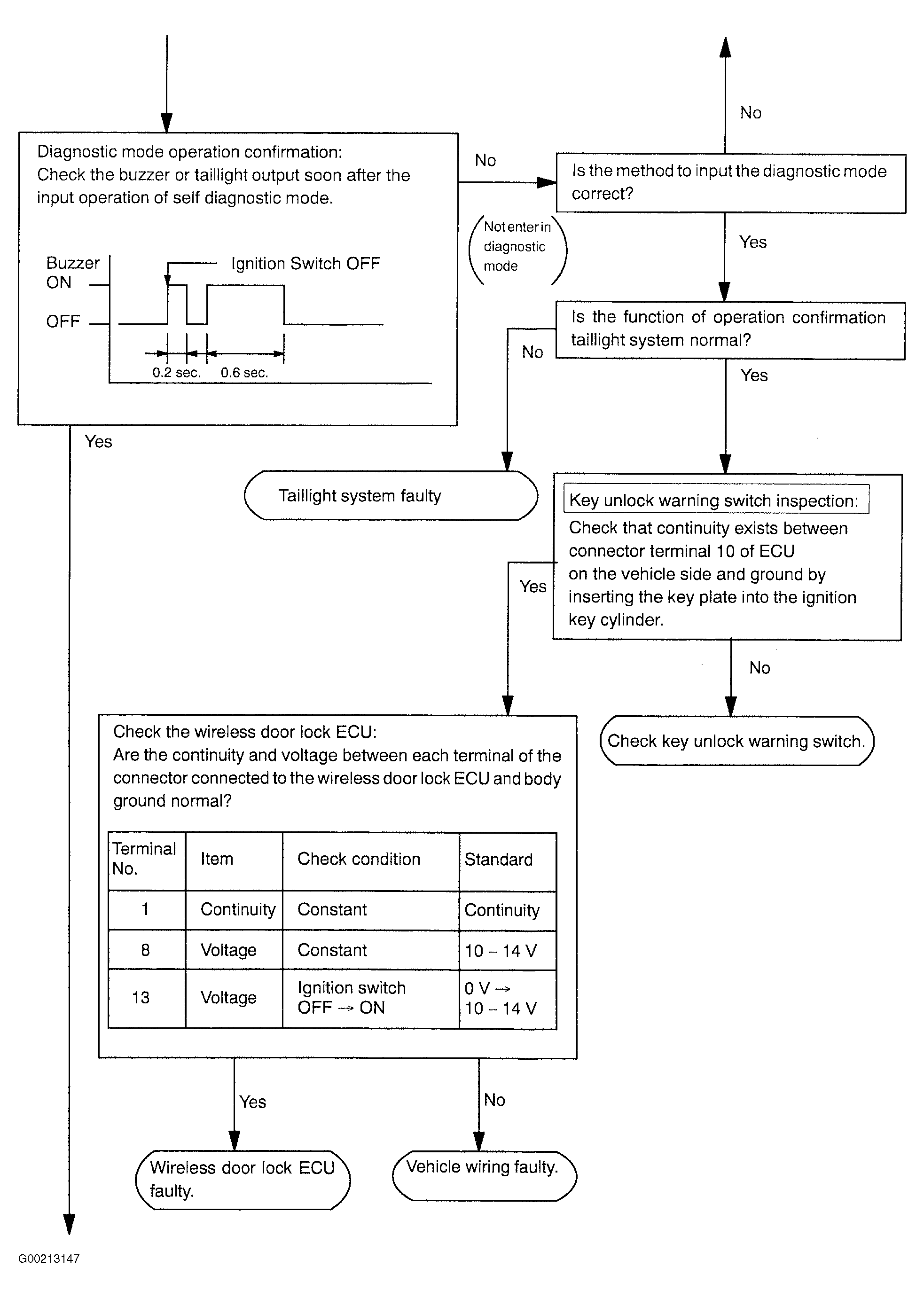

Fig 4: Identifying Wireless Function Pre-Check Flowchart (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

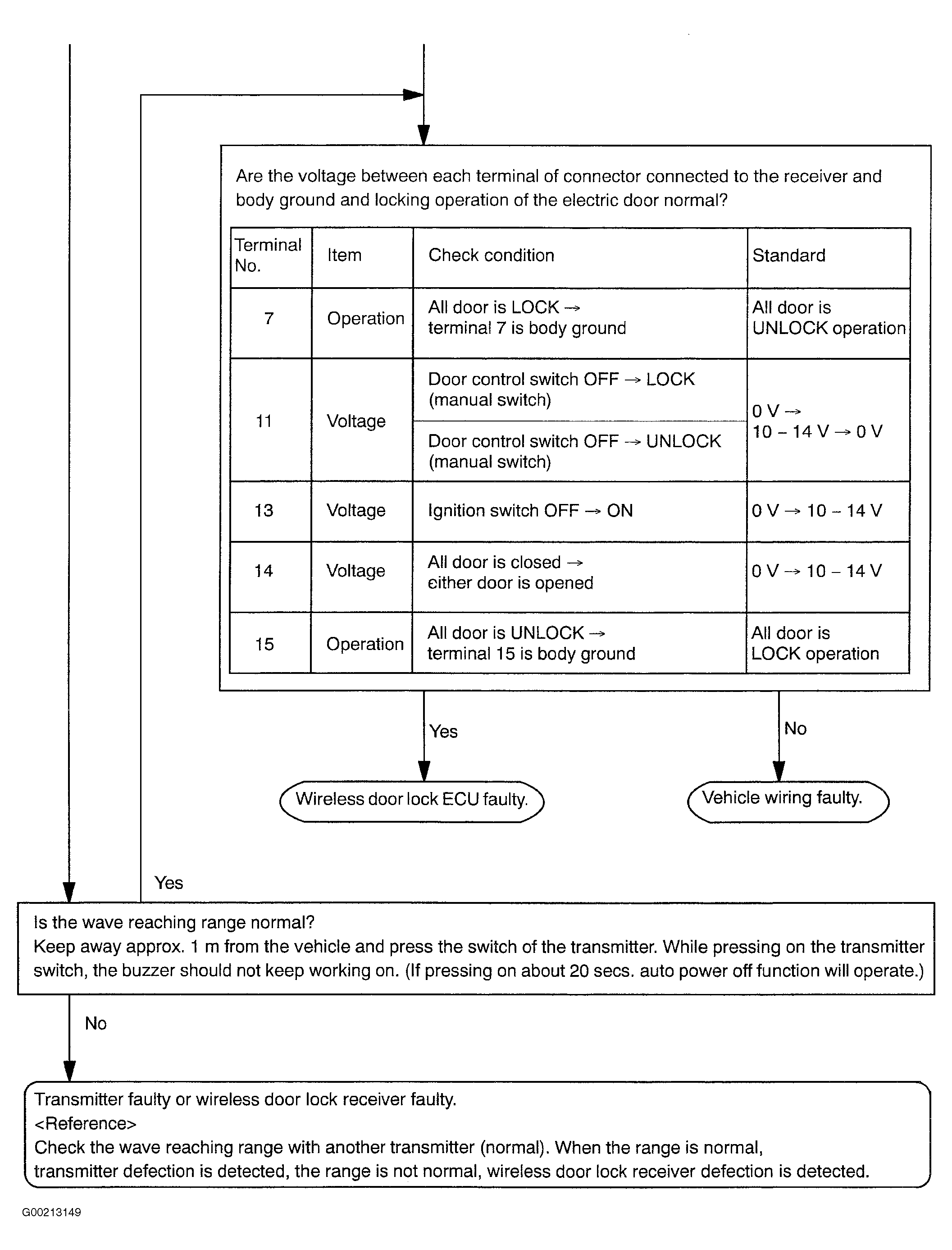

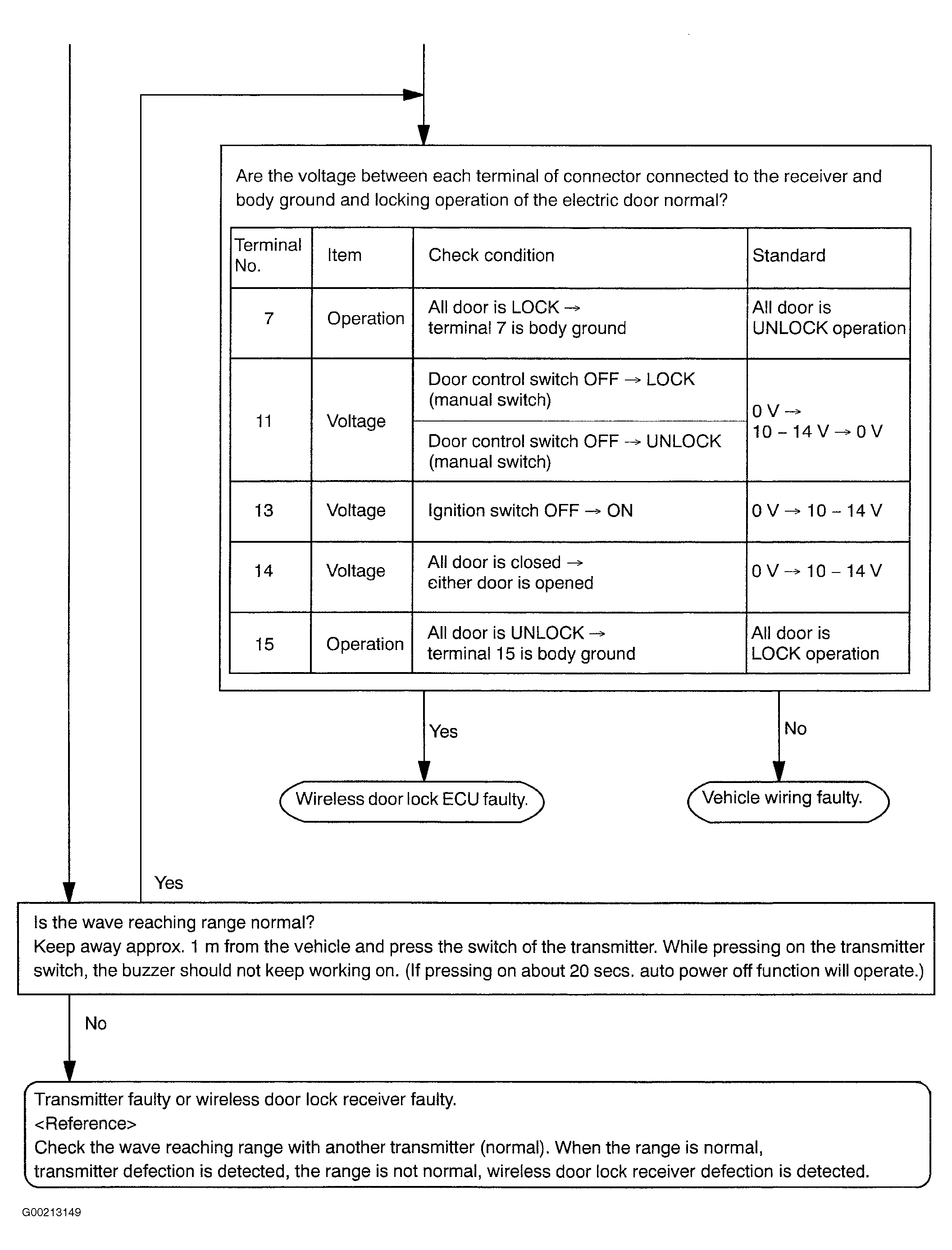

Fig 5: Identifying Wireless Function Pre-Check Flowchart (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
