Component Locations

For location of system components see Fig 1.

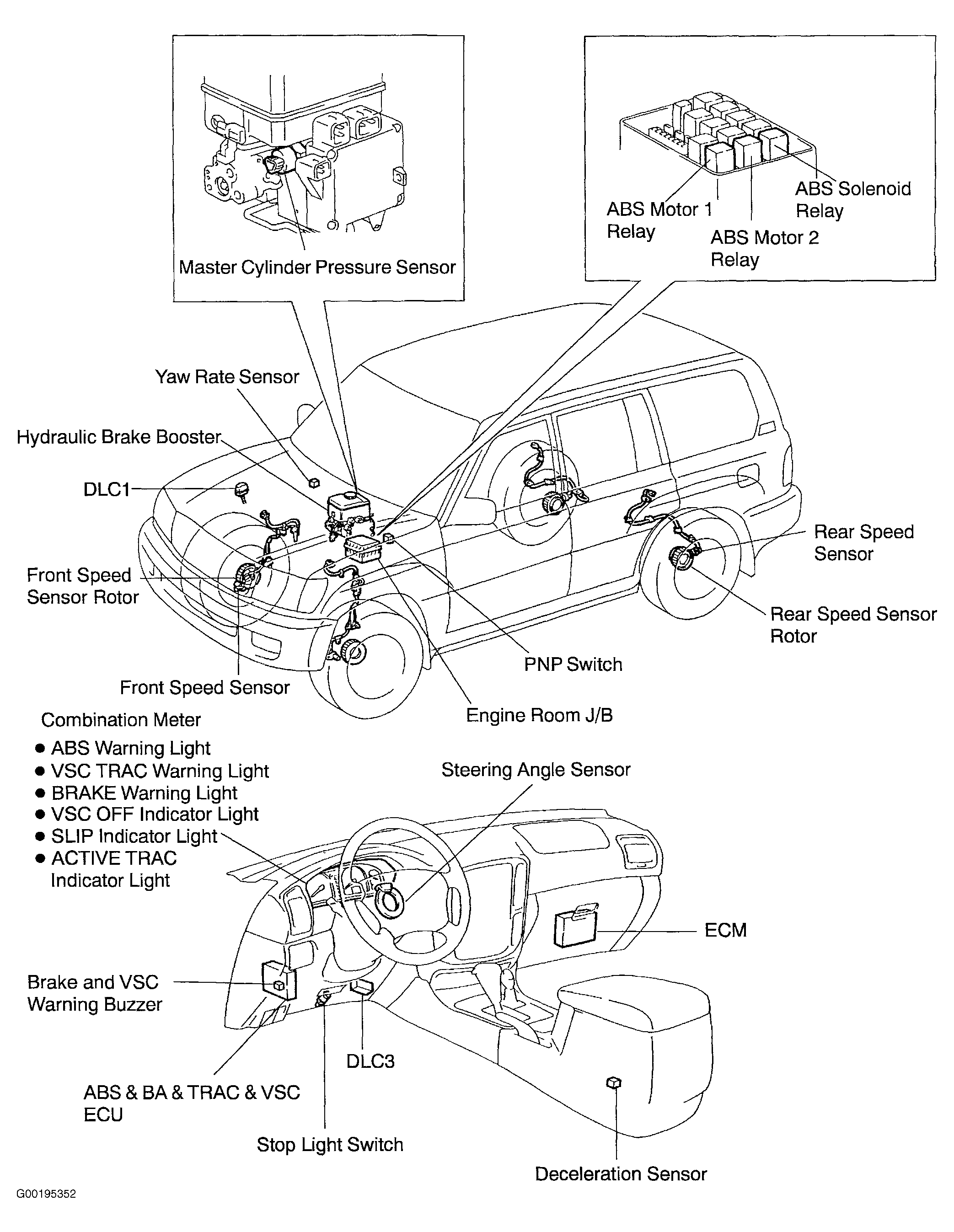

Fig 1: Locating Parts
G00195352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
