Power Steering Vane Pump: Removal

  1. REMOVE NO. 1 ENGINE UNDER COVER

    Remove the 7 bolts.

  2. REMOVE NO. 2 ENGINE UNDER COVER

    Remove the 6 bolts.

  3. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. Disconnect the MAF meter connector.
    2. Disconnect the hose.
    3. Remove the clamp.
    4. Remove the 3 bolts.
  4. REMOVE DRIVE BELT

    Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and remove the drive belt.

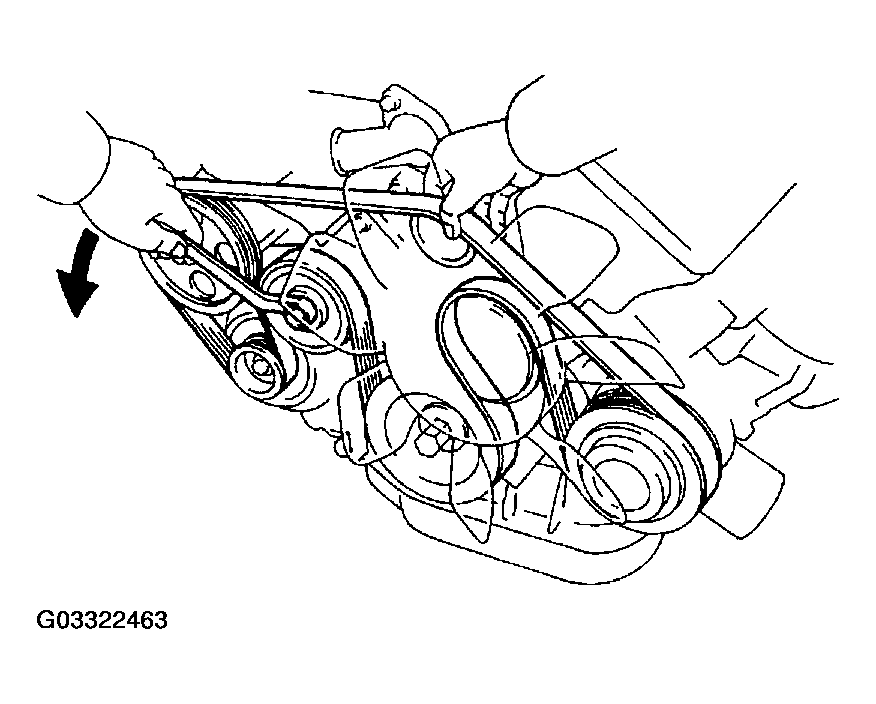

    Fig 1: Removing Drive Belt
    G03322463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT 2 VACUUM HOSES

    Remove the 2 clips.

  6. DISCONNECT SUCTION HOSE

    Remove the clip and disconnect the hose.

  7. REMOVE PRESSURE FEED TUBE

    Remove the union bolt and 2 gaskets.

  8. REMOVE PS VANE PUMP ASSEMBLY

    Remove the 3 bolts.
