Rear Extension Housing: Components

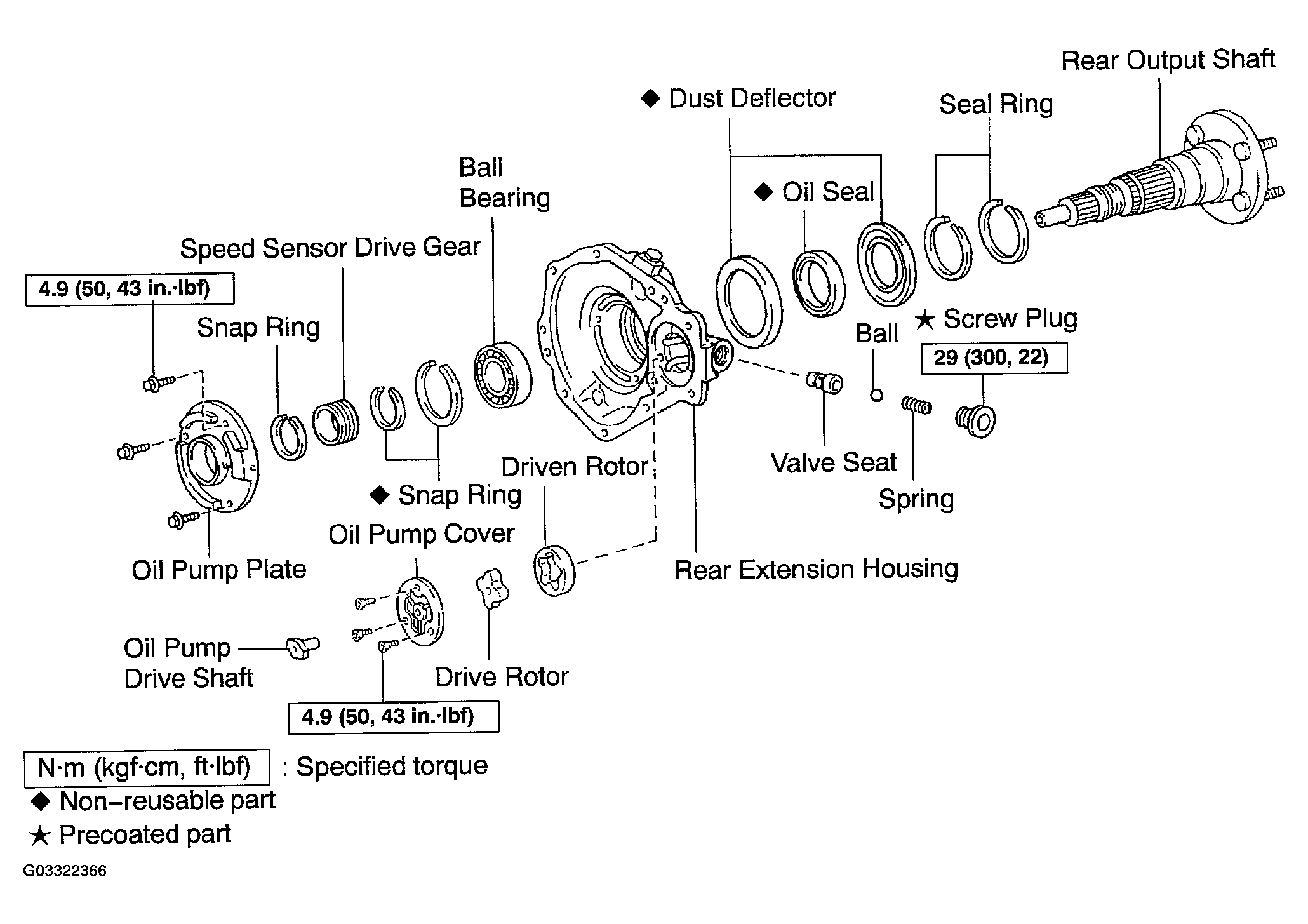

Fig 1: Identifying Rear Extension Housing Components
G03322366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
