Front Speed Sensor: Removal

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT SPEED SENSOR CONNECTOR
1. Remove the front wheel and front fender liner.
2. Disconnect the speed sensor connector.

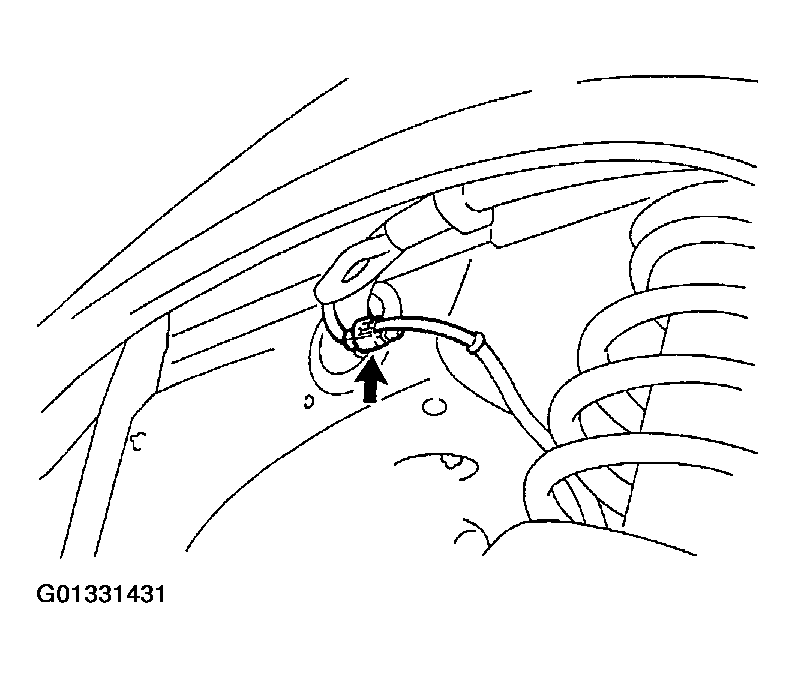

  Fig 1: Locating Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR
1. Remove the bolt, then disconnect the flexible hose and speed sensor harness clamp from the shock absorber.
  - Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
  Fig 2: Locating Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the resin clip from the shock absorber.
3. Remove the bolt and speed sensor harness clamp to the body.
  - Torque: 5.0 N.m (55 kgf.cm, 48 in..lbf)

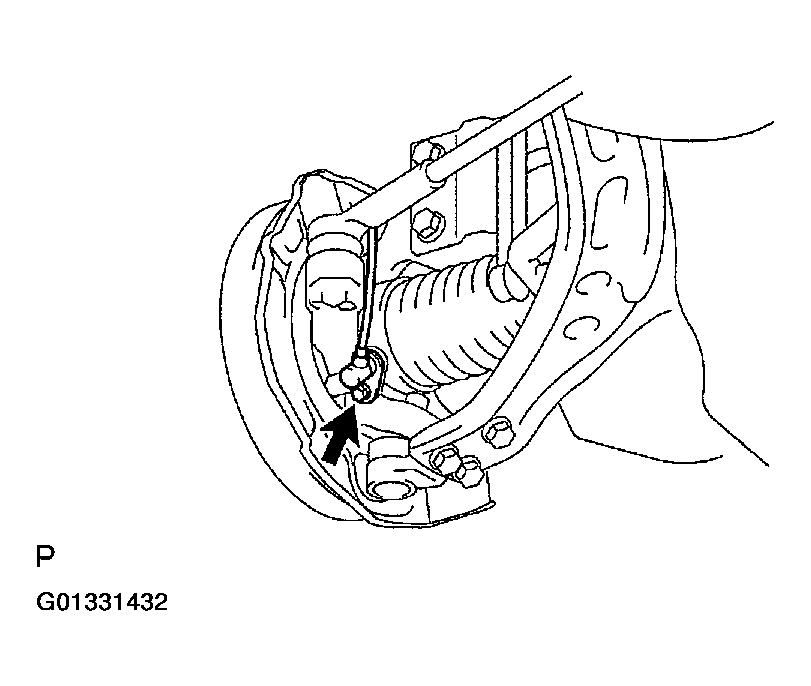

4. Remove the bolt and speed sensor from the steering knuckle.
  - Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
