Inspection Procedure
- FUNCTION CHECK (OPERATION)
- Check that manual operations via the power seat switch work normally.
- NG: FLOW CHART 1
- OK: GO TO NEXT STEP.
- FUNCTION CHECK (MEMORY)
- Perform a memorizing operation properly, and then check whether the memory functions normally and the buzzer sounds to inform the memorizing operation has done.
NOTE:- The memory does not function when the SET, M1 and M2 are simultaneously pressed.
- In case of mis-operation, the memory does not function unless the setting once turned off.
- OK: NORMALITY
- NG: GO TO NEXT STEP.
- INSPECT SEAT MEMORY SWITCH
- Inspect front power seat switch continuity.

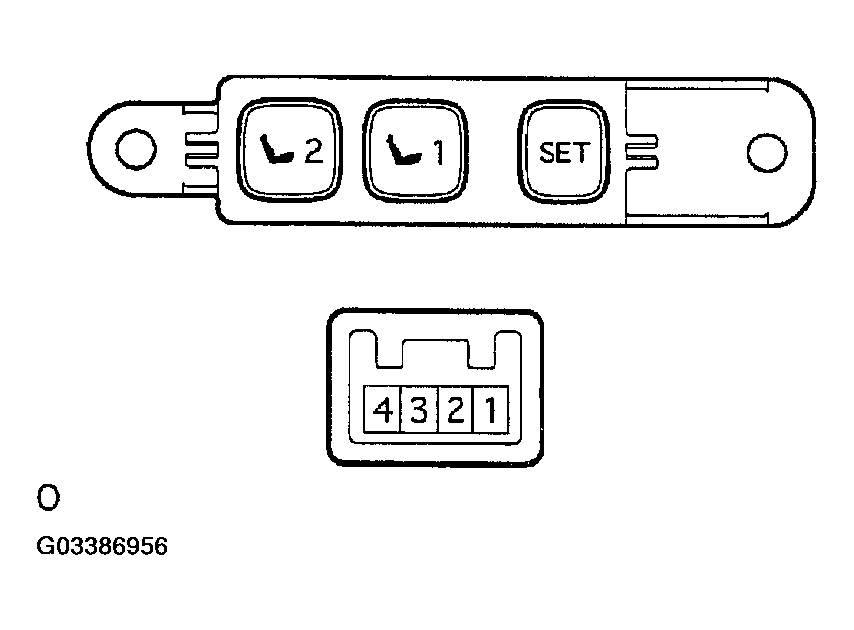

Memory switch:
TESTER CONNECTION CHARTSwitch condition Tester connection Specified condition M1 switch pressed 1 <--> 3 Continuity M2 switch pressed 1 <--> 4 Continuity SET switch pressed 1 <--> 2 Continuity - NG: REPLACE SEAT MEMORY SWITCH
- OK: GO TO NEXT STEP.
- CHECK WIRE HARNESS

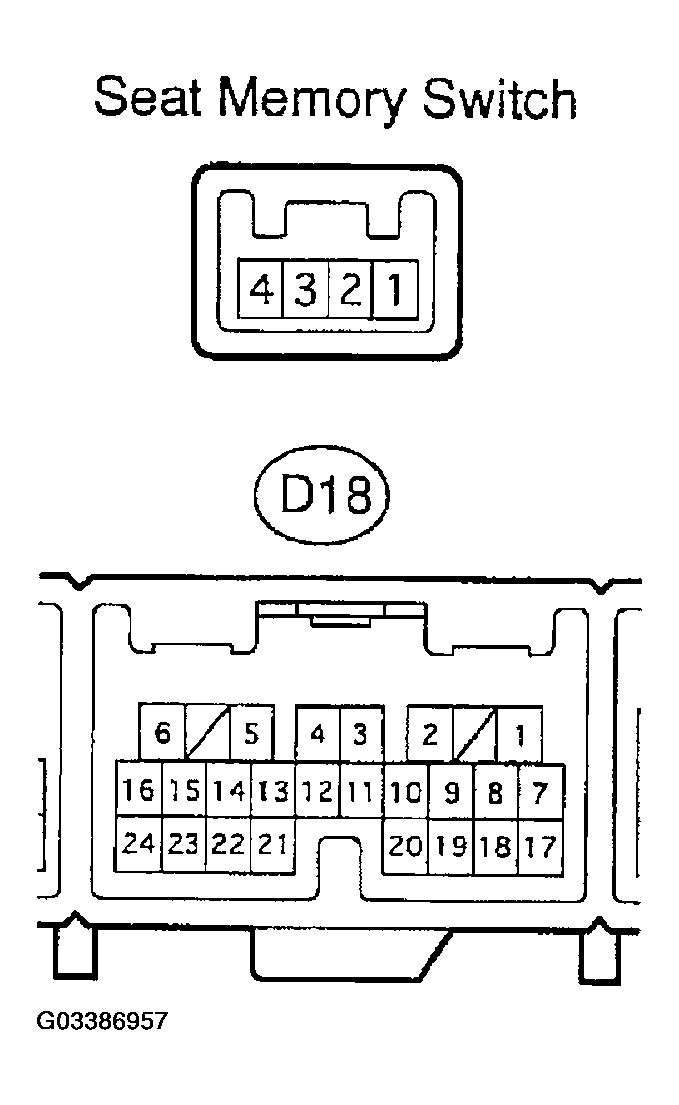

- Check the continuity of the wire harness between the seat memory switch and door ECU.
TESTER CONNECTION CHARTTester connection Condition Specified condition Switch 1 <--> D18-23 Constant Continuity Switch 2 <--> D18-24 Constant Continuity Switch 3 <--> D18-16 Constant Continuity Switch 4 <--> D18-15 Constant Continuity Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP.
- REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH
- Exchange the driver's door ECU with new one and check that no malfunction exists in all the relative data to the memory.
- NG: CHECK AND REPLACE POSITION CONTROL ECU ASSY
- OK: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT
