Exhaust Manifold: Components

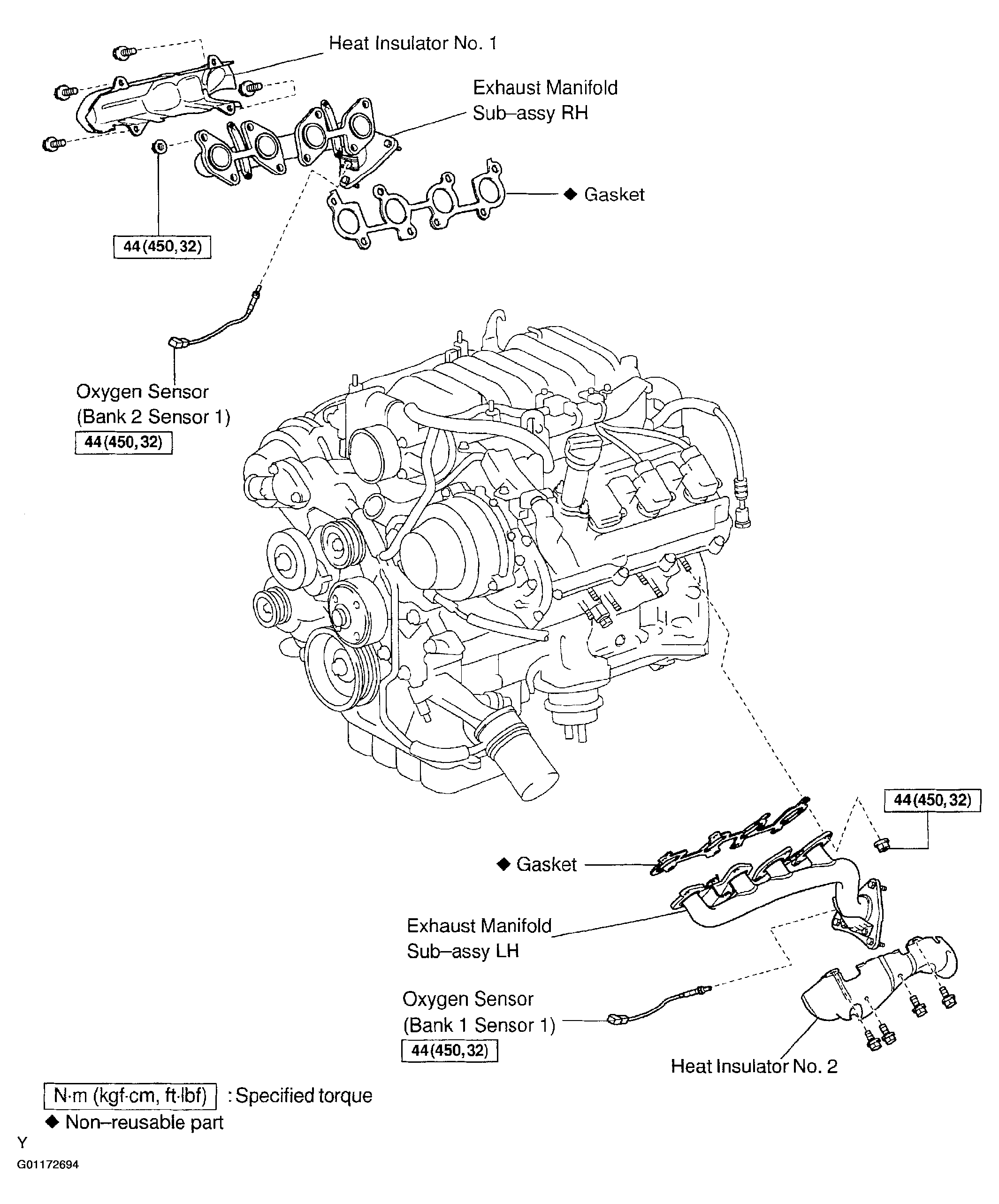

Fig 1: Removing/Installing Exhaust Manifold
G01172694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
