Navigation Screen Not Stabilized (SYNCRONOUS Error): Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

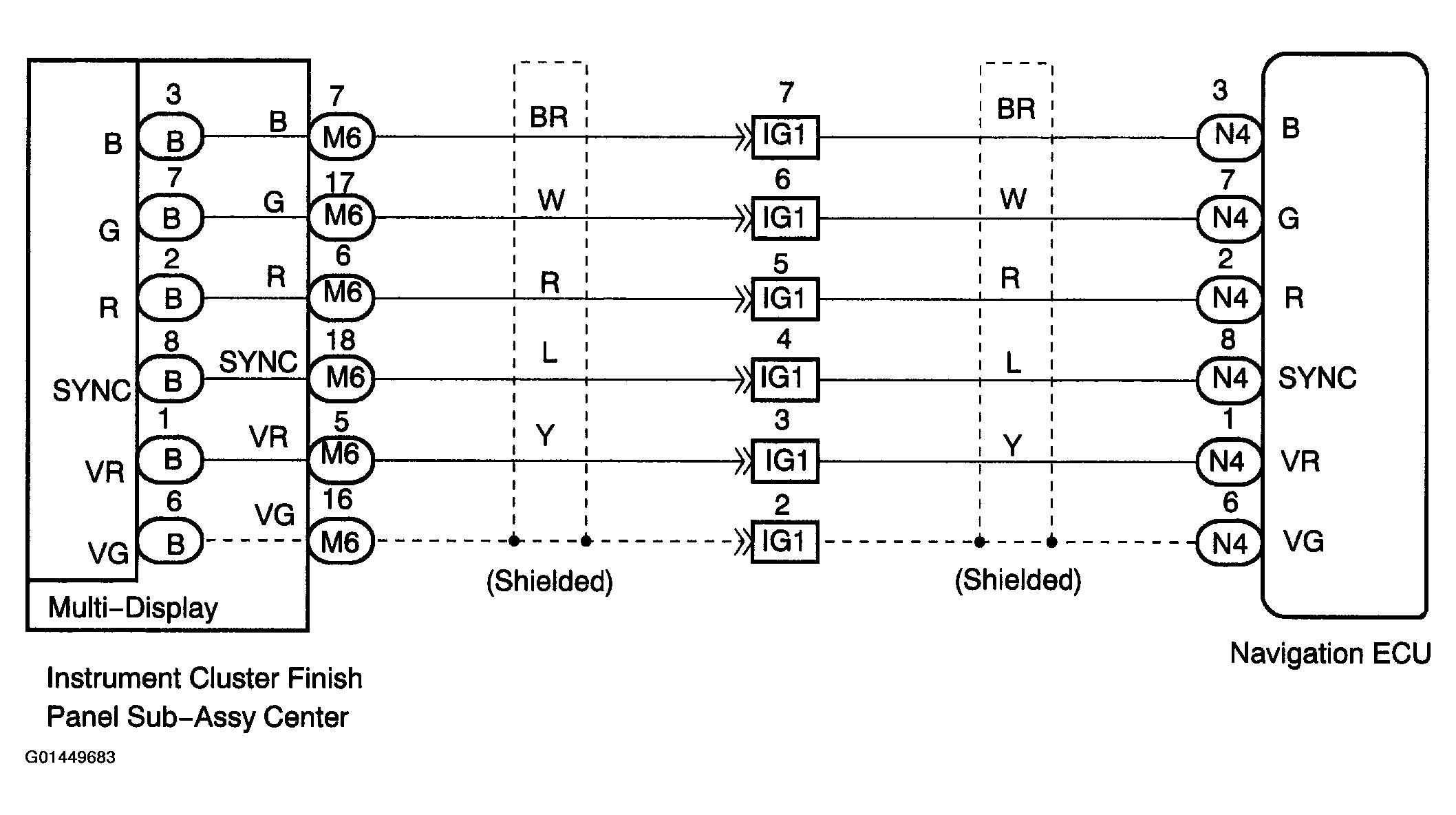

Fig 1: Navigation ECU & Instrument Cluster Finish Panel Sub-Assembly Circuit Diagram
G01449683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
