Circuit Description

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

This circuit indicates failure of the stop light switch signal and the cruise control signal inside ECM.

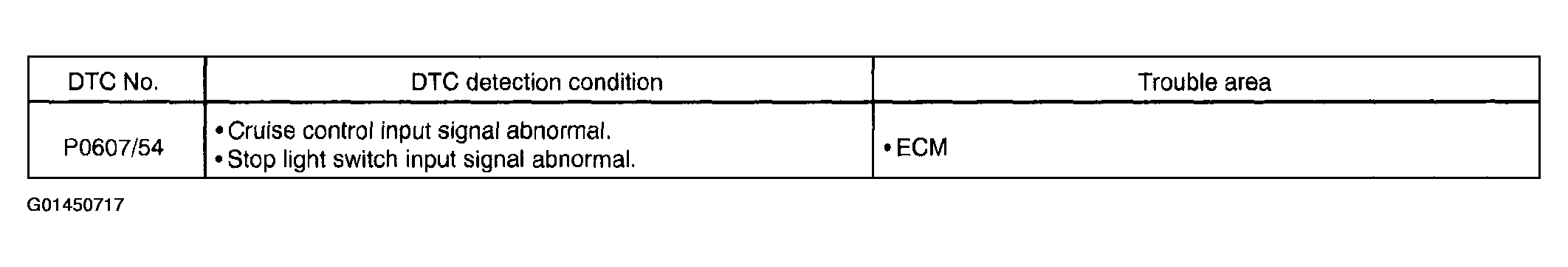

Fig 1: Control Module Performance Circuit Description Table
G01450717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
