Timing Belt: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE AIR CLEANER INLET NO.1
DRAIN ENGINE COOLANT
REMOVE V-BANK COVER
REMOVE INTAKE AIR CONNECTOR PIPE
REMOVE ENGINE UNDER COVER
DISCONNECT RADIATOR HOSE NO.1
DISCONNECT RADIATOR HOSE NO.2
DISCONNECT OIL COOLER INLET TUBE NO.1
DISCONNECT OIL COOLER OUTLET TUBE NO.1
REMOVE AIR CLEANER ASSY
REMOVE RADIATOR ASSY
1. Remove the 2 nuts and 2 upper radiator support.
2. Lift out the radiator and cooling fan assembly.
REMOVE FAN AND GENERATOR V BELT (See REPLACEMENT )
REMOVE VANE PUMP ASSY
1. Remove the 2 bolts and nut, and the vane pump assembly.
  HINT:

  Vane pump assembly should be removed with the hoses connected and then hung with a rope or wire in the body's side.
REMOVE GENERATOR ASSY (See REMOVAL & INSTALLATION )
DISCONNECT COMPRESSOR AND MAGNETIC CLUTCH
HINT:

The cooler compressor together with the magnetic clutch should be removed with the low-pressure and high-pressure hoses connected and then hung with a rope or wire in the body's side.
REMOVE TIMING CHAIN OR BELT COVER NO.2
REMOVE TIMING BELT COVER SUB-ASSY NO.3 LH
REMOVE TIMING BELT COVER SUB-ASSY NO.2
REMOVE V-RIBBED BELT TENSIONER ASSY
REMOVE IDLER PULLEY ASSY
REMOVE CRANKSHAFT DAMPER SUB-ASSY

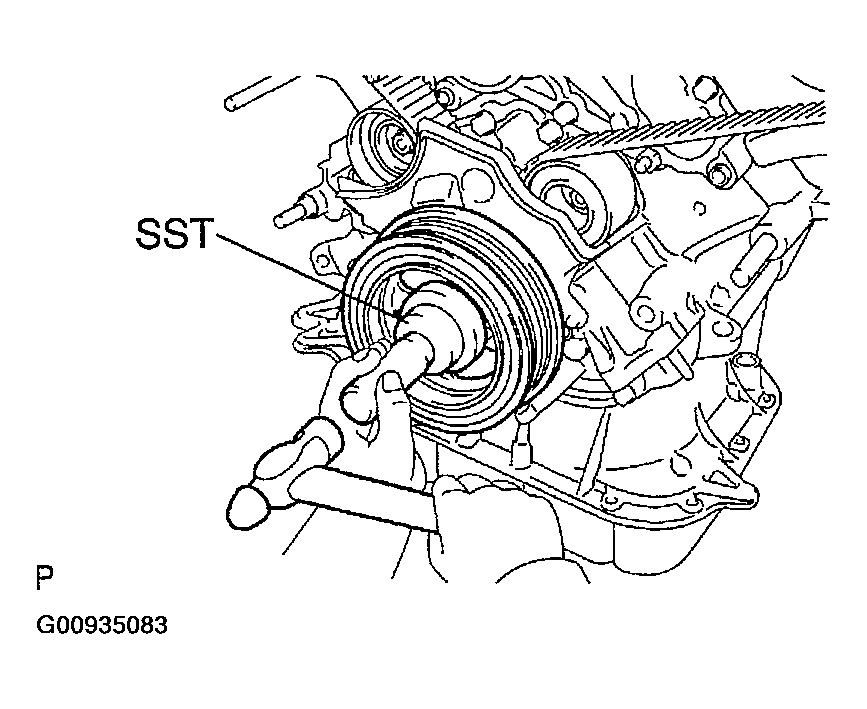

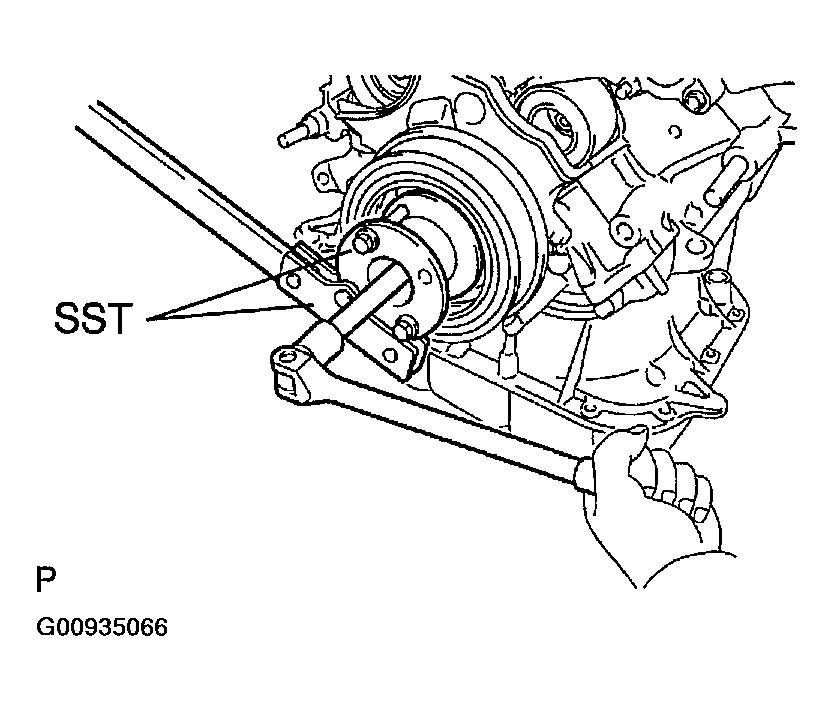

1. Using SST, remove the pulley bolt.
  SST 09213-70011, 09330-00021

  Fig 1: Removing Crankshaft Damper Pulley Bolt Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

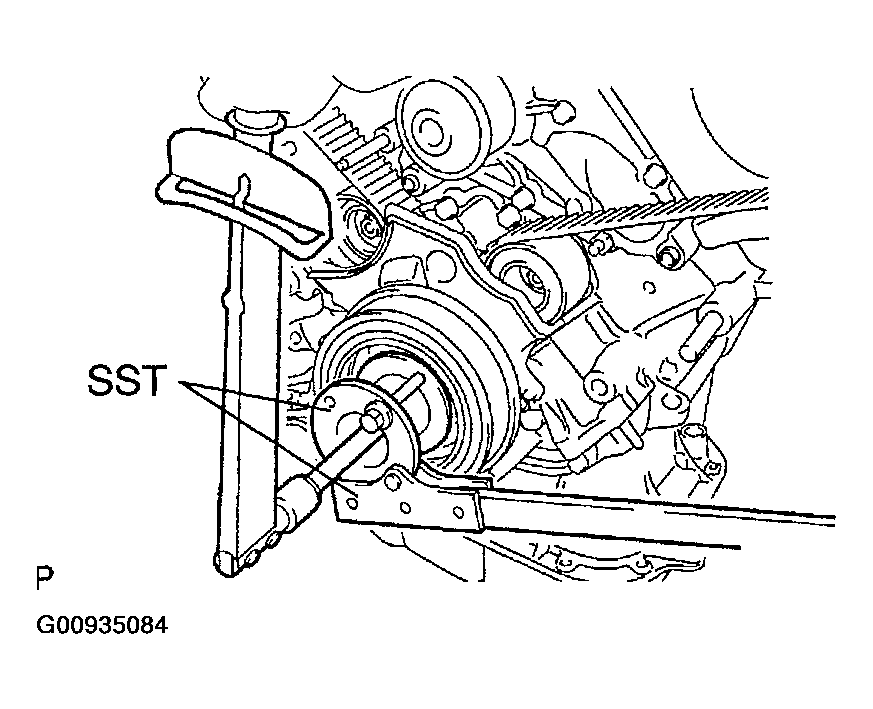

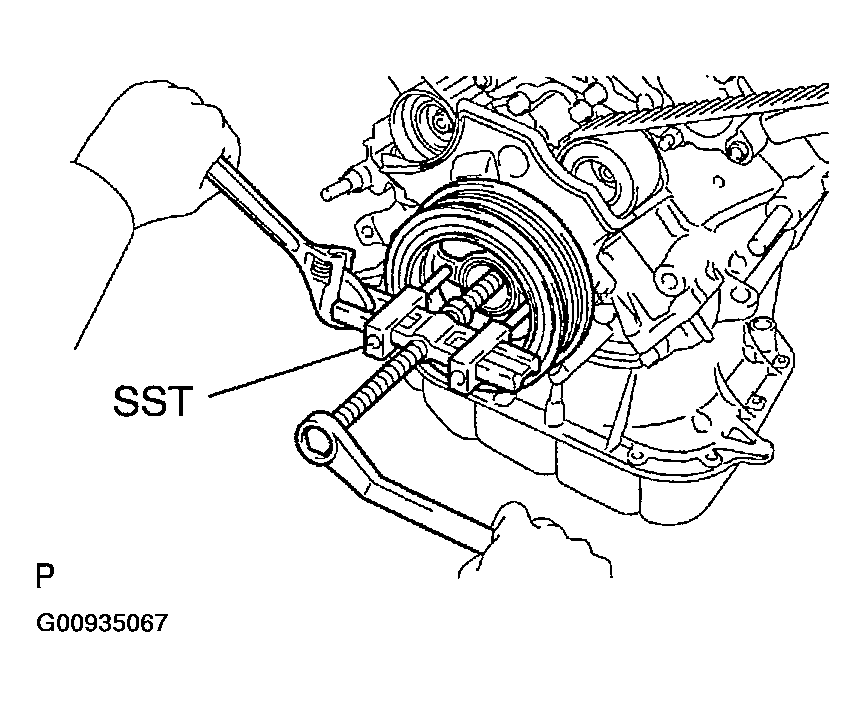

2. Using SST, remove the crankshaft pulley.
  SST 09950-50013 (09951-05010, 09952-05010, 09953-05010, 09953-05020, 09954-05021)

  Fig 2: Removing Crankshaft Pulley Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING BELT NO.1 COVER
1. Remove the 4 bolts and timing belt cover.
REMOVE CRANKSHAFT POSITION SENSOR PLATE
REMOVE TIMING BELT
1. If re-using the timing belt, check the installation marks on the timing belt.
  1. Check that there are 3 installation marks on the timing belt by turning the crankshaft as shown in Fig 3.
  If the installation marks have disappeared, place a new installation mark on the timing belt before removing each part.

  Fig 3: Identifying Crankshaft And Camshaft Timing Belt Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Set the No. 1 cylinder to approx. 50° BTDC/compression.

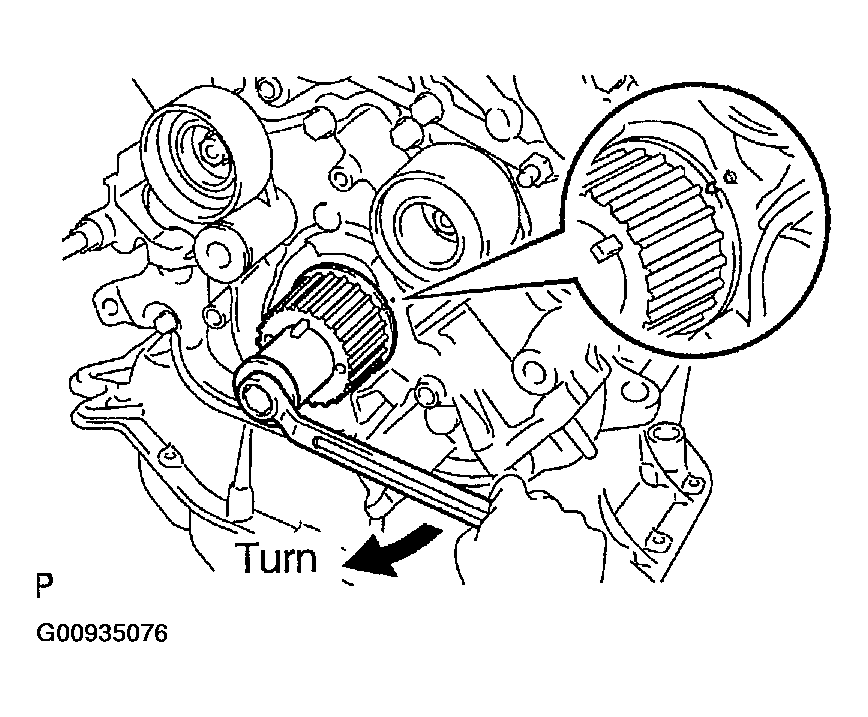

  1. Using the crankshaft damper bolt, turn the crankshaft to align the timing marks of the crankshaft timing pulley and oil pump body.

    Fig 4: Turning Crankshaft To Align Timing Marks
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

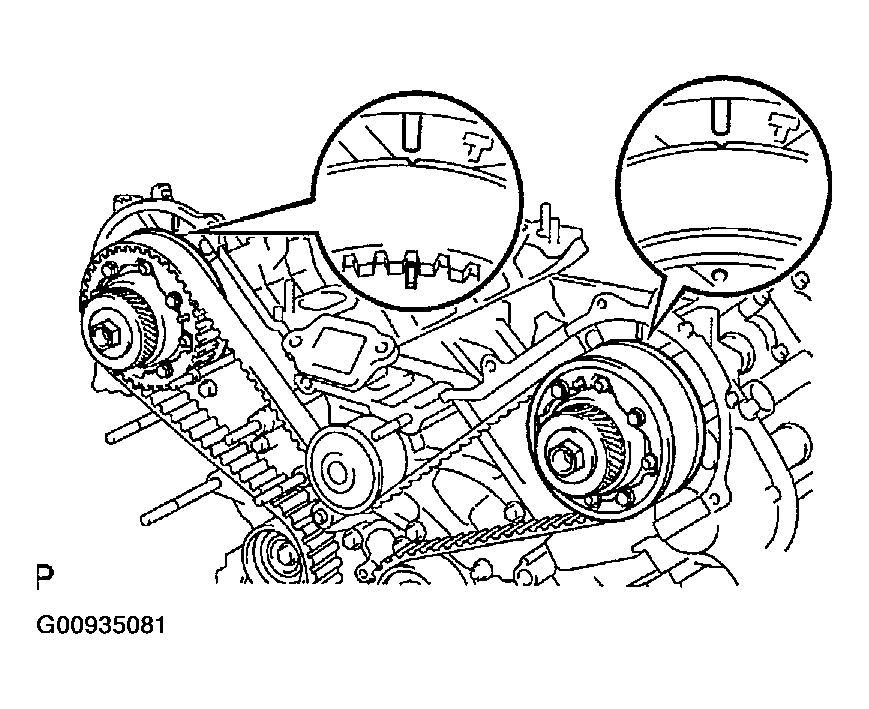

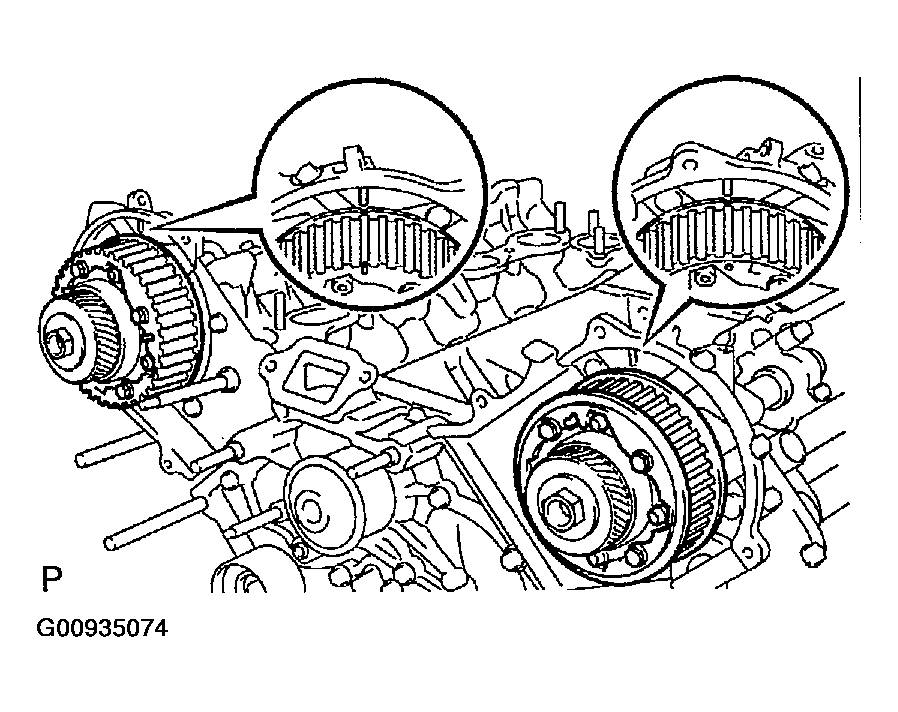

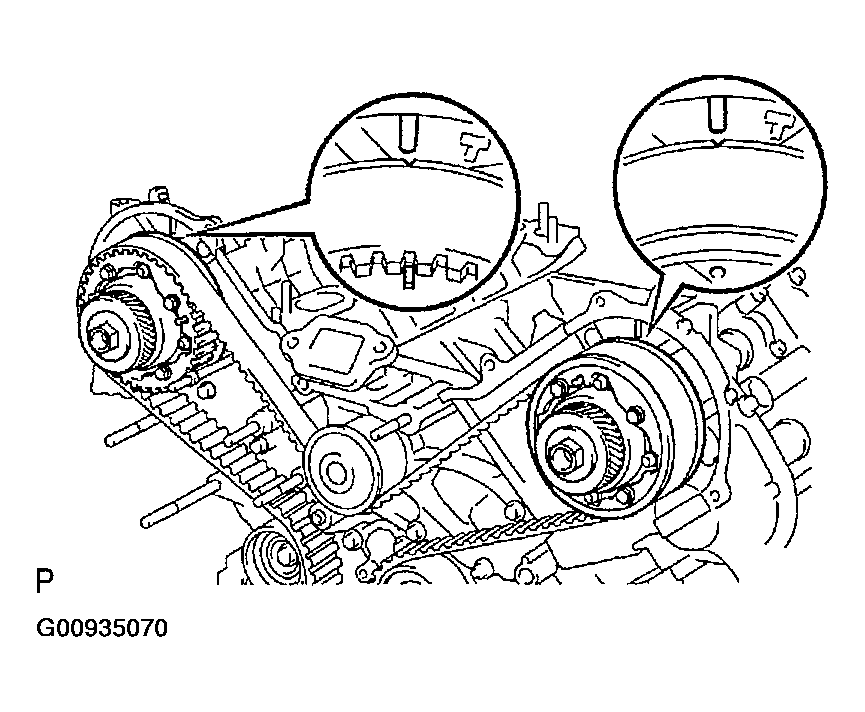

  2. Check that the timing marks of the camshaft timing pulleys and timing belt plates aligned.
    If not, turn the crankshaft 1 revolution (360°).

    Fig 5: Checking Timing Marks Of Camshaft Timing Pulleys
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

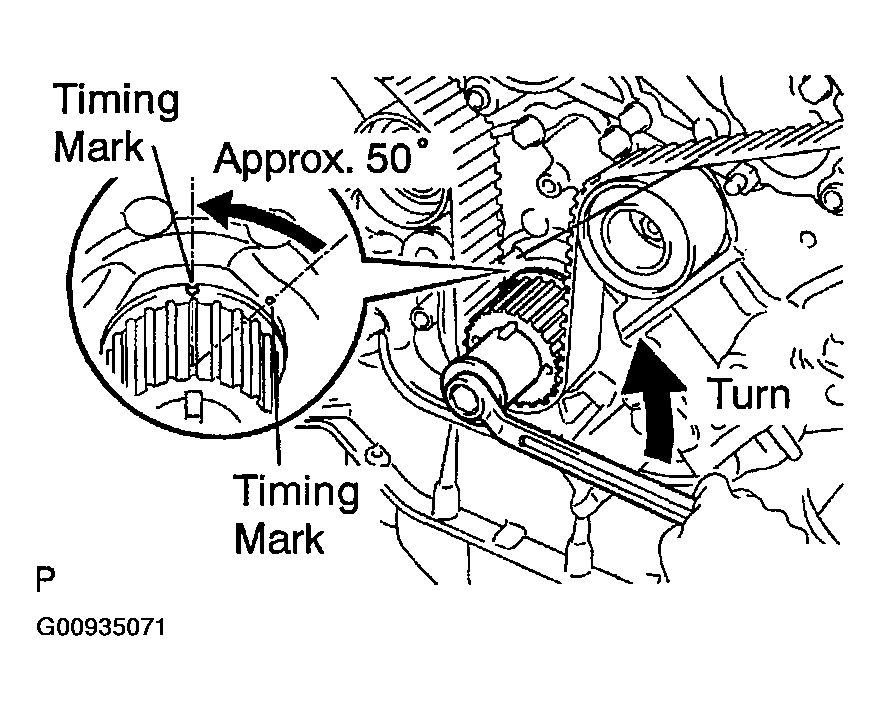

  3. Using the crankshaft damper bolt, turn the crankshaft counterclockwise by approx. 50°.
  NOTE: If the timing belt is disengaged, having the crankshaft pulley at the wrong angle can cause the piston head and valve head to come into contact with each other when you remove the camshaft timing pulley and camshaft, causing damage. So always set the crankshaft pulley at the correct angle.
3. Alternately loosen the 2 bolts, and remove them, the belt tensioner and dust boot.

  Fig 6: Turning Crankshaft Counterclockwise By Approx 50°
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

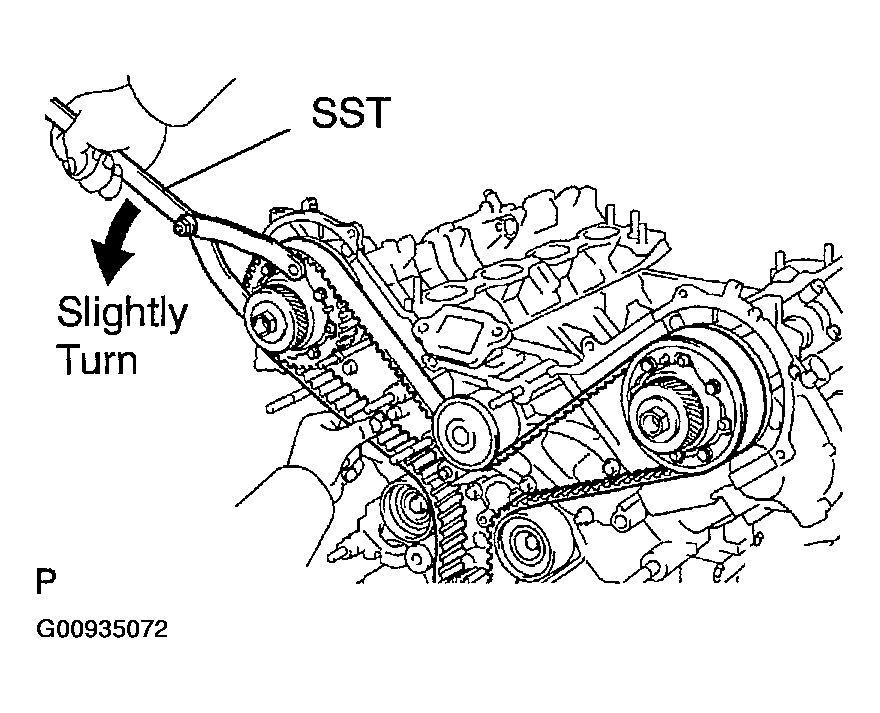

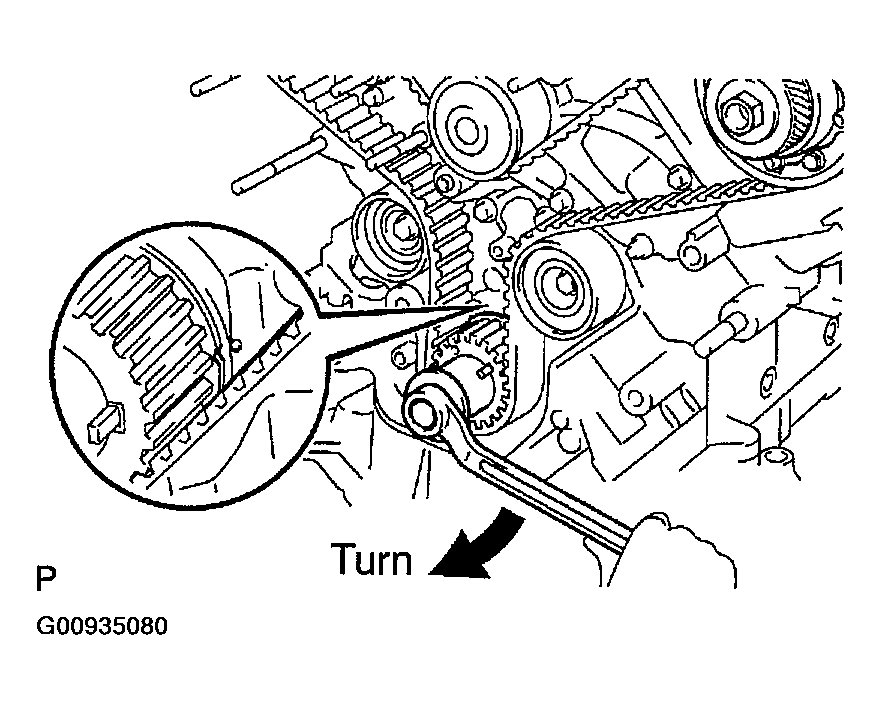

4. Using SST, loosen the tension between the camshaft timing pulley (RH bank) and crankshaft timing pulley by slightly turning the camshaft timing pulley (RH bank) counterclockwise.
  SST 09960-10010 (09962-01000, 09963-00350)
5. Disconnect the timing belt from the timing belt idler No. 1, and remove the timing belt.
INSTALL TIMING BELT
1. Check the timing belt idler No. 1 and No. 2.
  1. Visually check the seal portion of the idler pulley for oil leakage.
    If leakage is found, replace the idler.
  2. Check that the idler turns smoothly.
    If necessary, replace the idler.

    Fig 7: Loosening Tension Between Camshaft Timing Pulley & Crankshaft Timing Pulley Using SST
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the water pump.

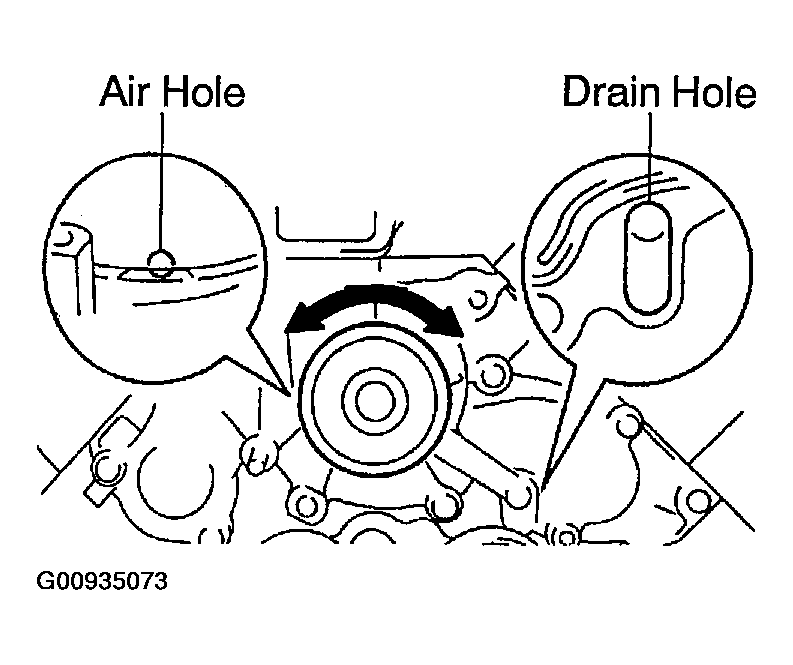

  1. Visually check the air hole and water hole for coolant leakage.
    If leakage is found, replace the water pump and timing belt.
  2. Turn the pulley, and check that the water pump bearing moves smoothly and quietly.
    If necessary, replace the water pump.
  Fig 8: Inspecting Water Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove any oil or water on the crankshaft pulley, oil pump pulley, water pump pulley, idler No. 1 and idler No. 2, and keep them clean.
  NOTE: Only wipe the pulleys; do not use any cleansing agent.
4. Set the No. 1 cylinder to TDC/compression.
  1. Turn the hexagon wrench head portion of the camshaft to align the timing marks of the camshaft timing pulleys and timing belt plates aligned.

    Fig 9: Aligning Timing Marks Of Camshaft Timing Pulleys
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

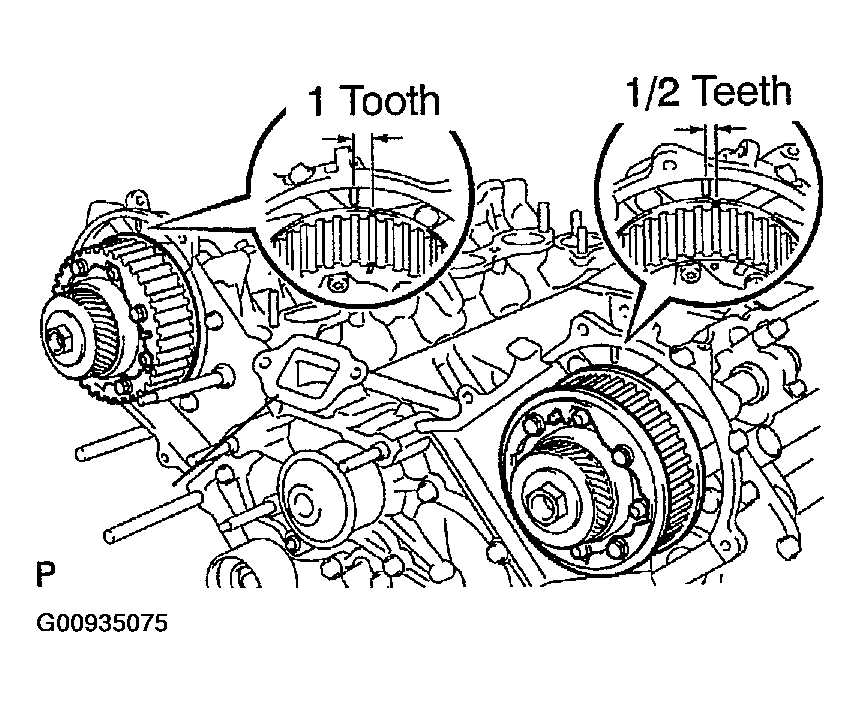

    HINT:

    Setting positions of the camshaft timing pulleys by turning them slightly clockwise makes it easy to install the timing belt:

    Camshaft timing pulley of LH bank: 1/2 teeth

    Camshaft timing pulley of RH bank: 1 tooth

    Fig 10: Setting Positions Of Camshaft Timing Pulleys
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using the crankshaft damper bolt, turn the crankshaft to align the timing marks of the crankshaft timing pulley and oil pump body.

    Fig 11: Turning Crankshaft To Align Timing Marks Of Crankshaft Timing Pulley
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the timing belt.
  1. Remove any oil or water on the each pulley, and keep them clean.
    NOTE: Only wipe the pulleys; do not use any cleansing agent.
  2. Face the front mark (arrow) on the timing belt forward.
  3. Connect the timing belt to the crankshaft timing pulley.
    - Align the installation mark on the timing belt with the timing mark of the crankshaft timing pulley.
  4. Connect the timing belt to the idler No. 2.
  5. Connect the timing belt to the camshaft timing pulley (LH bank).
    - Align the installation mark on the timing belt with the timing mark of the camshaft timing pulley.
  6. Connect the timing belt to the water pump pulley.

    Fig 12: Installing Timing Marks On Timing Belt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Connect the timing belt to the camshaft timing pulley (RH bank).
    - Align the installation mark on the timing belt with the timing mark of the camshaft timing pulley.
  8. Connect the timing belt to the idler No. 1.
6. Set the belt tensioner.
  1. Using a press, slowly press in the push rod using 981 - 9,807 N (100 - 1,000 kgf, 220 - 2,205 lbf) of pressure.

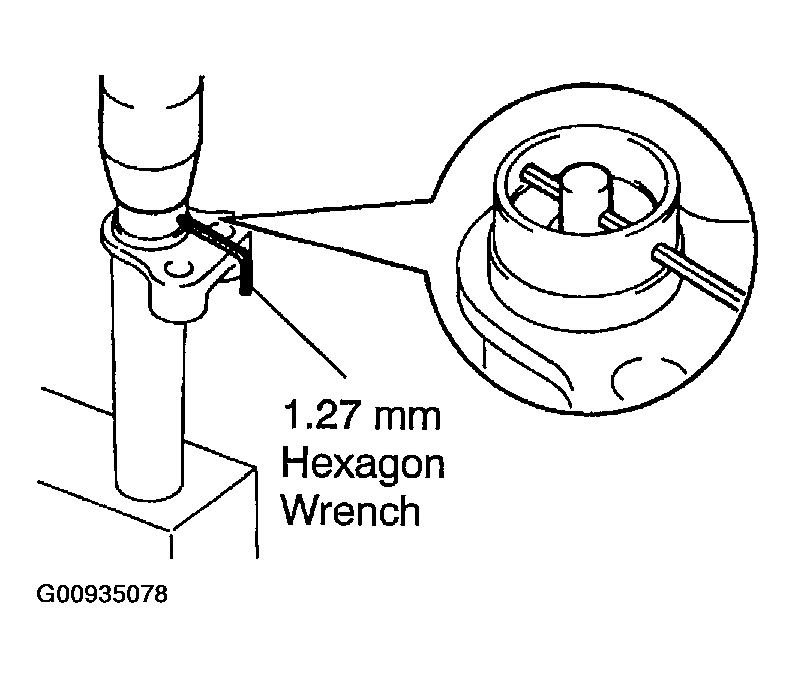

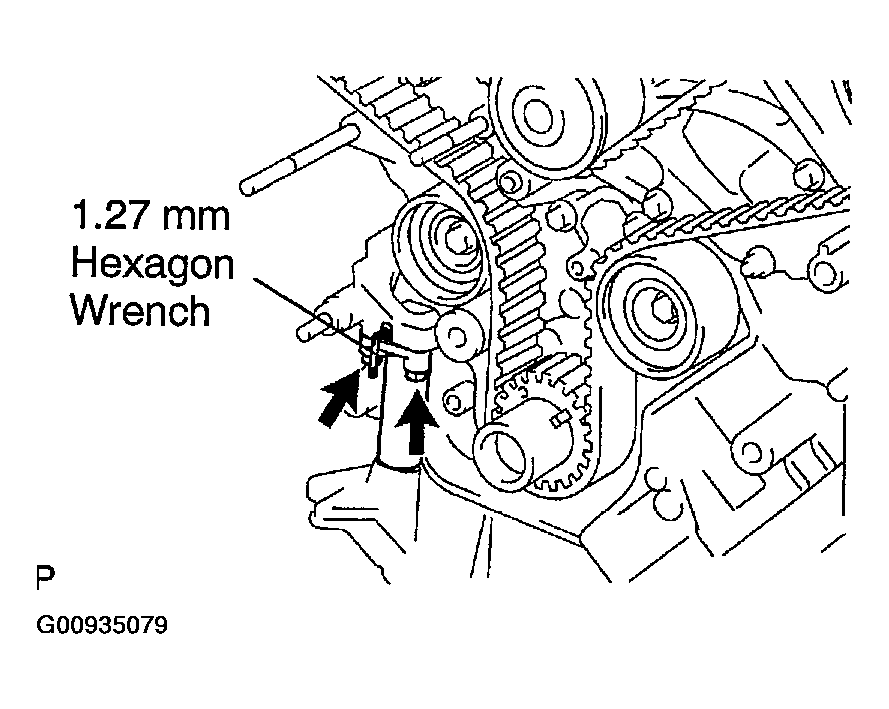

  2. Align the holes of the push rod and housing, pass a 1.27 mm hexagon wrench through the holes to keep the setting position of the push rod.
  3. Release the press.
  4. Install the dust boot to the belt tensioner.

    Fig 13: Pressing In Timing Belt Tensioner Push Rod Using SST
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the belt tensioner.
  1. Temporarily install the belt tensioner with the 2 bolts.
  2. Alternately tighten the 2 bolts.
    Torque: 26 N.m (270 kgf.cm, 19 ft.lbf)
  3. Using pliers, remove the 1.27 mm hexagon wrench from the belt tensioner. See Fig 14.

    Fig 14: Installing Belt Tensioner With Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Check the valve timing.
  1. Using the crankshaft damper bolt, slowly turn the crankshaft pulley 2 revolutions from TDC to TDC.
    NOTE: Always turn the crankshaft pulley clockwise.

    Fig 15: Turning The Crankshaft Pulley 2 Revolutions From TDC To TDC
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

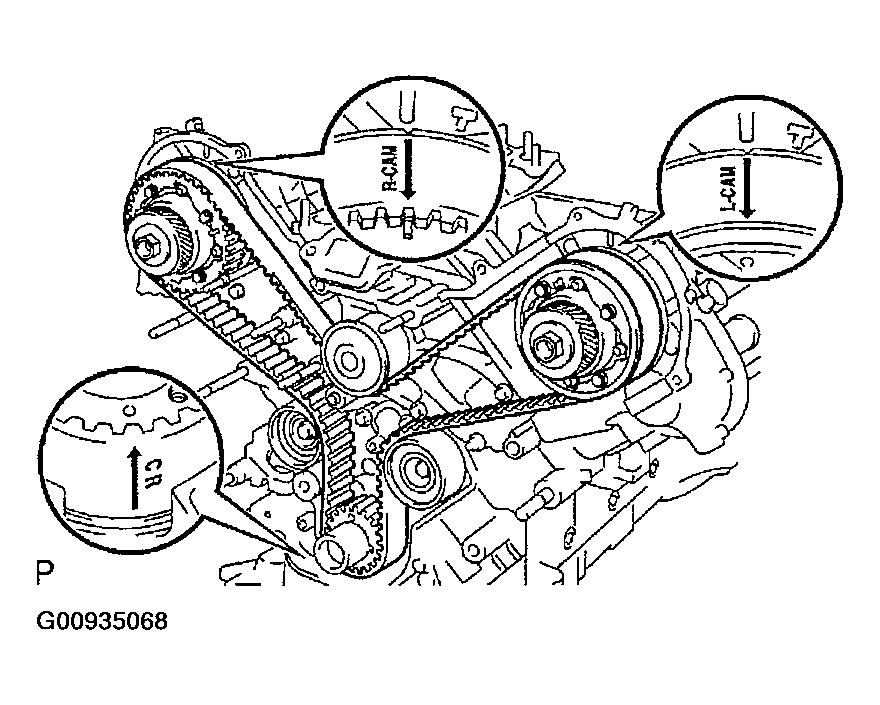

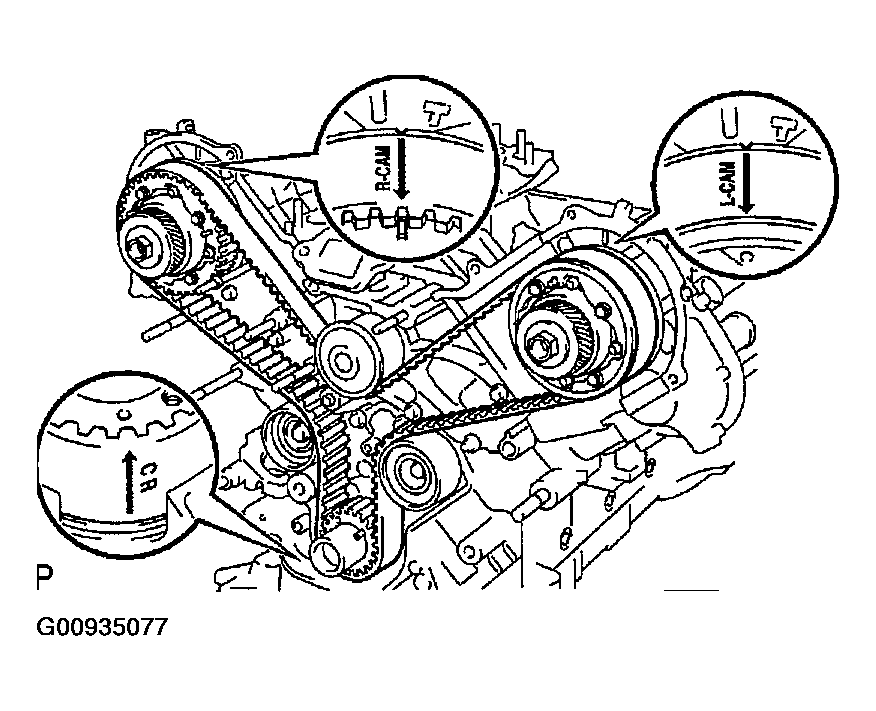

  2. Check that each pulley aligns with the timing marks as shown in Fig 16.
    If the timing marks do not align, remove the timing belt and reinstall it.
  3. Remove the crankshaft damper bolt.

    Fig 16: Aligning Camshaft Timing Marks
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT POSITION SENSOR PLATE

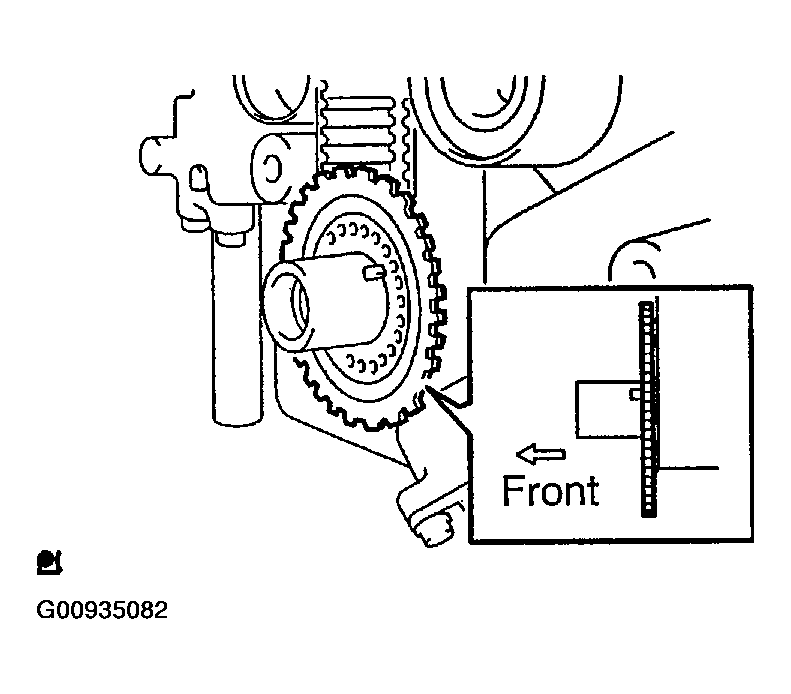

1. Install the crank shaft position sensor plate as shown in Fig 17.
  NOTE: Take care not to install it in the wrong direction.

  Fig 17: Installing Crank Shaft Position Sensor Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING BELT NO.1 COVER
1. Install the timing belt cover with the 4 bolts.
  Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
INSTALL CRANKSHAFT DAMPER SUB-ASSY
1. Using SST and a damper, tap in the crankshaft damper.
  SST 09223-46011

  Fig 18: Taping In Crankshaft Damper Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, install the damper bolt.
  SST 09213-70011, 09330-00021

  Torque: 245 N.m (2,500 kgf.cm, 181 ft.lbf)
3. Align the damper set key with the key groove of the crankshaft damper.

  Fig 19: Installing Crankshaft Damper Bolt Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL IDLER PULLEY ASSY
1. Install the idler with the 2 bolts and 2 nuts.
  Torque:

  16 N.m (160 kgf.cm, 12 ft.lbf) for 12 mm head

  32 N.m (330 kgf.cm, 24 ft.lbf) for 14 mm head

  HINT:

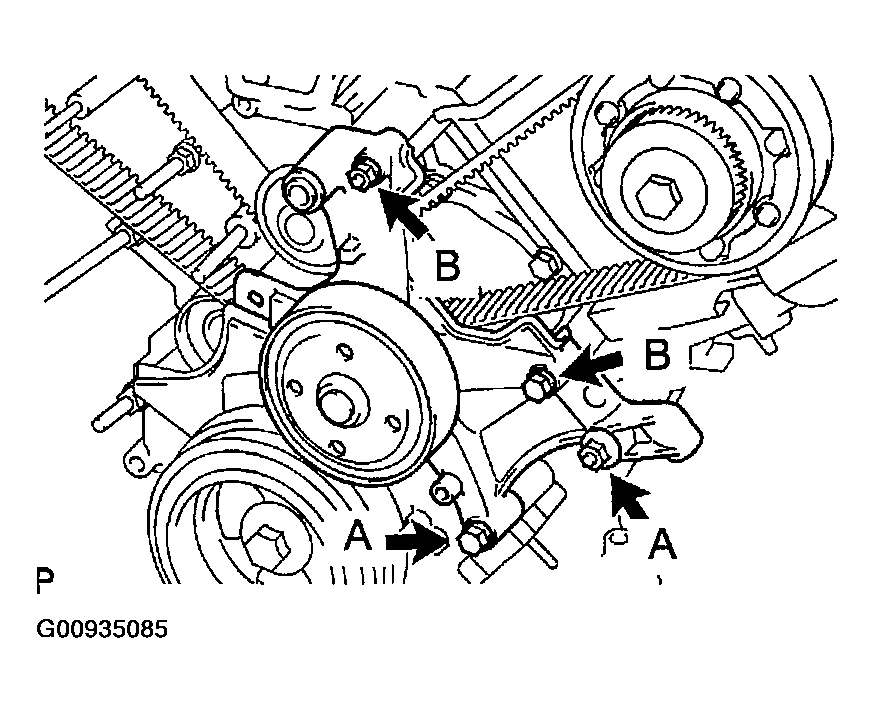

  Each bolt length is indicated in Fig 20 .

  Bolt Length:

  106 mm (4.17 in.) for 12 mm head (A)

  114 mm (4.49 in.) for 14 mm head (B)

  Fig 20: Locating Idler Pulley Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-RIBBED BELT TENSIONER ASSY
1. Install the belt tensioner with the bolt and 2 nuts.
  Torque: 15.5 N.m (160 kgf.cm, 11 ft.lbf)

  HINT:

  Use a bolt 106 mm (4.18 in.) in length.
INSTALL TIMING BELT COVER SUB-ASSY NO. 2

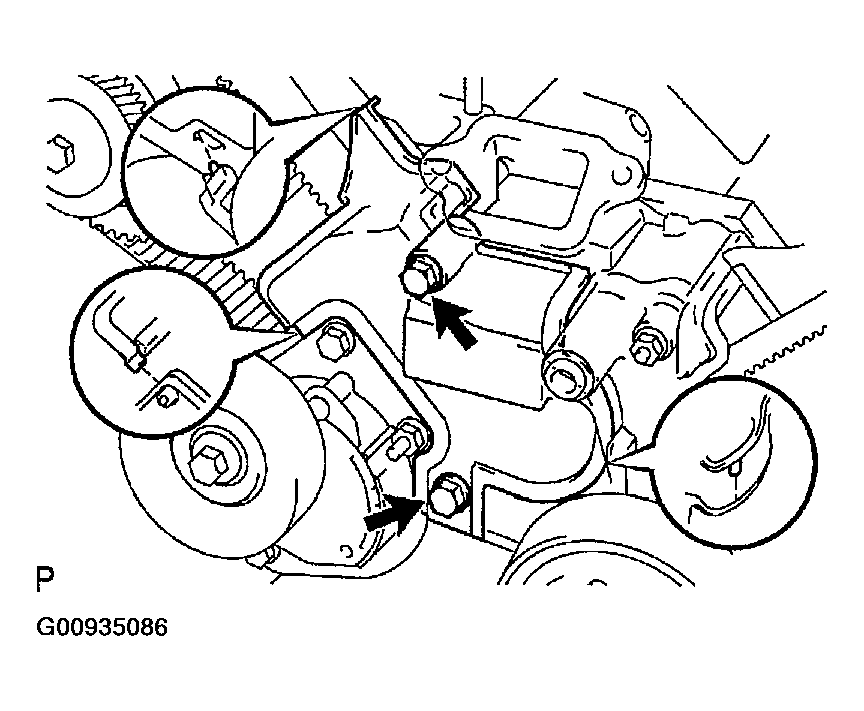

1. Fit the timing belt cover, matching the claws and pin with each part.
2. Install the timing belt cover with the 2 bolts.
  Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

  HINT:

  Use bolts 106 mm (4.17 in.) in length.

  Fig 21: Locating Timing Belt Cover Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING BELT COVER SUB-ASSY NO. 3 LH
Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
INSTALL TIMING CHAIN OR BELT COVER NO. 2
Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
INSTALL COMPRESSOR AND MAGNETIC CLUTCH
1. Install the cooler compressor, stay and wire bracket with the 3 bolts and nut.
  Torque:

  49 N.m (500 kgf.cm, 36 ft.lbf) for bolts

  29 N.m (300 kgf.cm, 21 ft.lbf) for nuts
INSTALL GENERATOR ASSY (See REMOVAL & INSTALLATION )
INSTALL VANE PUMP ASSY
1. Install the vane pump assembly with the 2 bolts and nut. Alternately tighten the bolts and nut.
  Torque:

  39.2 N.m (400 kgf.cm, 29 ft.lbf) for bolts

  43.1 N.m (440 kgf.cm, 32 ft.lbf) for nuts
INSTALL FAN AND GENERATOR V BELT (See REPLACEMENT )
INSTALL RADIATOR ASSY
1. Install the radiator and cooling fan assembly with the 2 upper radiator supports and 2 nuts.
  Torque: 13.5 N.m (135 kgf.cm, 10 ft.lbf)
INSTALL AIR CLEANER ASSY
Torque: 5.0 N.m (50 kgf.cm, 41 in.lbf)
INSTALL AIR CLEANER INLET NO.1
Torque: 5.0 N.m (50 kgf.cm, 41 in.lbf)
INSTALL INTAKE AIR CONNECTOR PIPE
Torque: 5.0 N.m (50 kgf.cm, 41 in.lbf)
INSTALL V-BANK COVER
Torque: 5.0 N.m (50 kgf.cm, 41 in.lbf)
REFILL ENGINE COOLANT (See REPLACEMENT )
CHECK FOR ENGINE COOLANT LEAKS (See REPLACEMENT )
INSTALL ENGINE UNDER COVER
