Section 545 (Horn System): Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOW PITCHED HORN ASSY
    1. Disconnect the connector.
    2. Remove the bolt and horn.
  2. REMOVE HIGH PITCHED HORN ASSY
    1. Disconnect the connector.
    2. Remove the bolt and horn.

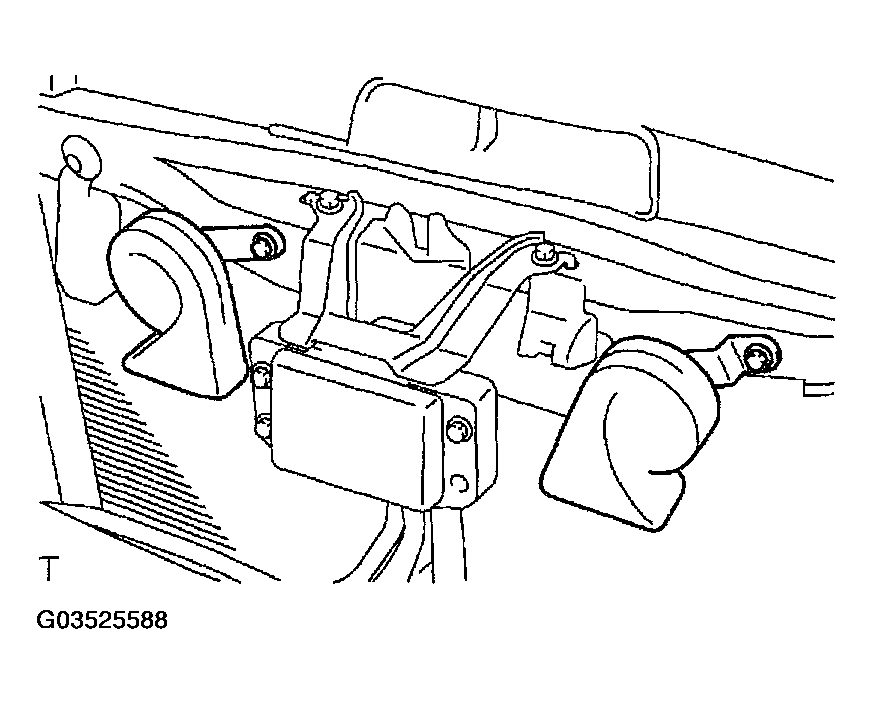

      Fig 1: Removing Bolt And Horn
      G03525588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL LOW PITCHED HORN ASSY
    1. Place the stay onto the baffle part in the radiator support upper, and then install the horn with the bolt.

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

    2. Connect the connector.
  4. INSTALL HIGH PITCHED HORN ASSY
    1. Place the stay onto the baffle part in the radiator support upper, and then install the horn with the bolt.

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

    2. Connect the connector.
