Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks appear on the map disc.

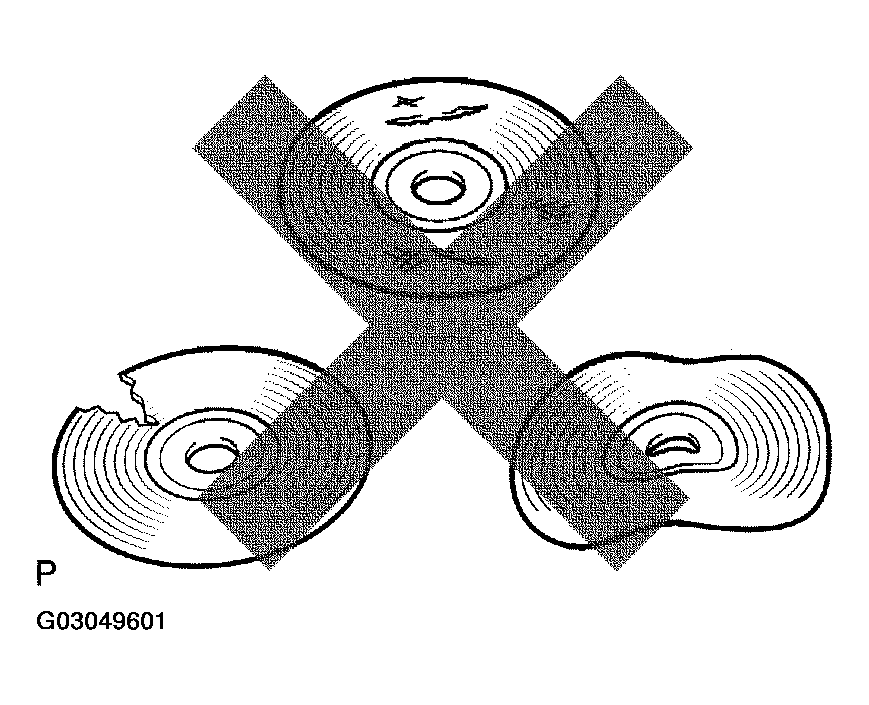

Fig 1: Checking Map Disc Is Not Deformed Or Cracked
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MAP DISC
2. OK: Go to Next Step.
CHECK RADIO AND NAVIGATION ASSY
1. Check if the "MAP" indicator near the disc slot is on.
  OK: It is not on.

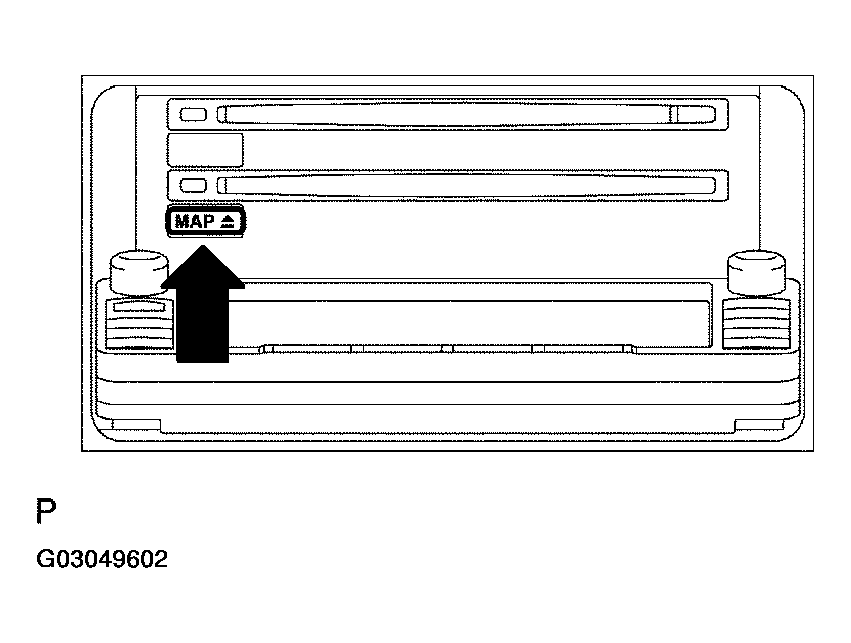

Fig 2: Checking MAP Indicator Near Disc Slot Is On
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: PRESS EJECT SWITCH TO EJECT DISC
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
