Right Multi-Function Switch: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right multi-function switch onto the multi-function switch mounting housing (Fig 2).
  2. Install the two screws that secure the right multi-function switch to the multi-function switch mounting housing. Torque the screws to 2.5 N.m (22 in. lbs.).
  3. Connect the instrument panel wire harness connector to the right multi-function switch.
  4. Install the upper and lower steering column shrouds (Fig 1) (Refer to SHROUD - LOWER ) and (Refer to SHROUD - UPPER ). Torque the screws to 2 N.m (17 in. lbs.).
  5. Connect the battery negative cable.
  6. Verify vehicle and system operation.

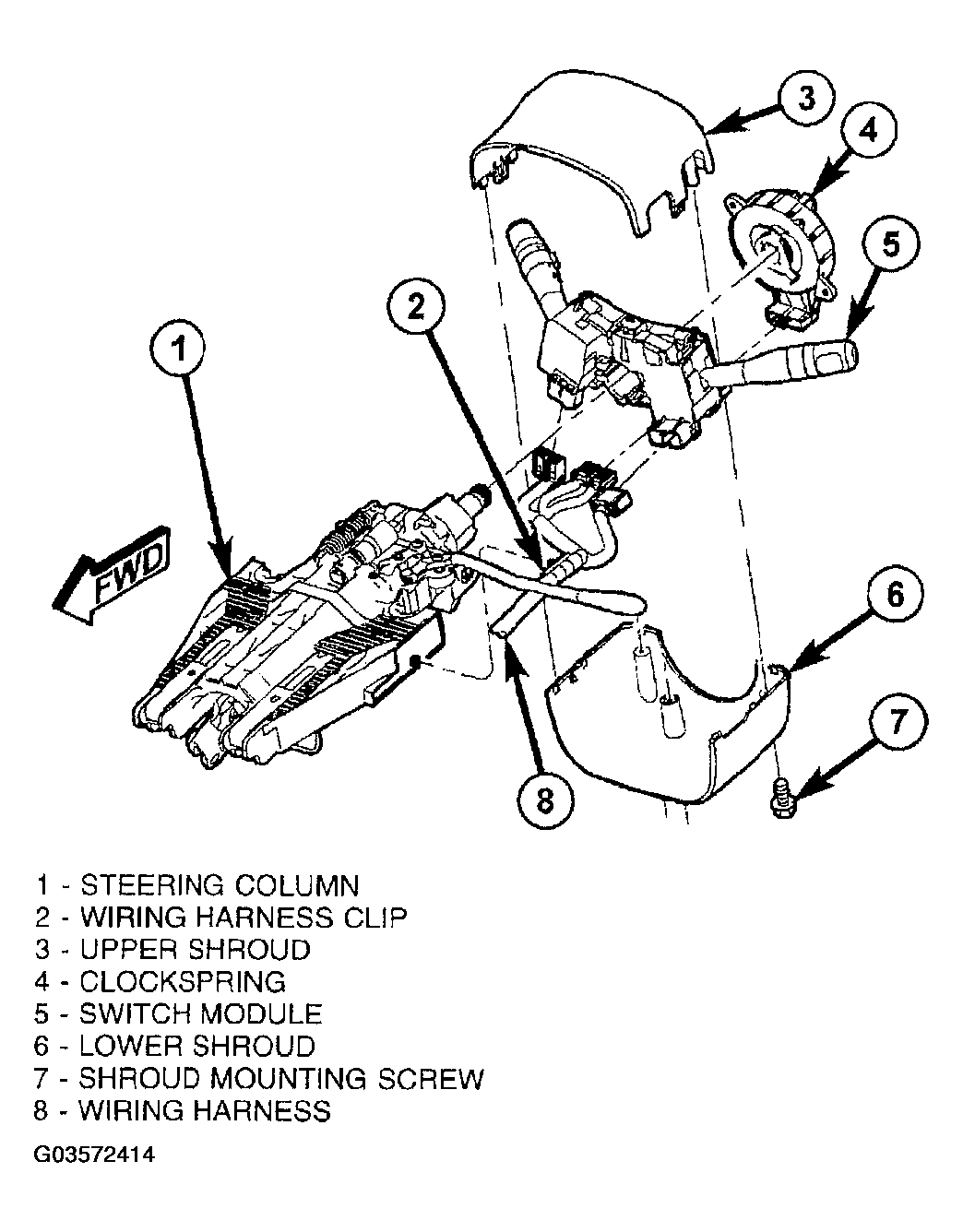

Fig 1: Installing Upper/Lower Shrouds
G03572414Courtesy of DAIMLERCHRYSLER CORP.

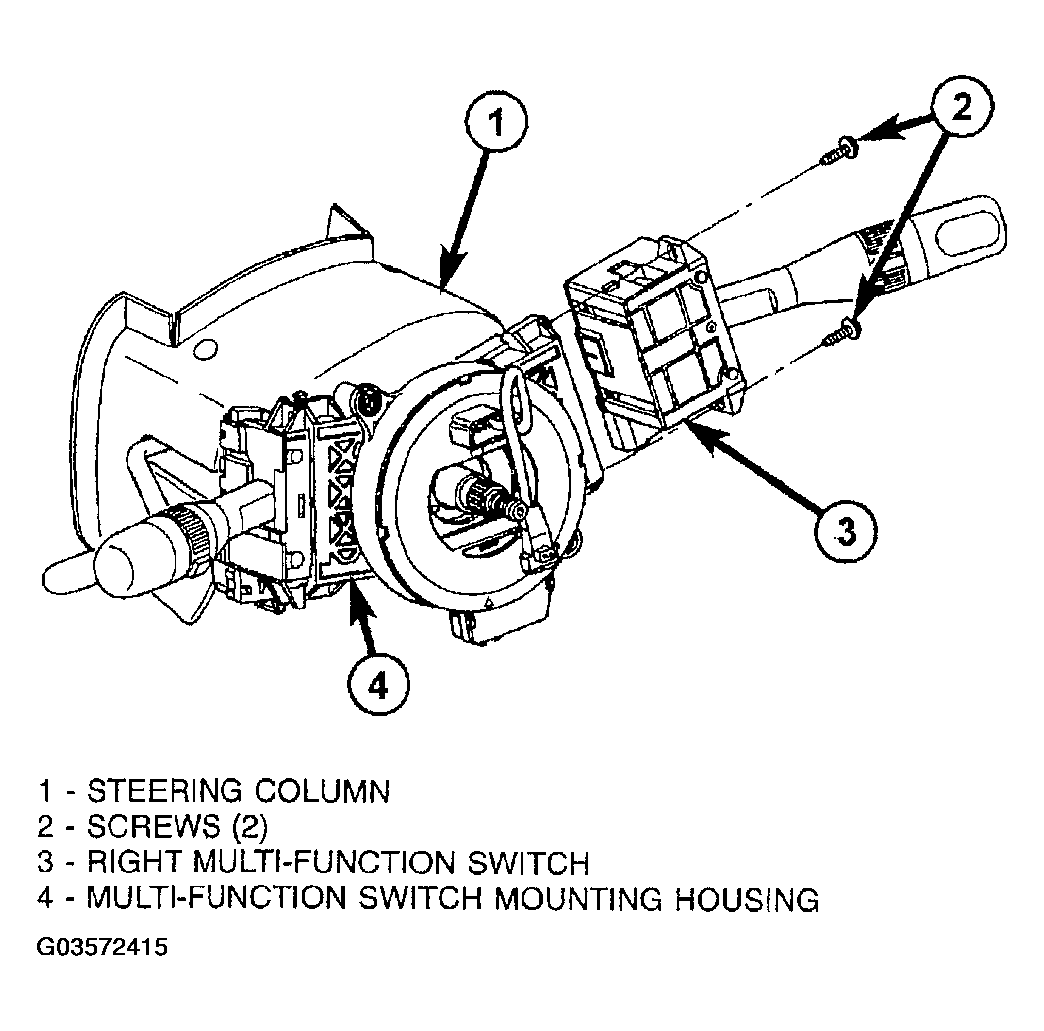

Fig 2: Removing Screws That Secure Right Multi-Function Switch To Multi-Function Switch Mounting Housing
G03572415Courtesy of DAIMLERCHRYSLER CORP.
