Circuit Description & Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description and possible causes, see Fig 1 and Fig 2 .

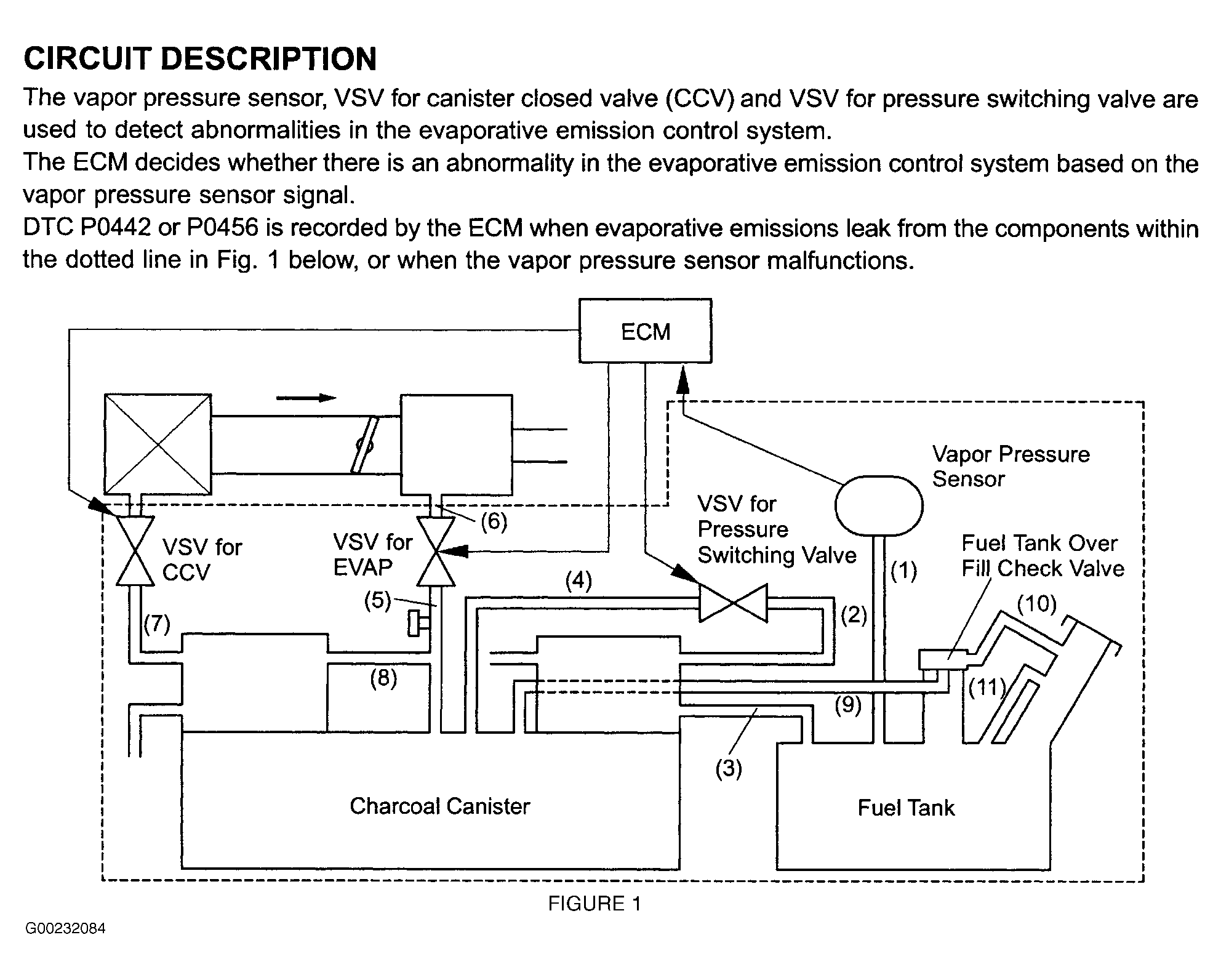

Fig 1: DTCs P0442 & P0456 Circuit Description & Possible Causes (1 Of 2)
G00232084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

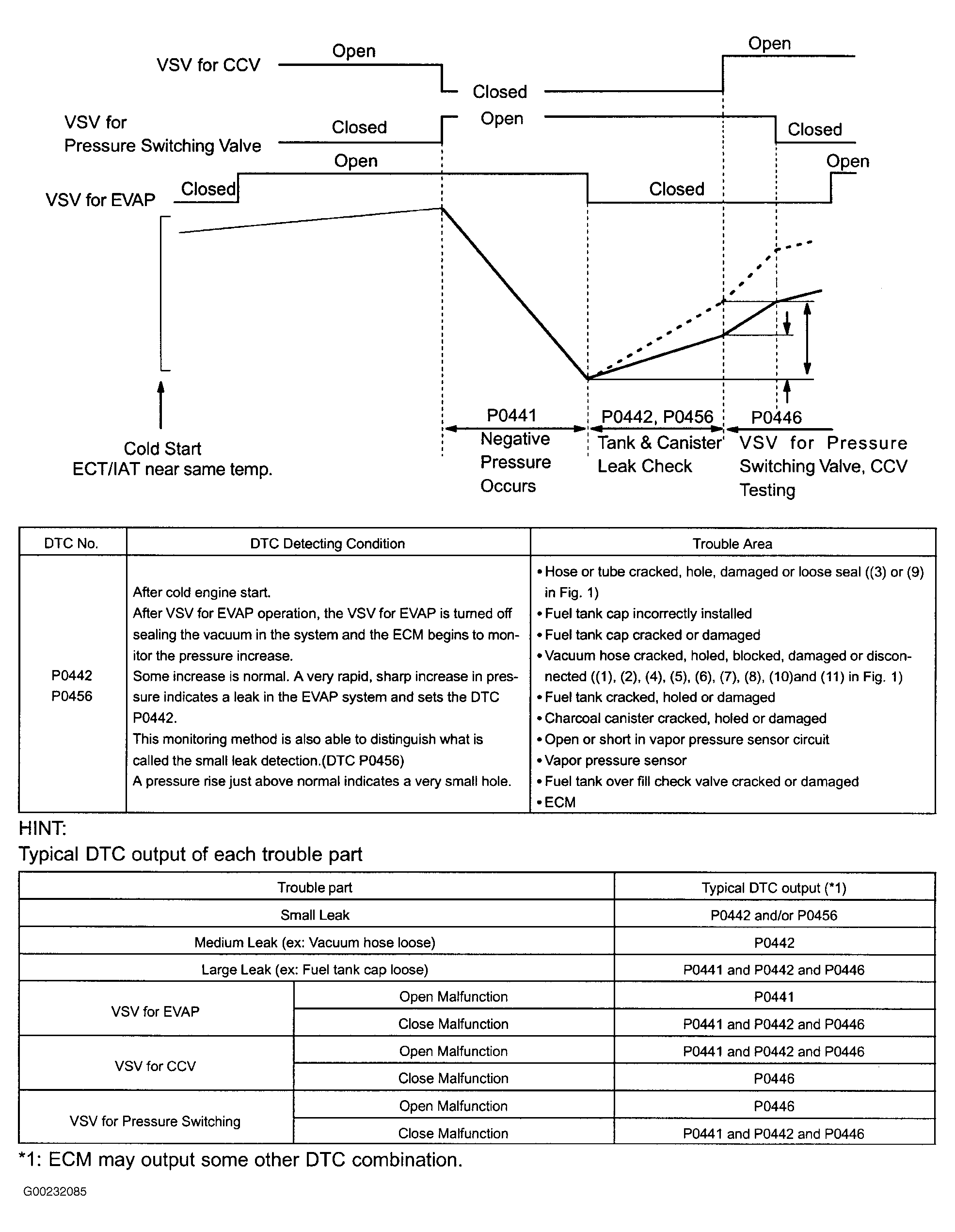

Fig 2: DTCs P0442 & P0456 Circuit Description & Possible Causes (2 Of 2)
G00232085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
