System Operation: Cornering
WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

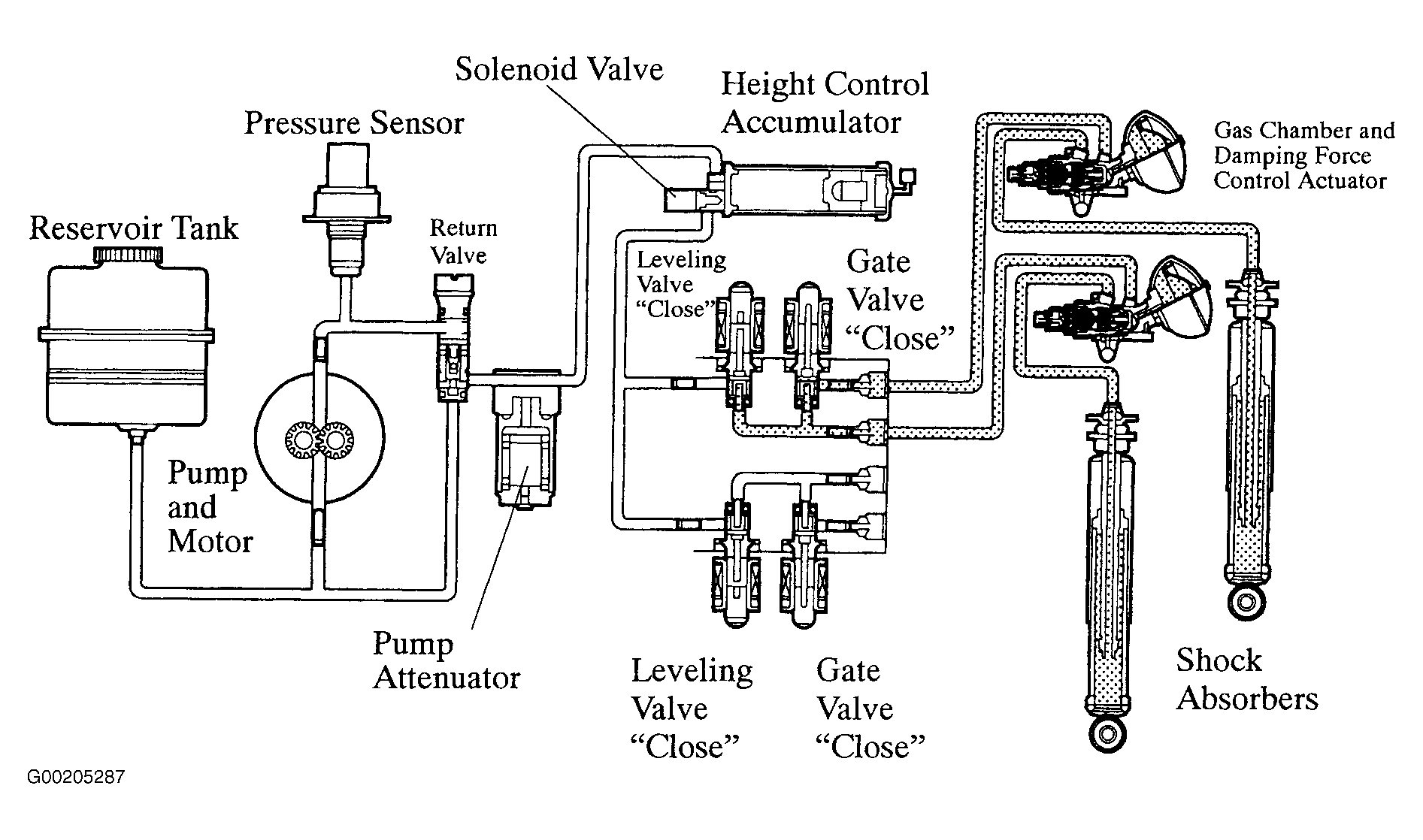

The high pressure in the gas chamber and the shock absorber is shut off with the leveling valve. The gate valve is closed and the left and right shock absorbers are shut off from each other. The damping force is controlled in accordance with road surface conditions and the operating condition of the steering wheel. See Fig 1.
