Crankshaft Position Sensor: Testing and Inspection

INSPECTION

INSPECT CRANKSHAFT POSITION SENSOR

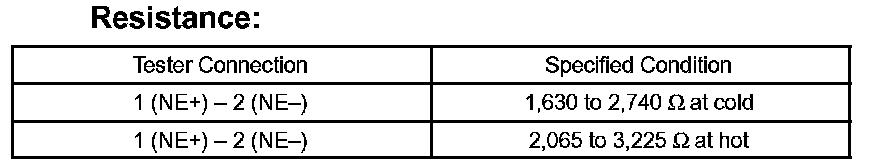

Inspect the resistance.

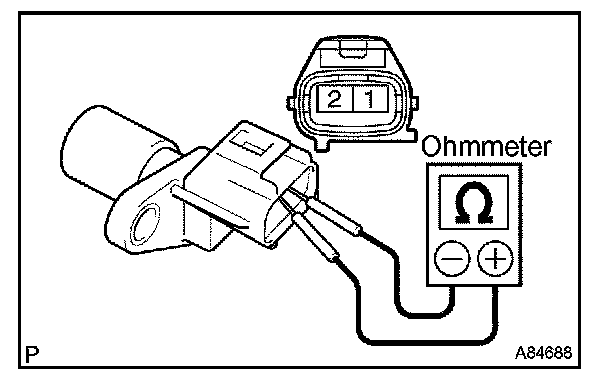

Using an ohmmeter, measure the resistance between the terminals.

NOTE: "Cold" and "Hot" mean temperature of the coils themselves. "Cold" is from -10 °C (14 °F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100 °C (212 °F).

If the resistance is not as specified, replace the crankshaft position sensor.
