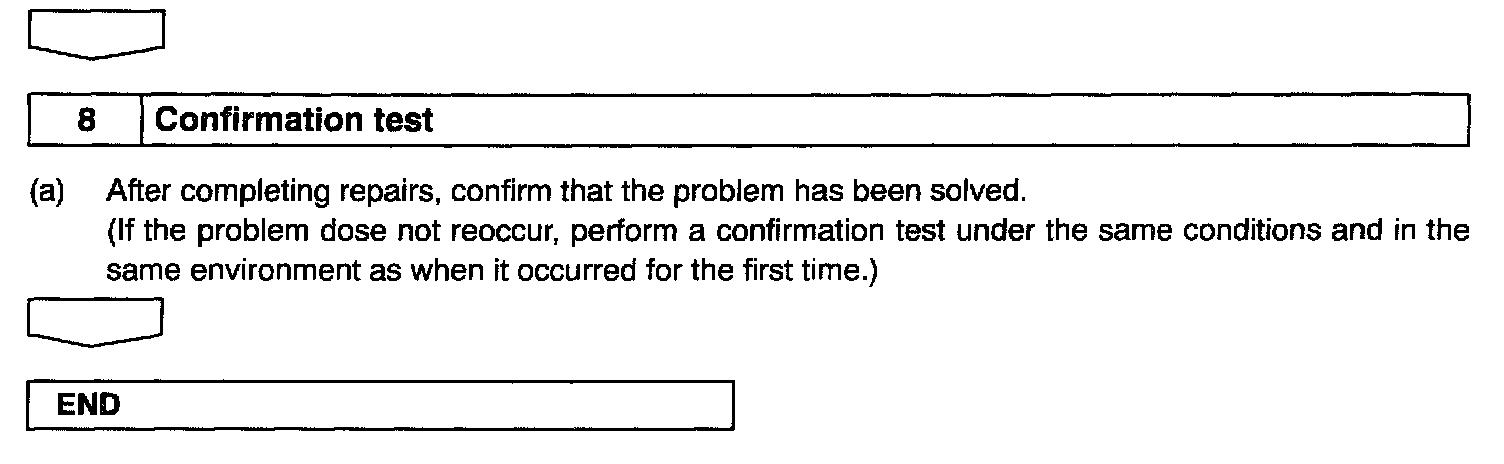

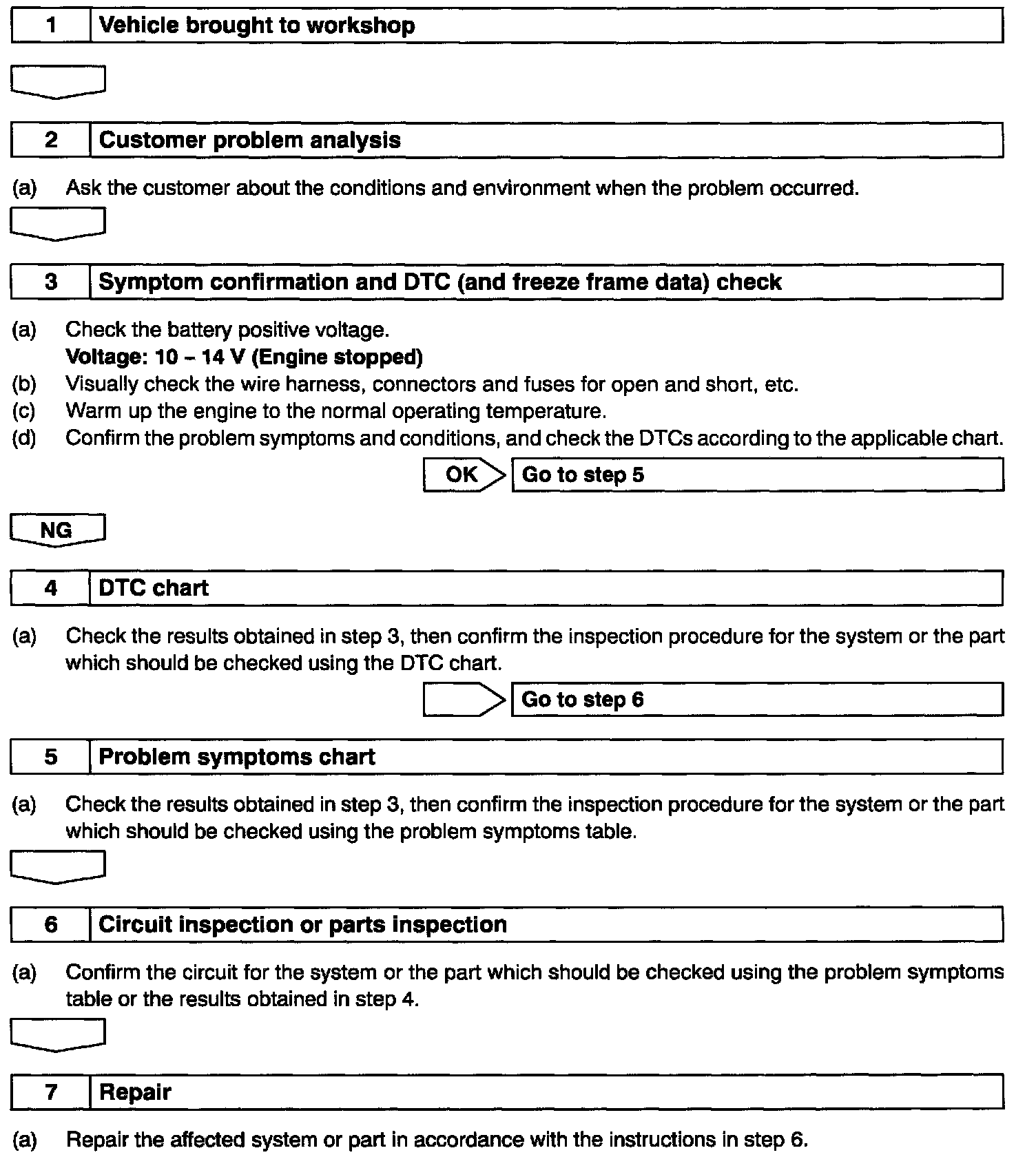

How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING









HINT: Carry out a troubleshooting in accordance with the procedure given. Here, only the basic procedure is shown. Details are provided in the applicable diagnostics section, showing the most effective methods for each circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning the troubleshooting of that circuit.
