Navigation Receiver ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See  REPLACEMENT  )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
3. REMOVE NAVIGATION RECEIVER ASSY
   1. Remove the 4 screws and navigation receiver assy.

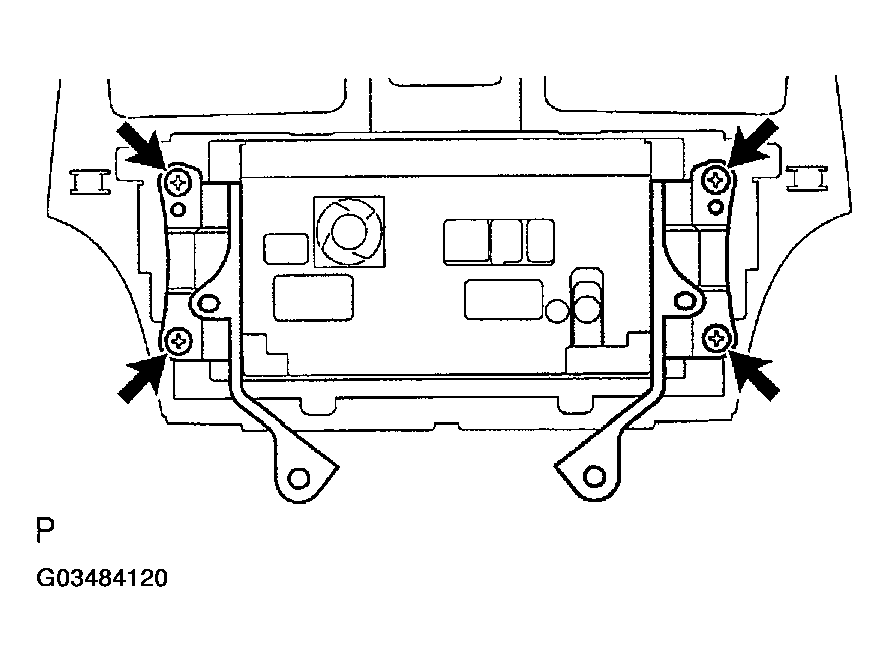

      Fig 1: Removing Screws And Navigation Receiver Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE RADIO RECEIVER BRACKET NO. 1
   1. Remove the 3 screws and radio receiver bracket No. 1.

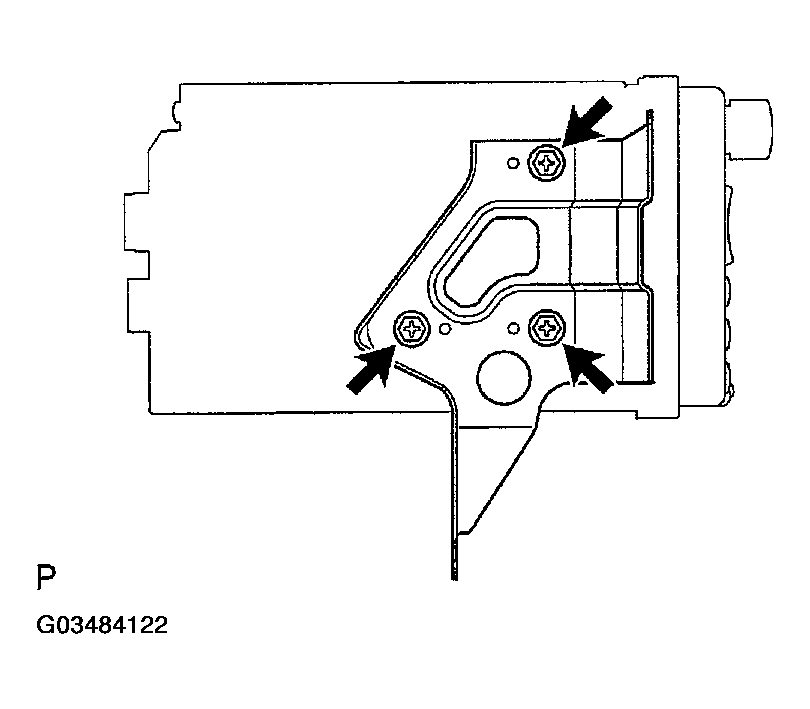

      Fig 2: Removing Screws And Radio Receiver Bracket No. 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE RADIO RECEIVER BRACKET NO. 1
   1. Remove the 3 screws and radio receiver bracket No. 1.

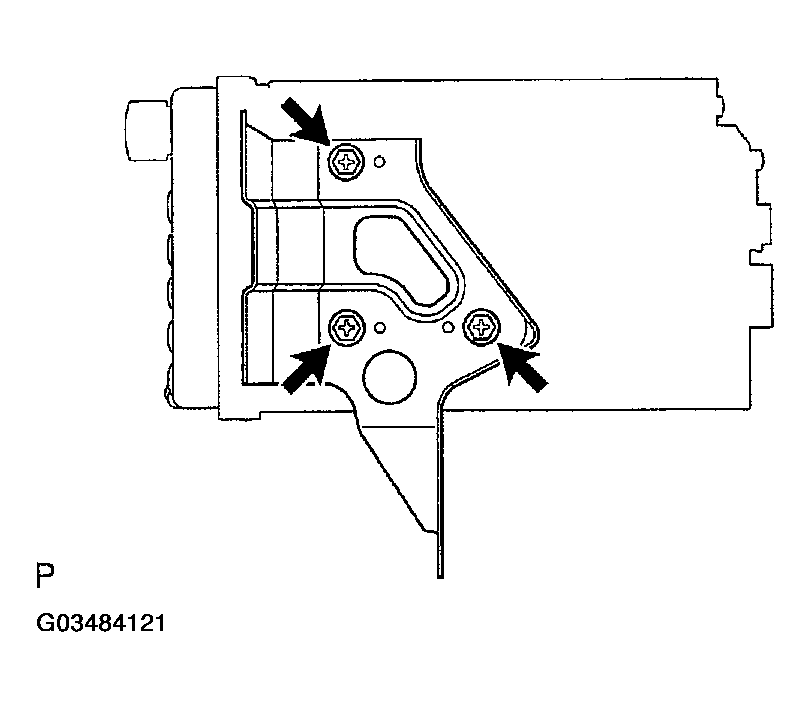

      Fig 3: Removing Screws And Radio Receiver Bracket No. 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
