Remote Control Power Window Regulator By Master Switch: Wiring Diagram

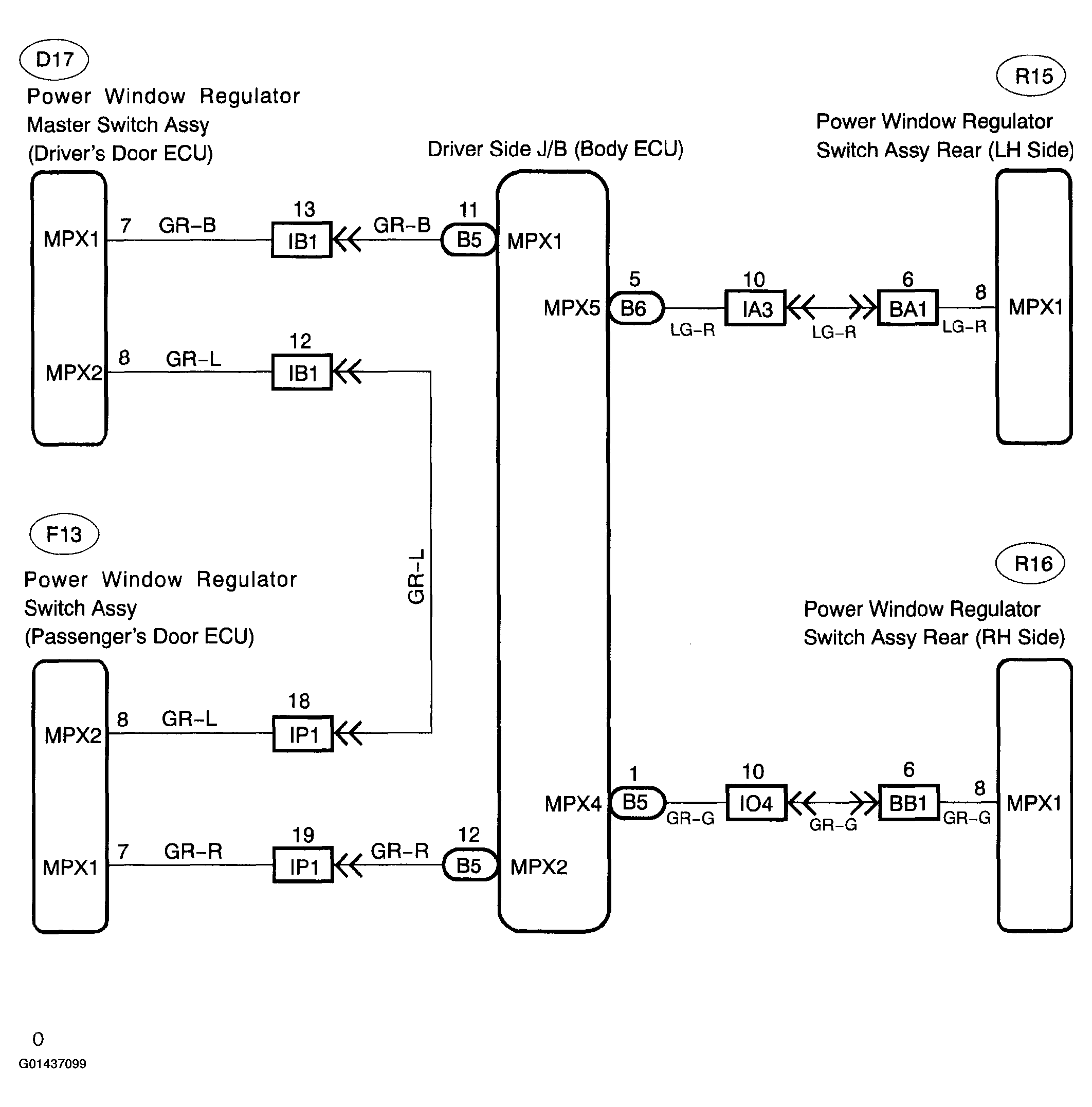

Fig 1: Remote Control Power Window Regulator By Master Switch Wiring Diagram
G01437099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
