Section 147 (Accelerator Pedal Rod Assembly): Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ACCELERATOR PEDAL ROD ASSEMBLY
1. Disconnect the accelerator position sensor connector.
2. Remove the 2 bolts and the accelerator pedal rod.

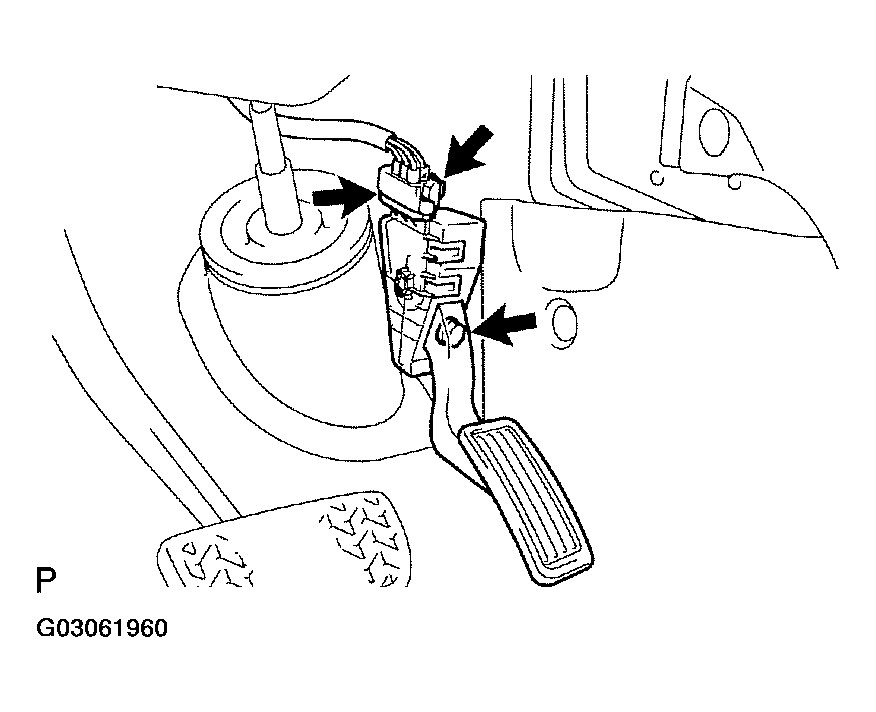

Fig 1: Removing Accelerator Pedal Rod Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ACCELERATOR PEDAL ROD ASSEMBLY
Torque: 7.5 N.m (76 kgf.cm, 66 in..lbf)
