Section 178 (Automatic Transmission Assembly): Components

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

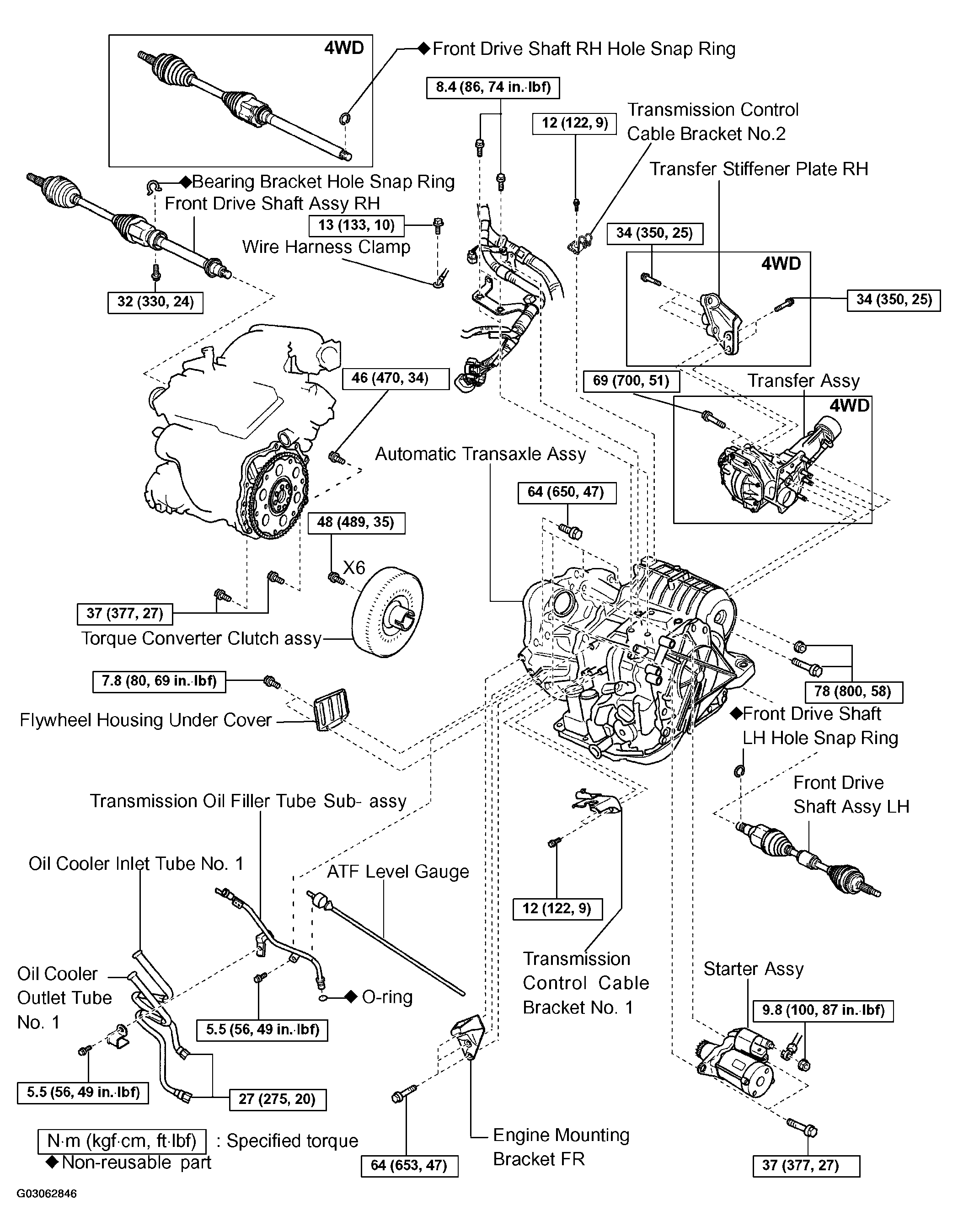

Fig 1: Locating Automatic Transaxle Assembly Components (U151E/U151F)
G03062846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
