Section 178 (Automatic Transmission Assembly): Replacement
- REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (See REPLACEMENT )
- REMOVE FRONT DRIVE SHAFT ASSY LH (See
REMOVAL & INSTALLATION
)
SST 09520-01010, 09520-24010 (09520-32040)
- REMOVE FRONT DRIVE SHAFT ASSY RH (2WD DRIVE TYPE) (See REMOVAL & INSTALLATION )
- REMOVE FRONT DRIVE SHAFT ASSY RH (4WD DRIVE TYPE)(See
REMOVAL & INSTALLATION
)
SST 09520-01010, 09520-24010 (09520-32040)
- REMOVE TRANSMISSION CONTROL CABLE BRACKET NO. 2
- Remove the bolt and transmission control cable bracket No. 2.

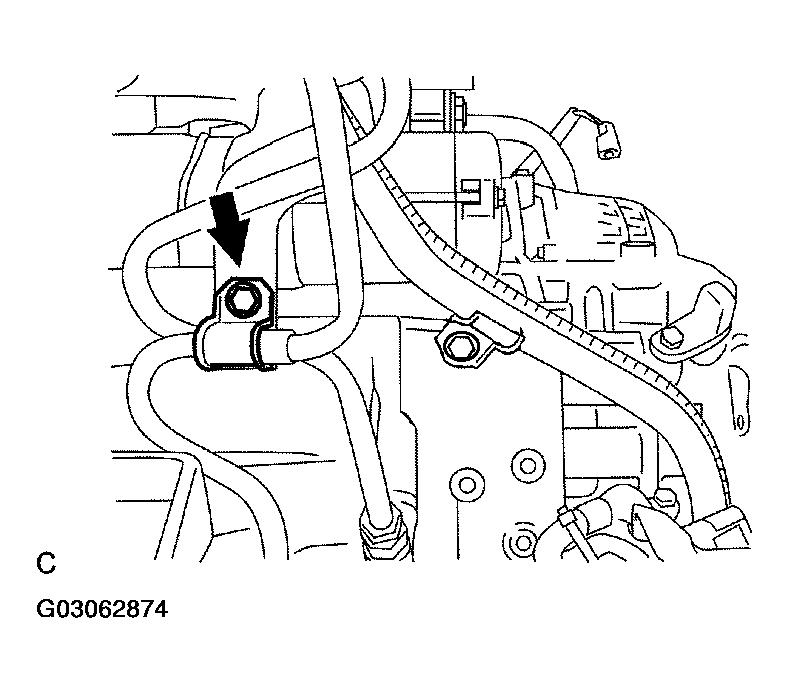

- REMOVE WIRE HARNESS CLAMP
- Disconnect the wire harnesses from the clamps.

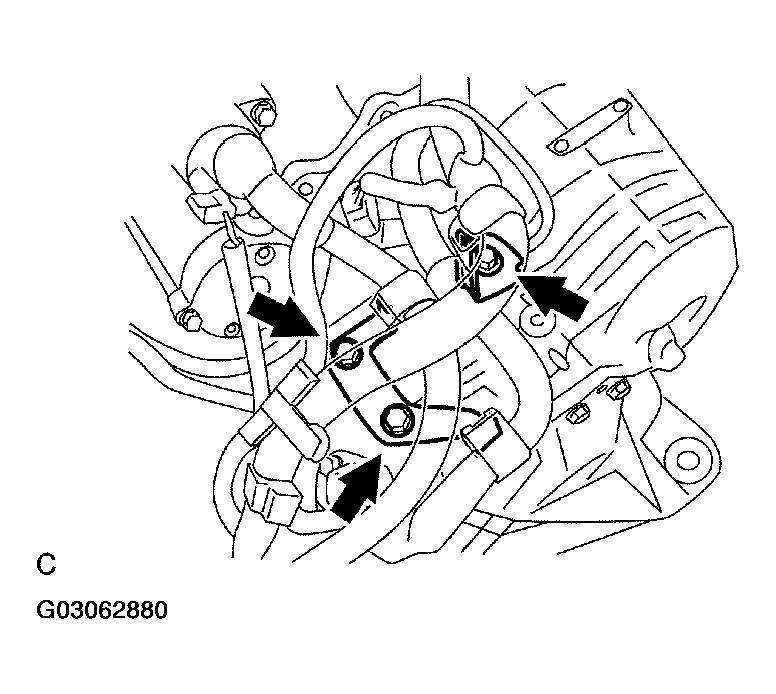

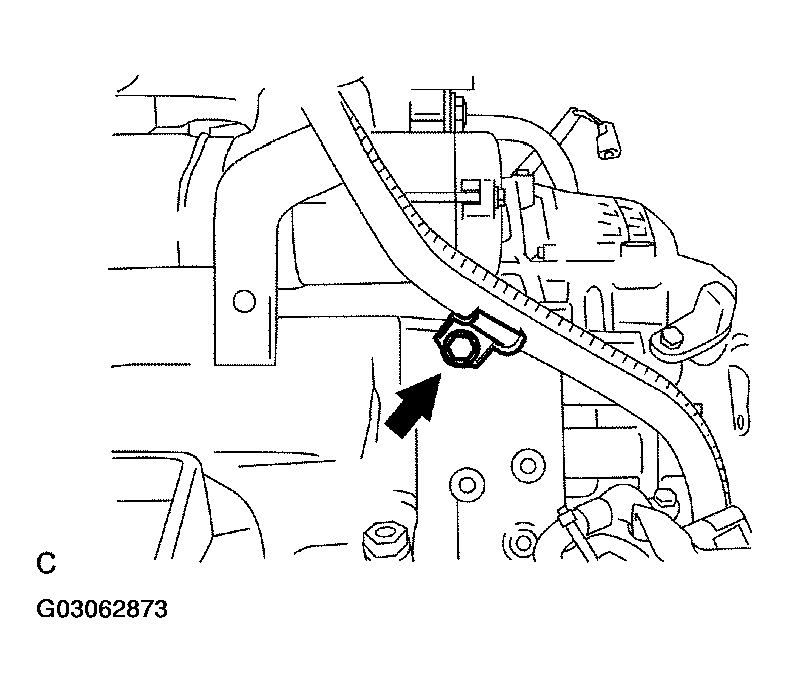

- Remove the 3 bolts and 2 clamps.

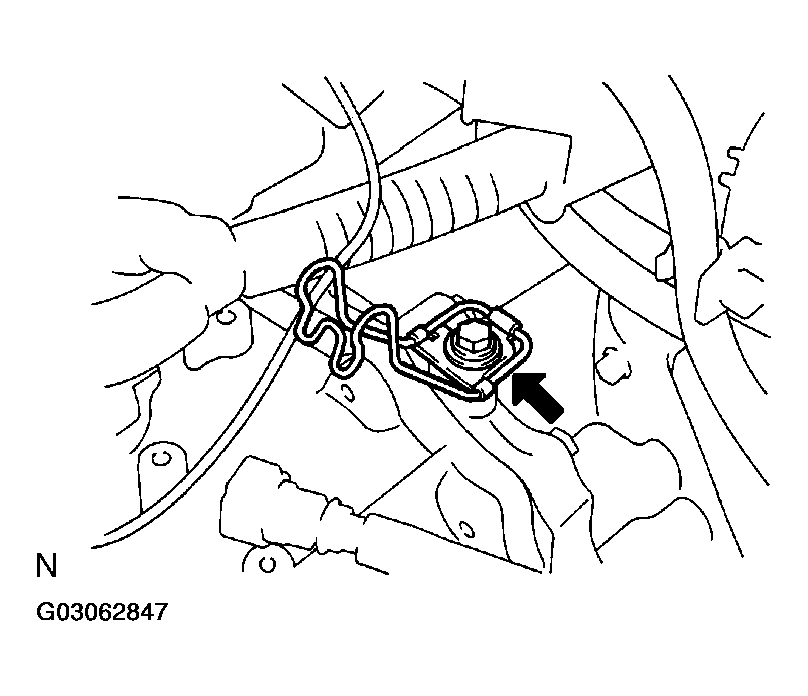

- DISCONNECT WIRE HARNESS
- Remove the bolt and wire harness.

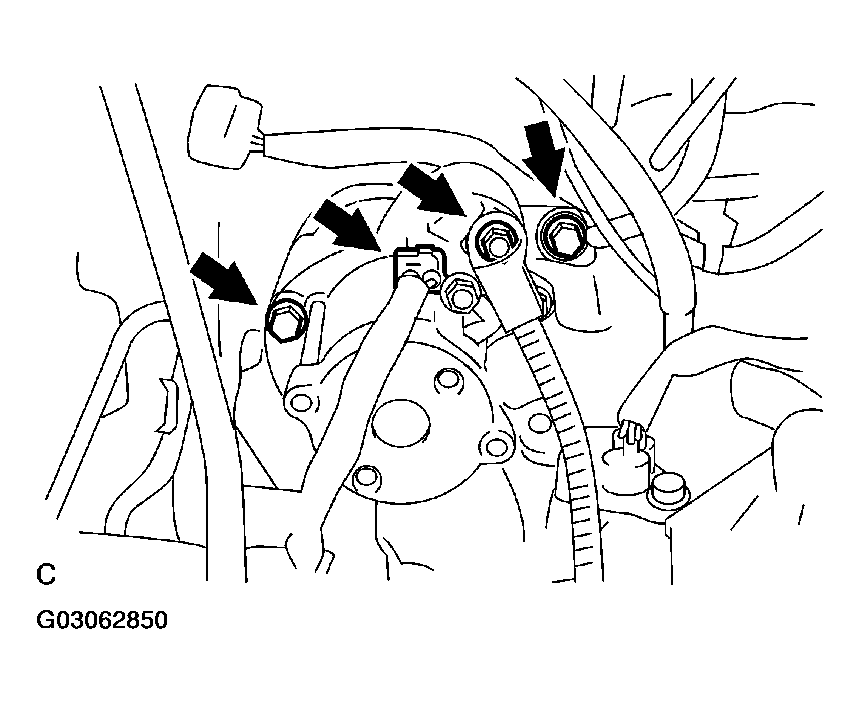

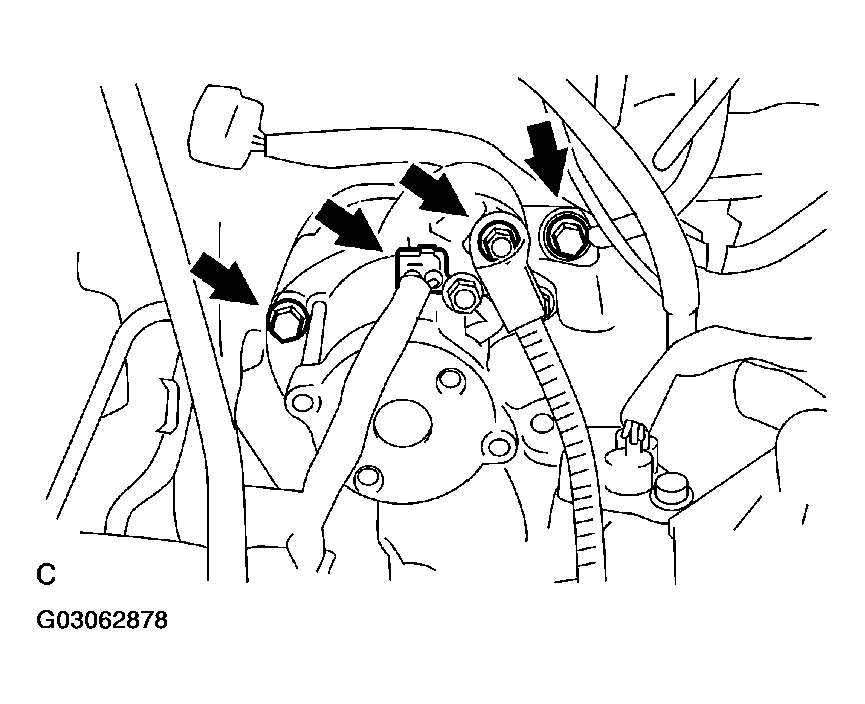

- REMOVE STARTER ASSY

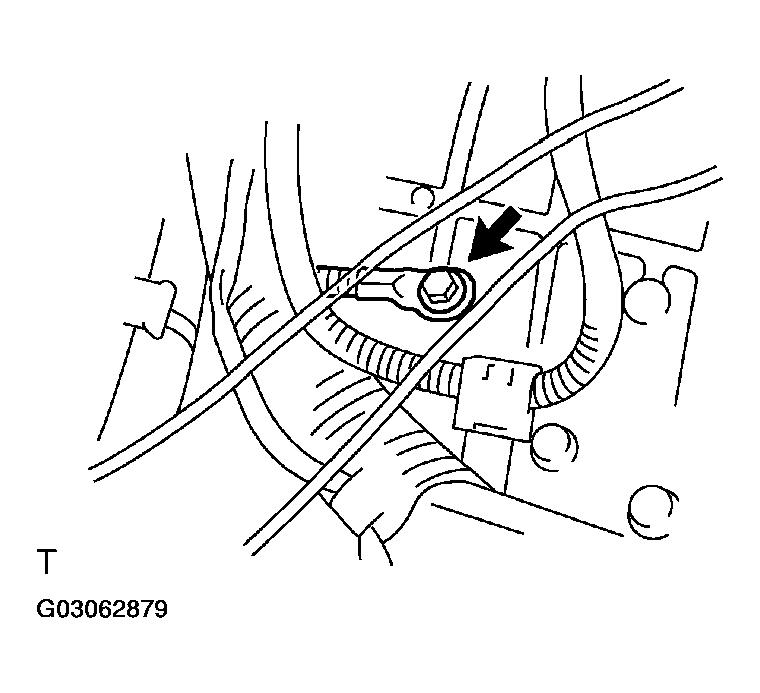

- Remove the nut and disconnect the starter wire.
- Disconnect the connector.
- Remove the 2 bolts and starter assy.

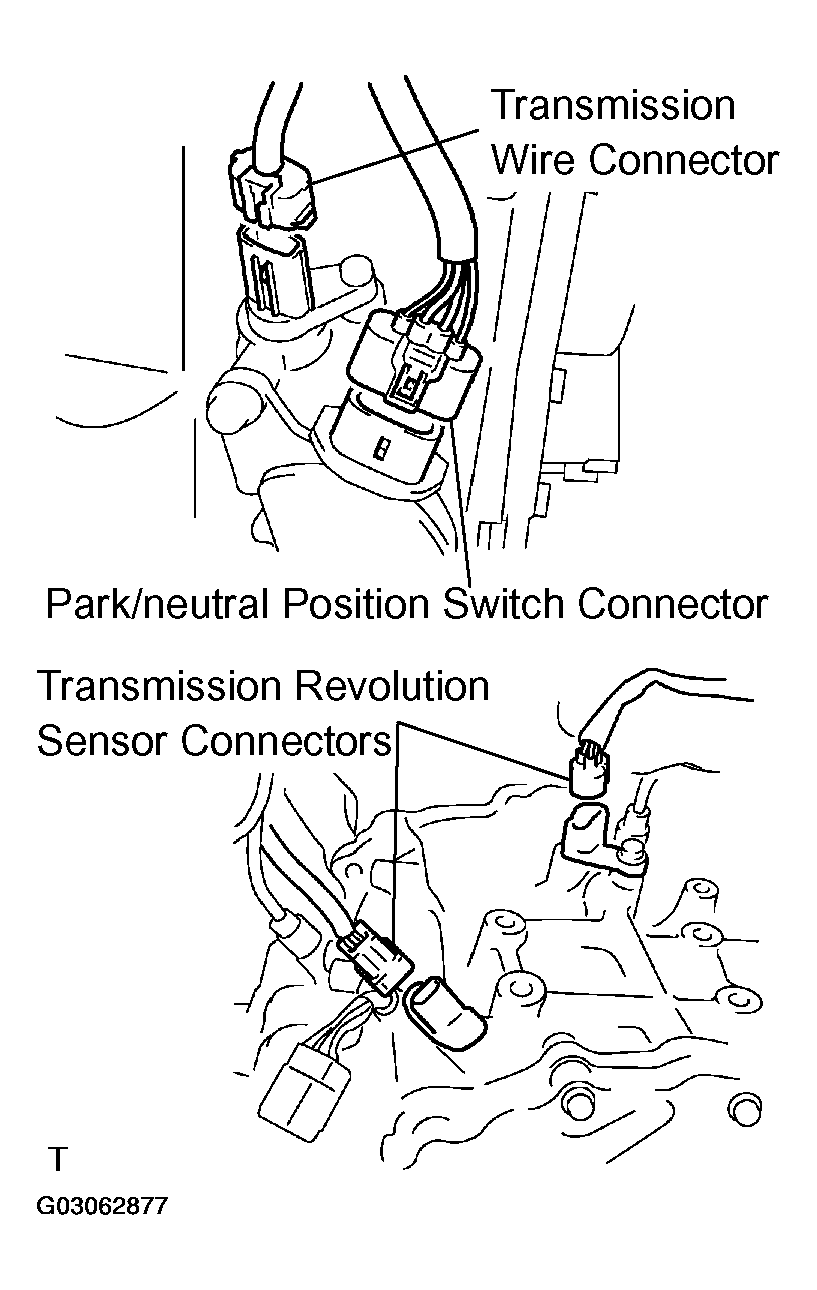

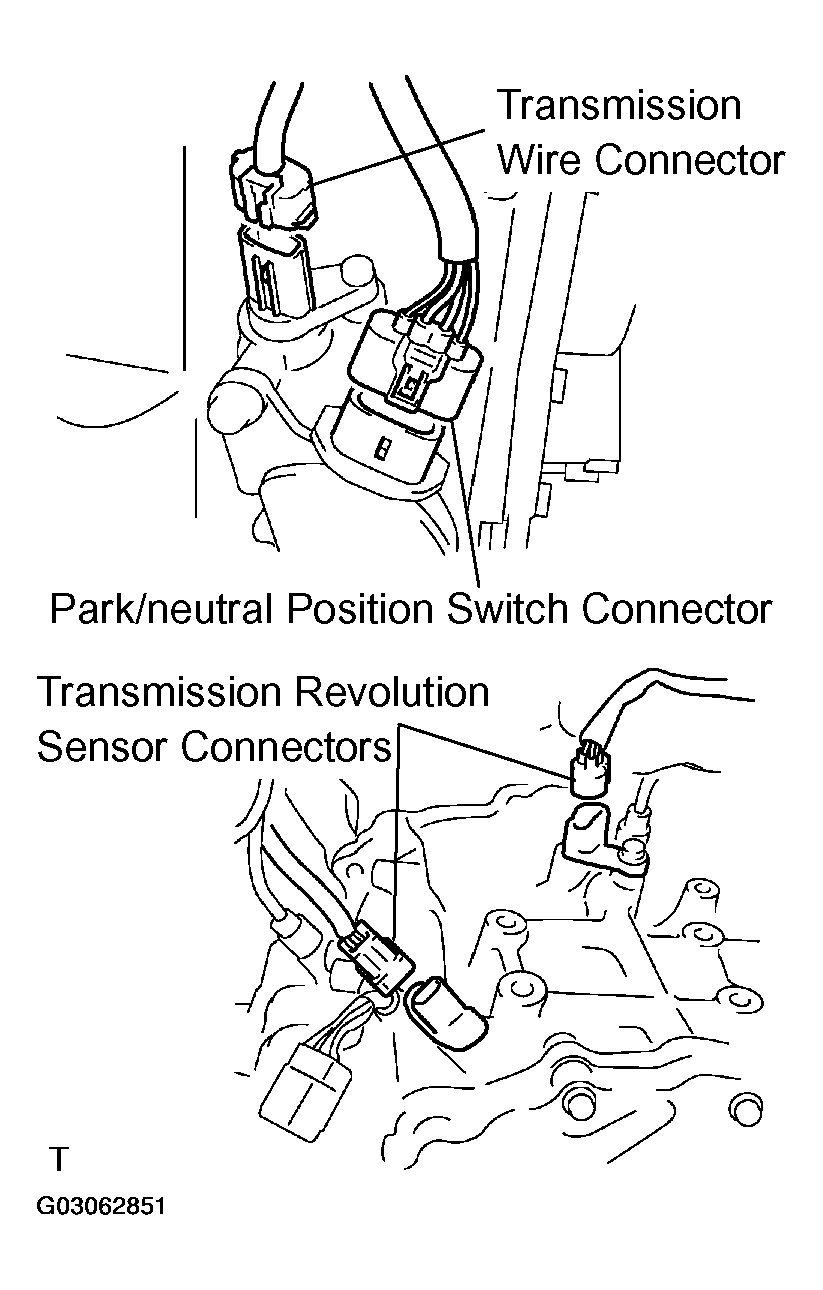

- DISCONNECT CONNECTOR
- Disconnect the 2 transmission wire connectors.
- Disconnect the park/neutral position switch connector.
- Disconnect the 2 transmission revolution sensor connectors.

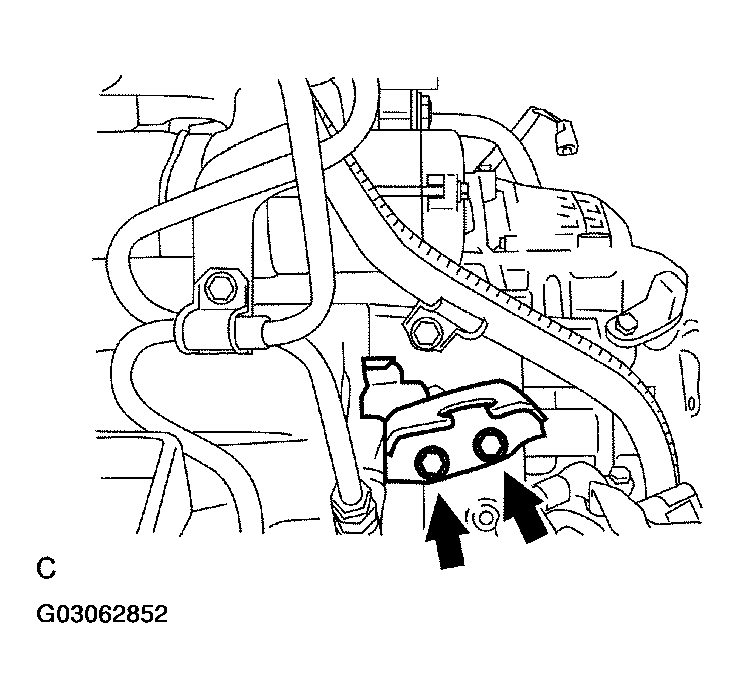

- REMOVE TRANSMISSION CONTROL CABLE BRACKET NO. 1

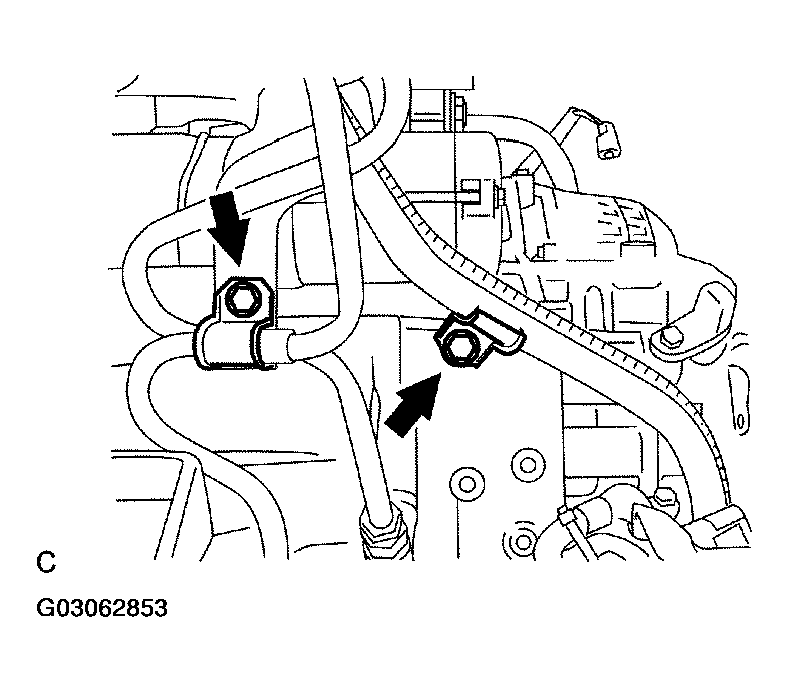

- Remove the bolt and oil cooler tube clamp.
- Remove the 2 bolts and transmission control cable bracket No. 1.
- REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSY
- Remove the ATF level gauge.
- Disconnect the wire harnesses 2 clamps from the oil filler tube.
- Remove the 2 bolts and oil filler tube.
- Remove the O-ring from the oil filler tube.
- REMOVE OIL COOLER INLET TUBE NO. 1

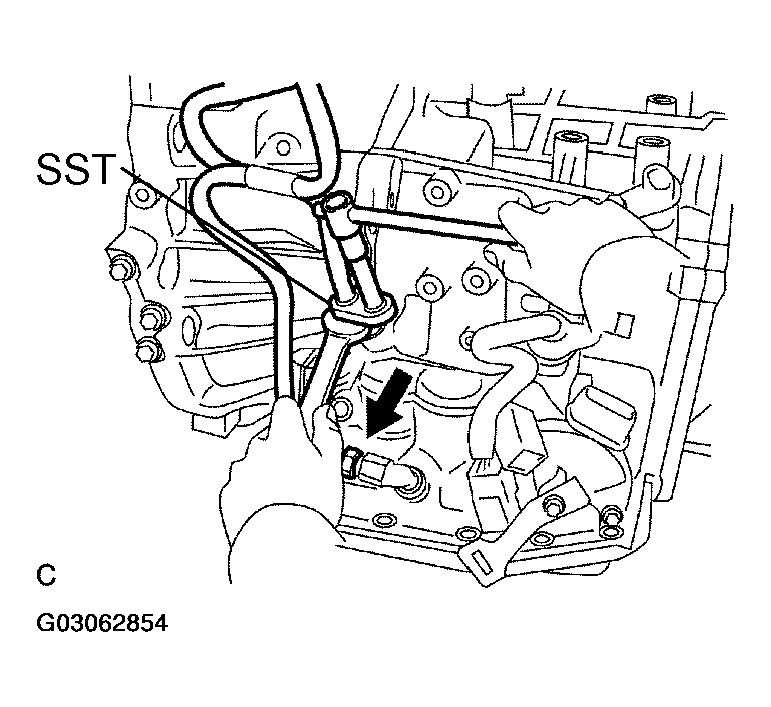

- Using SST and spanner, disconnect the oil cooler inlet tube No. 1.
SST 09023-12700
- Using SST and spanner, disconnect the oil cooler inlet tube No. 1.
- REMOVE OIL COOLER OUTLET TUBE NO. 1

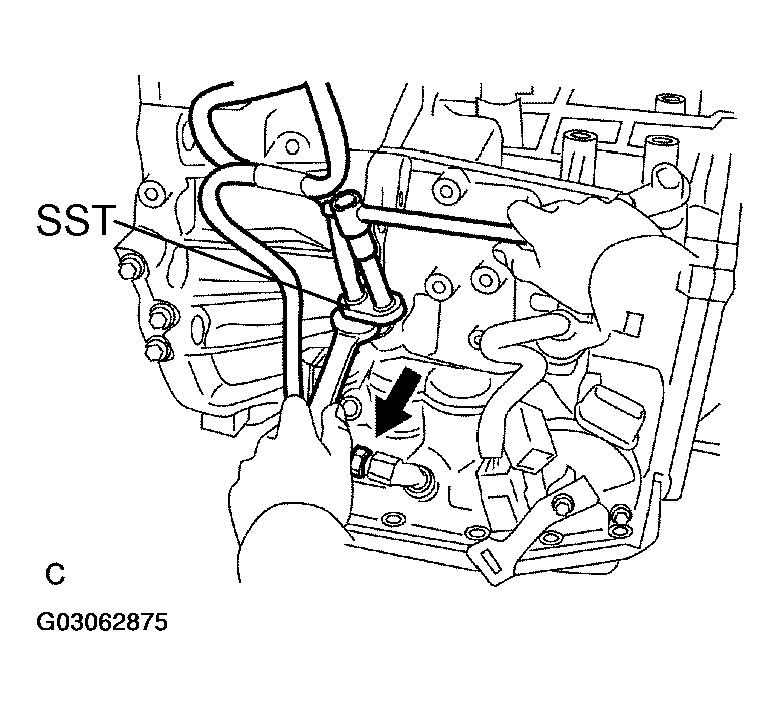

- Using SST and spanner, disconnect the oil cooler outlet tube No. 1.
SST 09023-12700
- Using SST and spanner, disconnect the oil cooler outlet tube No. 1.

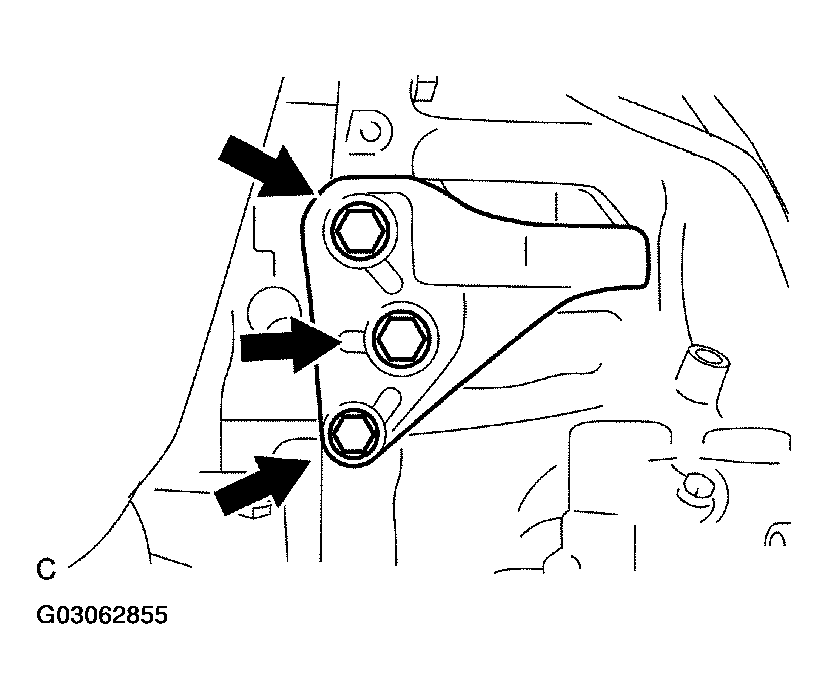

- REMOVE ENGINE MOUNTING BRACKET FR

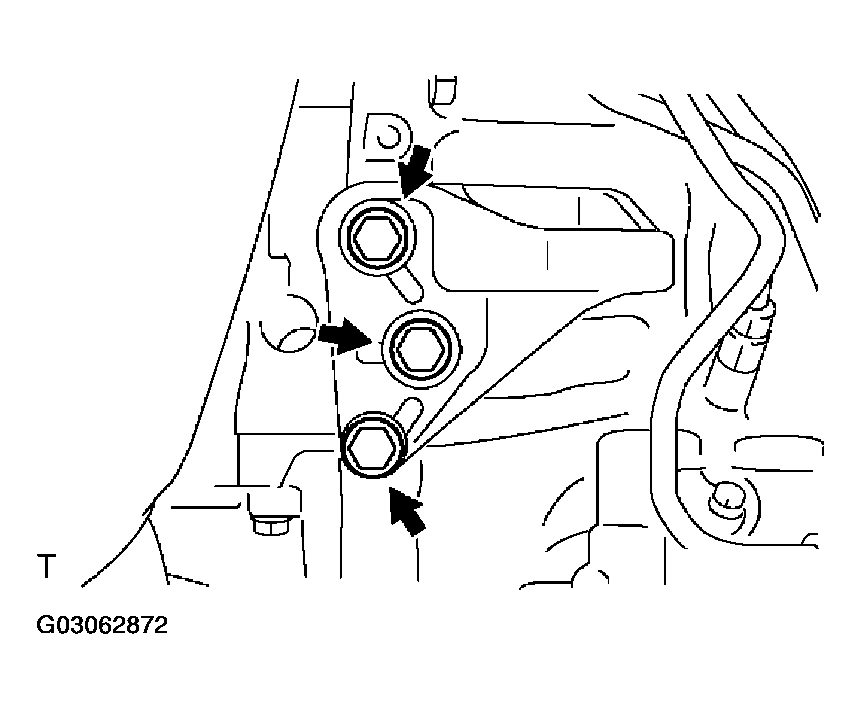

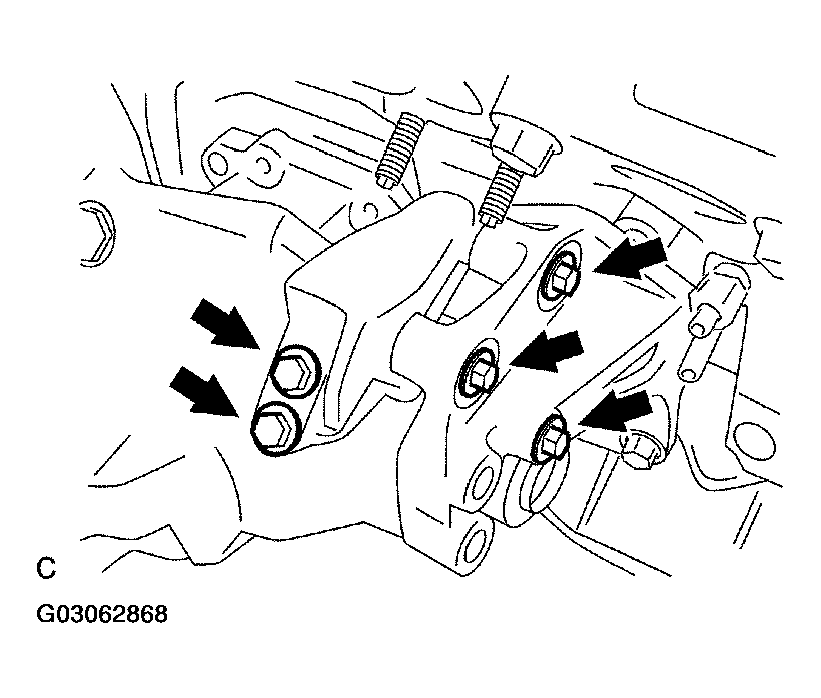

- Remove the 3 bolts and engine mounting bracket FR.
- REMOVE AUTOMATIC TRANSAXLE ASSY (2WD DRIVE TYPE)

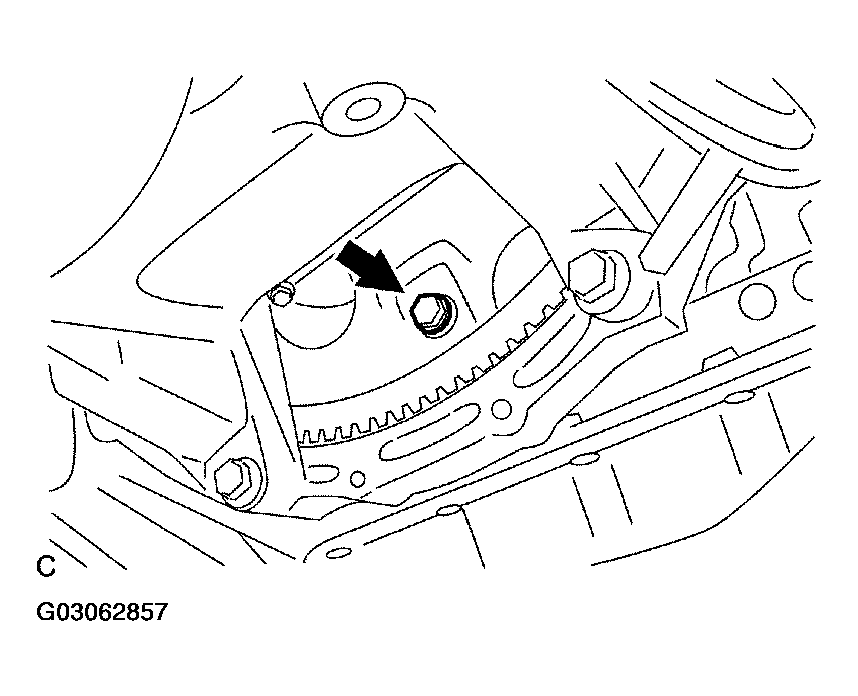

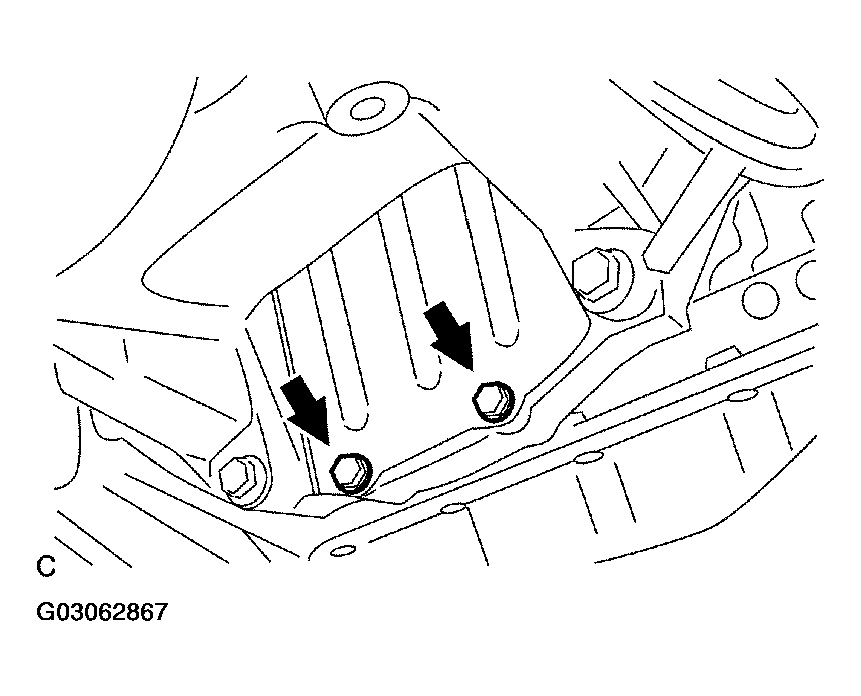

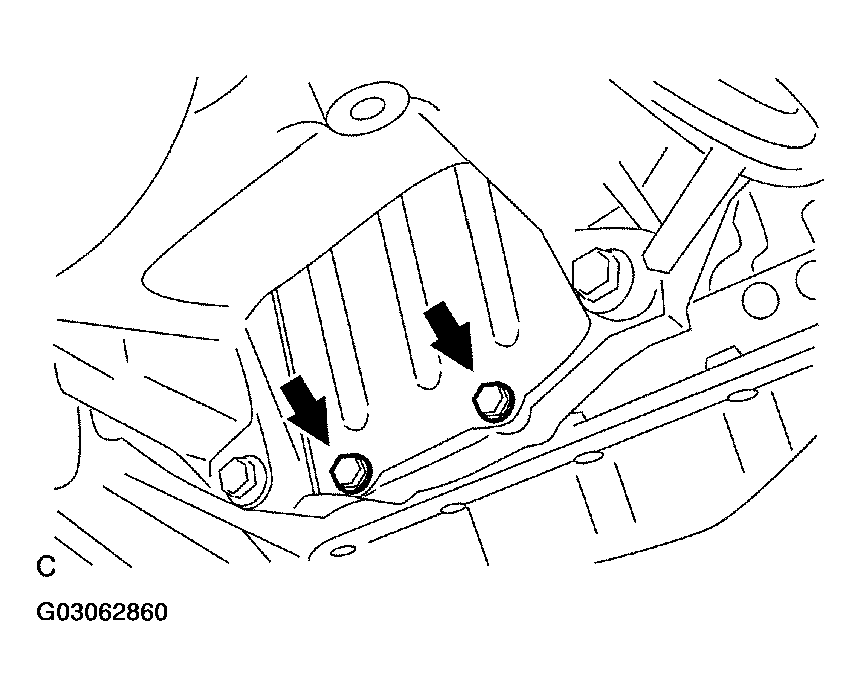

- Remove the 2 bolts and flywheel housing under cover.

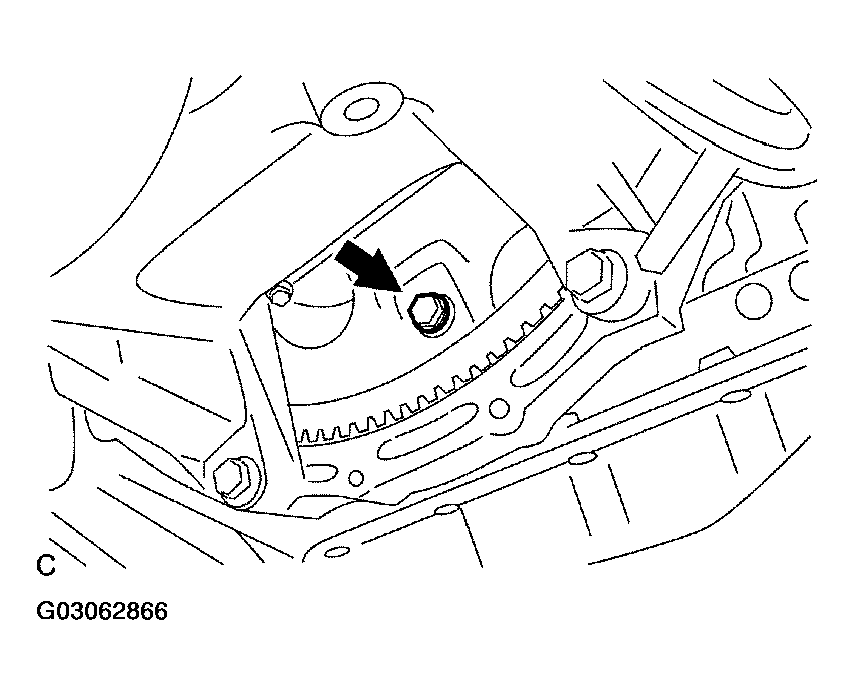

- Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

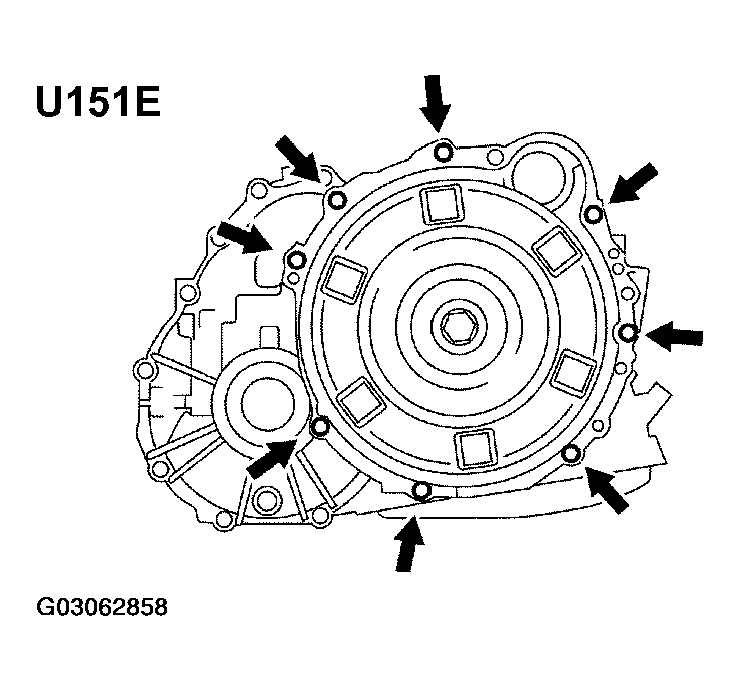

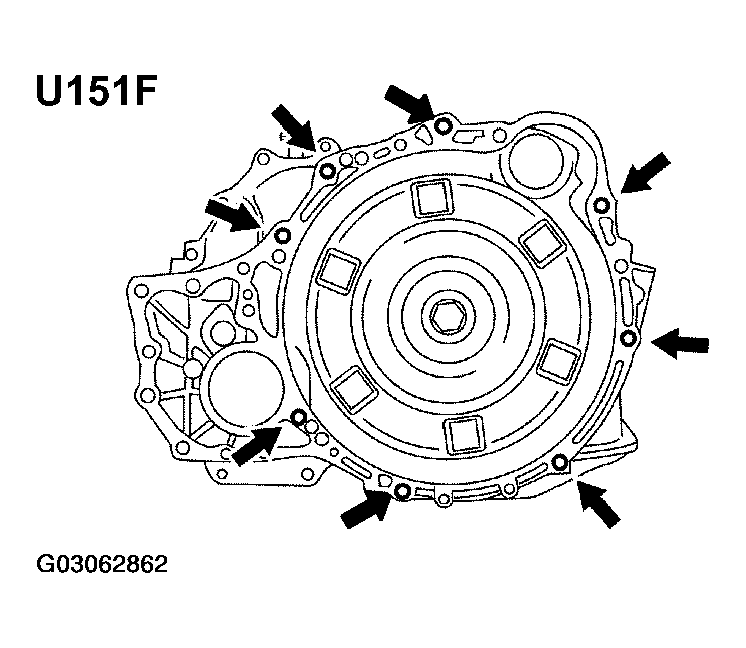

- Remove the 8 bolts.
- Separate and remove the automatic transaxle.
- REMOVE TRANSFER STIFFENER PLATE RH (4WD DRIVE TYPE)
- Remove the 5 bolts, nut and transfer stiffener plate RH.
- REMOVE AUTOMATIC TRANSMISSION W/TRANSFER (4WD DRIVE TYPE)
- Remove the 2 bolts and flywheel housing under cover.
- Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.
- Remove the 8 bolts.
- Separate and remove the automatic transaxle w/transfer.
- REMOVE TRANSFER ASSY (4WD DRIVE TYPE) (See OVERHAUL )
- REMOVE TORQUE CONVERTER CLUTCH ASSY
- INSPECT TORQUE CONVERTER CLUTCH ASSY (See
INSPECTION
)
SST 09350-32014 (09351-32010, 09351-32020)
- INSTALL TORQUE CONVERTER CLUTCH ASSY
- Install the torque converter clutch to the automatic transaxle.

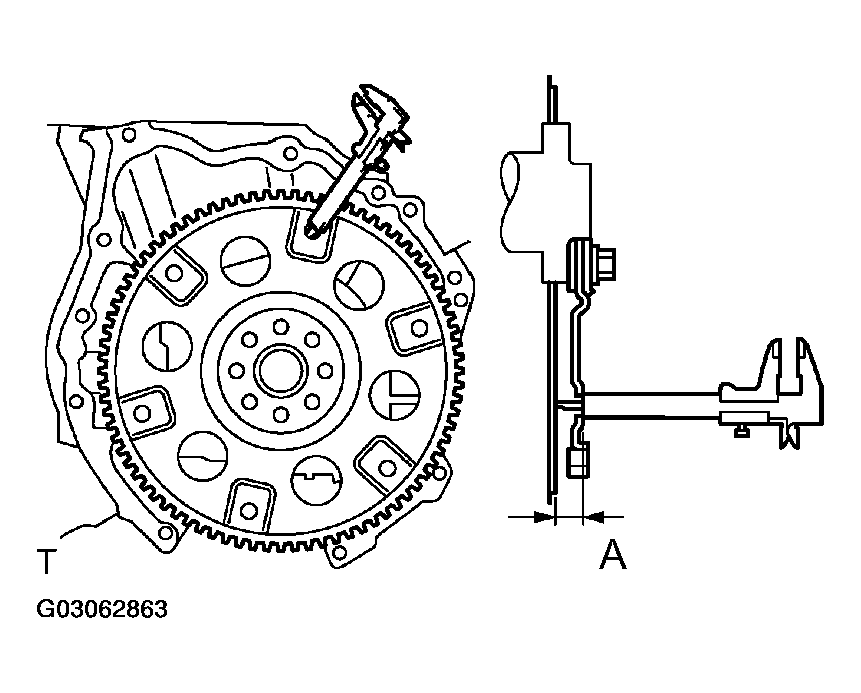

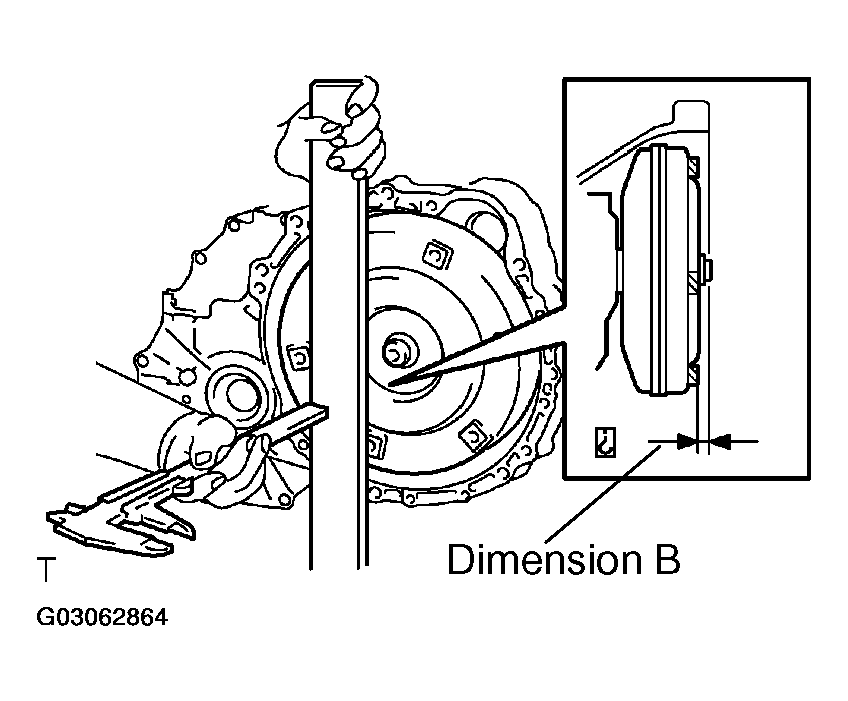

- Using vernier calipers, measure the dimension "A" between the transaxle fitting part the converter fitting part of the drive plate.
- Using vernier calipers and a straight edge, measure the dimension "B" shown in the illustration and check that "B" is greater than "A" measured in (b).
Standard: A + 1 mm or more
NOTE: Do not add the thickness of straight edge. - INSTALL TRANSFER ASSY (4WD DRIVE TYPE) (See OVERHAUL )
- INSTALL AUTOMATIC TRANSMISSION W/TRANSFER (4WD DRIVE TYPE)

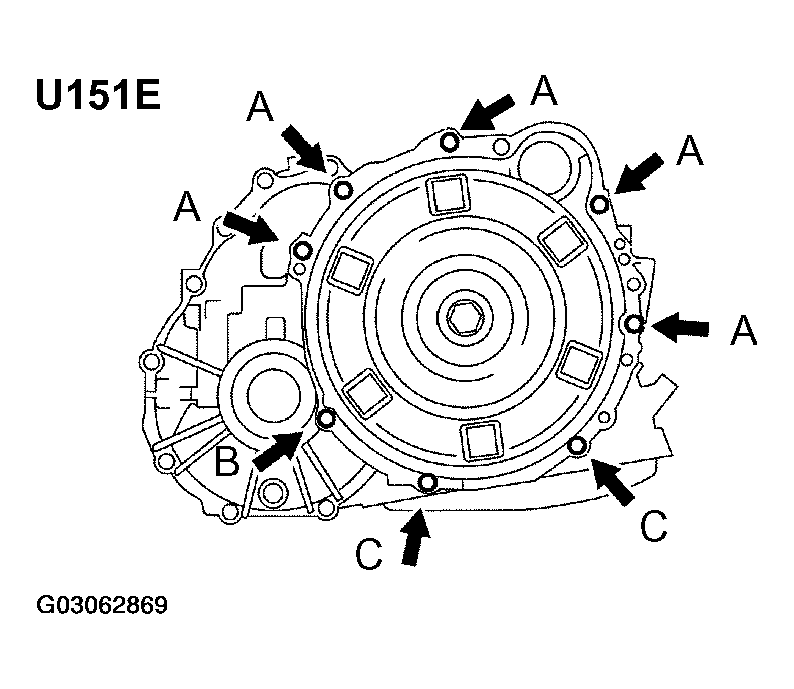

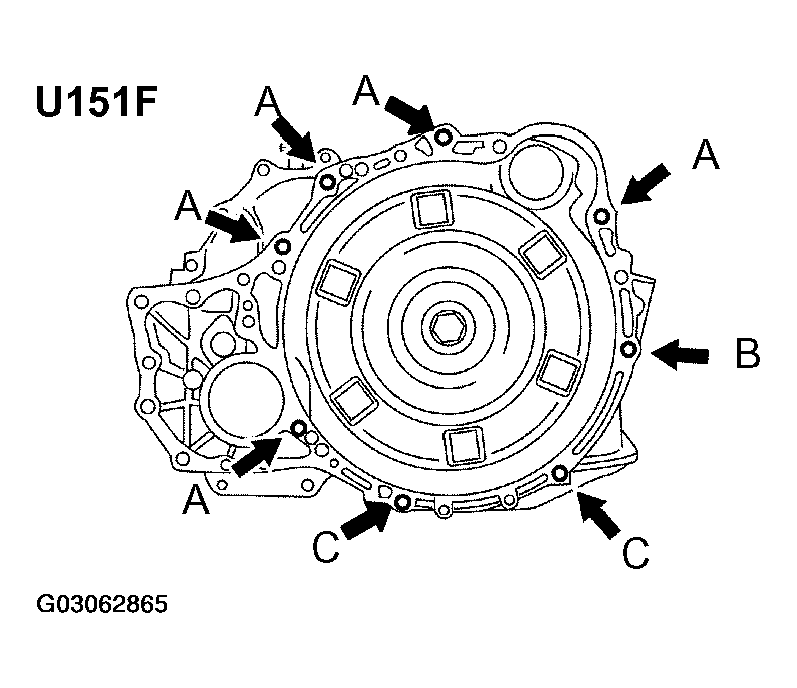

- Install the automatic transaxle w/transfer and 8 bolts to the engine.
Torque:
Bolt A: 64 N.m (650 kgf.cm, 47 ft.lbf)
Bolt B: 46 N.m (470 kgf.cm, 34 ft.lbf)
Bolt C: 37 N.m (377 kgf.cm, 27 ft.lbf)
- Apply a few drops of adhesive to each of 2 threads on the tip of the 6 torque converter clutch mounting bolts.
Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent
- Install the 6 torque converter clutch mounting bolts.
Torque: 48 N.m (489 kgf.cm, 35 ft.lbf)
NOTE: First install green colored bolt and then the 5 bolts. - Install the flywheel housing under cover to the automatic transaxle with the 2 bolts.
Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
- Install the automatic transaxle w/transfer and 8 bolts to the engine.
- INSTALL TRANSFER STIFFENER PLATE RH (4WD DRIVE TYPE)
- Install the transfer stiffener plate RH and 5 bolts to the transfer and engine mounting bracket RR.
Torque: 34 N.m (350 kgf.cm, 25 ft.lbf)
- Install the transfer stiffener plate RH and 5 bolts to the transfer and engine mounting bracket RR.
- INSTALL AUTOMATIC TRANSAXLE ASSY (2WD DRIVE TYPE)
- Install the automatic transaxle and 8 bolts to the engine.
Torque:
Bolt A: 64 N.m (652 kgf.cm, 47 ft.lbf)
Bolt B: 46 N.m (469 kgf.cm, 34 ft.lbf)
Bolt C: 37 N.m (377 kgf.cm, 27 ft.lbf)
- Apply a few drops of adhesive to each of 2 threads on the tip of the 6 torque converter clutch mounting bolts.
Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent
- Install the 6 torque converter clutch mounting bolts.
Torque: 48 N.m (489 kgf.cm, 35 ft.lbf)
NOTE: First install black colored bolt and then the 5 bolts. - Install the flywheel housing under cover to the automatic toransaxie with the 2 bolts.
Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
- Install the automatic transaxle and 8 bolts to the engine.
- INSTALL ENGINE MOUNTING BRACKET FR
- Install the engine mounting bracket FR and 3 bolts to the automatic transaxle.
Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)
- Install the engine mounting bracket FR and 3 bolts to the automatic transaxle.
- INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSY
- Coat a new O-ring with ATF, and install it to the oil filler tube.
- Install the oil filler tube and bolt to the automatic transaxle.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
- Connect the 2 clamps to the oil filler tube.
- Install the ATF level gauge.
- INSTALL OIL COOLER INLET TUBE NO.1
- Temporarily install the oil cooler outlet tube No.1.
- Temporarily install the oil cooler inlet tube No.1.
- Install the oil cooler tube clamp and bolt.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
NOTE: Install the oil cooler tube clamp and bolt so that the oil cooler tube cushion is positioned as shown. - Using SST and spanner, tighten the oil cooler inlet tube No. 1.
SST 09023-12700
Torque: 34 N.m (347 kgf.cm, 25 ft.lbf)
- INSTALL OIL COOLER OUTLET TUBE NO. 1
- Using SST and spanner, tighten the oil cooler outlet tube No. 1.
SST 09023-12700
Torque: 34 N.m (347 kgf.cm, 25 ft.lbf)
- Using SST and spanner, tighten the oil cooler outlet tube No. 1.
- INSTALL TRANSMISSION CONTROL CABLE BRACKET NO. 1
- Install the control cable bracket No.1 and 2 bolts.
Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
- Install the control cable bracket No.1 and 2 bolts.
- CONNECT CONNECTOR
- Connect the 2 transmission with connectors.
- Connect the park/neutral position switch connector.
- Connect the 2 transmission revolution sensor connectors.
- INSTALL STARTER ASSY
- Install the starter assy and 2 bolts.
Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)
- Connect the connectors.
- Install the starter wire and nut.
Torque: 9.8 N.m (100 kgf.cm, 87 in..lbf)
- Install the starter assy and 2 bolts.
- INSTALL WIRE HARNESS
- Install the wire harness and bolt.
Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)
- Install the wire harness and bolt.
- INSTALL WIRE HARNESS CLAMP
- Install the 3 bolts and 2 clamps.
Torque: 8.4 N.m (86 kgf.cm, 74 in..lbf)
- Connect the wire harnesses to the clamps.
- Install the 3 bolts and 2 clamps.
- INSTALL TRANSMISSION CONTROL CABLE BRACKET NO. 2
- Using the detent, install the transmission control cable bracket No. 2 with the bolt.
Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
- Using the detent, install the transmission control cable bracket No. 2 with the bolt.
- INSTALL FRONT DRIVE SHAFT ASSY LH (See REMOVAL & INSTALLATION )
- INSTALL FRONT DRIVE SHAFT ASSY RH (2WD DRIVE TYPE) (See REMOVAL & INSTALLATION )
- INSTALL FRONT DRIVE SHAFT ASSY RH (4WD DRIVE TYPE) (See REMOVAL & INSTALLATION )
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE (See REPLACEMENT )
- RESET MEMORY (See PRE-CHECK )
