Section 212 (Power Back Door System): Components

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

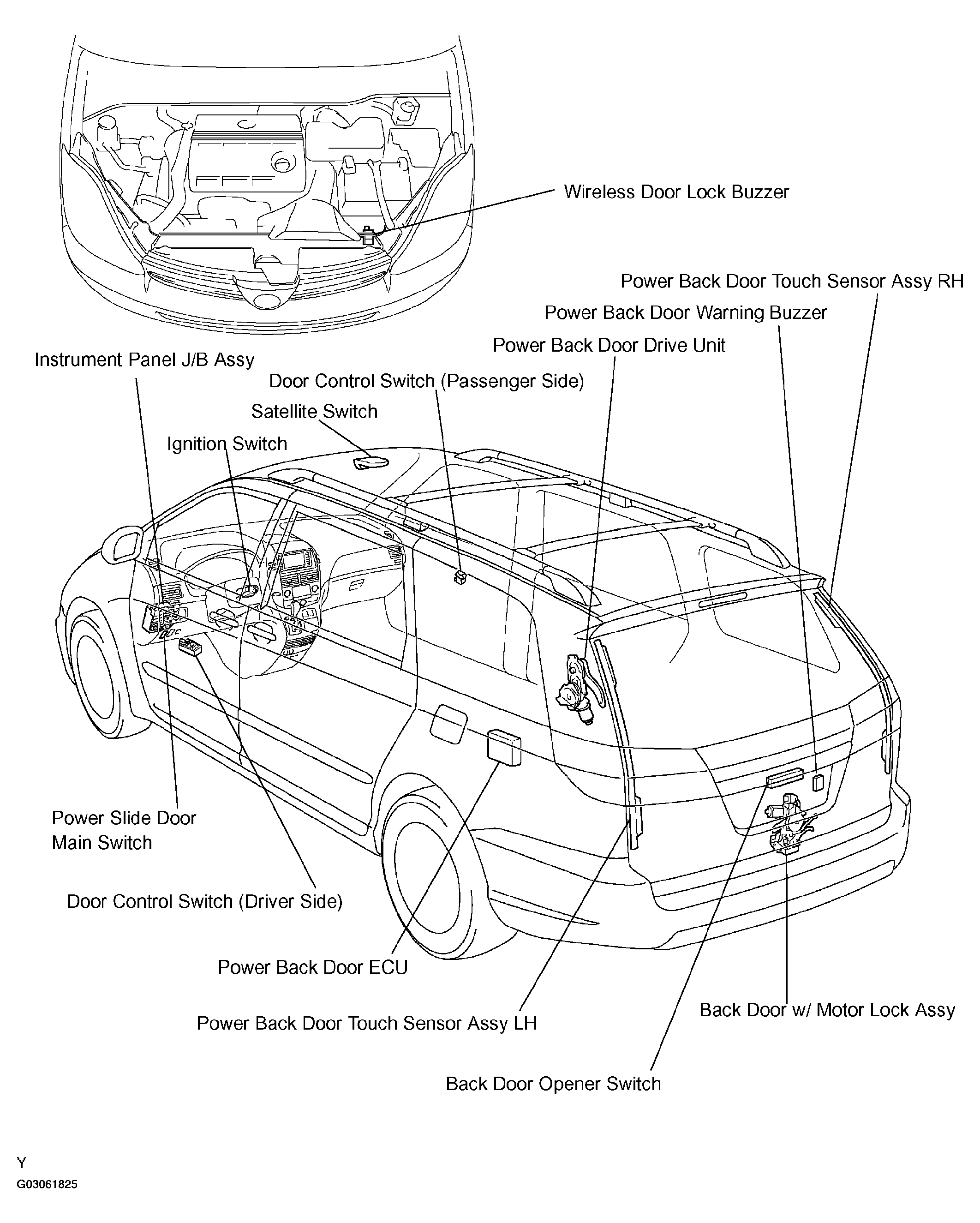

Fig 1: Identifying Power Back Door System Components
G03061825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
