Circuit Description

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

Refer to DTCs P0100  .

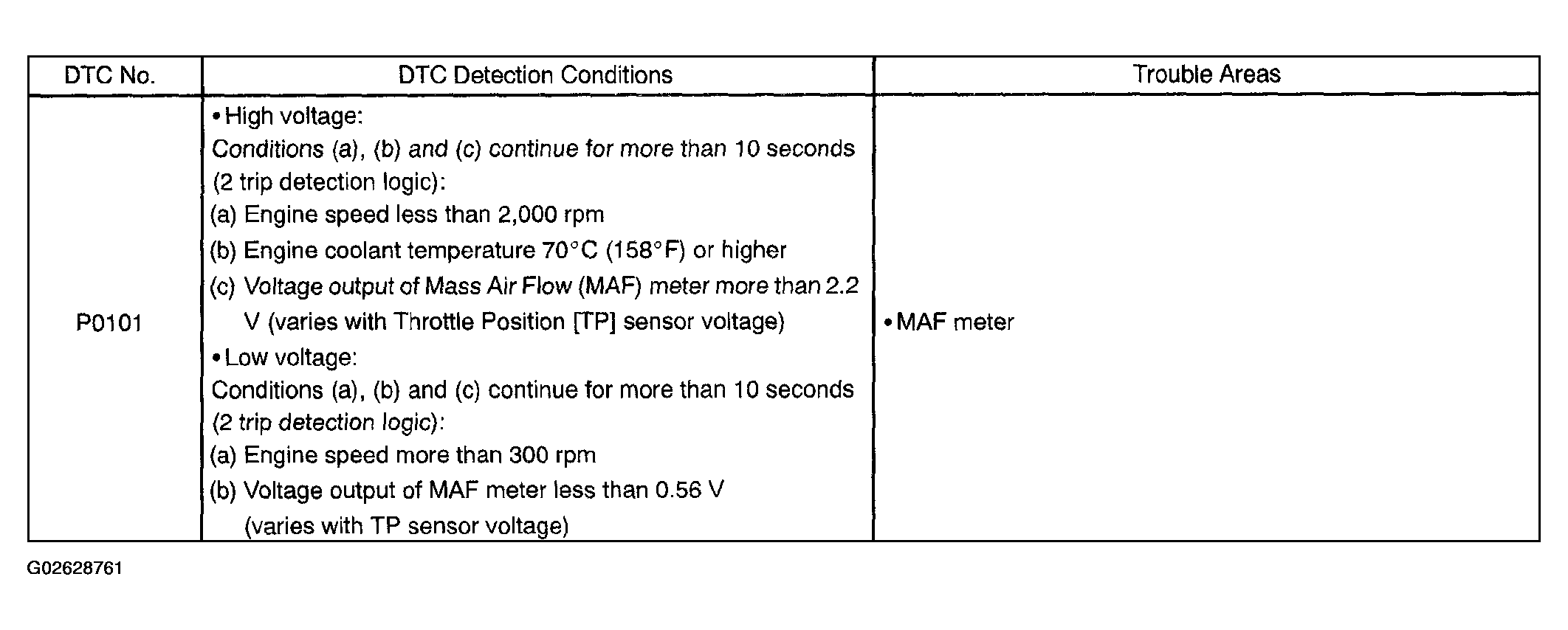

Fig 1: DTC Detecting Condition Table
G02628761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
