ECM Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

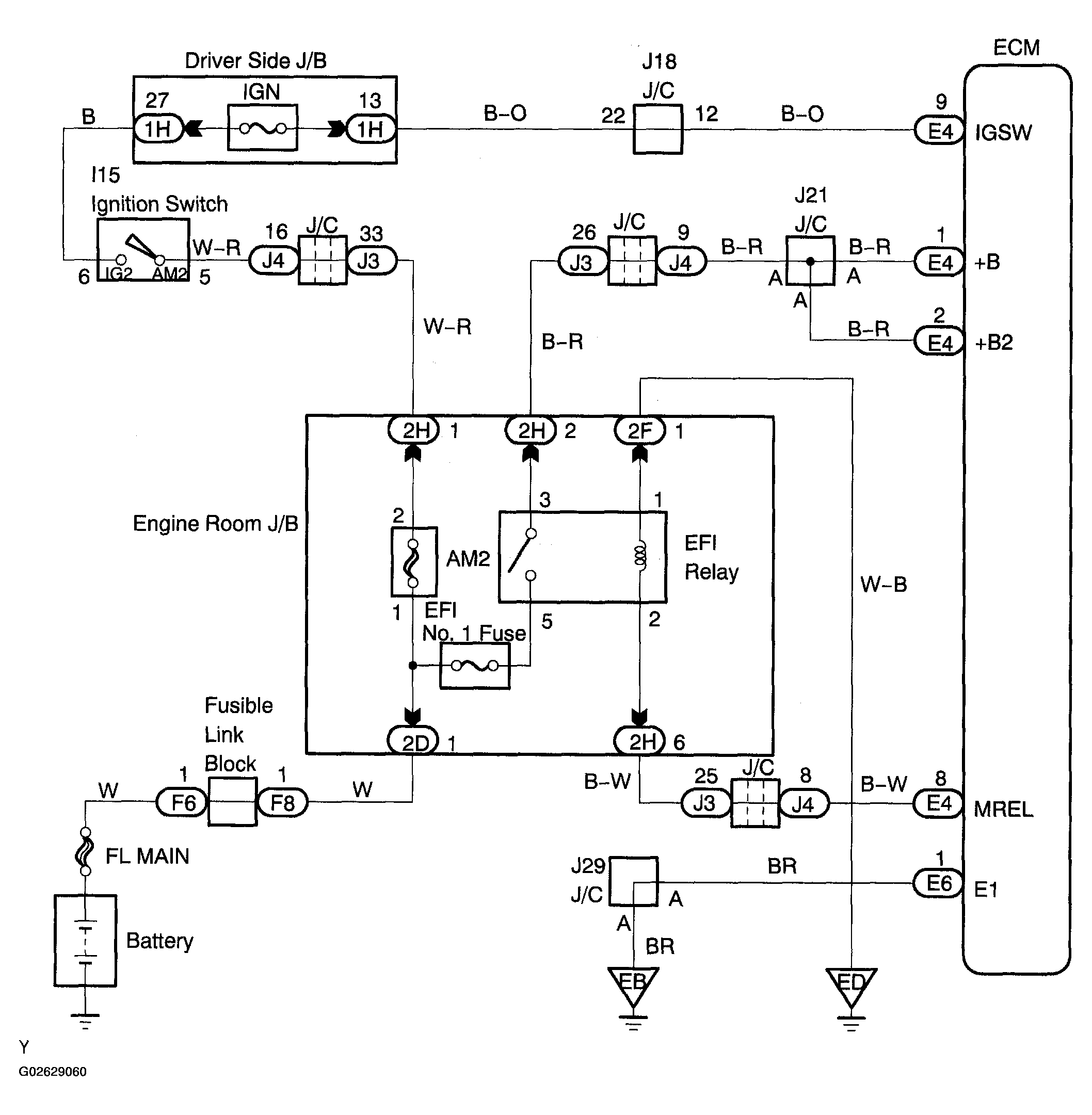

Fig 1: Identifying Wiring Diagram
G02629060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
