Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
Start the inspection from step 1 in the case of using the hand-held tester, and start from step 2 in the case of not using the hand-held tester.
- READ VALUE OF HAND-HELD TESTER
- Connect the hand-held tester to DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the items below in the DATA LIST, and read the displays on the hand-held tester.
BODY NO.1:
AUTOMATIC LIGHT CONTROL SENSOR DIAGNOSIS PROCEDUREItem Measurement Item/ Display (Range) Normal Condition Diagnostic Note LIGHT CTRL TYPE Light control type/ CRNT or OLD Customized sign can be displayed. - - OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- NG: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK BODY ECU - AUTOMATIC LIGHT CONTROL SENSOR)
- Check for open or short circuit in the harness and the connector between the terminal 6 of the automatic light control sensor and the terminal B6-6 of the multiplex network body ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
- Check for open or short circuit in the harness and the connector between the terminal 3 of the automatic light control sensor and the terminal B6-4 of the multiplex network body ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
- Check for open or short circuit in the harness and the connector between the terminal 5 of the automatic light control sensor and the terminal B6-5 of the multiplex network body ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: GO TO NEXT STEP
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY

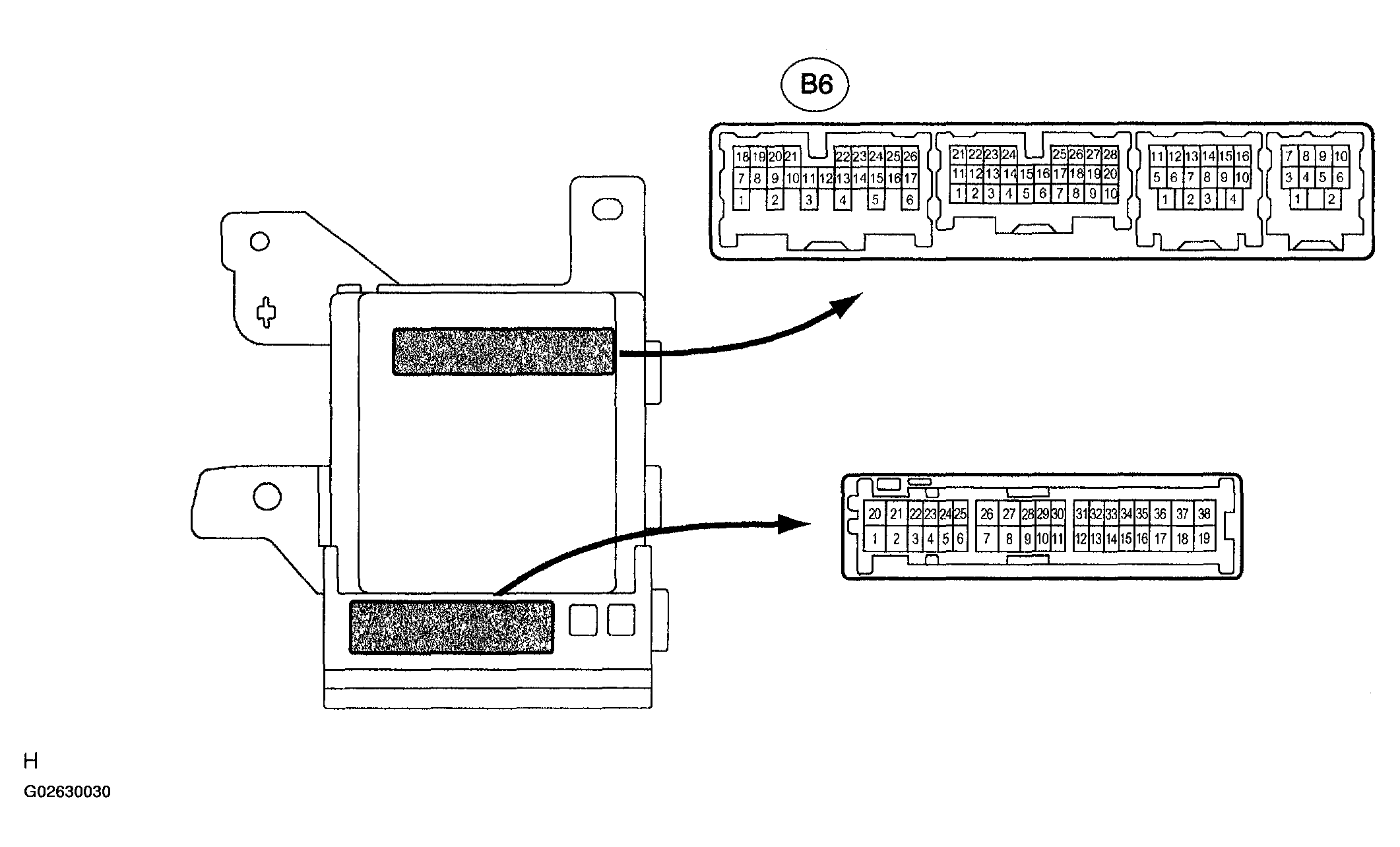

- Measure voltage between the terminal B6-4 and the terminal B6-6 of the multiplex network body ECU in the instrument panel junction block assy.

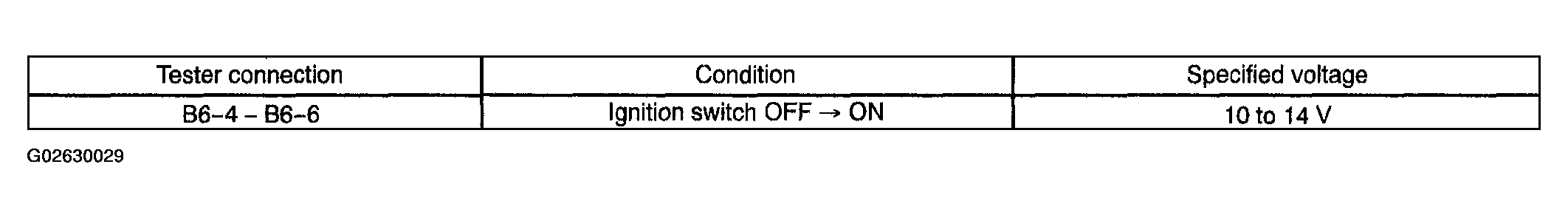

Standard:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPLACE AUTOMATIC LIGHT CONTROL SENSOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Measure voltage between the terminal B6-4 and the terminal B6-6 of the multiplex network body ECU in the instrument panel junction block assy.
